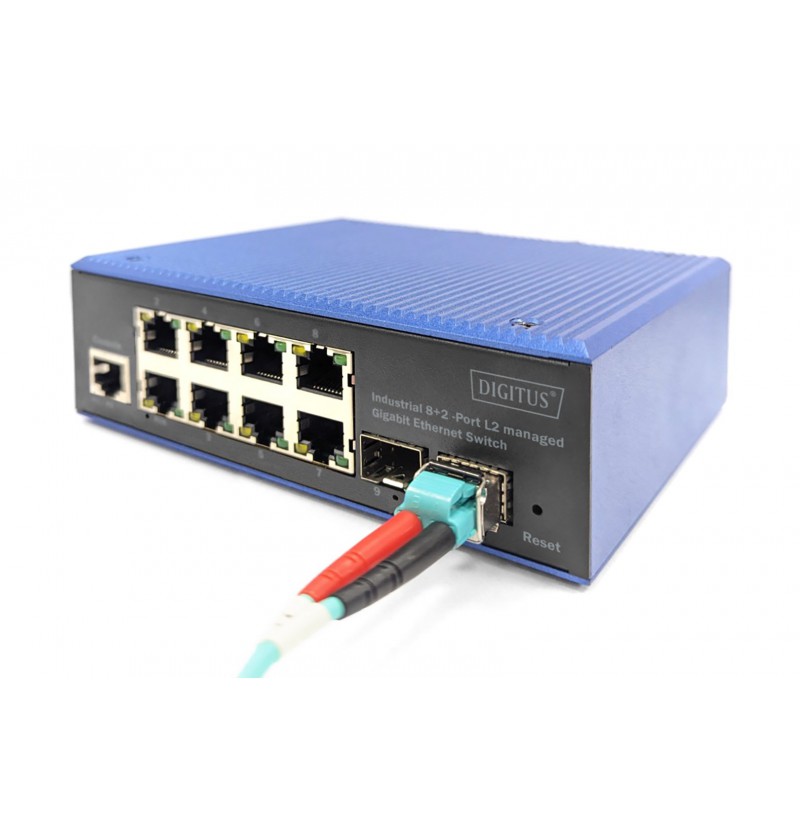

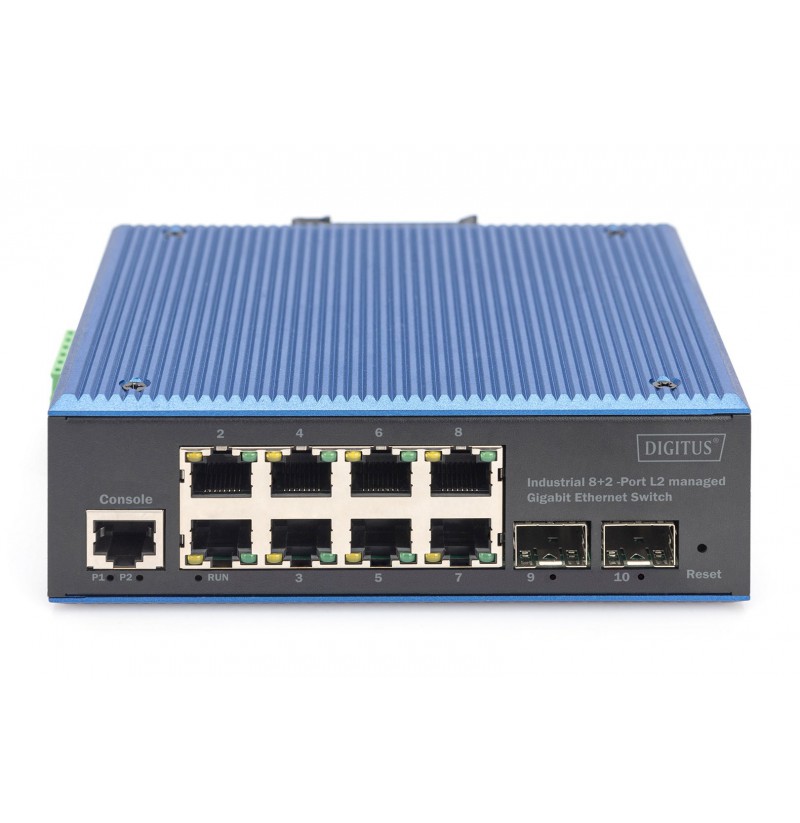

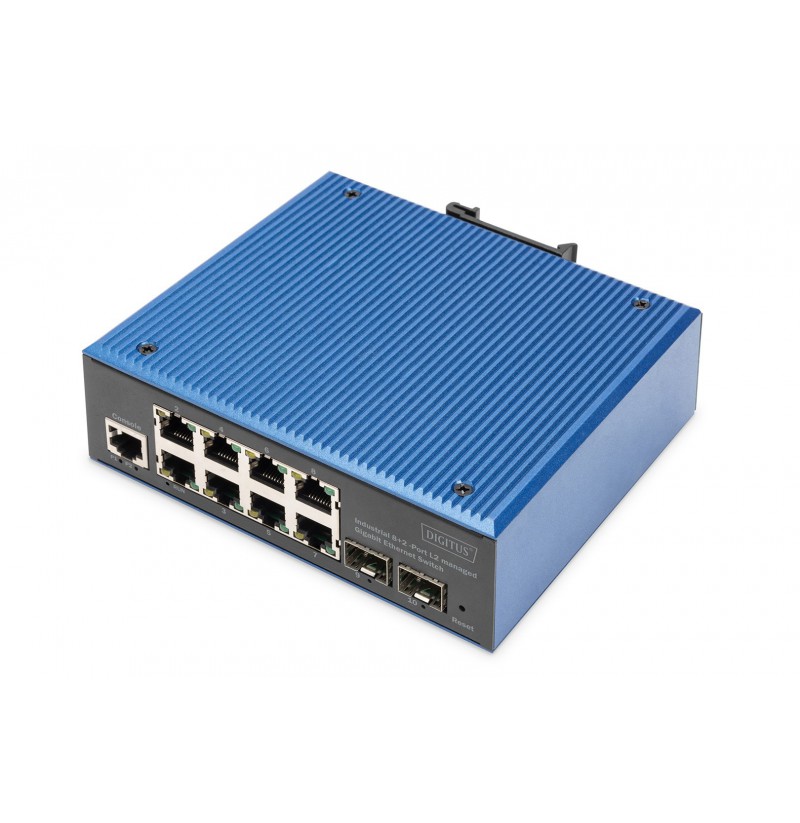

Industrial 8+2 Port L2 Managed Gigabit Switch

Vandal-proof: No

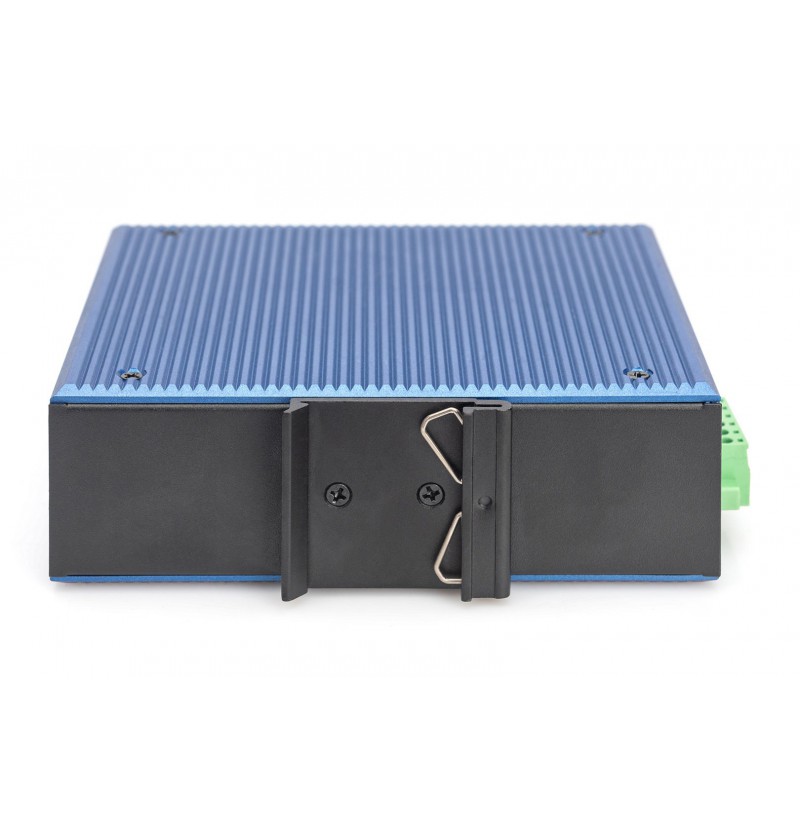

DIN rail mounting: Yes
Rack mounting: No
Housing material: Metal
Product colour: Blue, Black
International Protection (IP) code: IP40
Stackable: No
Suitable for outdoor use: No
Surge protection voltage: 4 kV

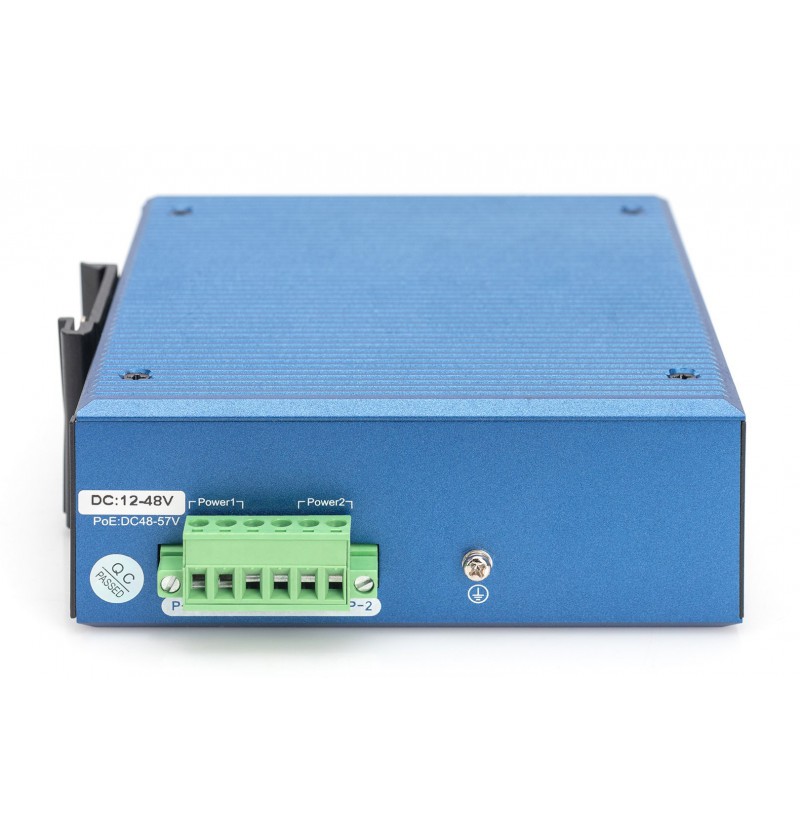

DC input voltage: 12 - 48 V
Power consumption (typical): 10 W
Redundant power supply (RPS) support: Yes
Power source: DC
Power supply included: Yes
Surge protection: Yes
MAC address filtering: Yes
Access Control List (ACL): Yes
IGMP snooping: Yes
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Storage relative humidity (H-H): 5 - 95%
Quality of Service (QoS) support: Yes
Switch layer: L2
Switch type: Managed
Weight: 600 g
Width: 143.7 mm
Depth: 125 mm
Height: 47.7 mm
Half duplex: Yes
VLAN support: No
Ethernet LAN data rates: 10,100,1000 Mbit/s
Full duplex: Yes
Networking standards: IEEE 802.3x
Port mirroring: Yes
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN, Voice VLAN, Protocol-based VLAN
Number of VLANs: 4094
Flow control support: Yes
10G support: No
Link aggregation: Yes
Broadcast storm control: Yes
Mean time between failures (MTBF): 300000 h
Package height: 213 mm
Package width: 158 mm
Package depth: 66 mm
Package weight: 735 g
Package volume: 2221.16 cm³
Quick start guide: Yes
Installed SFP modules quantity: 2
Gigabit Ethernet (copper) ports quantity: 8
Basic switching RJ-45 Ethernet ports quantity: 8
Fiber optic connector: SFP
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Bandwidth: 20 Gbit/s
Ethernet interface type: Gigabit Ethernet
UK Trade Tariff code: 85176200
Country of origin: China
Jumbo frames: 10240
Switching capacity: 1 Gbit/s
Jumbo frames support: Yes
Packet buffer memory: 4.1 MB
MAC address table: 4000 entries
Forwarding rate: 15 Mpps
Store-and-forward: Yes
Power over Ethernet (PoE): No
