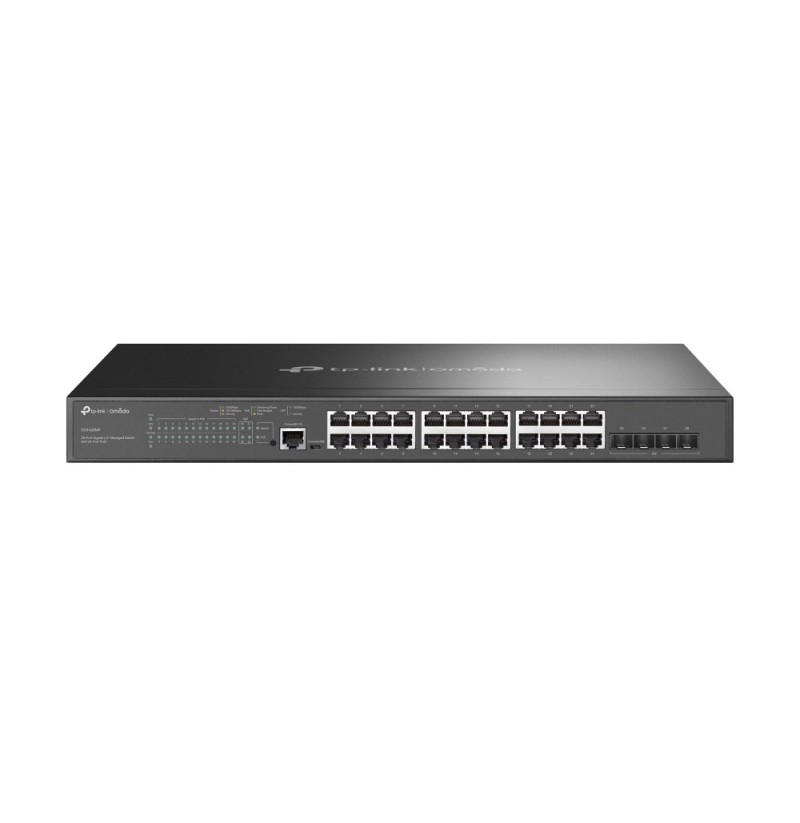

TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+

Form factor: 1U
Number of fans: 2 fan(s)
Rack mounting: Yes
LED indicators: Yes
Product colour: Black
Power consumption (max): 480.1 W
Power source: AC
AC input voltage: 100 - 240 V
Power supply included: Yes
AC input frequency: 50/60 Hz
DHCP features: DHCP server, DHCPv6 snooping, DHCP client, DHCP relay, DHCP snooping, DHCPv6 client
BPDU filtering/protection: Yes
Access Control List (ACL): Yes
Static port security: Yes
Loop protection: Yes
SSH/SSL support: Yes
Authentication: MAC-based authentication, Port-based authentication
IP-MAC-Port binding: Yes
IGMP snooping: Yes
Security algorithms: SSH, SSL/TLS
MAC address filtering: Yes
Heat dissipation: 1637.14 BTU/h
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 45 °C
Storage relative humidity (H-H): 5 - 90%
Operating relative humidity (H-H): 10 - 90%
Switch layer: L2+
System event log: Yes
Switch type: Managed
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
Height: 44 mm
Depth: 330 mm
Width: 440 mm
Number of VLANs: 4000
10G support: No
Port mirroring: Yes
Spanning tree protocol: Yes
Link aggregation: Yes
Active link detection: Yes
IP routing: Yes
Flow control support: Yes
Broadcast storm control: Yes
Virtual LAN features: Voice VLAN, Private VLAN, MAC address-based VLAN, Port-based VLAN, Tagged VLAN
Head-of-line (HOL) blocking: Yes
Rate limiting: Yes
Networking standards: IEEE 802.3at, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3z, IEEE 802.3af, IEEE 802.3u
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T
VLAN support: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Export Control Classification Number (ECCN): EAR99
User guide: Yes
Quick start guide: Yes
Management protocols: SNMPv1/v2c/v3, LLDP/LLDP-MED
GARP VLAN Registration Protocol (GVRP): Yes
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: AC-in jack
Gigabit Ethernet (copper) ports quantity: 24
SFP module slots quantity: 4
Console port: RJ-45/micro-USB
Basic switching RJ-45 Ethernet ports quantity: 24
Packet buffer memory: 12 MB
MAC address table: 16000 entries
Forwarding rate: 41.66 Mpps
Jumbo frames: 9000
Store-and-forward: Yes
Switching capacity: 56 Gbit/s
Jumbo frames support: Yes
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 384 W
Power over Ethernet (PoE): Yes
Multicast support: Yes
