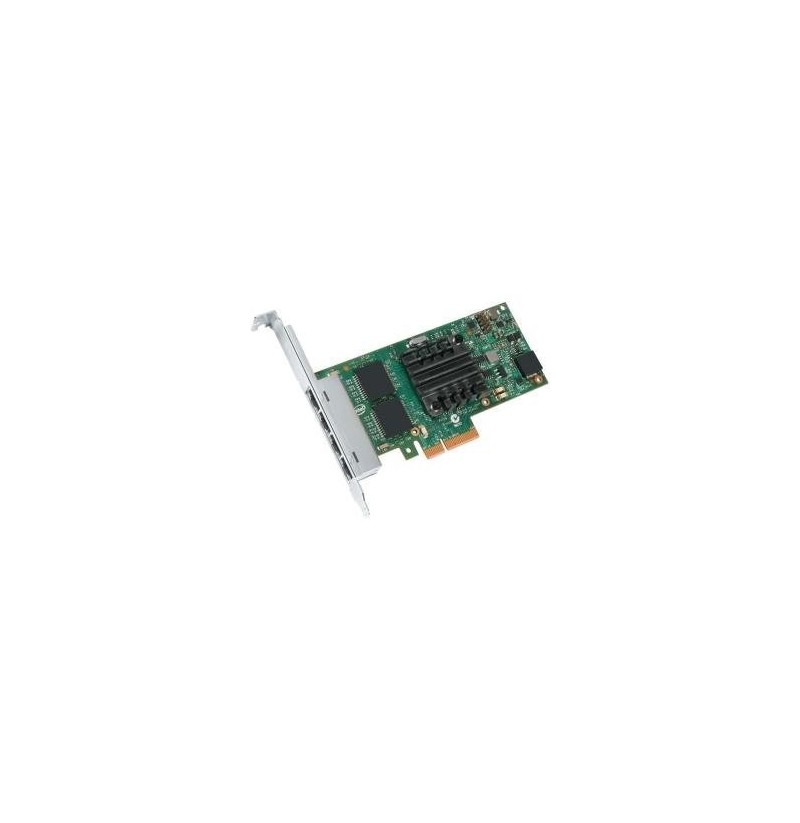

Intel I350T4V2 network card Internal Ethernet 1000 Mbit/s

Product colour: Green, Silver
LED indicators: LAN
Component for: Server
Internal: Yes
Chipset: Intel® I350
Power consumption (typical): 5 W
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 35 - 90%
Width: 68.9 mm
Height: 120 mm
Depth: 135.4 mm
Maximum data transfer rate: 1000 Mbit/s
LAN controller: Intel® I350
Ethernet LAN data rates: 10, 1000 Mbit/s, 100
Networking standards: IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab
Cabling technology: 10/100/1000BaseT(X)
Supported network protocols: TCP, UDP, IP
Ethernet LAN: Yes
iSCSI support: Yes
Full duplex: Yes
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Maximum operating distance: 100 m
Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Linux operating systems supported: SuSE Linux 11, RedHat EL Linux 5.0, RedHat EL Linux 6.0, SuSE Linux 10
Server operating systems supported: Windows Server 2008 R2, Windows Server 2003 R2
Ethernet LAN (RJ-45) ports: 4
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
PCI Card form factor: Half-height (low-profile)
PCI version: 2.1
Processor family: Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Embedded options available: No
Thermal Design Power (TDP): 5 W
Interface type: PCIe v2.1 (5.0 GT/s)
Intel Trusted Execution Technology: No
Product type: Network Interface Card
Product codename: Powerville
PCI-SIG* SR-IOV Capable: Yes
Intel Ethernet Power Management: Yes
Product series: Intel® I350
Fiber Channel over Ethernet: No
Thermal power: 5 W
Network interface card type: Server
Intel Data Direct I/O Technology: No
Commodity Classification Automated Tracking System (CCATS): NA
Intel Virtualization Technology for Connectivity (VT-c): Yes
Bracket height: Low-Profile (LP) / Full-Height (FH)
Storage Over Ethernet: iSCSI, NFS
On-chip QoS and Traffic Management: Yes
Status: Launched
Intel Flexible Port Partitioning: Yes
Controller type: Intel I350
iWARP/RDMA: No
Launch date: Q3'14
Intel Virtual Machine Device Queues (VMDq): Yes
Product family: Intel Gigabit server adapter
Low halogen options available: No
Export Control Classification Number (ECCN): 5A991
Product name: Intel Ethernet Server Adapter I350-T4V2
Cable type: Cat 5 up to 100m
Message signal interrupt: No
Speed & slot width: 5.0 GT/s, x4 Lane
Intelligent Offloads: Yes
Product brief URL: http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Born on date: Q3'14
Last change: 63903513
Number of QPI links: Quad
Storage-over-ethernet: Yes
Market segment: Server
Ethernet adapter ARK ID: 84805
Cabling type: Cat 5 up to 100m
Network interface card cable medium: Copper
Harmonized System (HS) code: 85176990
