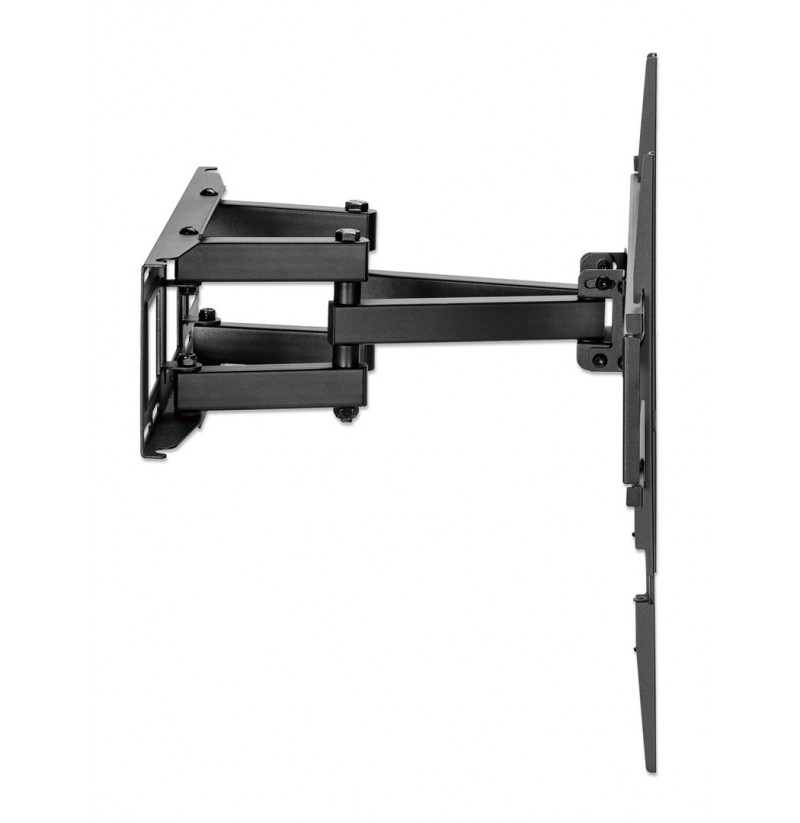

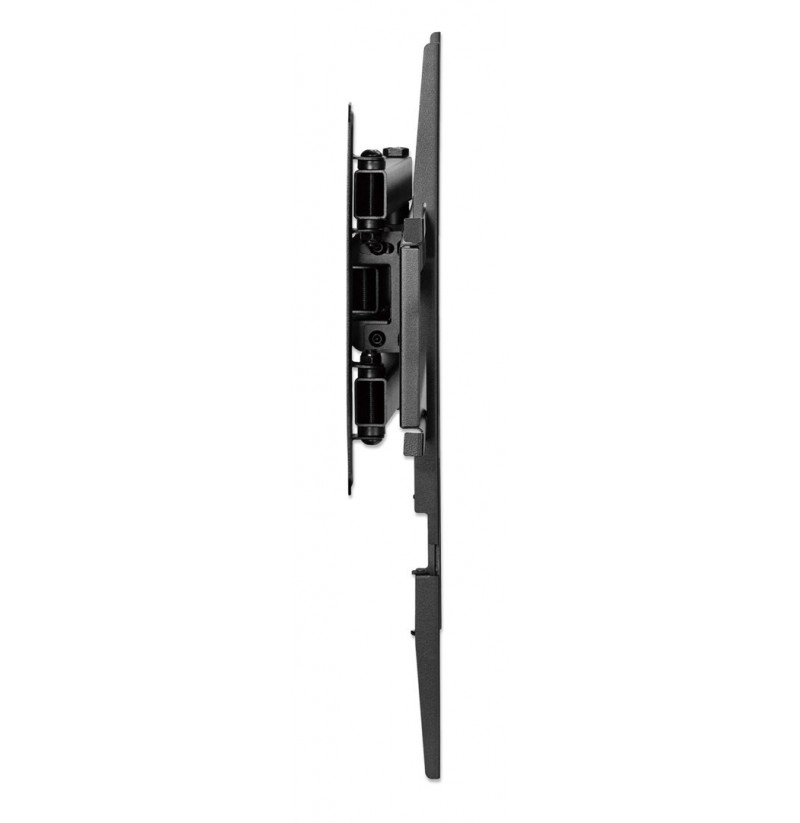

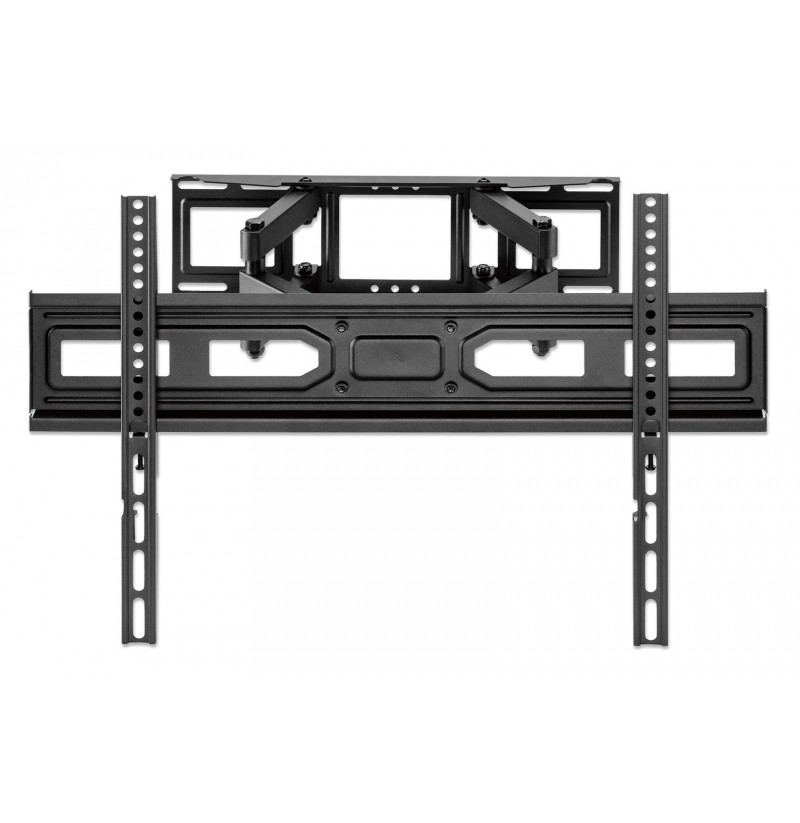

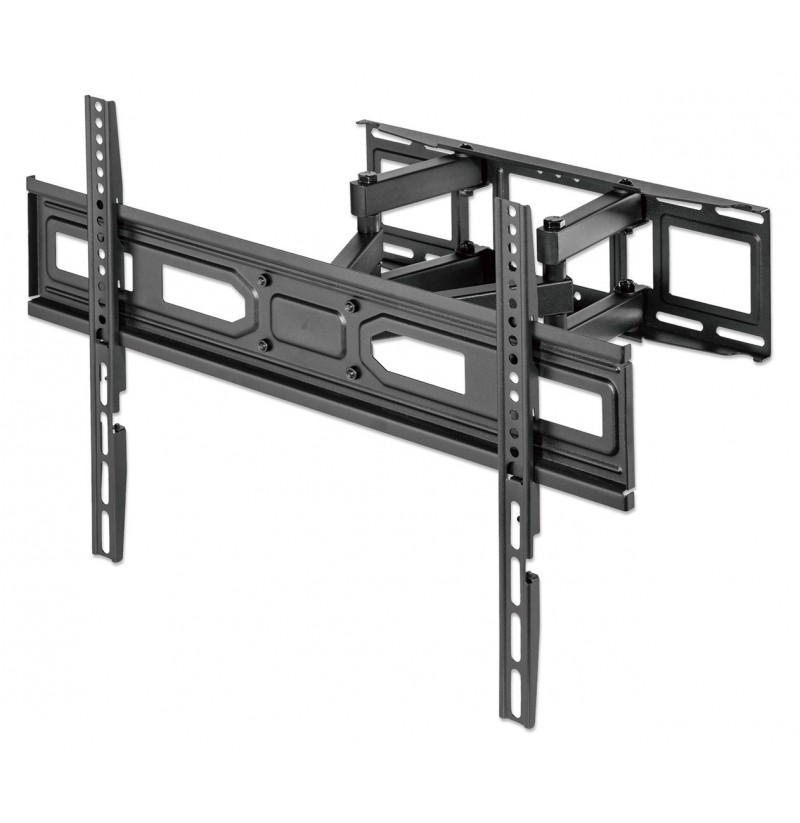

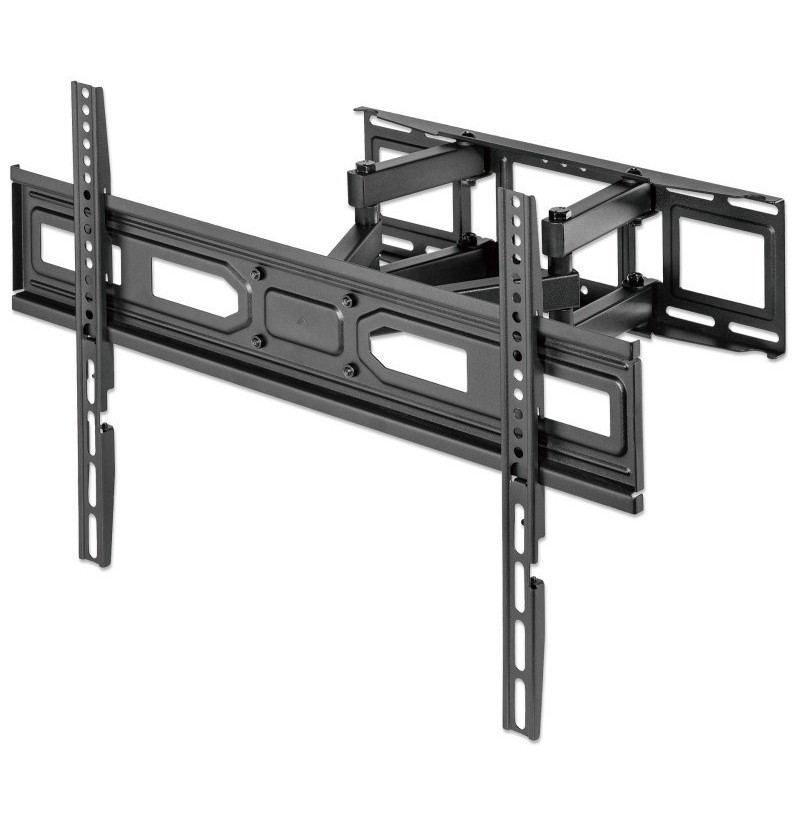

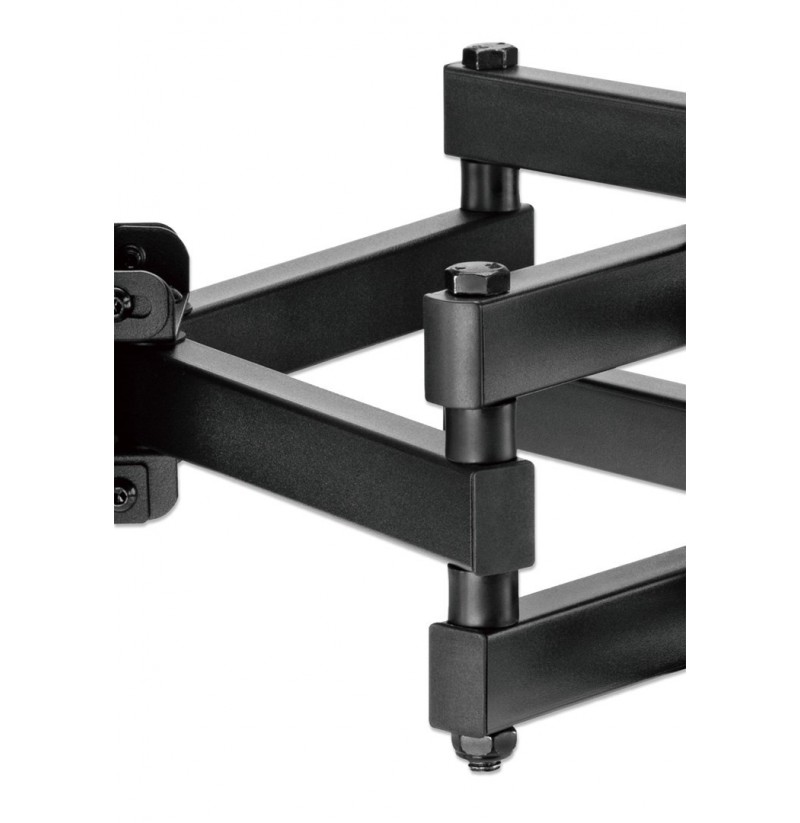

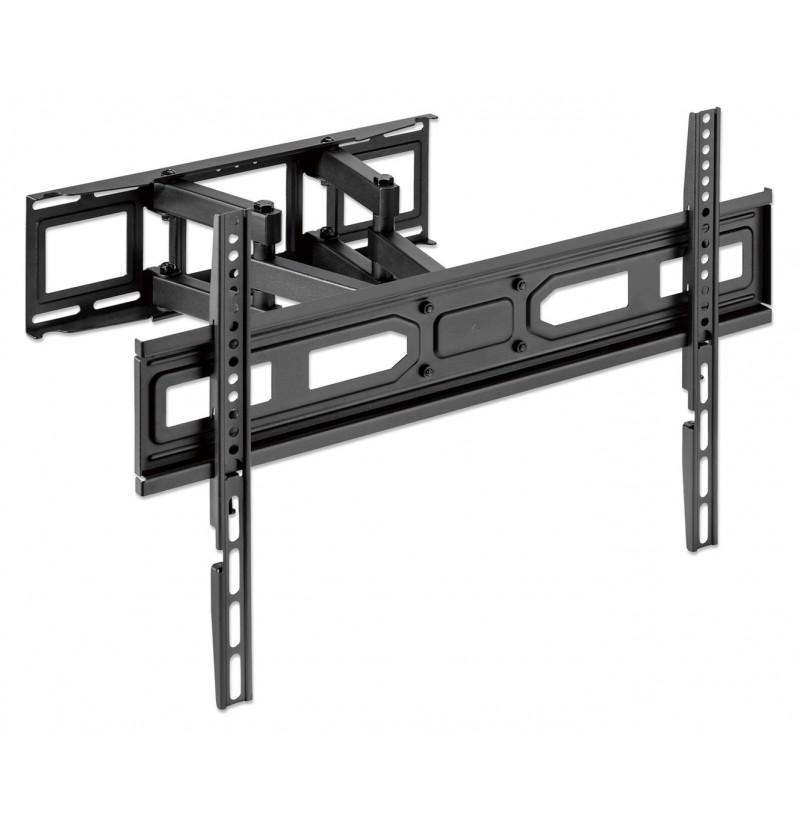

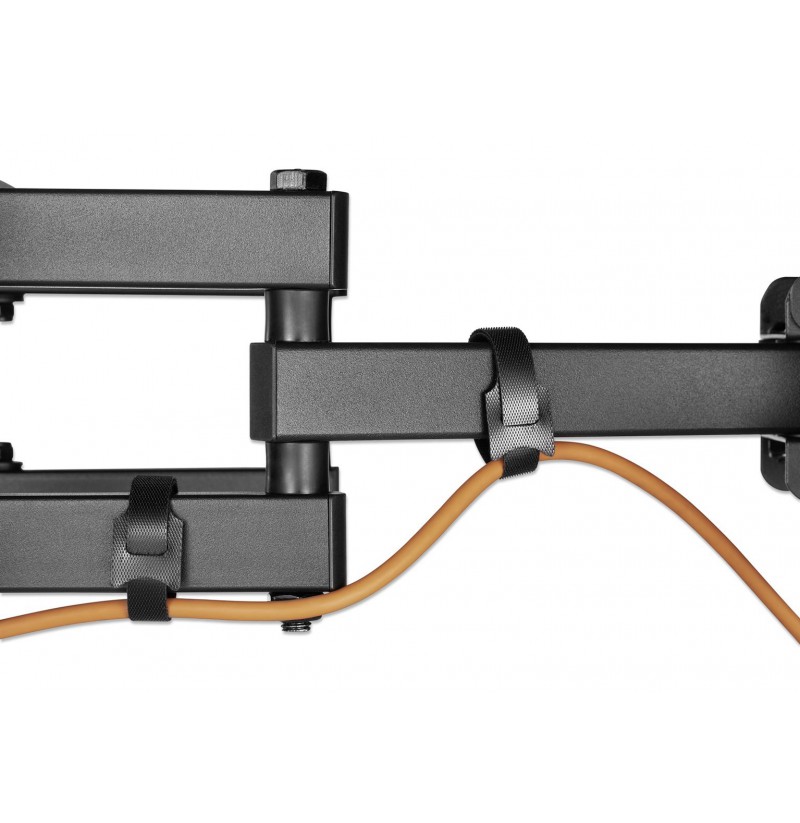

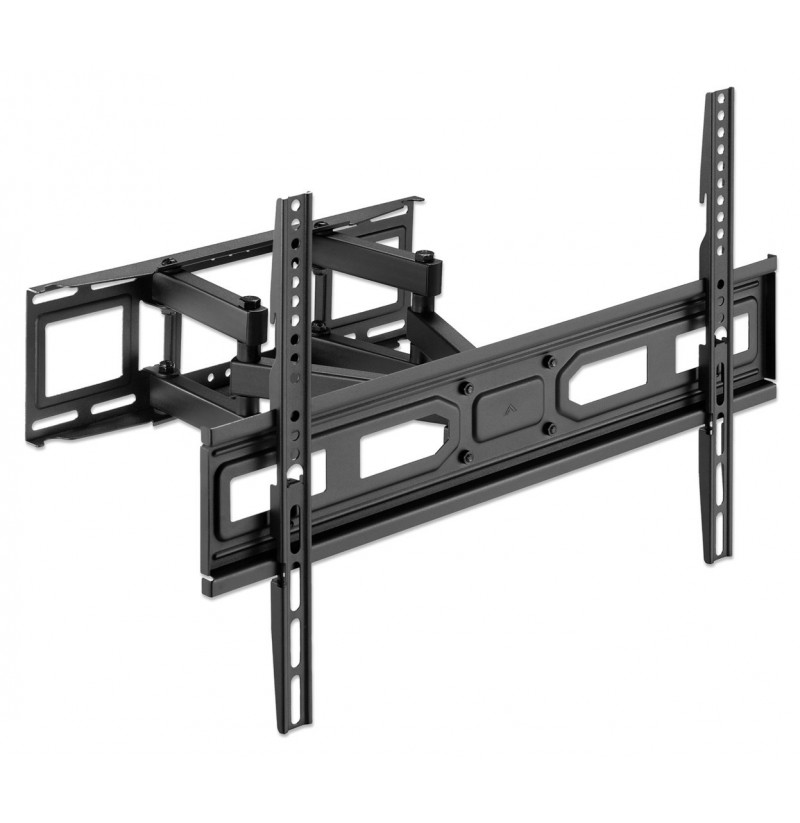

Wall mount bracket for TV 37-80" LED/LCD 40kg tilt

Warranty period: 10 year(s)
Quantity per pack: 1 pc(s)
Post-installation leveling roll: Yes
Orientation: Landscape
Product colour: Black
Housing material: Steel
Weight: 3.4 kg
Depth (max): 35.5 cm
Width: 640 mm
Height: 420 mm
Package width: 645 mm
Package weight: 3.92 kg
Package type: Box
Package height: 155 mm
Package depth: 62 mm
Manual: Yes
Mounting kit: Yes
Suitable for curved screen: Yes
Tilt angle range: -15 - 3°
Swivelling: Yes
Swivel angle range: -60 - 60°
Distance to the wall (max): 35.5 cm
Adjustable depth: Yes
Distance to the wall (min): 6.7 cm
Tilt adjustment: Yes
Master (outer) case gross weight: 24.7 kg
Master (outer) case length: 330 mm
Master (outer) case width: 660 mm
Products per master (outer) case: 6 pc(s)
Master (outer) case height: 205 mm
Maximum screen size: 2.03 m (80")
Panel mounting interface: 100 x 100, 200 x 100, 200 x 200, 600 x 400, 400 x 400, 300 x 300, 400 x 200, 400 x 300, 600 x 300, 150 x 150, 100 x 200, 300 x 200, 600 x 200, 100 x 150, 150 x 100
Mounting type: Wall
Maximum VESA mount: 600 x 400 mm
Number of displays supported: 1
Maximum weight capacity: 40 kg
Minimum VESA mount: 100 x 100 mm
Minimum screen size: 94 cm (37")
