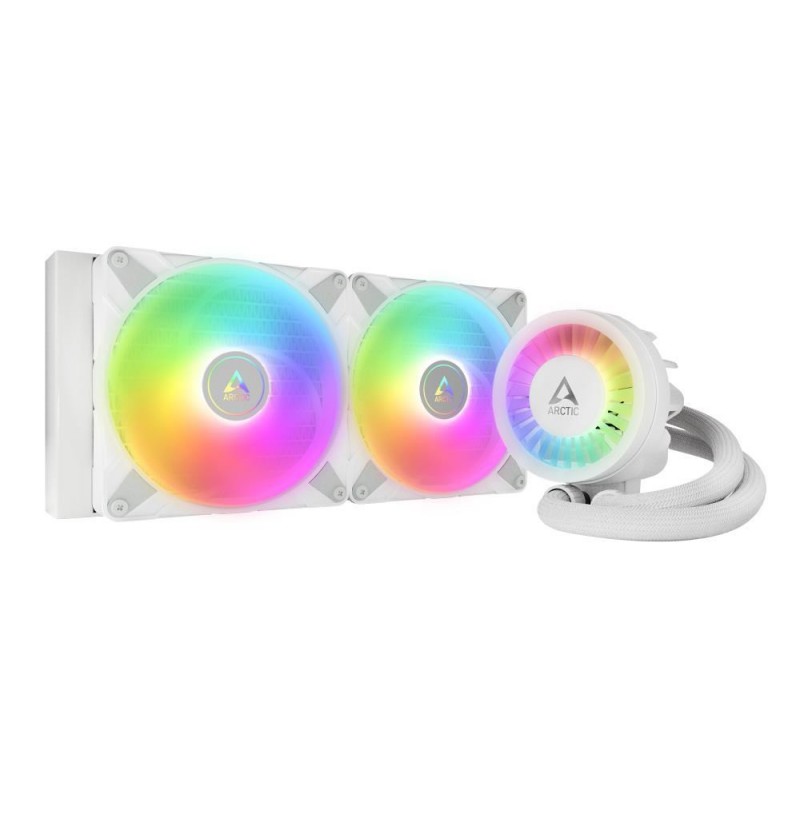

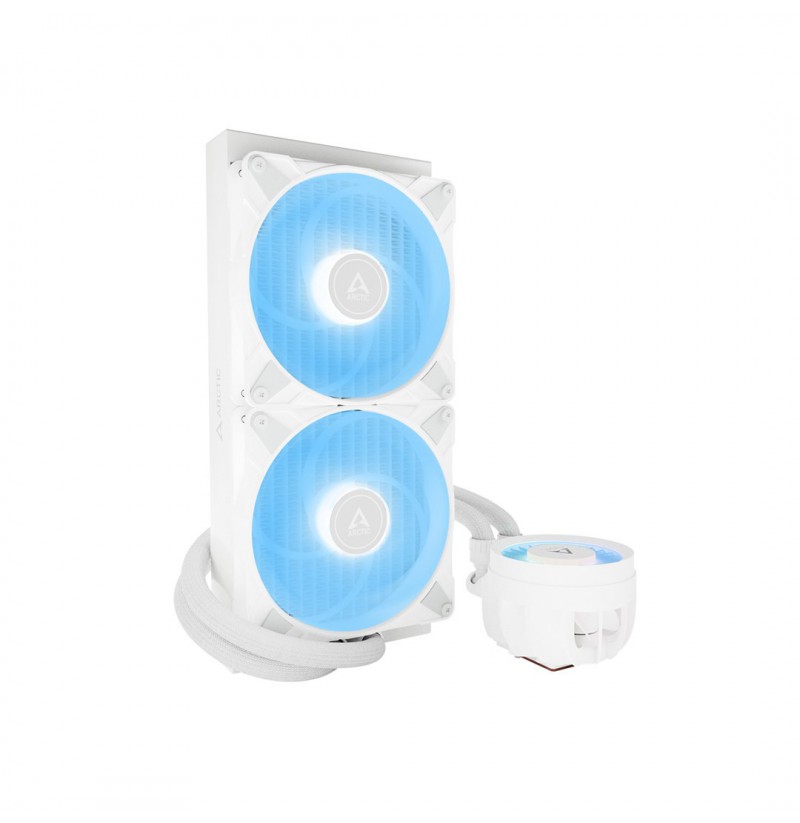

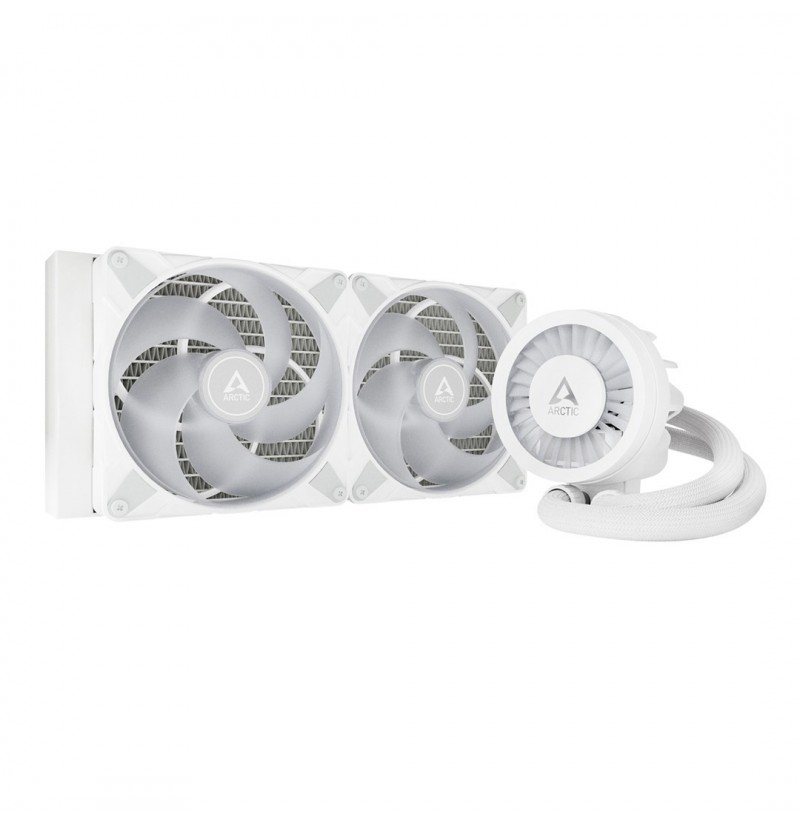

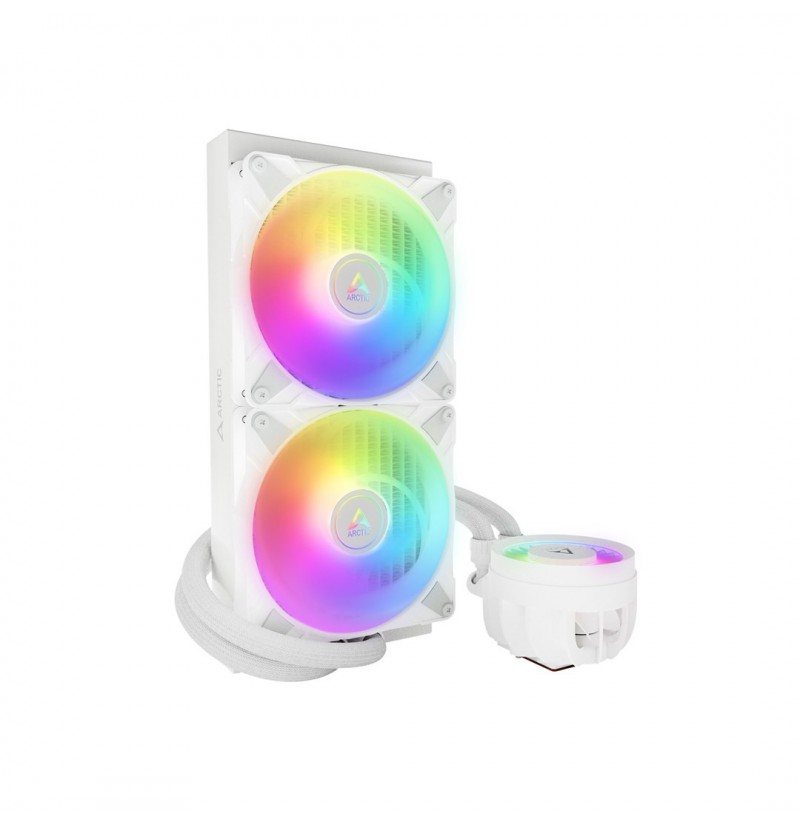

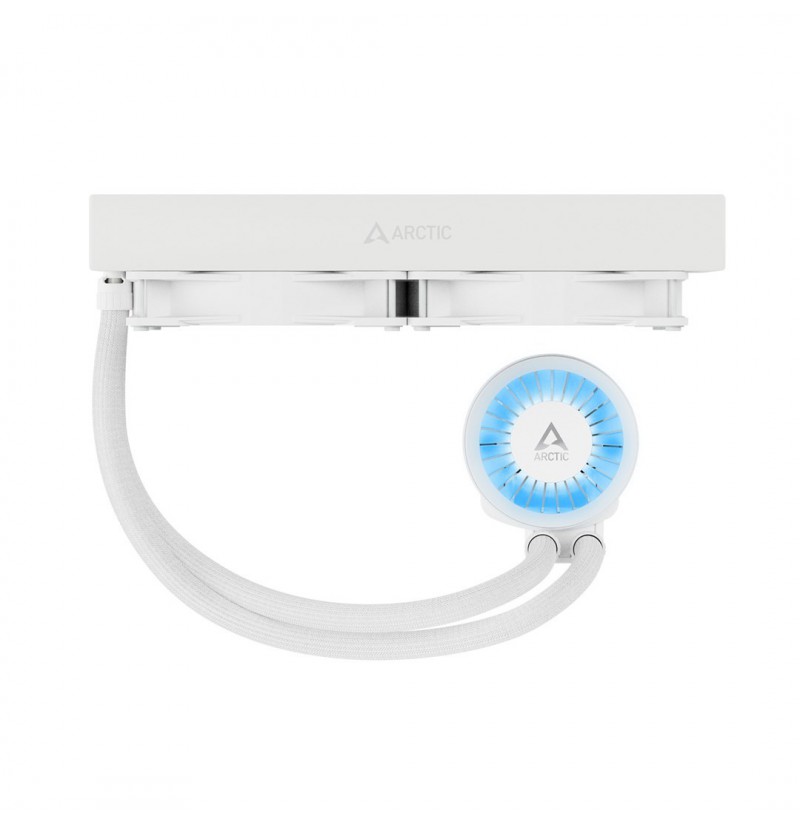

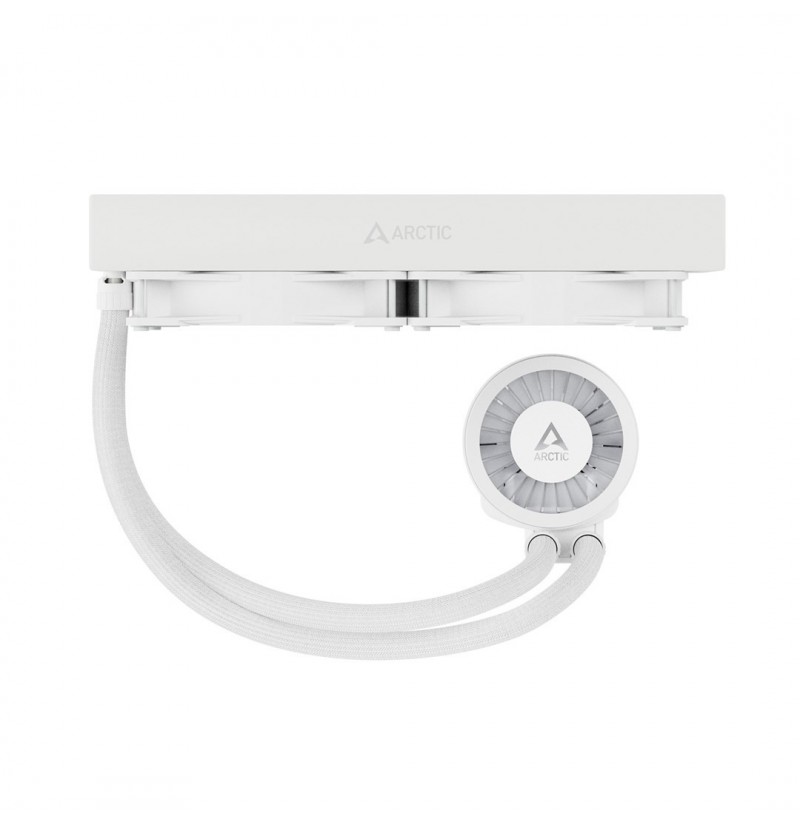

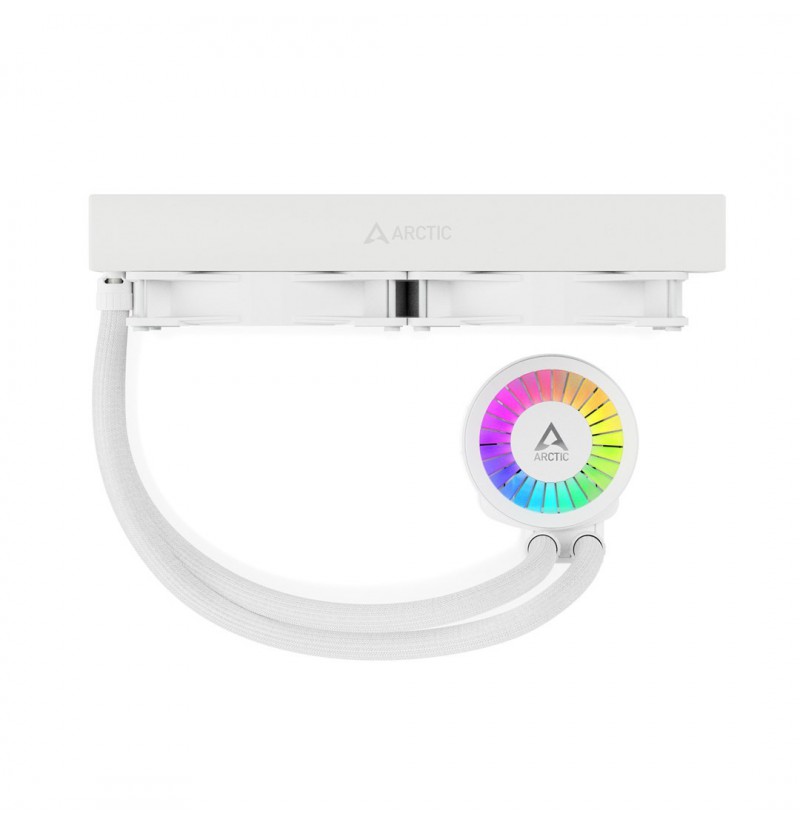

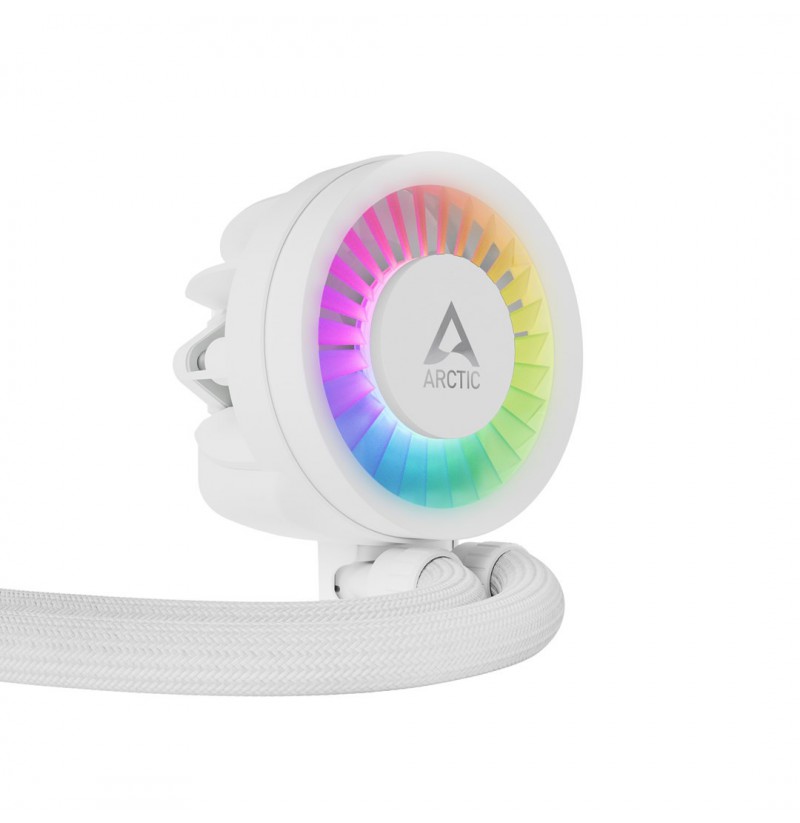

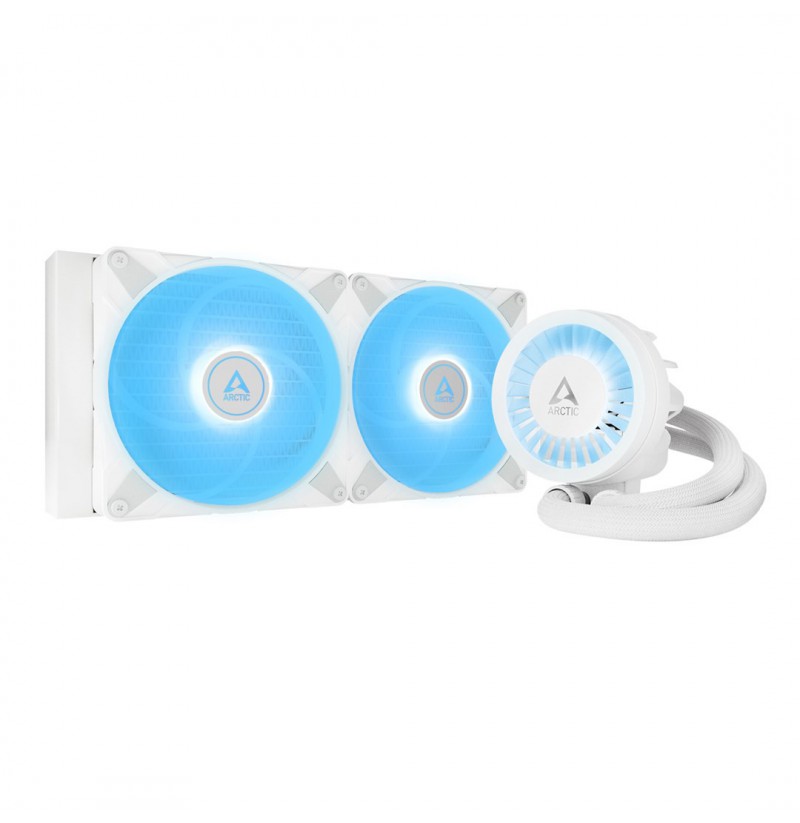

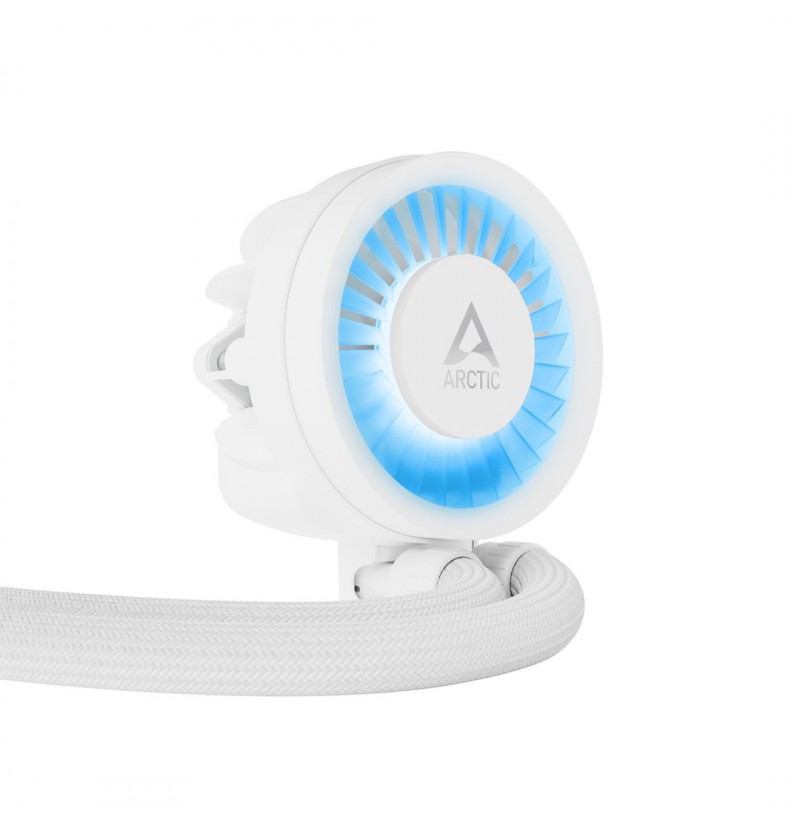

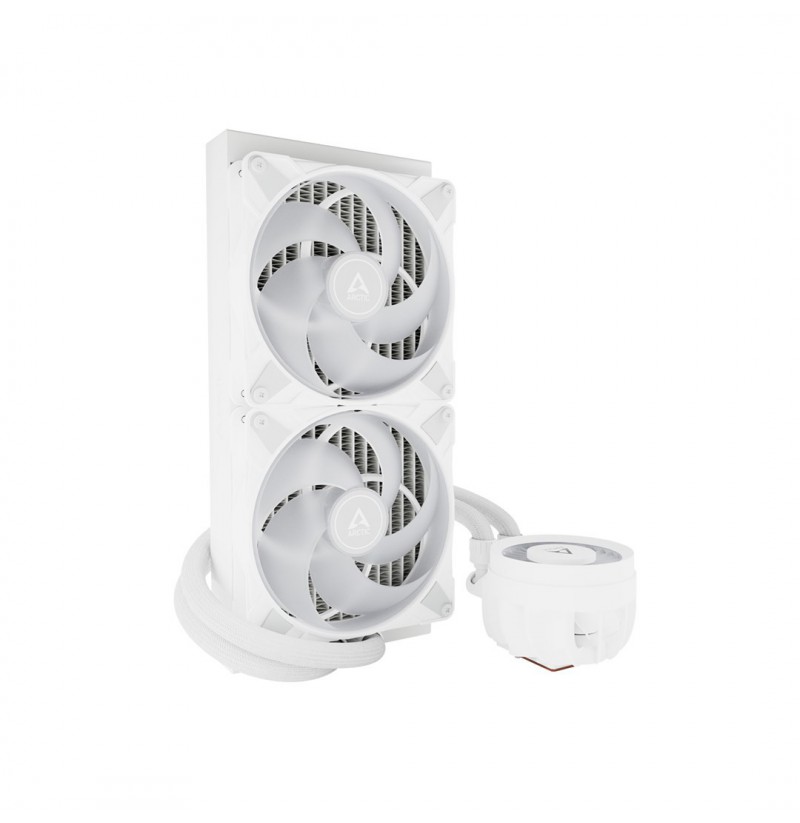

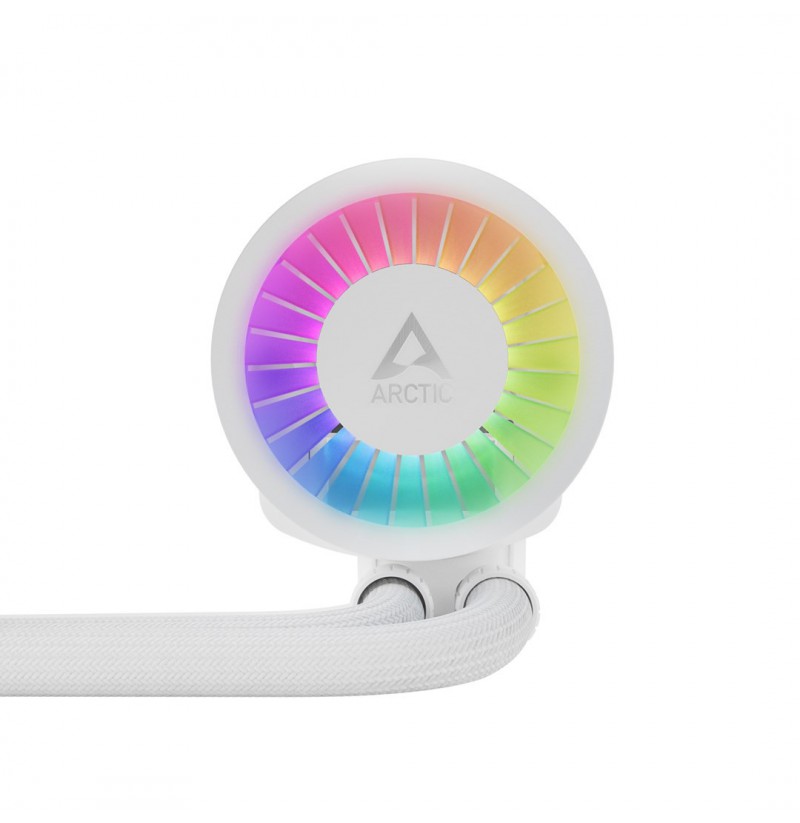

CPU COOLER S_MULTI/ACFRE00151A ARCTIC

Base plate material: Copper
Radiator material: Aluminum
LED connector type: 3-pin
Fan connector: 4-pin
Display type: Not applicable
Illumination LED: Yes
Illumination colour: Multi
Number of fans: 2 fan(s)
Product colour: White
Pump current: 350 mA
LED voltage: 5 V
Pump voltage: 12 V
Fan current: 0.17 A
Fan voltage: 12 V
Pump height: 6.85 cm
Package height: 155 mm
Tube inner diameter: 6 mm
Tube length: 45 cm
Fan dimensions (W x D x H): 140 x 140 x 27 mm
Package depth: 355 mm
Radiator height: 3.8 cm
Pump width: 9.1 cm
Radiator width: 13.8 cm
Radiator depth: 31.7 cm
Tube diameter: 1.24 cm
Package width: 170 mm
Pump depth: 10.8 cm
Cable length: 0.04 m
Weight: 1.76 kg
Package weight: 2.3 kg
Pump connector: 4-pin
VRM fan speed (min): 400 RPM
Pump motor speed (min): 800 RPM
VRM fan speed (max): 2500 RPM
Supported processor sockets: LGA 1700, Socket AM5, LGA 1851, Socket AM4
Operating temperature (T-T): 0 - 40 °C
Bearing type: Fluid Dynamic Bearing (FDB)
Fan speed (max): 1900 RPM
Fan diameter: 14 cm
Pump motor speed (max): 2800 RPM
Airflow: 117.06 m³/h
Maximum airflow: 69.9 cfm
Quantity per pack: 1 pc(s)
Fan static pressure: 2 mmH2O
Fan speed (min): 200 RPM
Pulse-width modulation (PWM) support: Yes
Suitable location: Processor
Type: All-in-one liquid cooler
Package type: Hanging box
Warnings: Take appropriate precautions during installation to avoid damage to computer components., Ensure that the unit is switched off before starting to assemble or dismantle the cooling unit., Do not touch the fan during operation.
