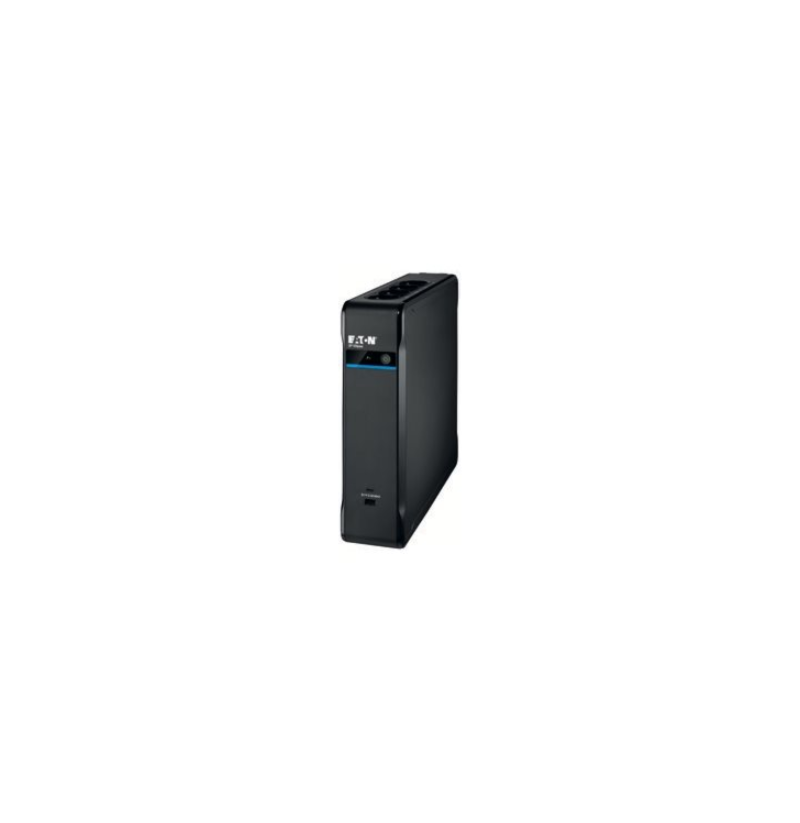

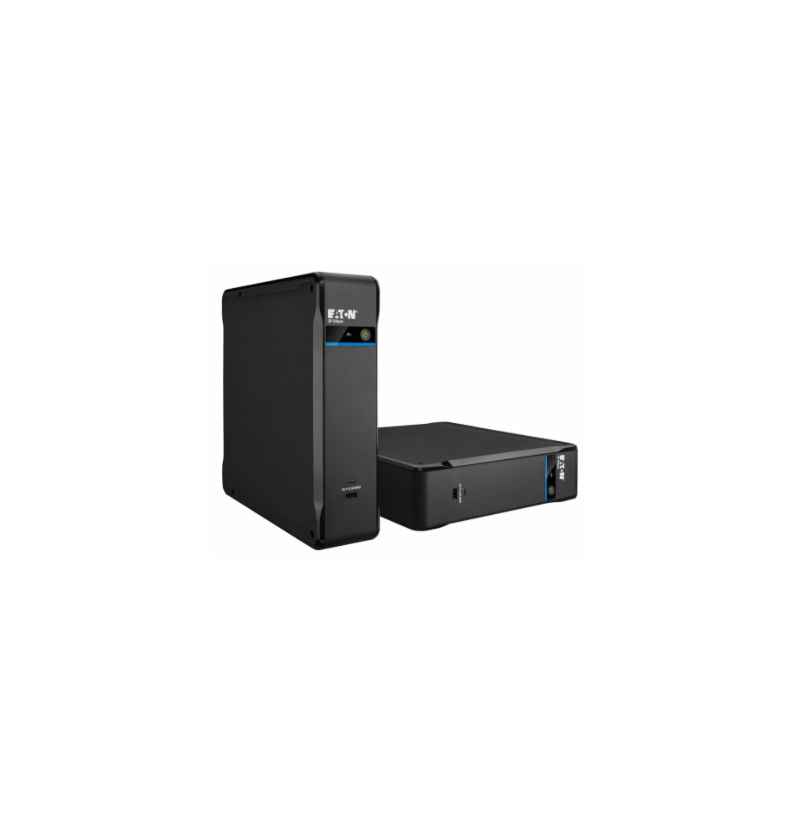

Eaton 3P Ellipse 1700 USB DIN | 1700 VA | 1040 W

Input operation voltage (max): 284 V
Power consumption (average operating): 32.2 W
Number of input phases: 1
Input operation voltage (min): 161 V
Output operation voltage (min): 161 V
Output operation voltage (max): 284 V
Waveform: Stepwise
Output power factor: 0.6
Auto shut-off: Yes
Noise level: 25 dB
Output power: 1040 W
Input frequency: 46/70 Hz
Number of output phases: 1
Surge protection: Yes
UPS topology: Standby (Offline)
Efficiency: 97%
Output frequency: 50/60 Hz
Efficiency (ECO mode): 97%
Output power capacity: 1.7 kVA
Product colour: Black
Form factor: Tower
Display type: LED
Control type: Buttons
Operating temperature (T-T): 0 - 40 °C
Weight: 7.8 kg
Depth: 312 mm
Width: 81 mm
Height: 305 mm
Package type: Box
Cables included: USB cable
Quick installation guide: Yes
Certification: IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3CEUKCAUkrCm
Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
Compliance certificates: RoHS, CE, CB, WEEE
AC outlets quantity: 8 AC outlet(s)
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB port: Yes
AC outlet types: C13 coupler
Battery voltage: 12 V
Battery capacity: 9 Ah
Number of batteries supported: 2
Input connection type: C14
Nominal input voltage: 220-240 V
Relative humidity: 0 - 95%
