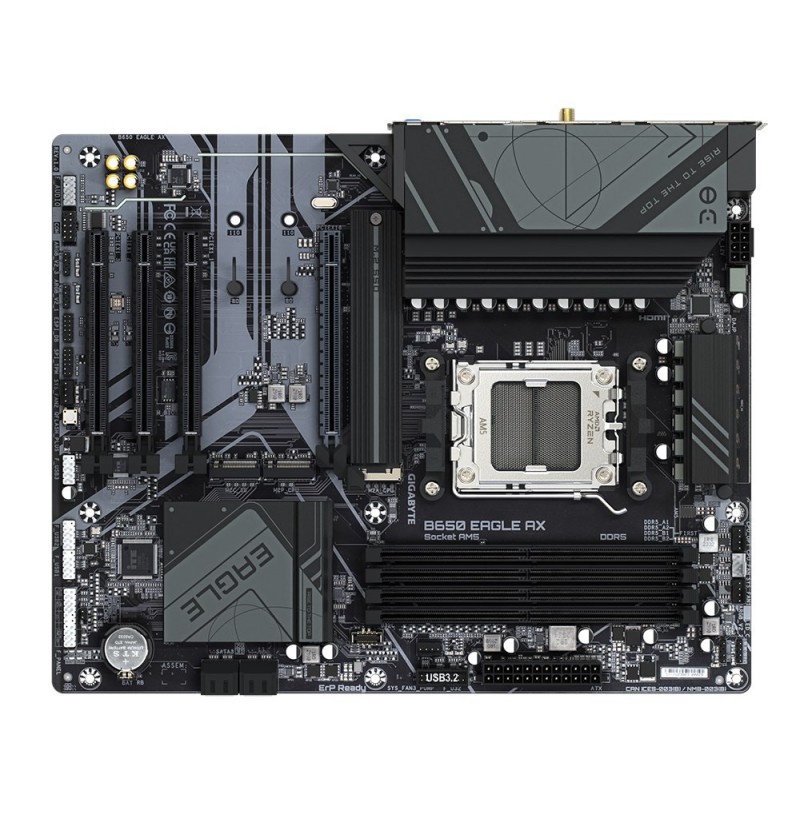

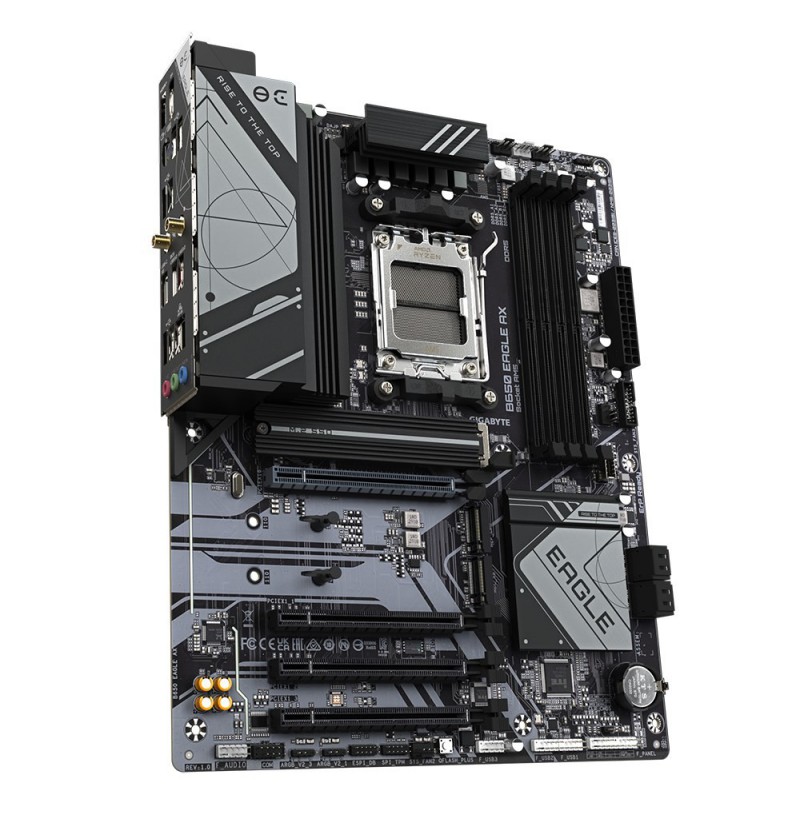

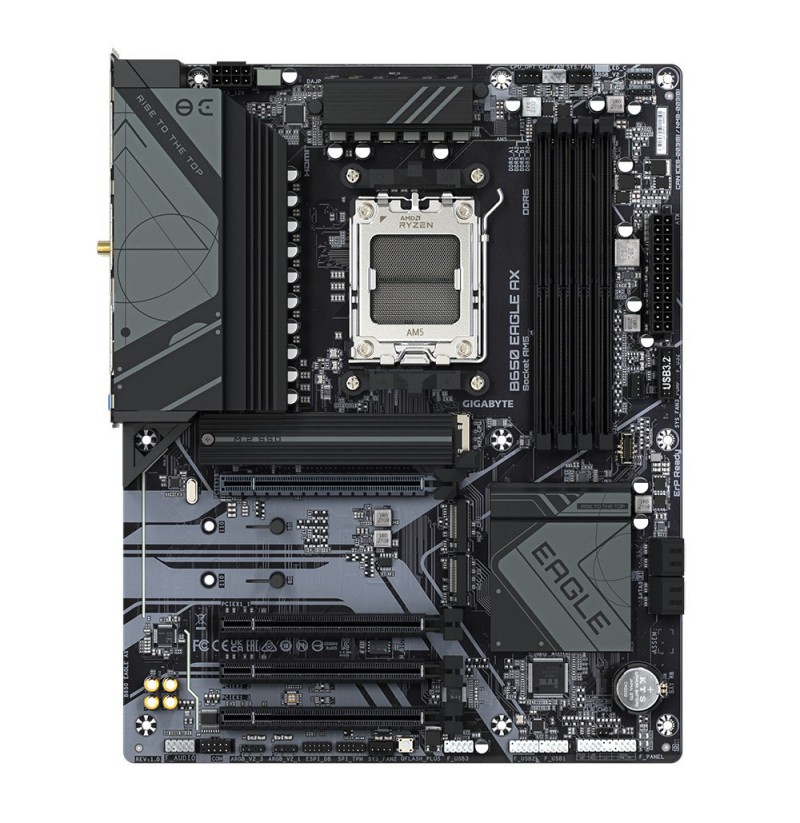

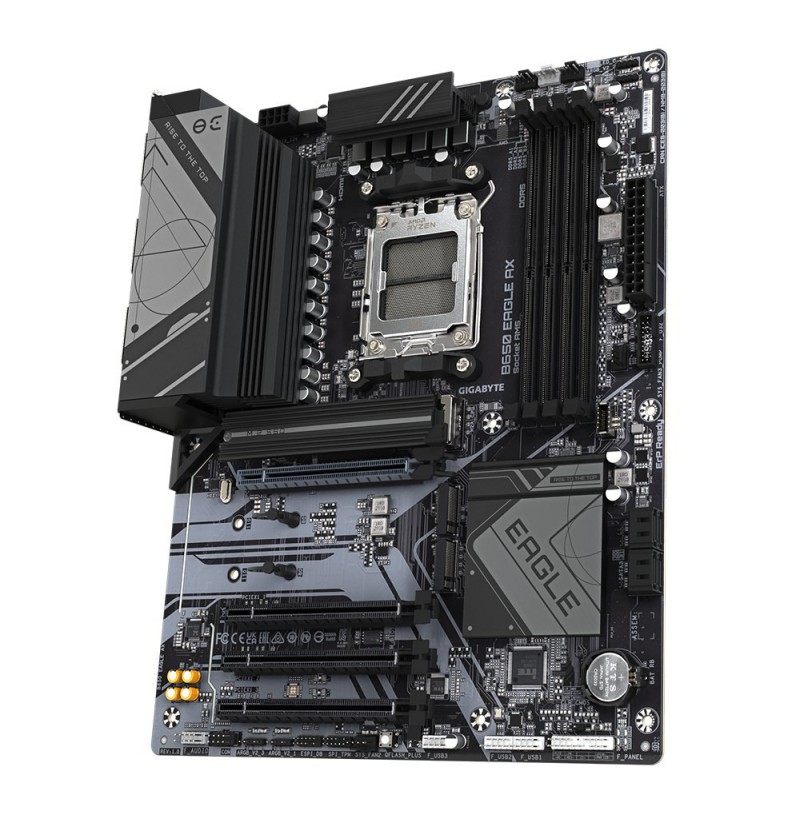

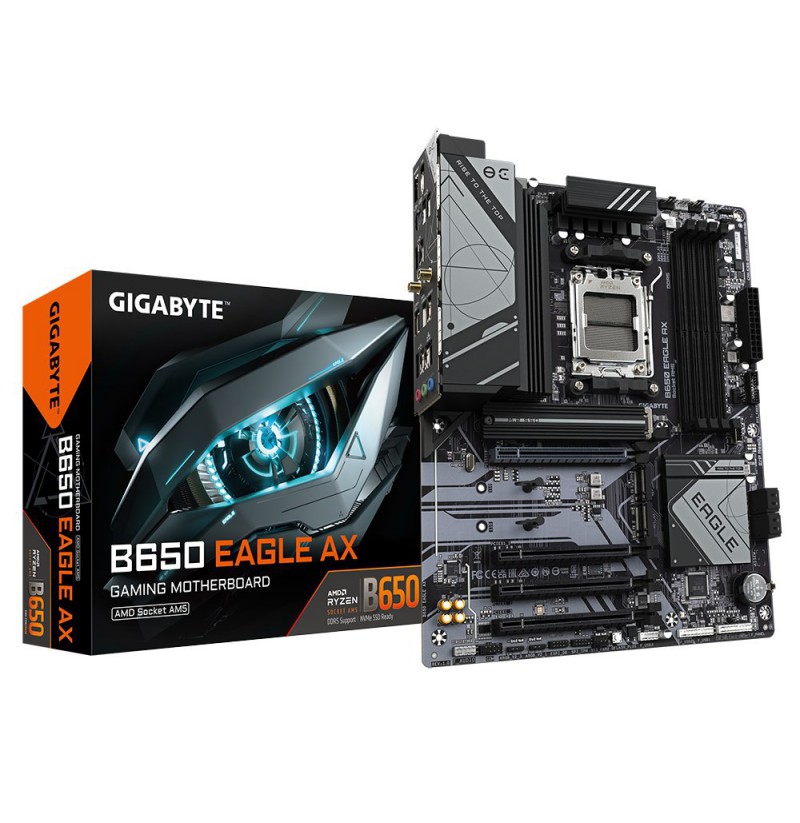

Mainboard Gigabyte B650 EAGLE AX

Warranty period: 3 year(s)
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor socket: Socket AM5
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
HDCP: Yes
DirectX version: 12.0
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: ATX
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Product colour: Bronze
Audio chip: Realtek ALC897
Motherboard chipset: AMD B650
PC health monitoring: Temperature, Water cooling, Voltage, Fan
Power source type: ATX
Memory channels: Dual-channel
Supported memory clock speed (max): 7600 MHz
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
ECC сompatibility: Non-ECC
Unbuffered memory: Yes
Supported memory clock speeds: 6600, 5200, 4800, 6800, 5600, 7200 MHz, 6400, 6000, 4400, 7000, 7600, 6200
Maximum internal memory: 256 GB
Height: 35 mm
Depth: 244 mm
Width: 305 mm
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11g, 802.11b
Ethernet interface type: Gigabit Ethernet
Bluetooth version: 5.3
WLAN controller model: Realtek RTL8852CE
Ethernet LAN: Yes
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
LAN controller: Realtek RTL8111H
Bluetooth: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
TPM connector: Yes
12V power connector: Yes
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 4
Number of water pump connectors: 2
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes
Front panel connector: Yes
Serial port headers: 1
Number of chassis fan connectors: 3
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 1.94 kg
Bundled software: Norton Internet Security (OEM version)LAN bandwidth management software
Screws included: Yes
Antenna included: Yes
Batteries included: Yes
Number of storage drives supported: 7
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 10
RAID support: Yes
PS/2 ports quantity: 1
Line-in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Microphone in: Yes
Headphone outputs: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
WiFi-AP antenna jack: 2
HDMI ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
USB 2.0 ports quantity: 6
Ethernet LAN (RJ-45) ports: 1
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 25110
3rd M.2 largest key size: 22110
2nd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 3.x) slots: 3
Number of M.2 (M) slots: 3
Battery type: CR2032
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g
Battery weight: 3 g
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
