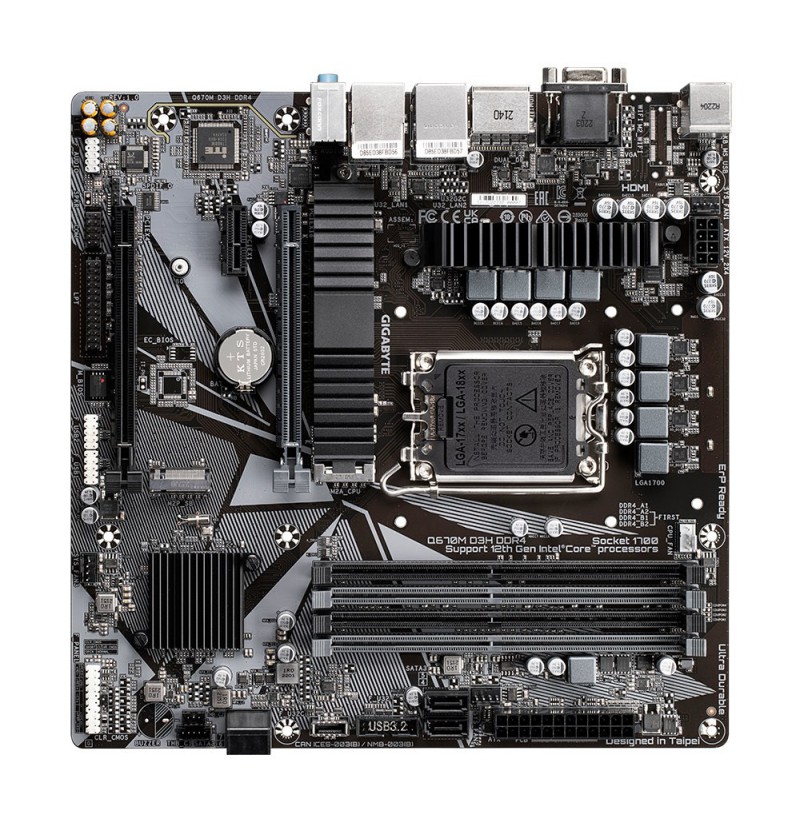

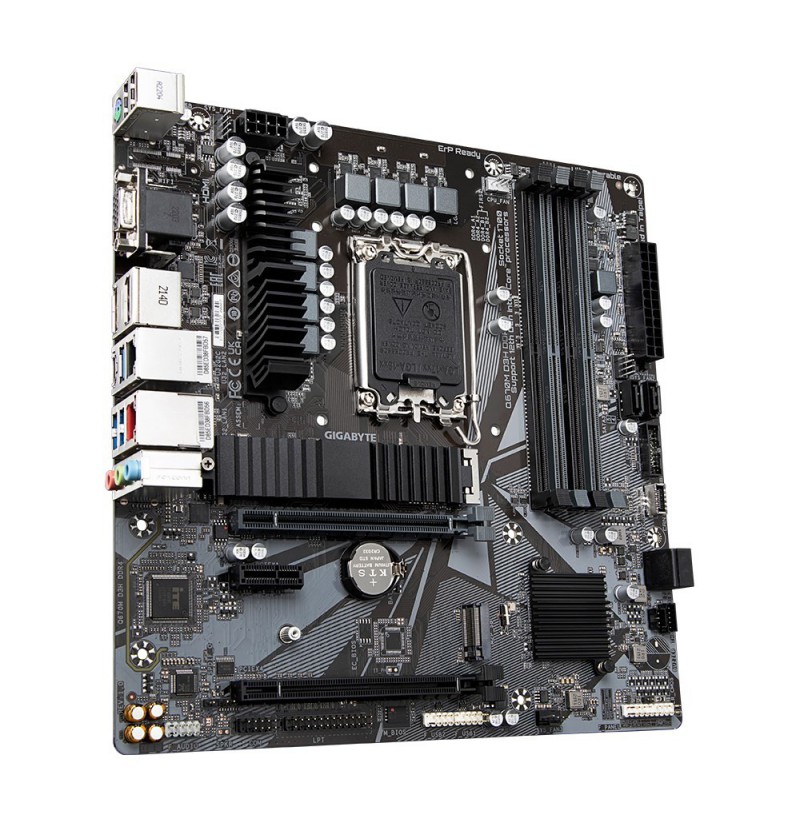

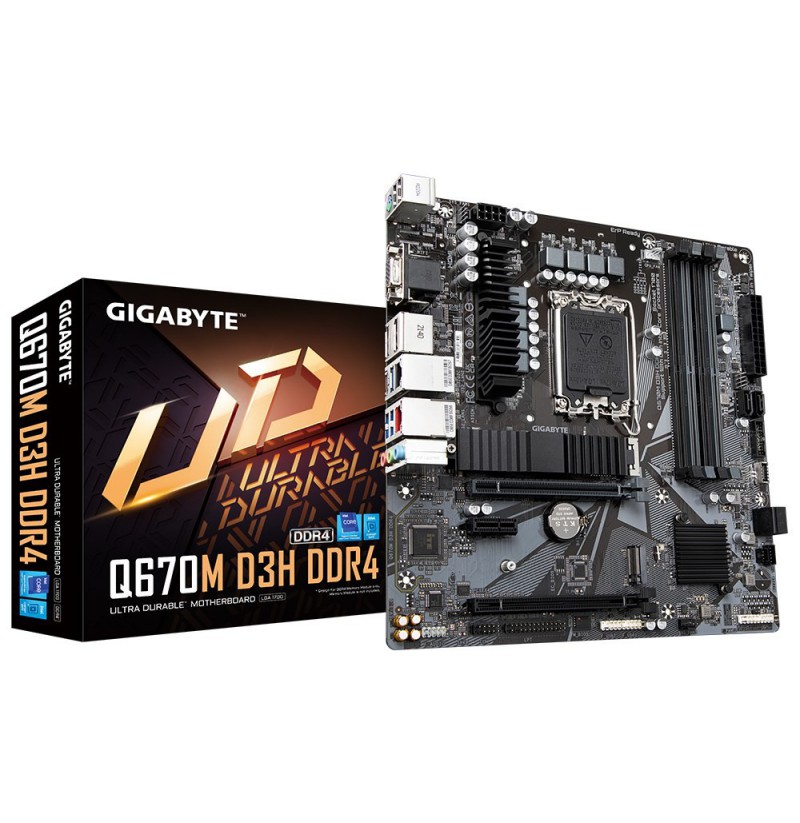

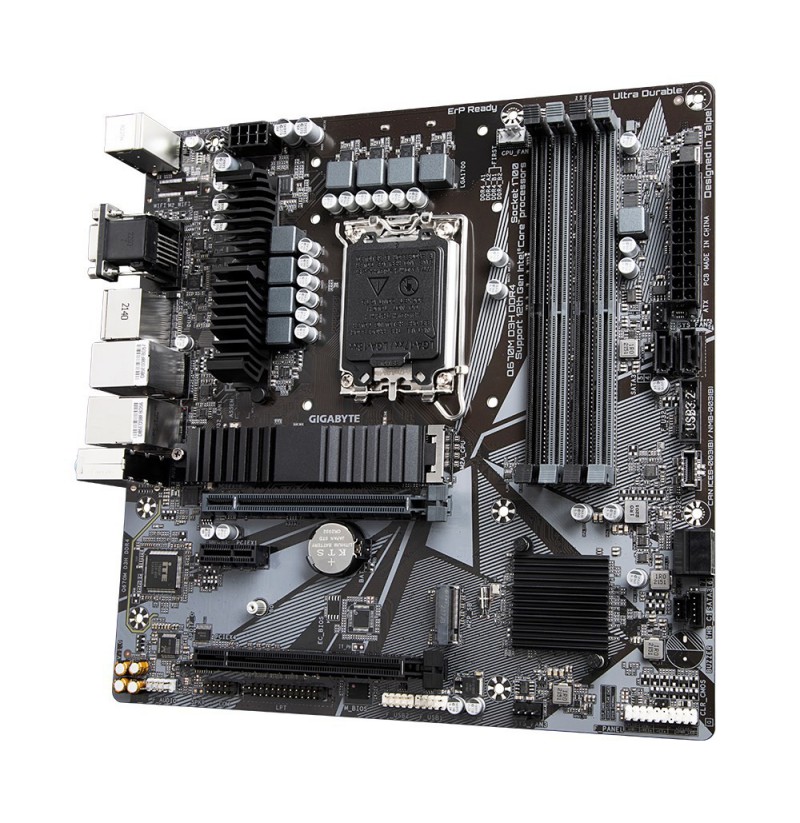

GIGABYTE Q670M D3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Phases Hybrid Digital VRM, up to 5333MHz DDR4 (OC),

GIGABYTE Q670M D3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Phases Hybrid Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
Warranty period: 3 year(s)
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i3, Intel Pentium G, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer: Intel
Maximum internal memory supported by processor: 128 GB
Processor socket: LGA 1700
DirectX version: 12.0
Cooling type: Active
Power source type: ATX
Component for: PC
Windows operating systems supported: Windows 11, Windows 10
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Motherboard chipset: Intel Q670
Motherboard chipset family: Intel
Product colour: Bronze
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 5333 MHz
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 3466, 4500, 3400, 3866, 3000, 5333 MHz, 4133, 4000, 2933, 3600, 5133, 4600, 3666, 4800, 4933, 3200, 2666, 4266, 3733, 4300, 4400, 5000, 2400, 4700, 3800, 3333, 2133
Supported memory module capacities: 8GB, 16GB, 1GB, 12GB, 32GB, 2GB, 4GB
Maximum internal memory: 128 GB
Depth: 244 mm
Width: 244 mm
Height: 35 mm
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No
Number of SATA III connectors: 4
Number of COM connectors: 2
Total number of SATA connectors: 4
Front panel audio connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Audio connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Thunderbolt headers: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI
Clear CMOS button: Yes
ACPI version: 5.0
BIOS memory size: 256 Mbit
Package height: 54 mm
Package weight: 1.02 kg
Package depth: 265 mm
Package width: 265 mm
Drivers included: Yes
Cables included: SATA
Batteries included: Yes
RAID levels: 1, 10, 0, 5
RAID support: Yes
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

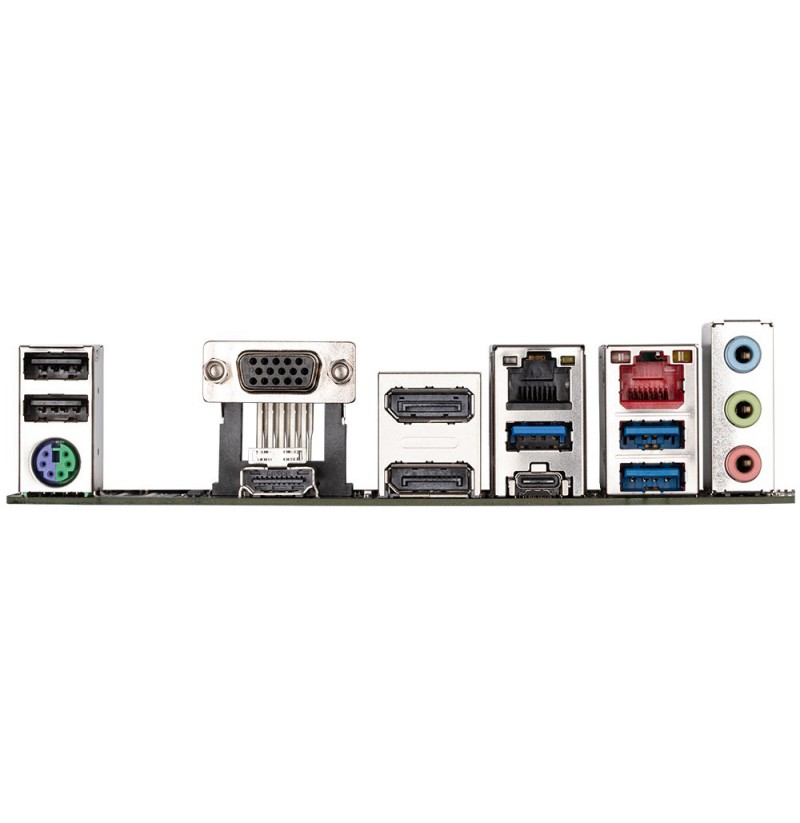

Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
PS/2 ports quantity: 1
Headphone outputs: 2
Microphone in: Yes
DisplayPorts quantity: 2
DisplayPort version: 1.2
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
