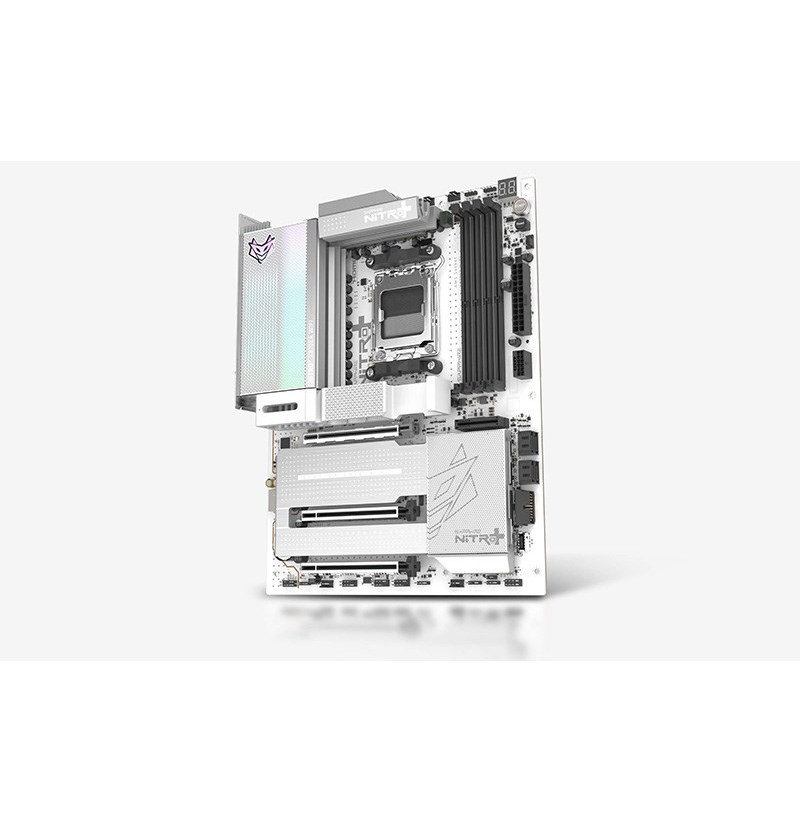

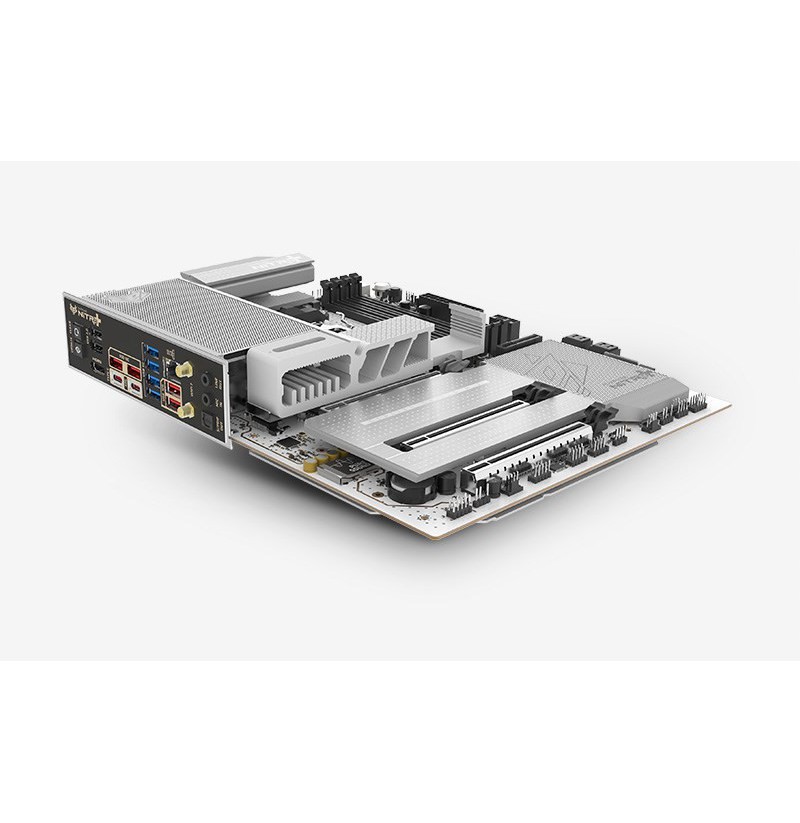

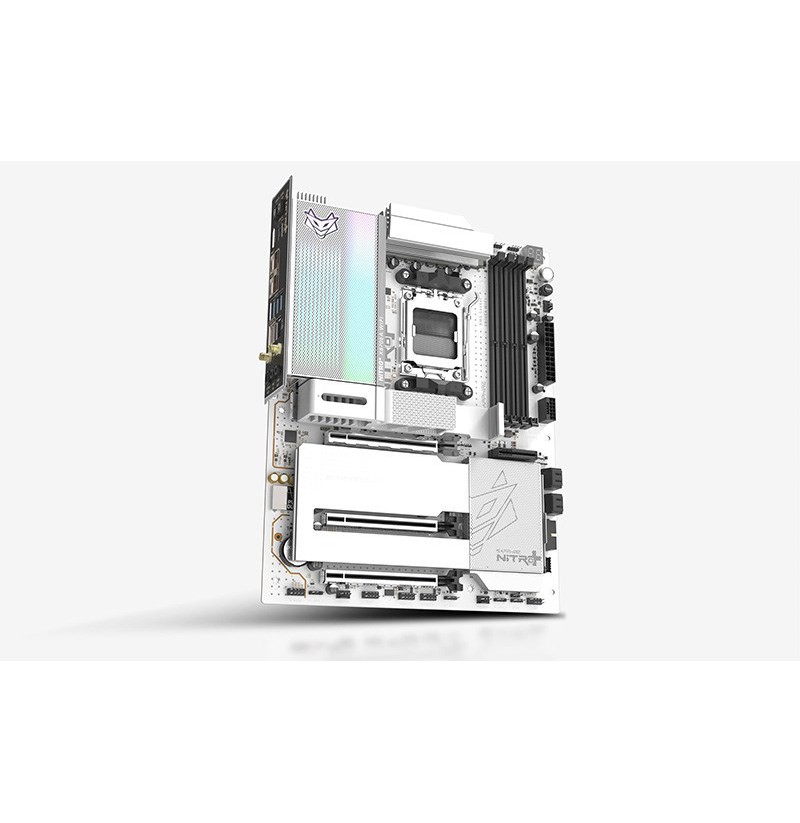

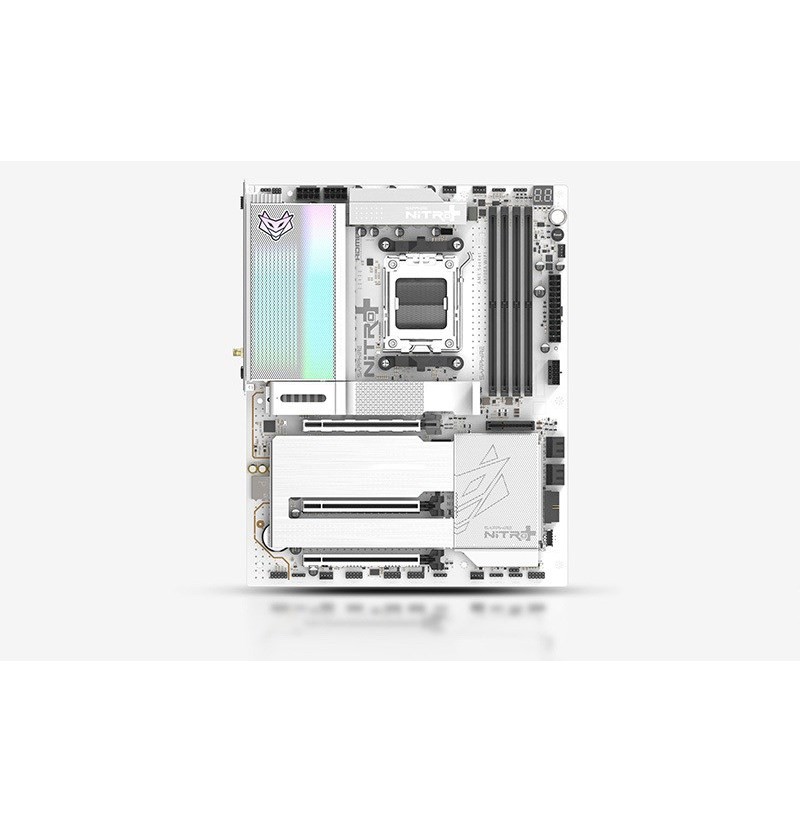

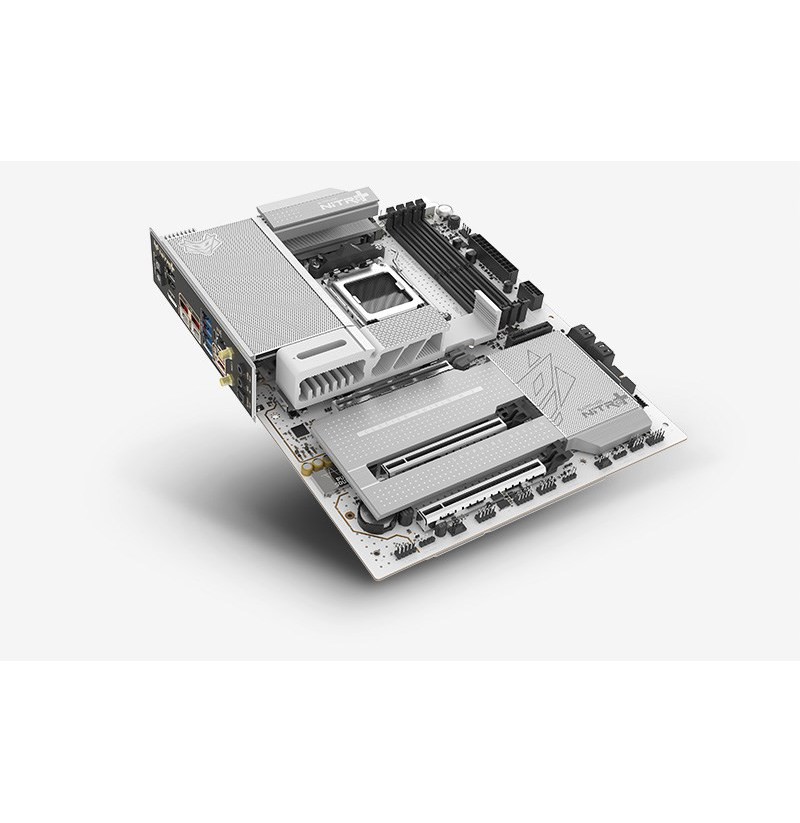

Motherboard SAPPHIRE NITRO+ X870EA PHANTOMLINK P.E

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5
Parallel processing technology support: Not supported
Product colour: Black, Silver
Motherboard chipset: AMD X870E
Motherboard chipset family: AMD
Motherboard form factor: ATX
Audio chip: Realtek ALC897
Audio output channels: 5.1 channels
Windows operating systems supported: Windows 11
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory clock speed (max): 8400 MHz
Supported memory types: DDR5-SDRAM
Depth: 244 mm
Width: 305 mm
Bluetooth: Yes
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi standards: 802.11 be
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
12V power connector: Yes
CPU fan connector: Yes
Serial port headers: 1
Front panel connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 3
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 5
Number of CPU fan connectors: 1
Number of water pump connectors: 1
Clear CMOS jumper: No
Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types: HDD & SSD
Number of storage drives supported: 3
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
Line-in: No
WiFi-AP antenna jack: 2
USB connector type: USB Type-C, USB Type-A
HDMI ports quantity: 1
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 2
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
