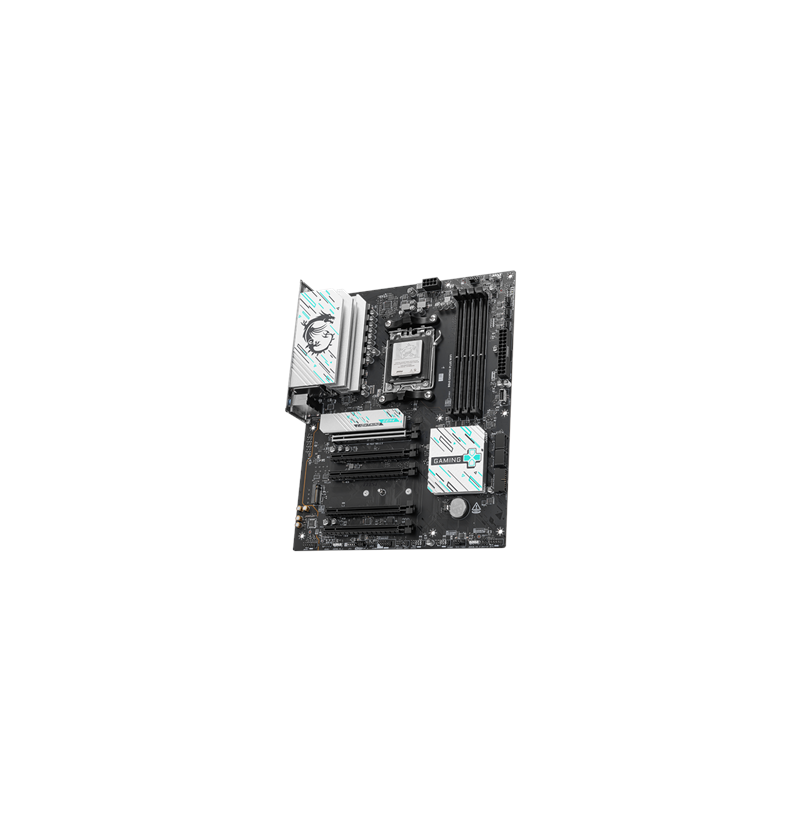

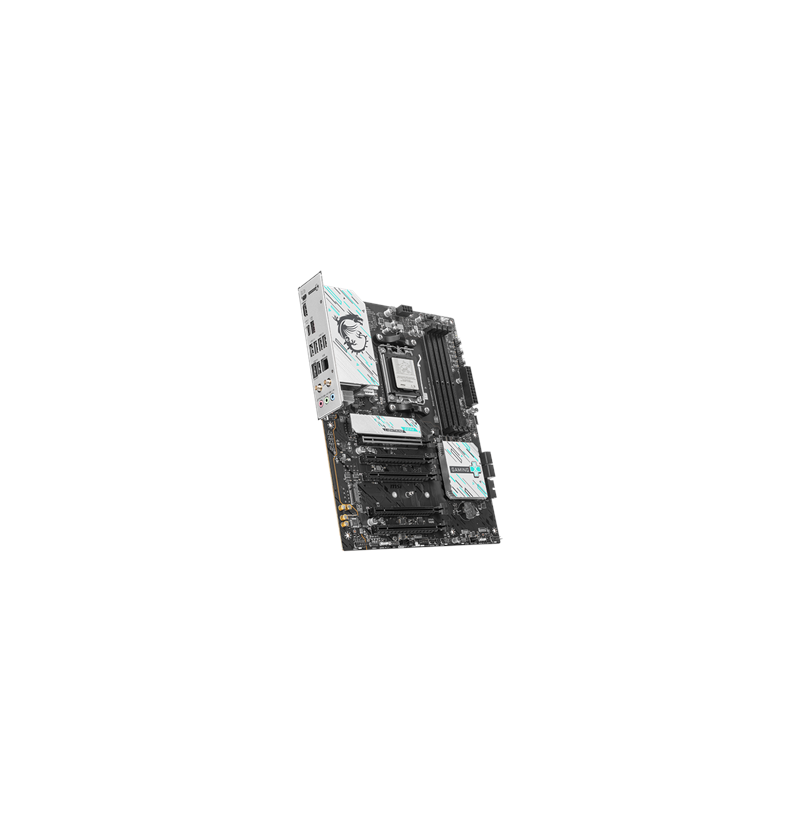

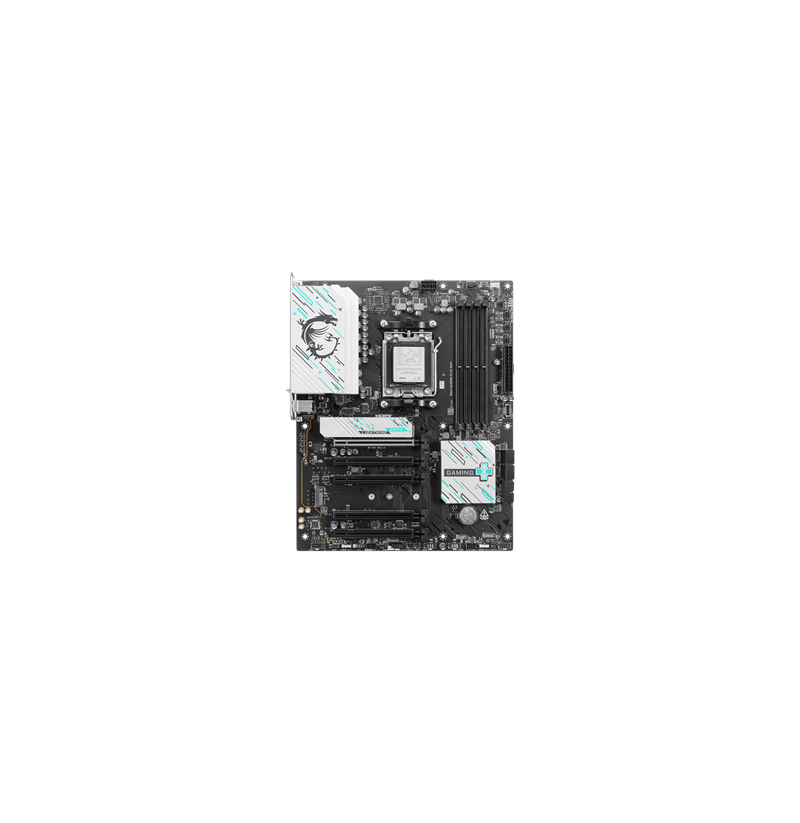

MSI B840 GAMING PLUS WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2

Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Maximum internal memory supported by processor: 256 GB
On-board graphics card: No
PC health monitoring: Voltage, CPU, Fan, Temperature
Motherboard chipset: AMD B840
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Product colour: Black
Audio chip: Realtek ALC897
Windows operating systems supported: Windows 11 x64
Motherboard chipset family: AMD
Supported memory clock speeds: 8000, 4800, 5600
Maximum internal memory: 256 GB
Memory channels: Dual-channel
Supported memory clock speed (max): 8000 MHz
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
ECC сompatibility: Non-ECC
Width: 243.8 mm
Depth: 304.8 mm
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), 802.11b
Ethernet LAN: Yes
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of chassis fan connectors: 5
Number of SATA III connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Total number of SATA connectors: 4
RGB LED pin header: Yes
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 3
Number of water pump connectors: 1
BIOS type: UEFI AMI
Supported storage drive interfaces: M.2, Micro SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
Number of storage drives supported: 6
RAID levels: 0, 10, 1
Number of HDDs supported: 4

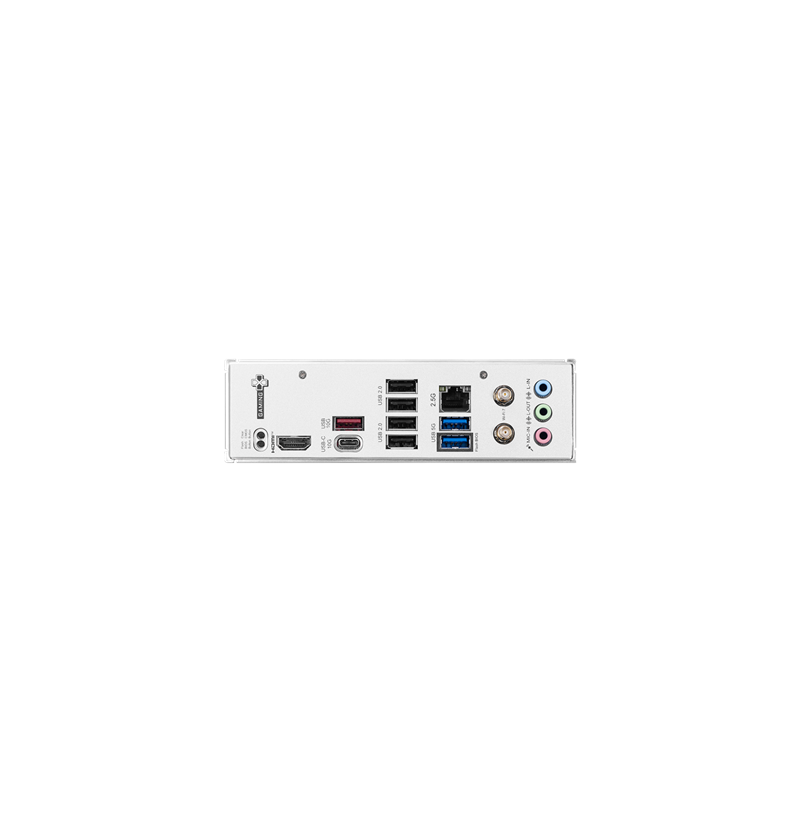

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI version: 2.1
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 3.x) slots: 4
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
