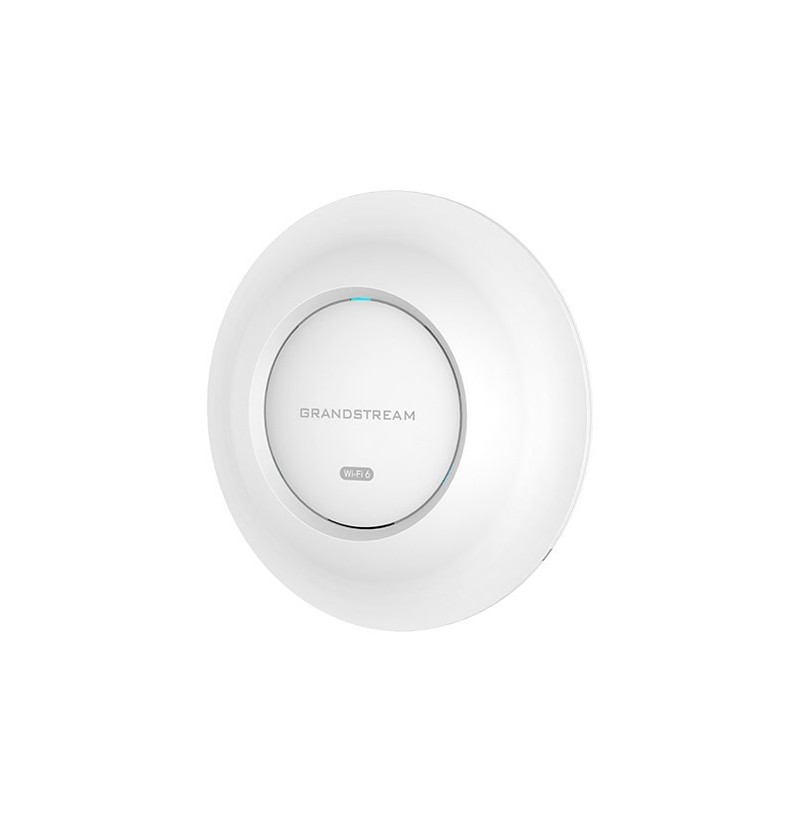

Grandstream GWN 7664E ACCESS POINT | Web | Access points

Maximum outdoor range: 175 m
2.4 GHz: Yes
Maximum data transfer rate (2.4 GHz): 1147 Mbit/s
Number of WLAN connections (max): 512
Maximum data transfer rate (5 GHz): 4800 Mbit/s
Quality of Service (QoS) support: Yes
MIMO: Yes
MIMO type: Multi User MIMO
Frequency band: 2400 - 2483.5, 5150 - 5895 GHz
Networking standards: IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
5 GHz: Yes
Maximum data transfer rate: 6000 Mbit/s
Ethernet LAN data rates: 2500 Mbit/s
Spread spectrum method: OFDMA
6 GHz: No
Cable lock slot type: Kensington
Placement: Ceiling, Wall
Product colour: White
LED indicators: Yes
Reset button: Yes
Cable lock slot: Yes
Power consumption (max): 21 W
Power over Ethernet (PoE): Yes
Number of SSID supported: 32
Security algorithms: WPA2-Enterprise, WPA, WPA3, WPA2-PSK, SSID
Operating relative humidity (H-H): 10 - 95%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 60 °C
Height: 45.9 mm
Depth: 205.3 mm
Width: 205.3 mm
Weight: 714 g
Package depth: 247 mm
Package height: 86 mm
Package width: 258 mm
Package weight: 1.06 kg
Quantity per pack: 1 pc(s)
Mounting kit: Yes
Quick start guide: Yes
Compliance certificates: Federal Communications Commission (FCC), CE, Industry Canada (IC), RCM
Supported network protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Ethernet LAN (RJ-45) ports: 2
Antennas quantity: 8
Antenna gain level (max): 4.5 dBi
Antenna type: Internal
