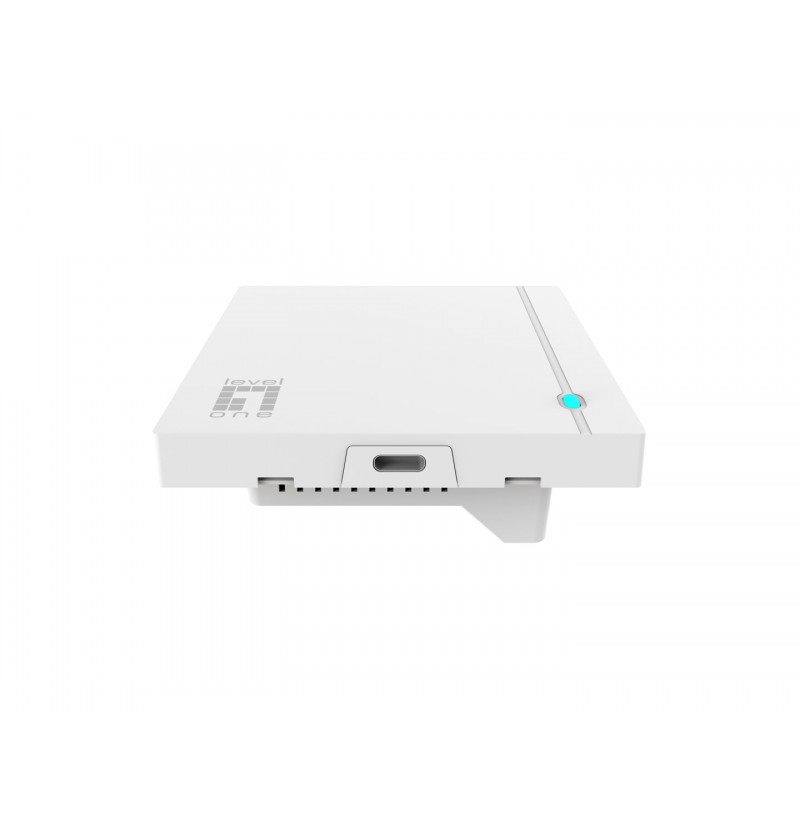

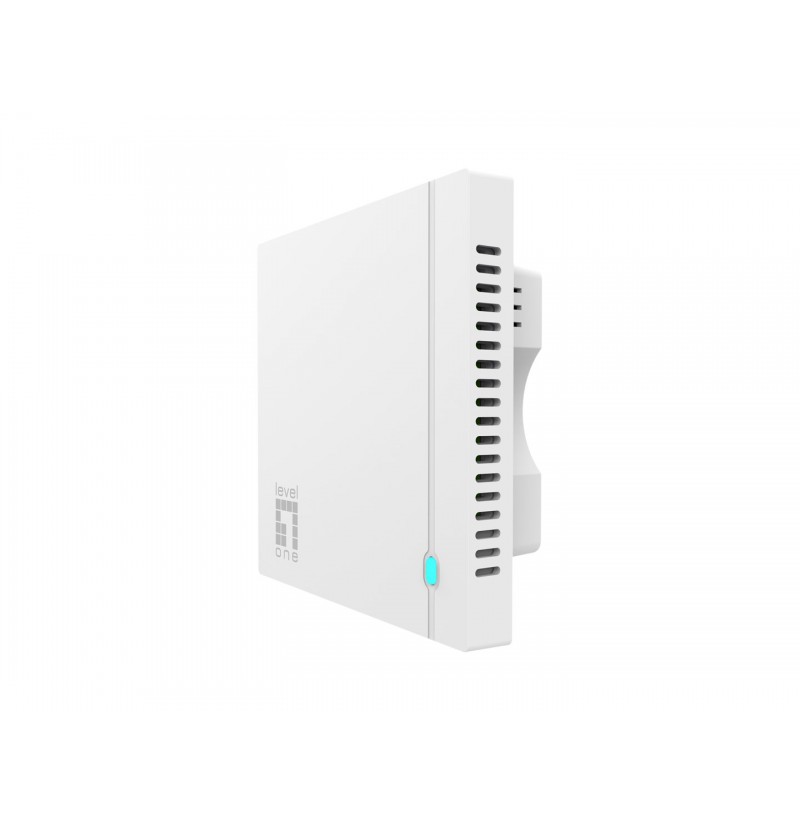

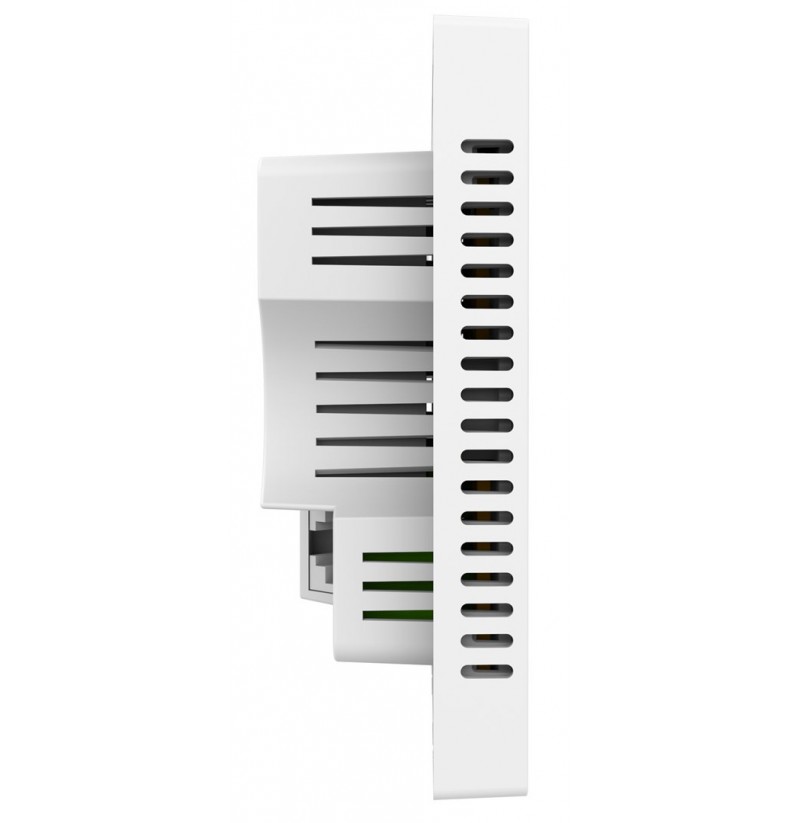

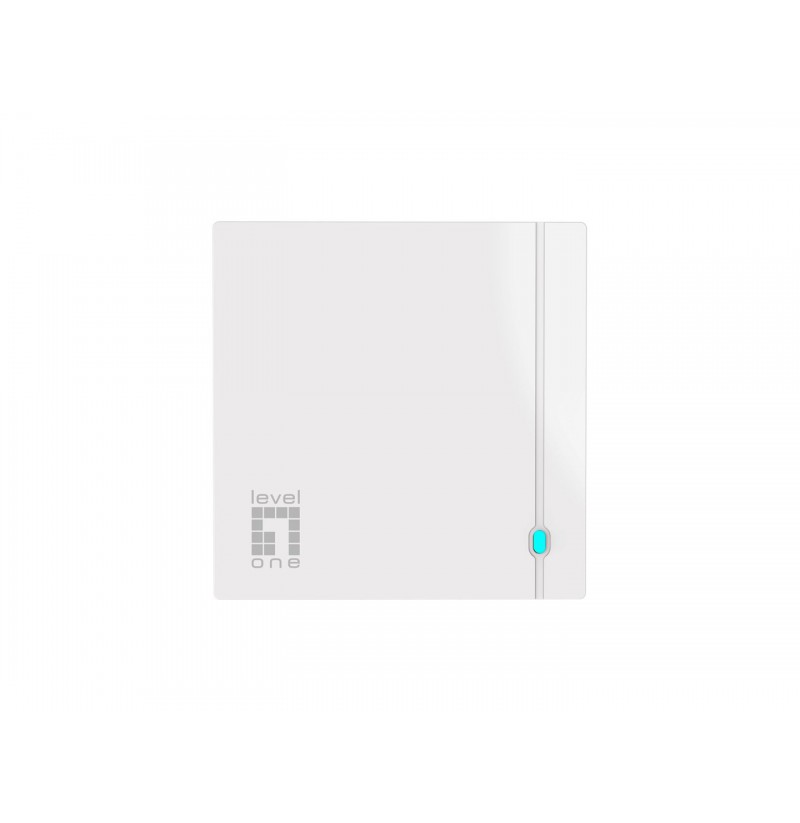

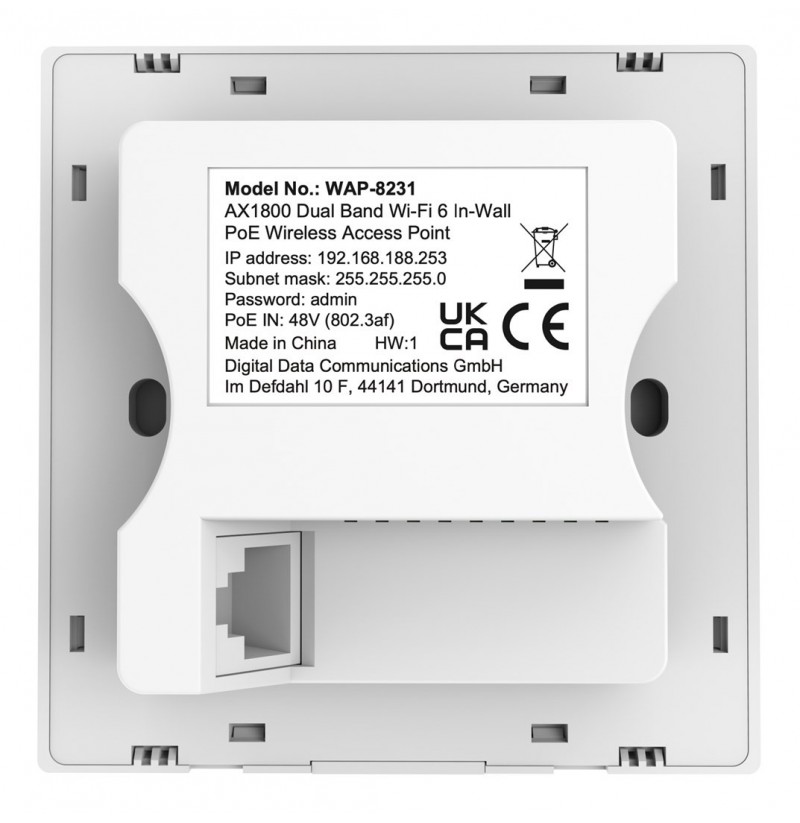

Dual-Band Access Point PoE LevelOne AX1800

Pallet height (air): 189 cm
Master (outer) cases per pallet (air): 10 pc(s)
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Ethernet LAN data rates: 1000 Mbit/s, 10, 100
Maximum data transfer rate: 1800 Mbit/s
5 GHz: Yes
Networking standards: IEEE 802.3u, IEEE 802.11ac, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.11a, IEEE 802.11b, IEEE 802.11ax, IEEE 802.3ab
2.4 GHz: Yes
Frequency band: 2.412 -2.484, 5.18 - 5.825 GHz
MIMO: Yes
Spread spectrum method: OFDMA
Cabling technology: 10/100/1000Base-T(X)
MIMO type: Multi User MIMO
6 GHz: No
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Operating modes: AP Mode
Channels quantity: 165 channels
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
LED indicators: Wi-Fi
Product colour: White
Placement: In-wall
Power over Ethernet (PoE): Yes
Power consumption (typical): 14 W
Security algorithms: WPA3, WPA2-AES
Number of SSID supported: 8
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 40 °C
Web-based management: Yes
Weight: 138 g
Depth: 86 mm
Width: 87 mm
Height: 31.5 mm
Flash memory: 16 MB
Internal memory: 128 MB
Package type: Box
Package weight: 240 g
Package width: 120 mm
Package depth: 110 mm
Package height: 65 mm
Mounting kit: Yes
Quick start guide: Yes
Interface adapter included: USB Type-C male - RJ-45 female
Compliance certificates: UKCA, RoHS, CE
WAN connection: Ethernet (RJ-45)
USB connector type: USB Type-C
Antenna type: Internal
Antenna gain level (max): 3 dBi
Antennas quantity: 4
Country of origin: China
Master (outer) case length: 348 mm
Products per master (outer) case: 100 pc(s)
Master (outer) case gross weight: 25 kg
Master (outer) case width: 515 mm
Master (outer) case height: 580 mm
Sustainability compliance: Yes
