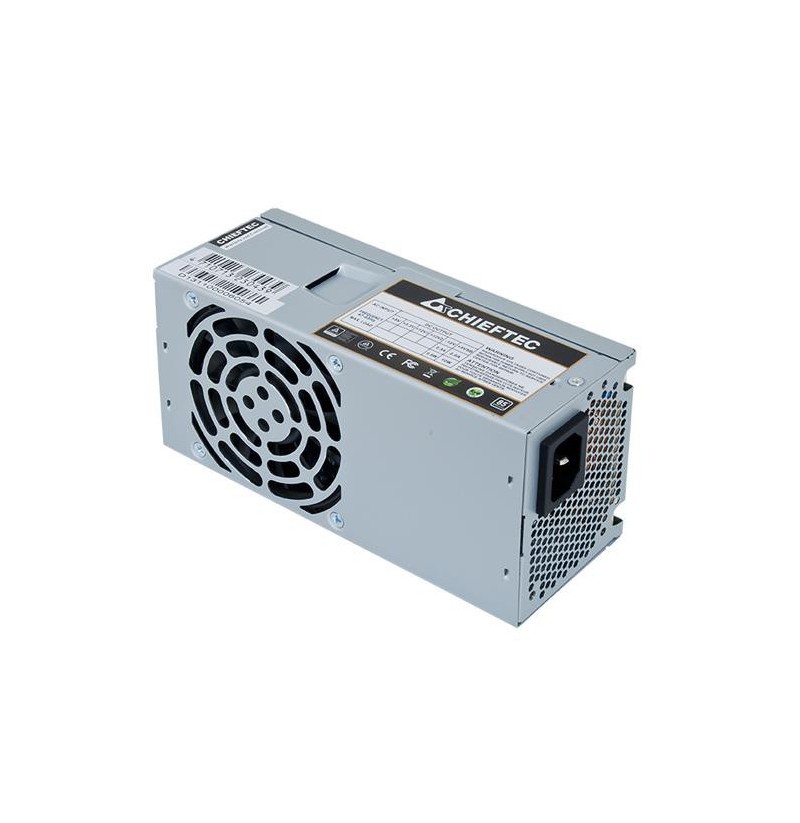

Chieftec Smart 300W power supply unit 20+4 pin ATX TFX Grey Padidinti

Chieftec Smart 300W power supply unit 20+4 pin ATX TFX Grey

41,93 €

4710713234666

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Sustainability certificates: RoHS
Fan diameter: 8 cm
Cooling type: Active
Number of fans: 1 fan(s)
Product colour: Grey
Total power: 300 W
Combined power (+5V): 95 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 10 W
Max output current (+5Vsb): 2 A
Max output current (+12V1): 14 A
Power protection features: Overload, Overheating, Short circuit, Over voltage, Under voltage
Power factor: 0.9
Max output current (+12V2): 15 A
Combined power (+3.3V): 95 W
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 16 A
Max output current (+5V): 15 A
Max output current (-12V): 0.3 A
Input current: 6.3 A
AC input frequency: 47 - 63 Hz
AC input voltage: 115 - 230 V
Width: 85 mm
Weight: 1.07 kg
Height: 65 mm
Depth: 175 mm
ATX version: 2.3
80 PLUS certification: 80 PLUS Bronze
Power supply unit (PSU) form factor: TFX
Purpose: PC/Server
Package weight: 1.13 kg
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin): 2
Number of SATA power connectors: 4
Peripheral (Molex) power cable length: 350 mm, 150 mm
Motherboard power cable length: 30 cm
Floppy disk drive cable length: 15 cm
EPS power connector (4+4 pin): Yes
Cabling type: Non-Modular
CPU power cable length: 35 cm
Floppy drive power connector: 1
SATA power cable length: 150, 350 mm
Harmonized System (HS) code: 84733020
