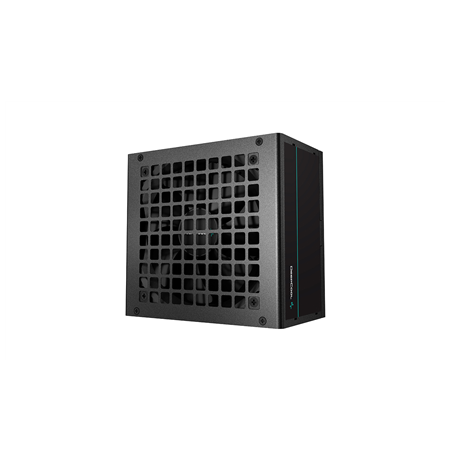

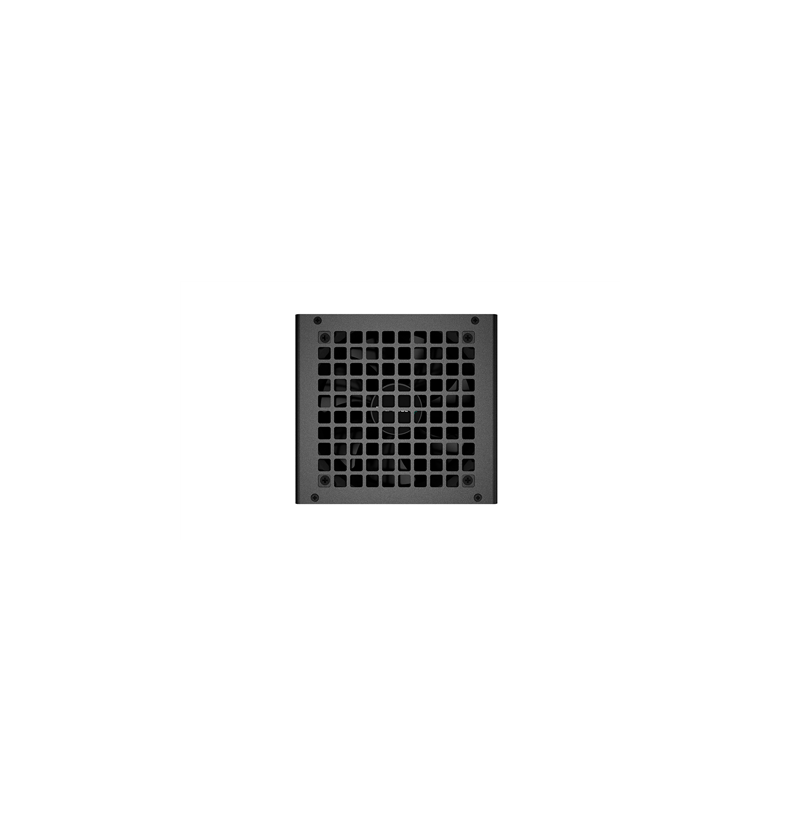

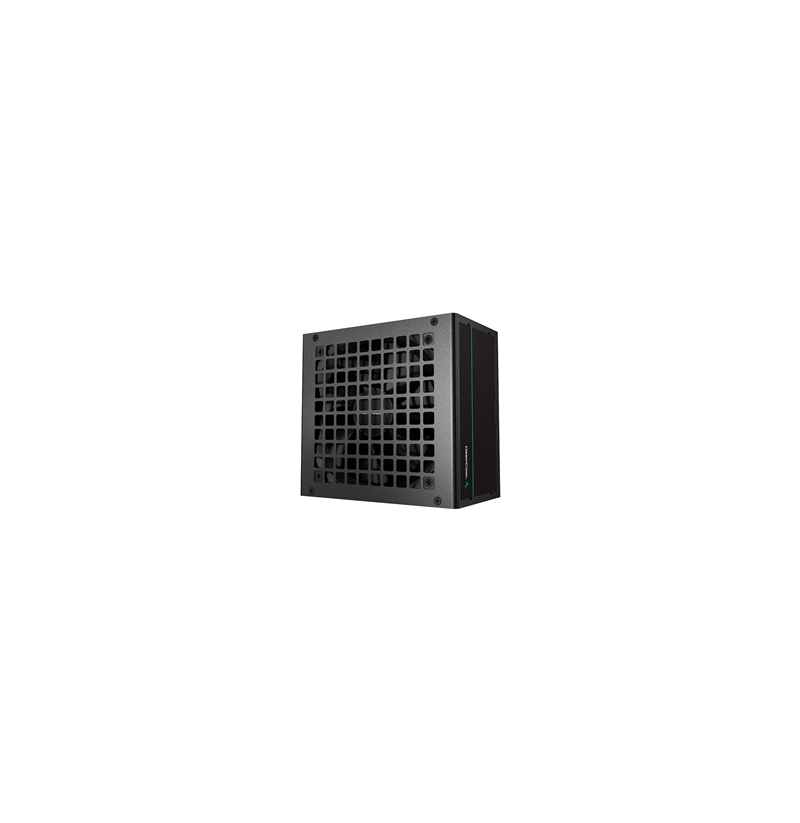

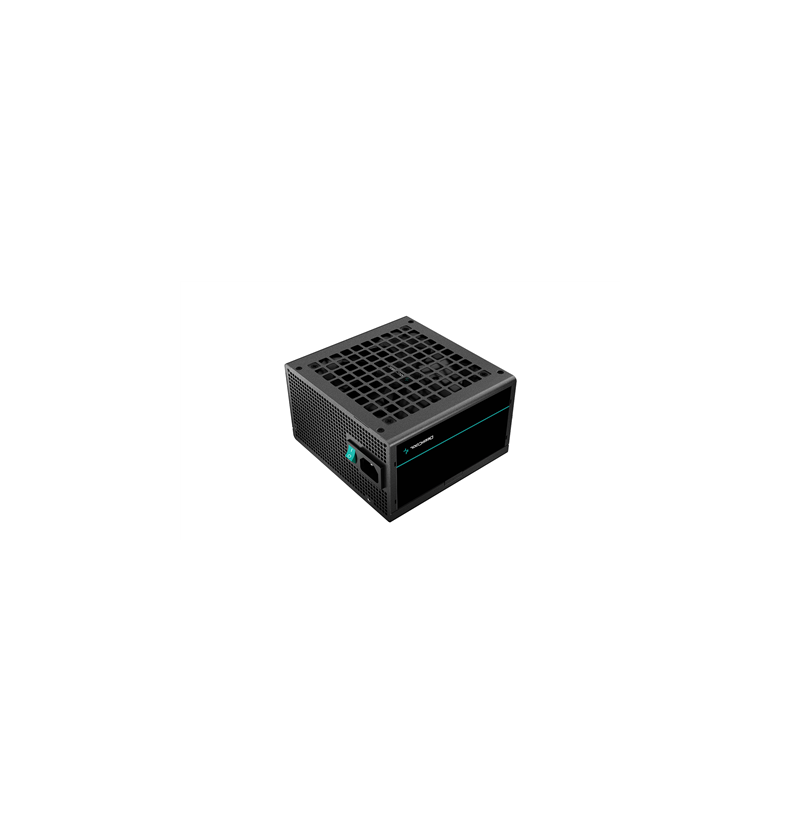

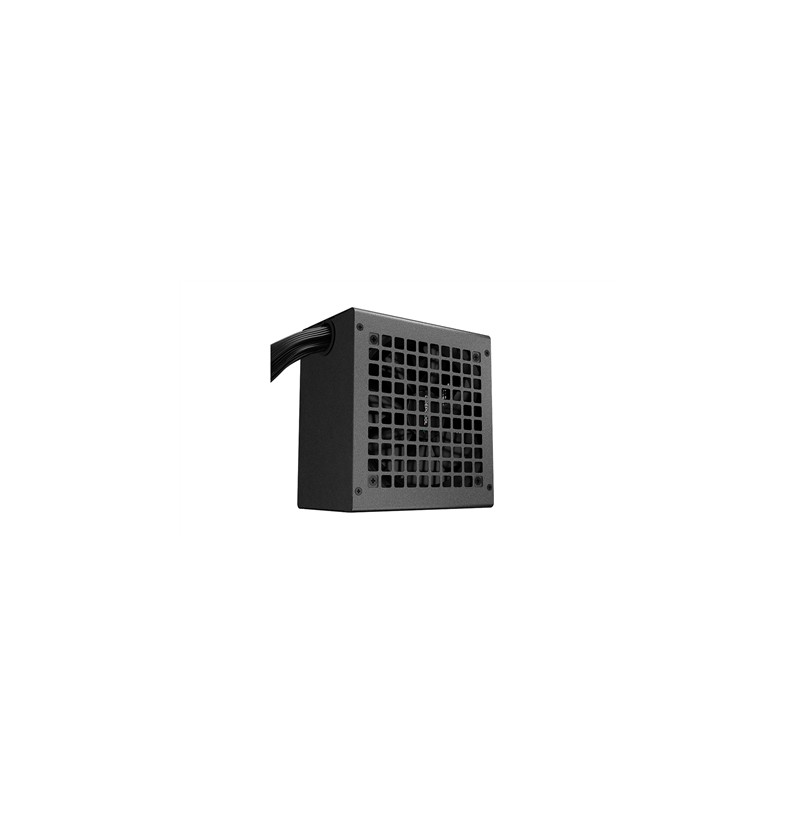

Deepcool | PSU | PF500 | 500 W | Black

Fan diameter: 12 cm
Cooling type: Active
Product colour: Black
On/off switch: Yes
Number of fans: 1 fan(s)
Combined power (+5V): 100 W
Power protection features: Over power, Under voltage, Short circuit, Over voltage
Efficiency: 85%
Total power: 500 W
Combined power (+3.3V): 100 W
AC input voltage: 220 - 240 V
Combined power (+5Vsb): 12.5 W
Combined power (+12V): 480 W
Max output current (+3.3V): 15 A
Max output current (+5V): 15 A
AC input frequency: 50 Hz
Max output current (-12V): 0.3 A
Max output current (+12V): 40 A
Max output current (+5Vsb): 2.5 A
Hold time: 16 ms
Combined power (-12V): 3.6 W
Operating temperature (T-T): 0 - 40 °C
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h
Purpose: PC/Server
80 PLUS certification: 80 PLUS
ATX version: 2.4
Package type: Box
Cables included: AC
SATA power cable length: 450, 750 mm, 900, 600 mm
Cabling type: Non-Modular
Number of SATA power connectors: 4
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
Motherboard power cable length: 55 cm
Motherboard power connector: 20+4 pin ATX
