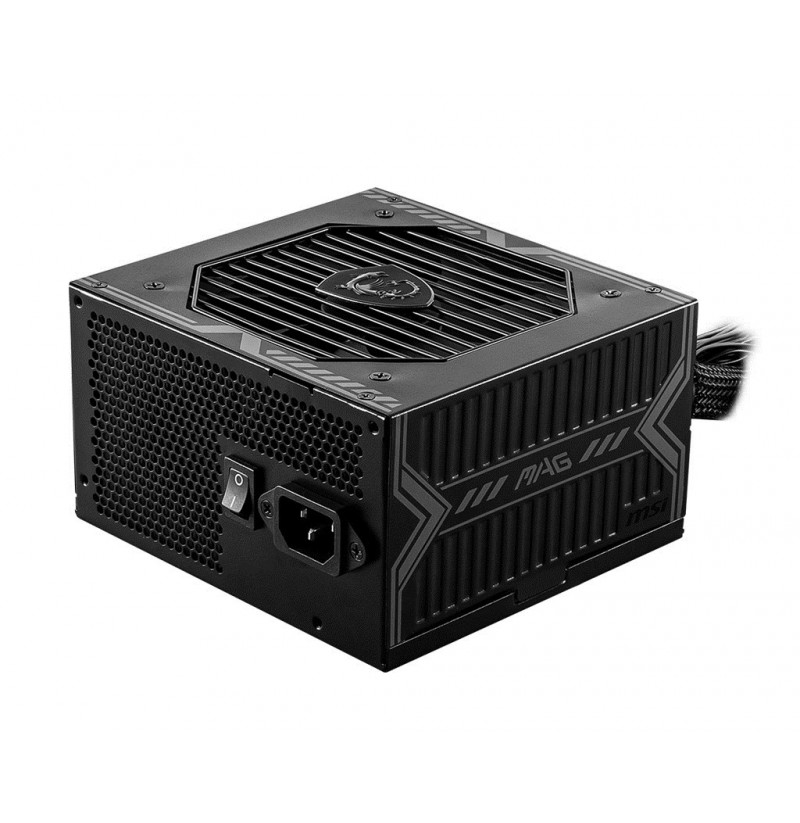

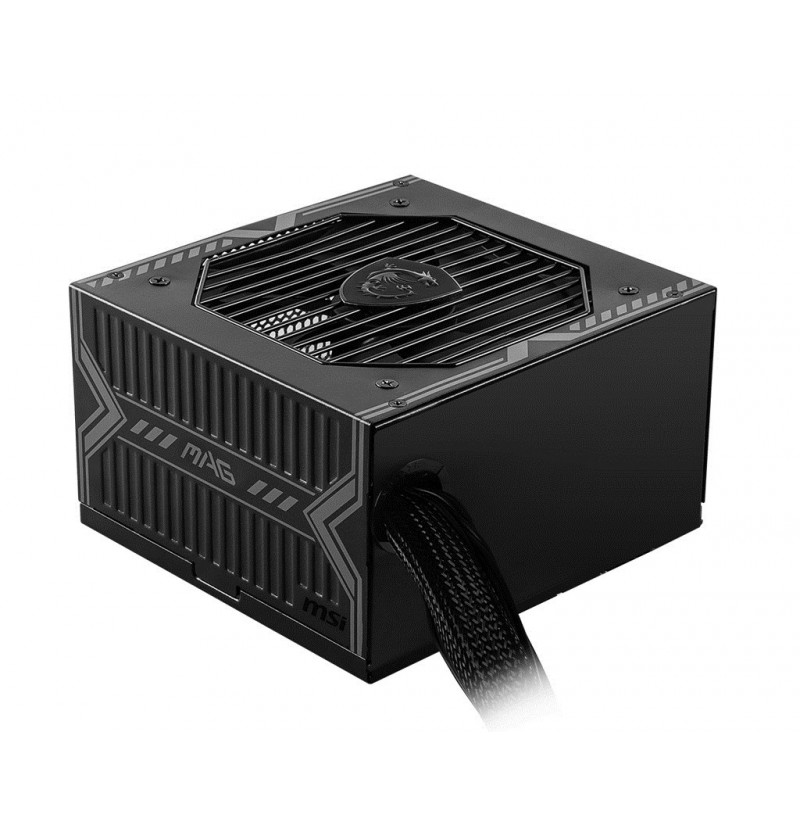

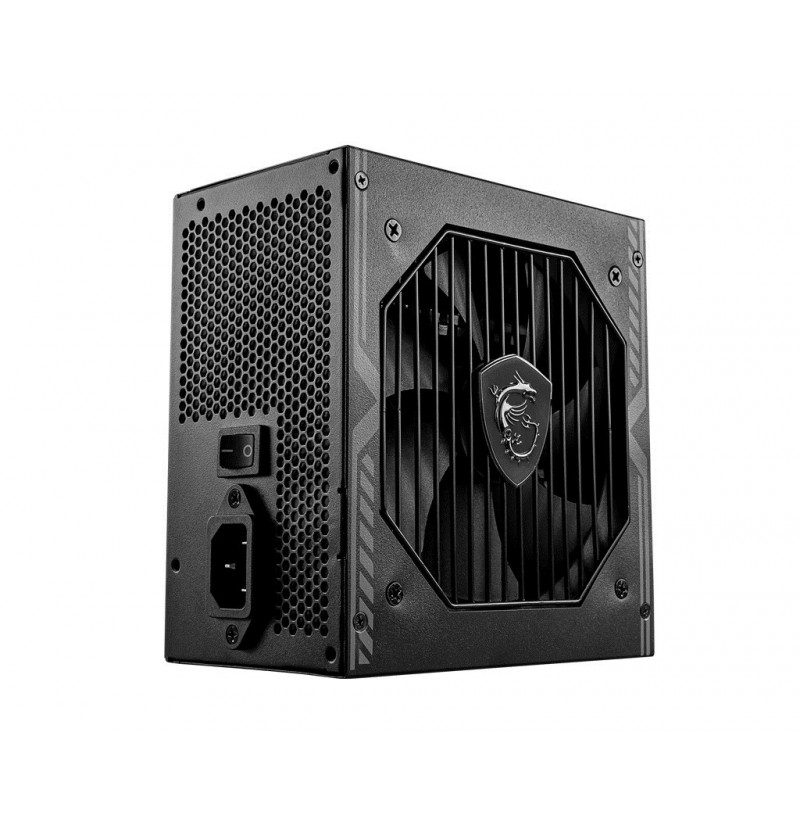

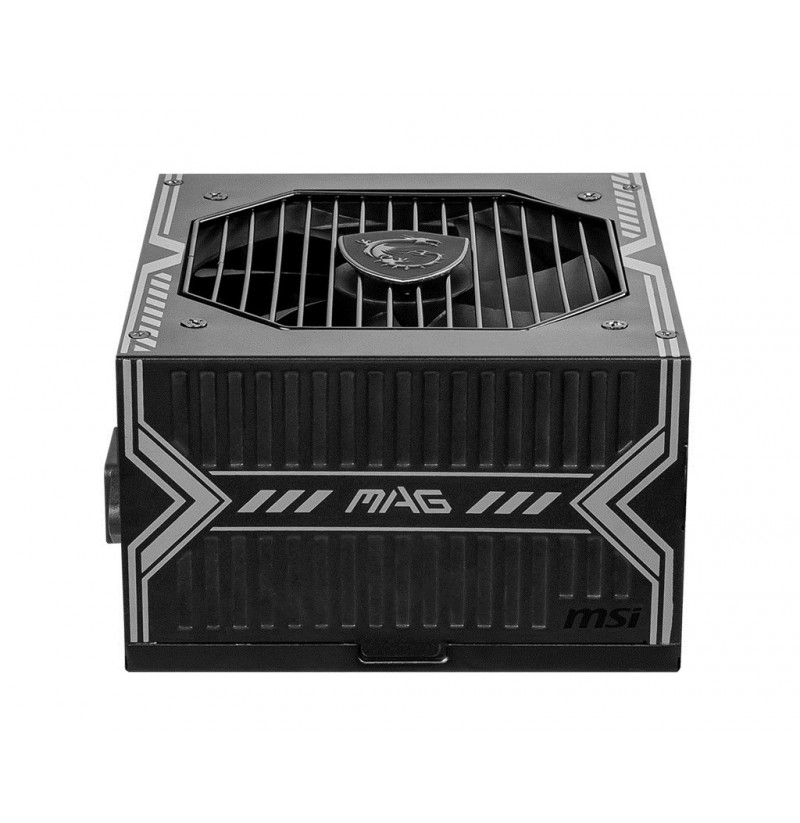

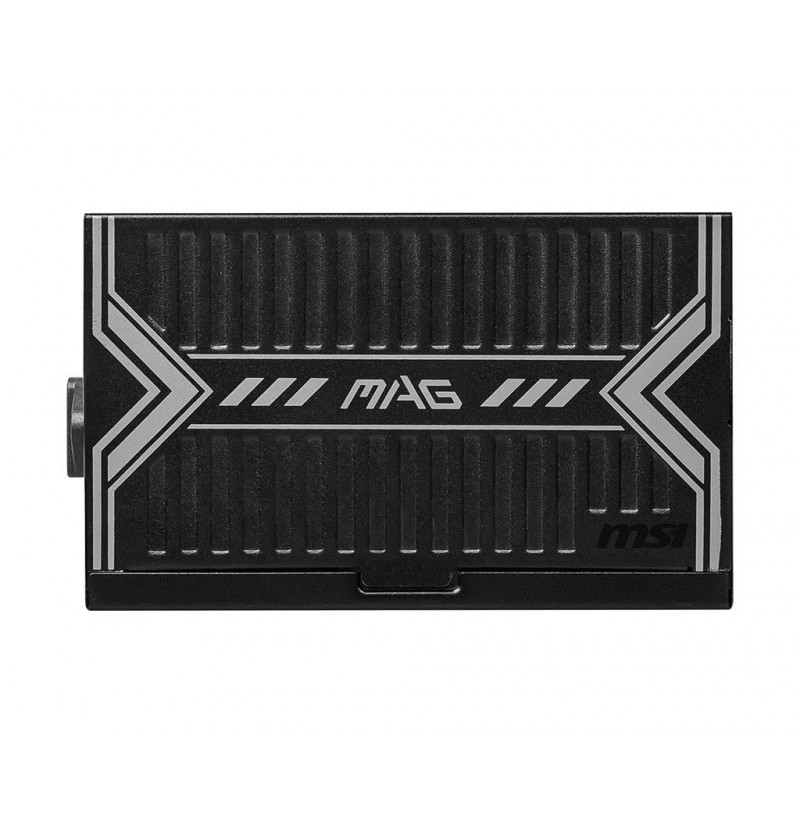

MSI MAG A550BN 550W Power Supply

Product colour: Black
Illumination: No
Number of fans: 1 fan(s)
Cooling type: Active
Fan diameter: 12 cm
On/off switch: Yes
Combined power (-12V): 3.6 W
Efficiency: 85%
Combined power (+12V): 546 W
Combined power (+5Vsb): 12.5 W
Total power: 550 W
Max output current (+3.3V): 20 A
Max output current (+12V): 45.5 A
AC input frequency: 50 - 60 Hz
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
AC input voltage: 100 - 240 V
Power protection features: Over power, Short circuit, Over voltage, Over current, Overheating
Combined power (+5V): 110 W
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Maximum input current (@110V): 8 A
Max output current (+5V): 20 A
Maximum input current (@220V): 4 A
Height: 86 mm
Width: 150 mm
Depth: 140 mm
Power supply unit (PSU) form factor: ATX
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Floppy disk drive connector: Yes
EPS power connector (8-pin): No
Cabling type: Non-Modular
ATX Power connector (24-pin): No
Motherboard power cable length: 60 cm
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 2
Number of SATA power connectors: 5
EPS power connector (4+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
ATX power connector (20+4 pin): No
CPU power connector (4+4 pin): Yes
Floppy drive power connector: 1
PCI Express connector: Yes
Harmonized System (HS) code: 84733020
Warnings: The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations., Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock.
