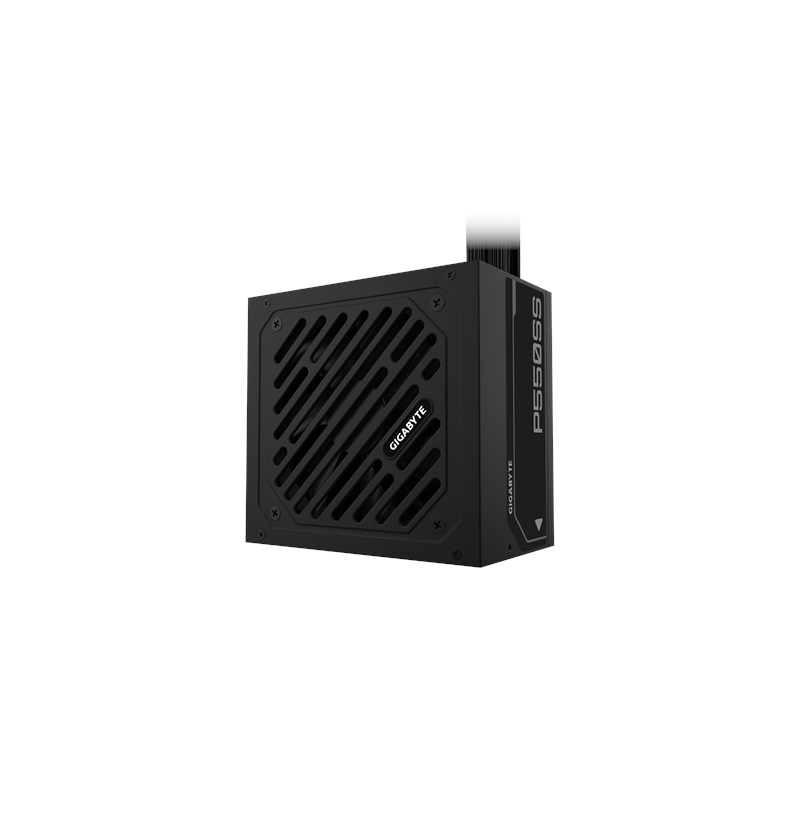

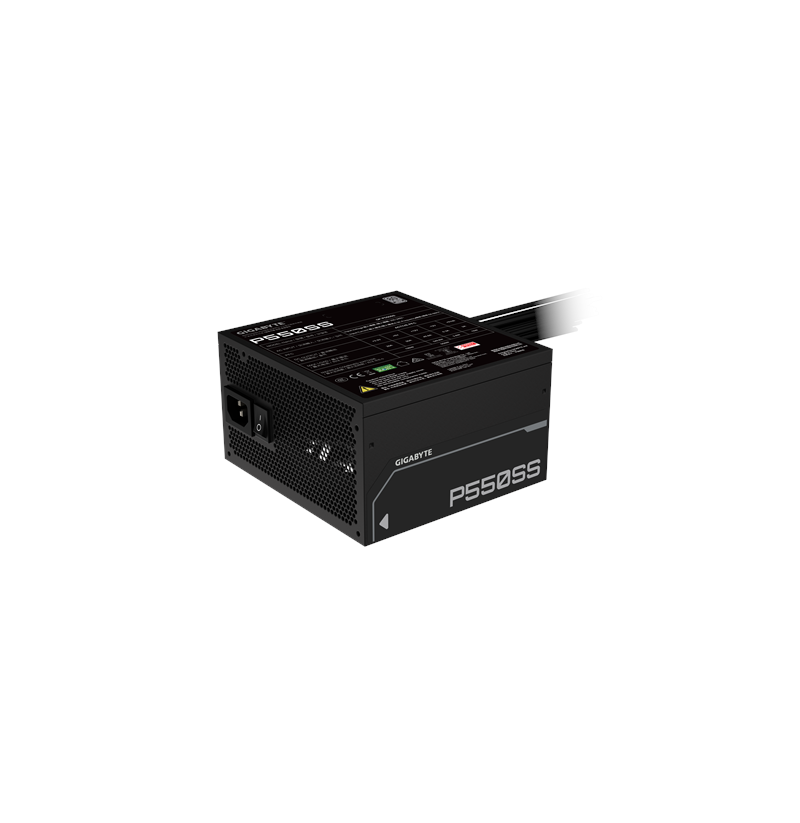

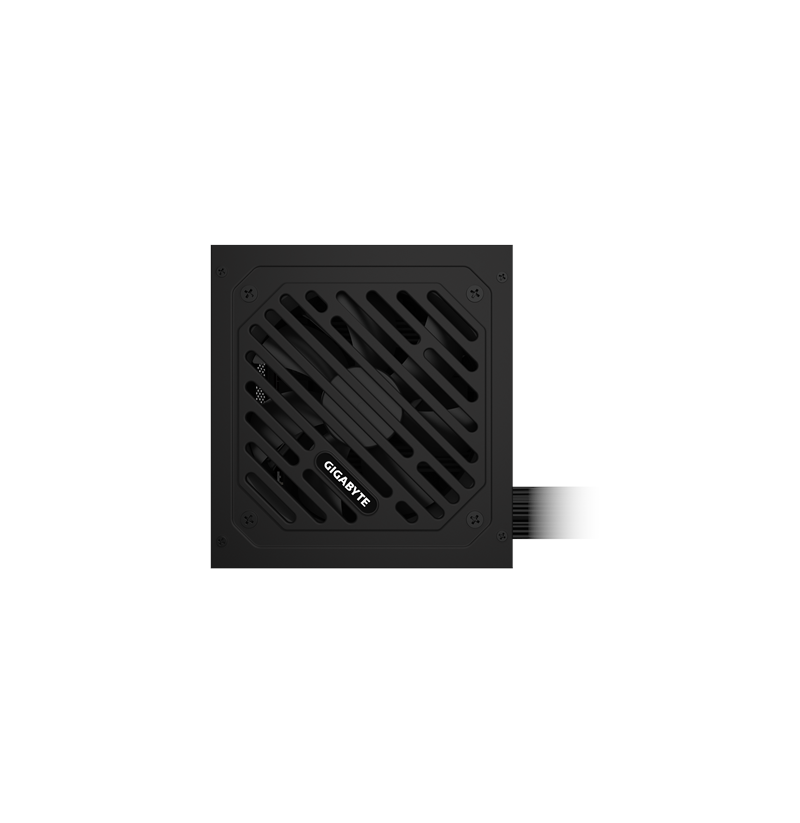

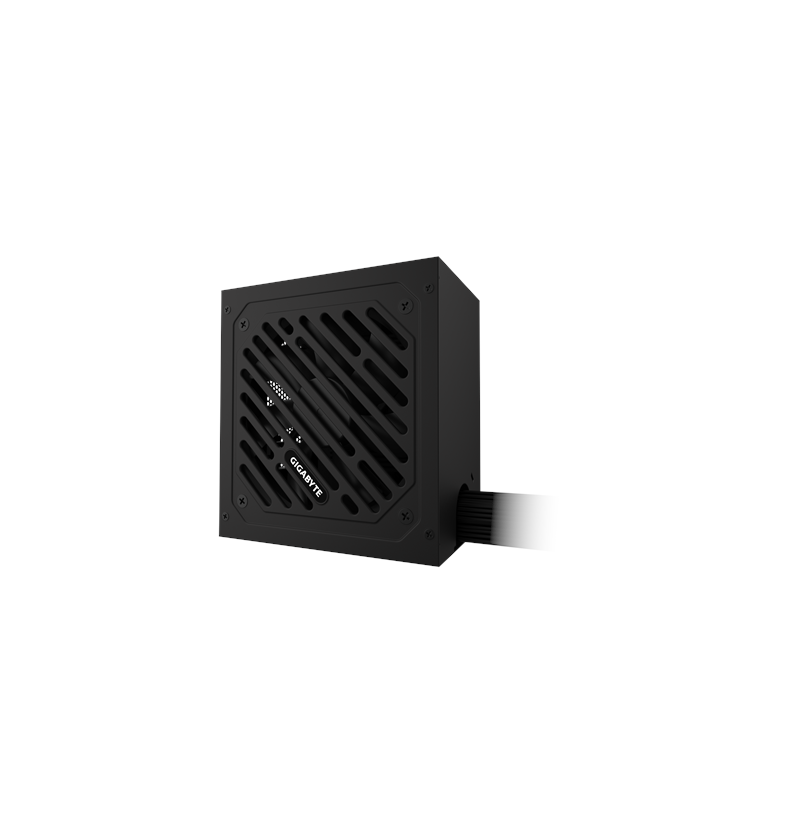

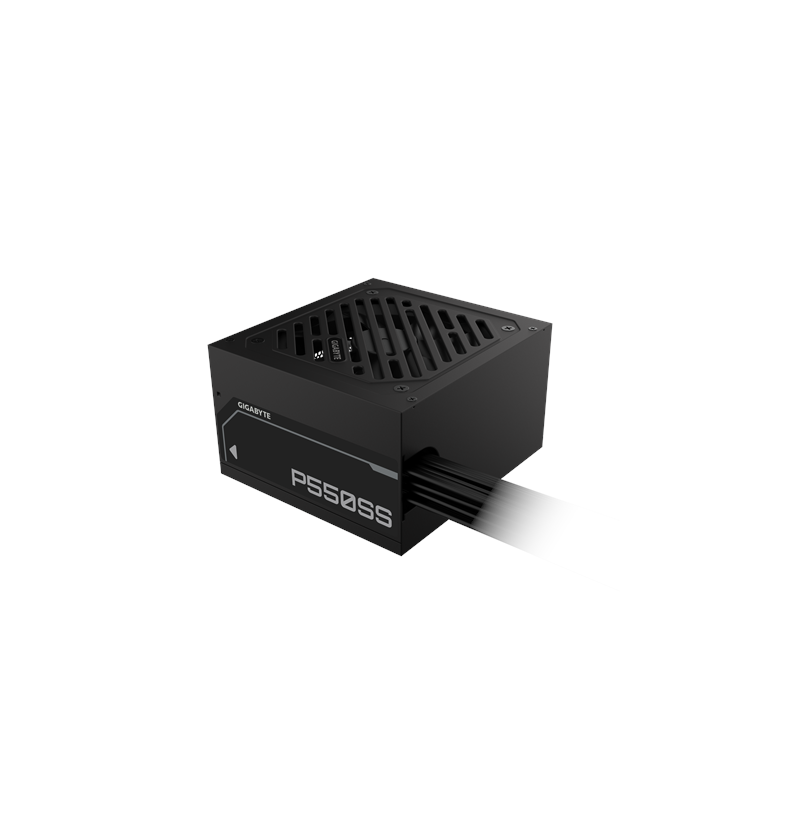

Gigabyte PSU | GP-P550SS GEU1 | 550 W

Fan location: Top
Product colour: Black
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Cooling type: Active
On/off switch: Yes
Combined power (+5V): 200 W
Power protection features: Over power, Short circuit, Over voltage, Overheating, Under voltage, Over current
Max output current (-12V): 0.3 A
Efficiency: 90%
AC input frequency: 50/60 Hz
Combined power (+12V): 549.6 W
Max output current (+5V): 20 A
AC input voltage: 155-240 V
Input current: 6.3 A
Combined power (-12V): 3.6 W
Hold time: 16 ms
Power factor: 0.9
Max output current (+3.3V): 20 A
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Max output current (+12V): 45.8 A
Total power: 550 W
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Width: 150 mm
Depth: 140 mm
Height: 86 mm
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
ATX version: 3.0
Power supply unit (PSU) form factor: ATX
Purpose: PC
Bearing technology: HDB
PCI Express connector: Yes
Peripheral (Molex) power cable length: 500 mm
Floppy disk drive connector: Yes
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
CPU power cable length: 60 cm
Motherboard power connector: 20+4 pin ATX
SATA power cable length: 500 mm
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 50 cm
Number of SATA power connectors: 5
Motherboard power cable length: 60 cm
Floppy drive power connector: 1
Cabling type: Non-Modular
Harmonized System (HS) code: 84733020
