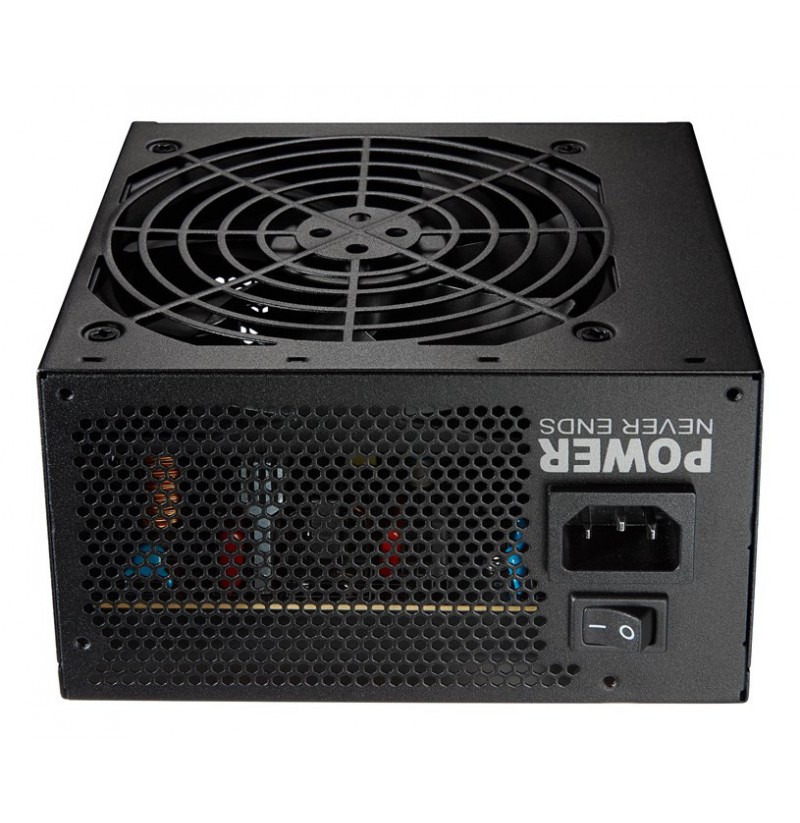

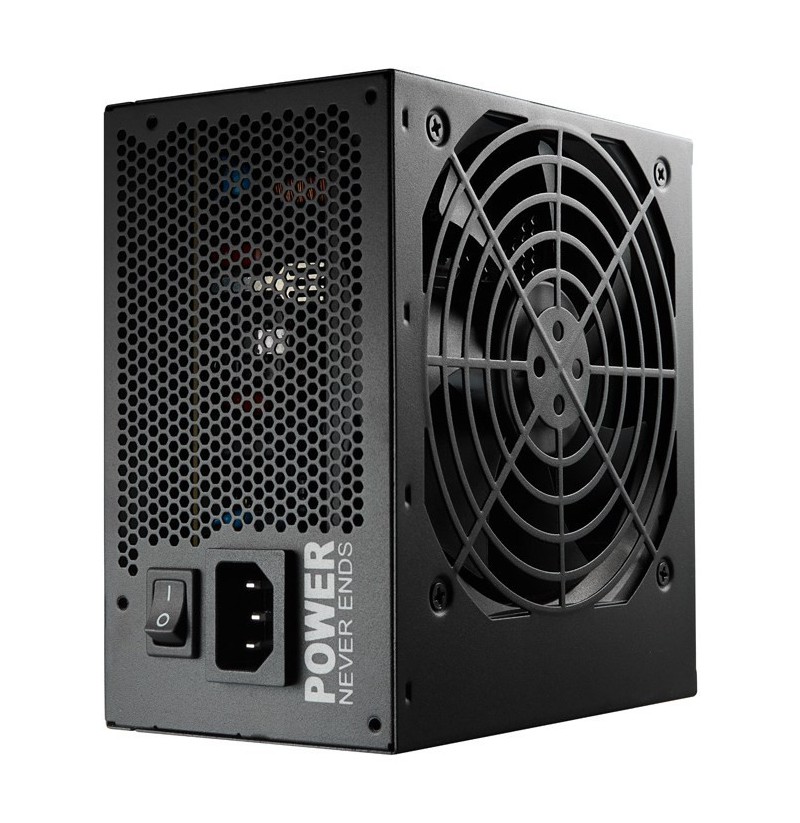

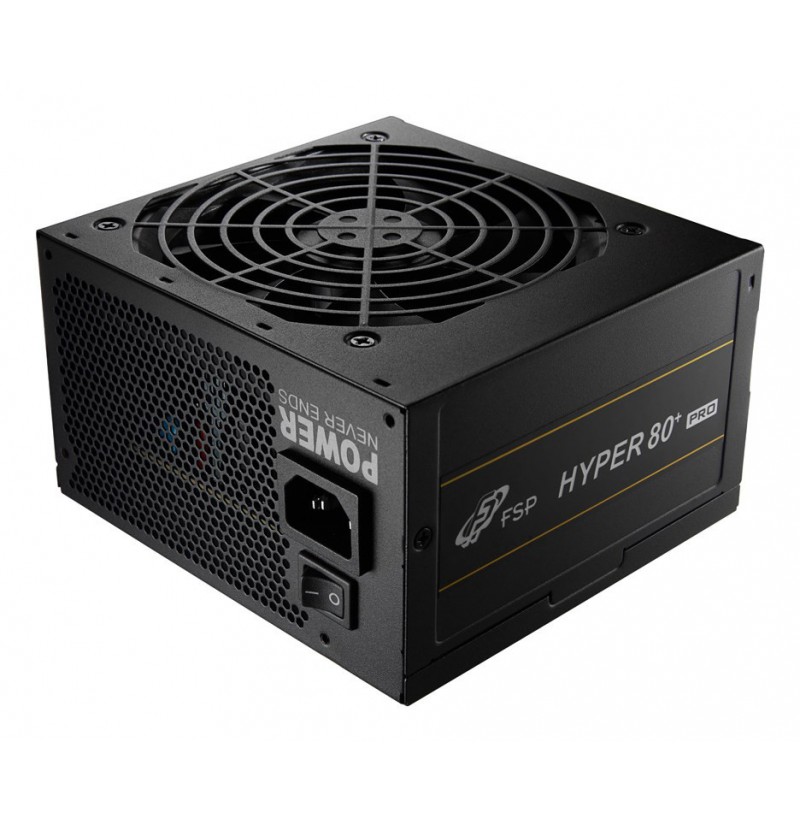

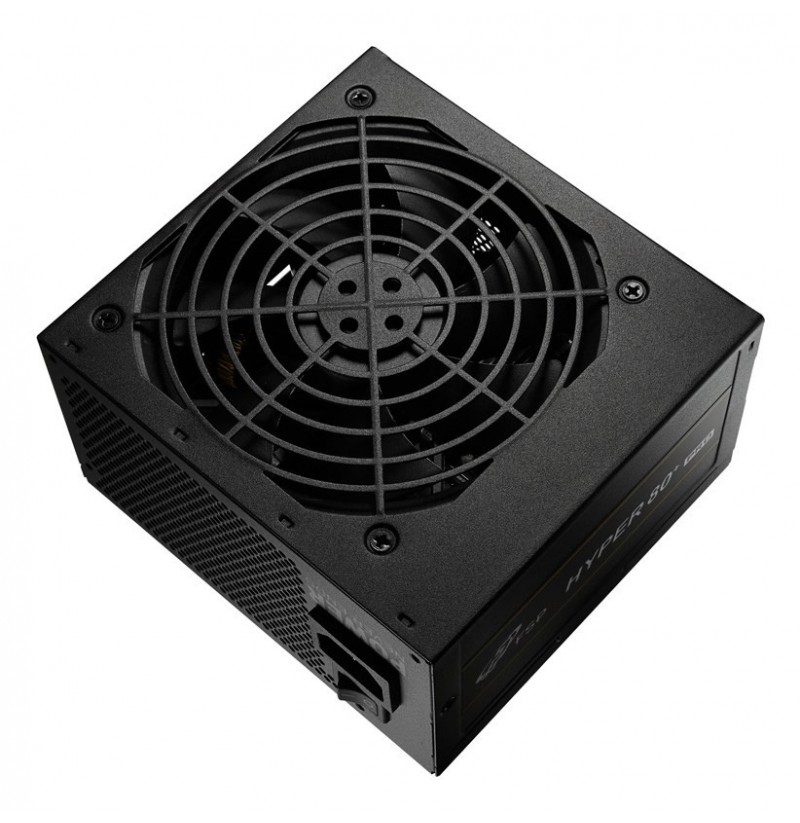

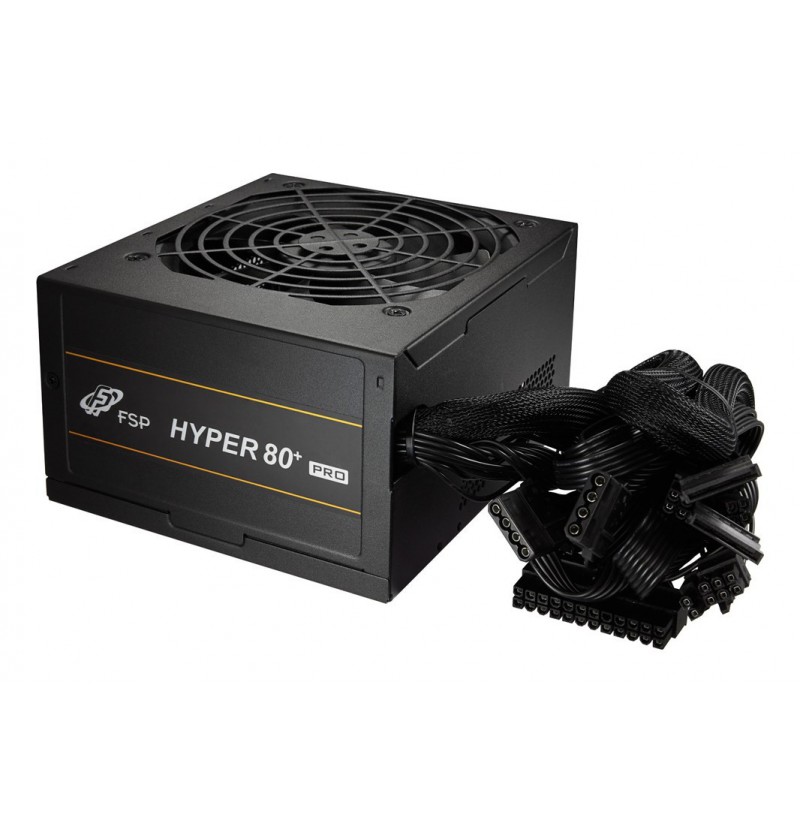

FSP Power Supply | HYPER 80+PRO550 BKB | 550 W

Sustainability certificates: ErP
Sustainability compliance: Yes
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Illumination: No
Input current: 4.5 A
Power protection features: Over power, Over current, Short circuit, Over voltage
AC input voltage: 200 - 240 V
Total power: 550 W
Power factor: 0.9
Efficiency: 85%
Max output current (+12V): 45.8 A
Hold time: 17 ms
Combined power (+3.3V): 85 W
Combined power (-12V): 3.6 W
Power Factor Correction (PFC) type: Active
Combined power (+5V): 85 W
Max output current (+3.3V): 16 A
Combined power (+12V): 549.6 W
Max output current (-12V): 0.3 A
Combined power (+5Vsb): 12.5 W
Max output current (+5V): 16 A
Max output current (+5Vsb): 2.5 A
Height: 86 mm
Weight: 1.25 kg
Depth: 140 mm
Width: 150 mm
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Power supply unit (PSU) form factor: ATX
EPS version: 2.92
ATX version: 2.4
Floppy disk drive connector: Yes
Cabling type: Non-Modular
Peripheral (Molex) power connectors (4-pin): 2
Floppy drive power connector: 1
EPS power connector (4+4 pin): Yes
Number of SATA power connectors: 5
PCI Express power connectors (6+2 pin): 2
Motherboard power connector: 24-pin ATX
