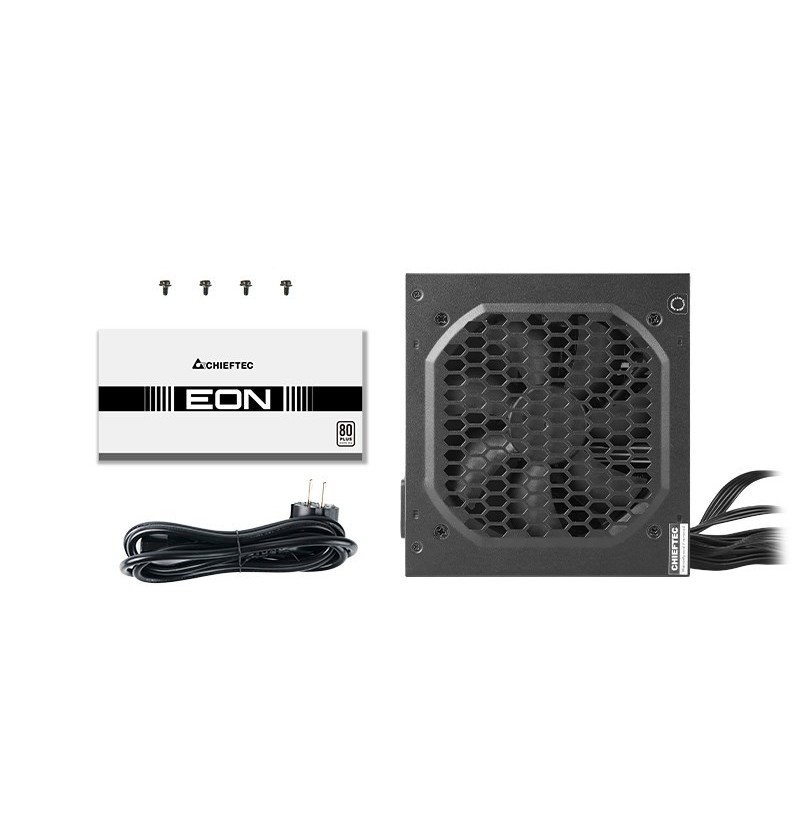

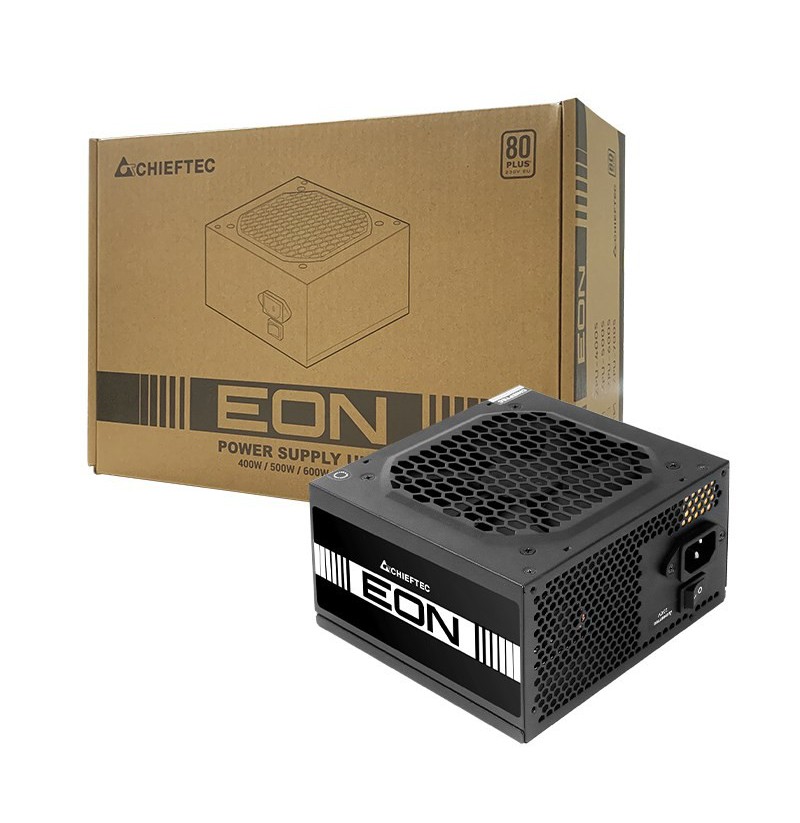

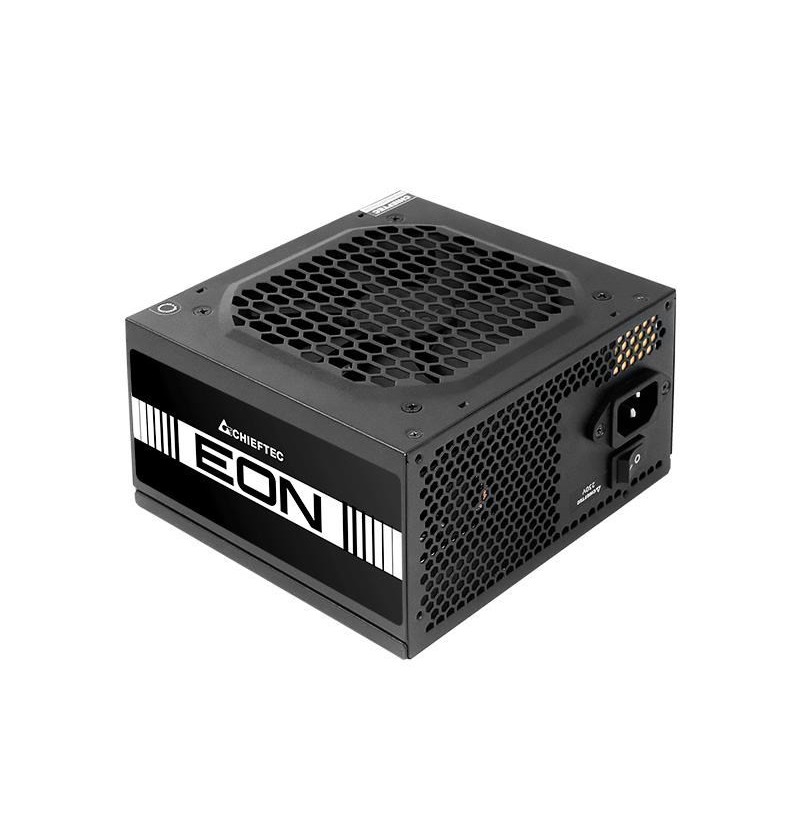

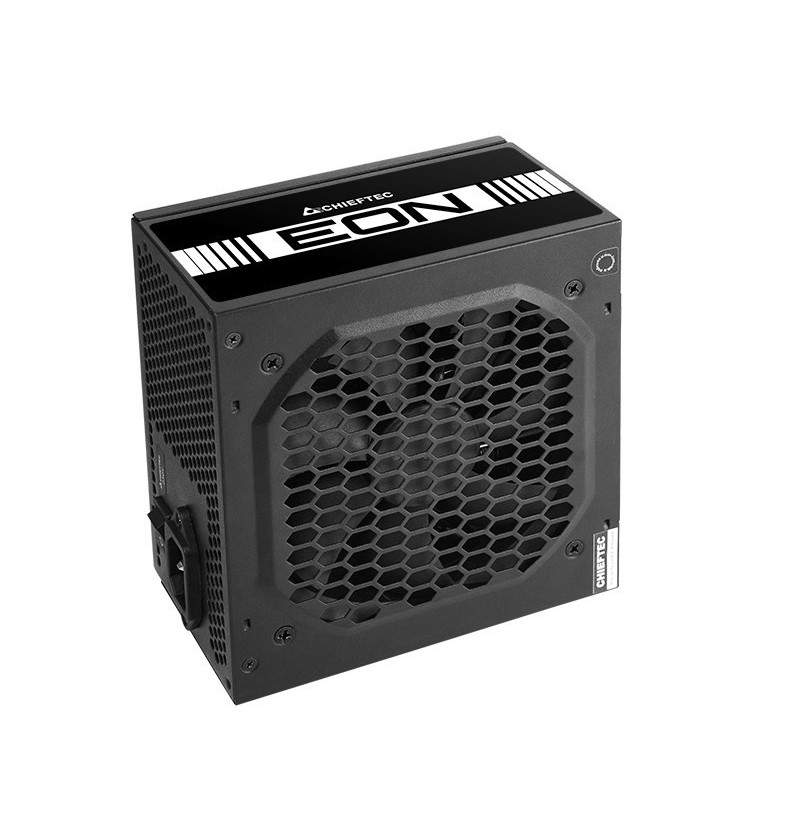

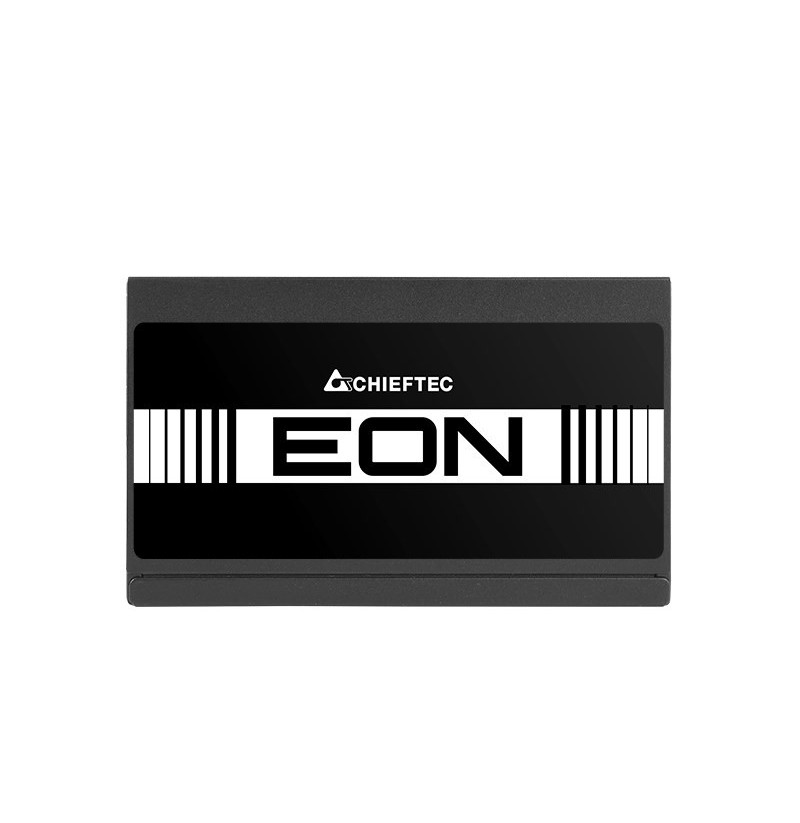

Power supply Chieftec EON ZPU-600S 600W

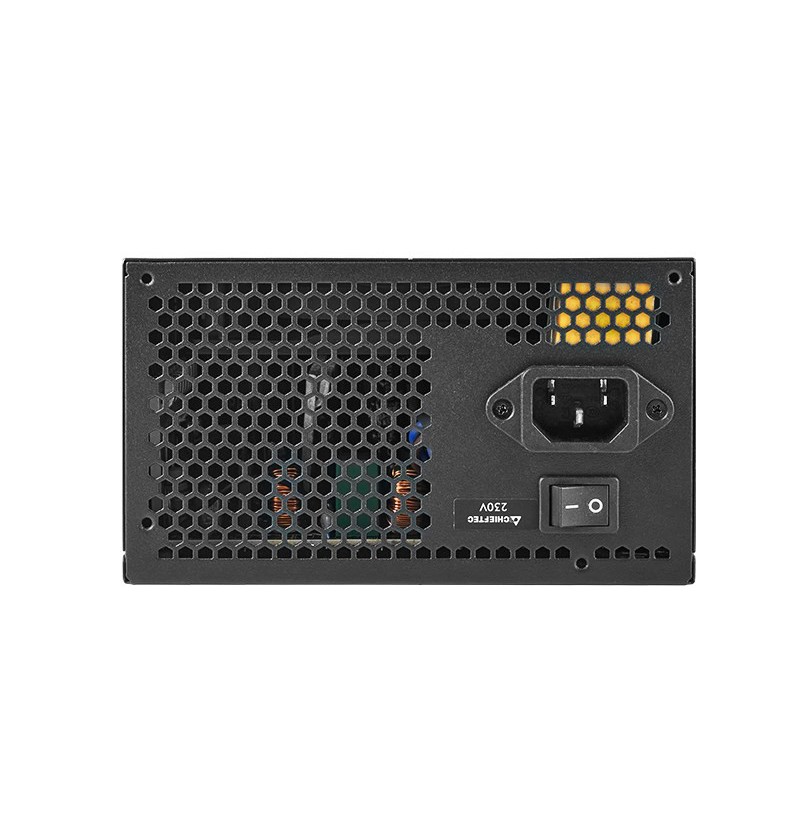

On/off switch: Yes

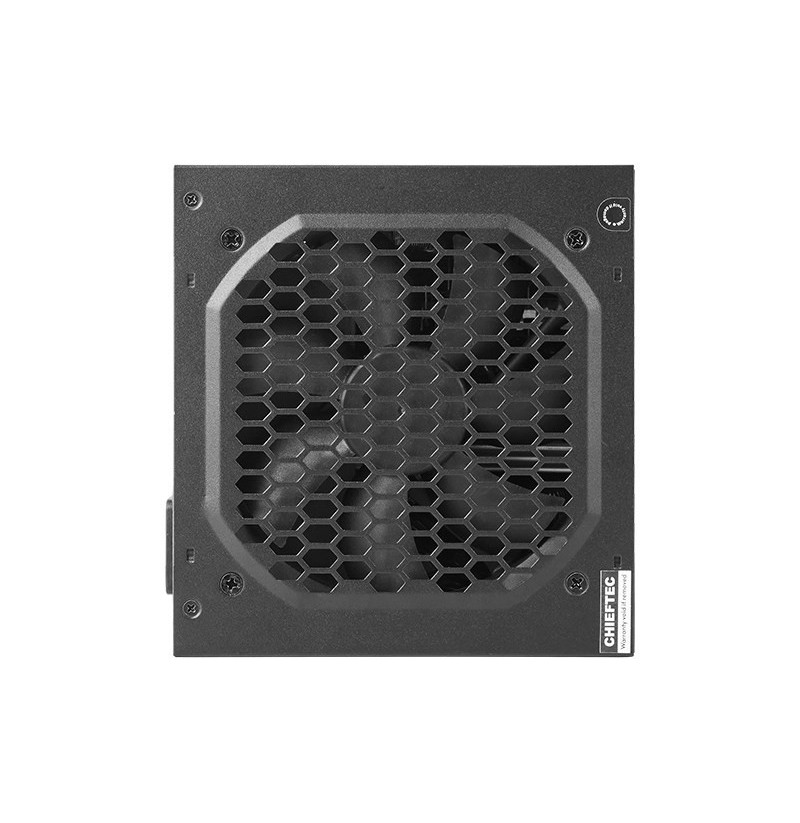

Fan diameter: 12 cm
Product colour: Black
Max output current (+5V): 20 A
Combined power (+5Vsb): 12.5 W
Combined power (-12V): 4.8 W
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 2.5 A
Power Factor Correction (PFC) type: Active
Maximum input current (@220V): 4.5 A
Max output current (+12V1): 45 A
Max output current (-12V): 0.4 A
Input current: 4.5 A
Power factor: 0.9
AC input voltage: 200 - 240 V
Power protection features: Short circuit, Surge protection, Surge and inrush
Total power: 600 W
AC input frequency: 50 Hz
Height: 86 mm
Depth: 140 mm
Weight: 1.34 kg
Width: 150 mm
ATX version: 2.3
80 PLUS certification: 80 PLUS
Purpose: PC/Server
Supported motherboard form factors: ATX
Power supply unit (PSU) form factor: ATX
Peripheral (Molex) power cable length: 750, 600 mm, 450 mm
Motherboard power cable length: 65 cm
Motherboard power connector: 20+4 pin ATX
SATA power cable length: 450, 750, 600 mm
Number of SATA power connectors: 4
ATX power connector (20+4 pin): Yes
EPS power connector (4+4 pin): Yes
CPU power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
Cabling type: Non-Modular
Warranty period: 2 year(s)
