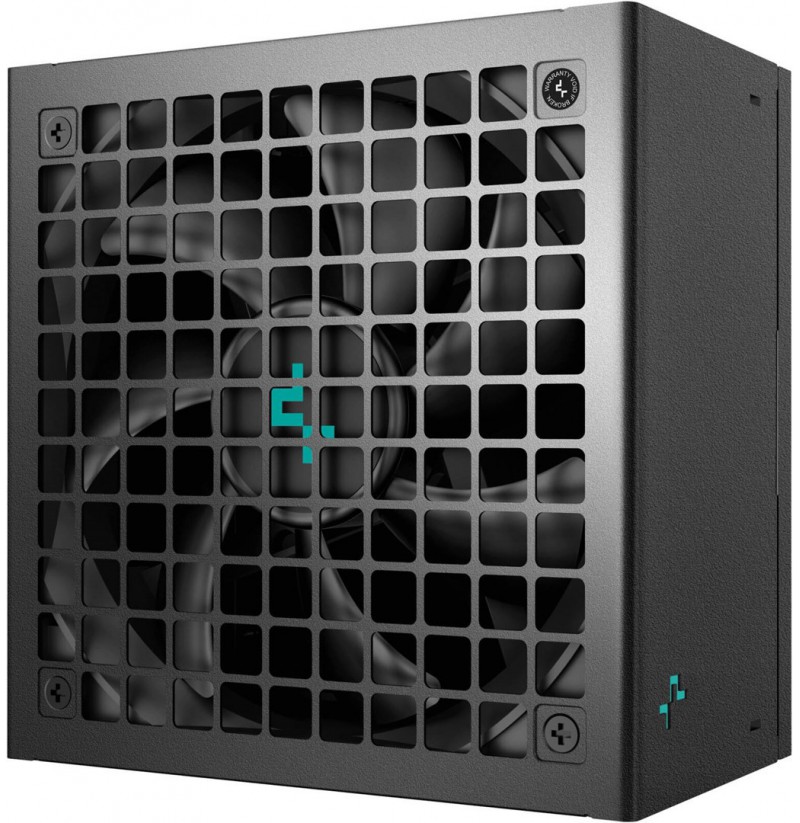

DeepCool PN1000-D power supply unit (R-PNA00D-FC0B-JGEU-V2)

Cooling type: Active
Product colour: Black
Fan location: Top
On/off switch: Yes
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Power protection features: Under voltage, Over power, Overheating, Surge protection, Over voltage, No load operation, Over current, Surge & inrush protection (SIP)
Total power: 1000 W
AC input frequency: 50/60 Hz
Combined power (+3.3V): 120 W
Efficiency: 90%
AC input voltage: 100 - 240 V
Combined power (+12V): 999.6 W
Max output current (+3.3V): 22 A
Power Factor Correction (PFC) type: Active
Max output current (+5V): 22 A
Max output current (+12V): 83.3 A
Hold time: 16 ms
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Max output current (+5Vsb): 3 A
Power Good signal delay range: 100 - 150 ms
Max output current (-12V): 0.3 A
Operating temperature (T-T): 0 - 40 °C
Width: 150 mm
Height: 85 mm
Depth: 150 mm
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Purpose: PC
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
Package type: Box
Certification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Compliance certificates: RoHS, WEEE
Cabling type: Modular
Motherboard power cable length: 54 cm
Motherboard power connector: 24-pin ATX
