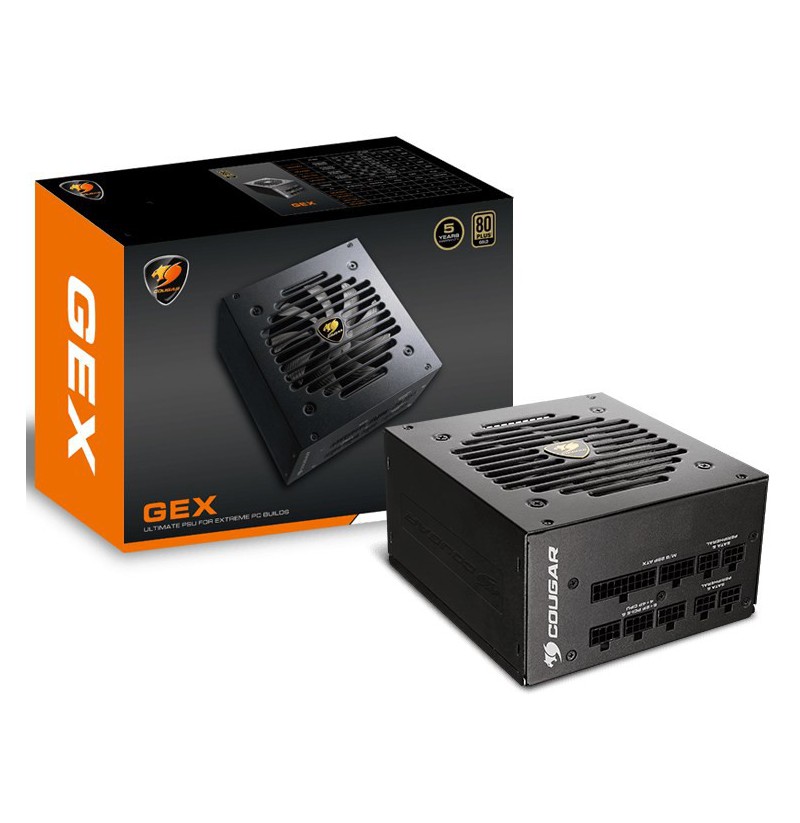

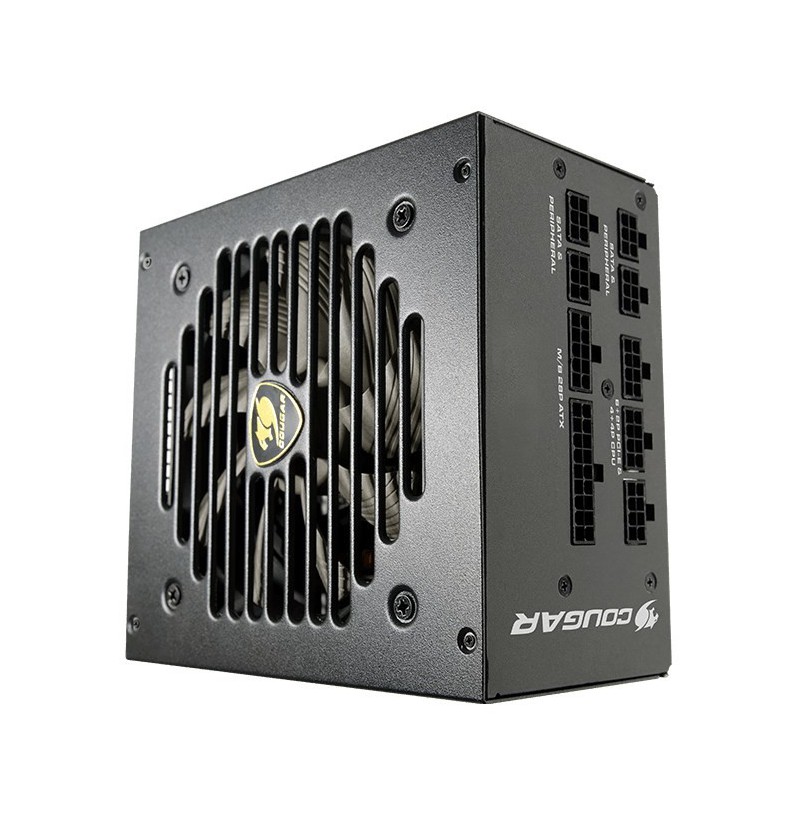

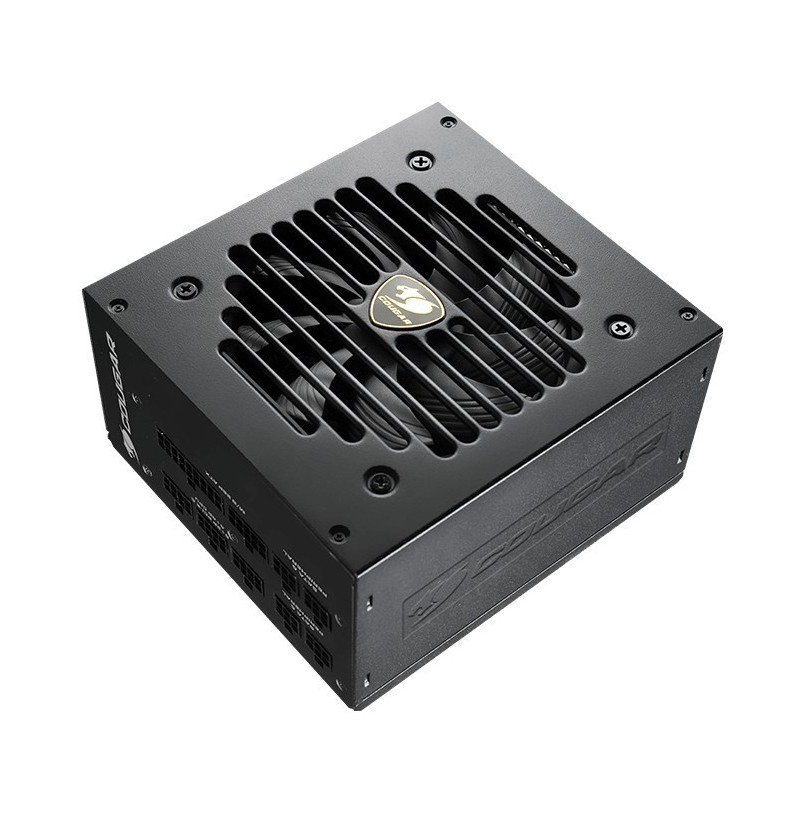

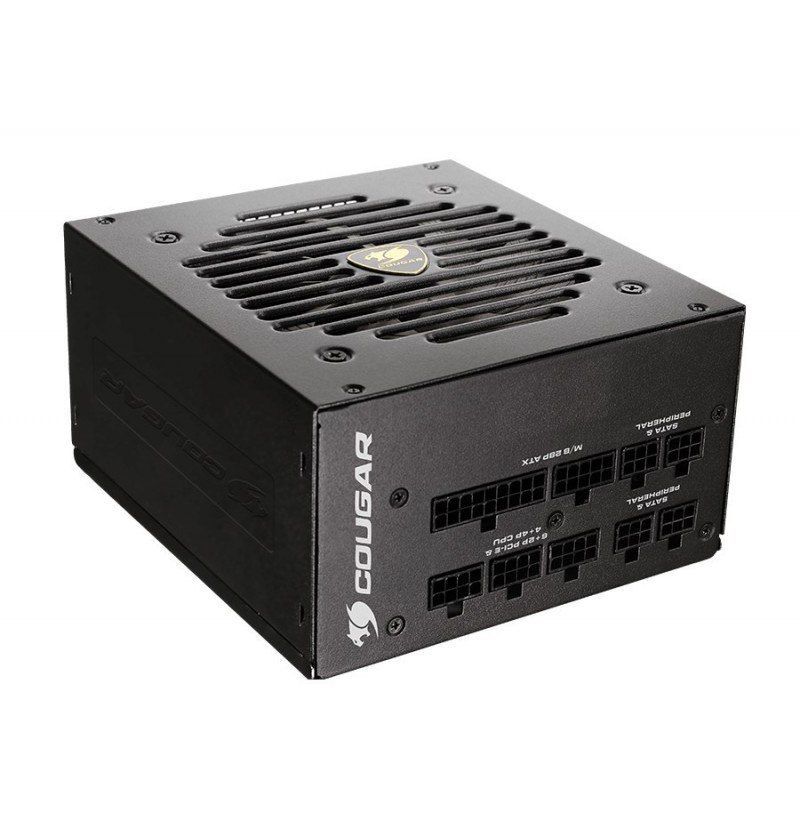

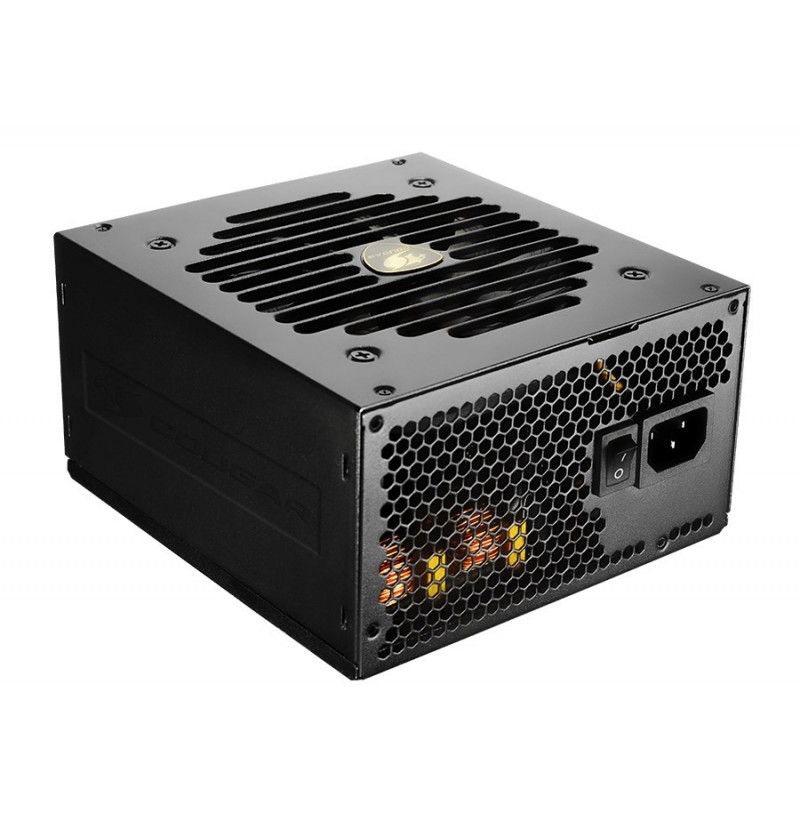

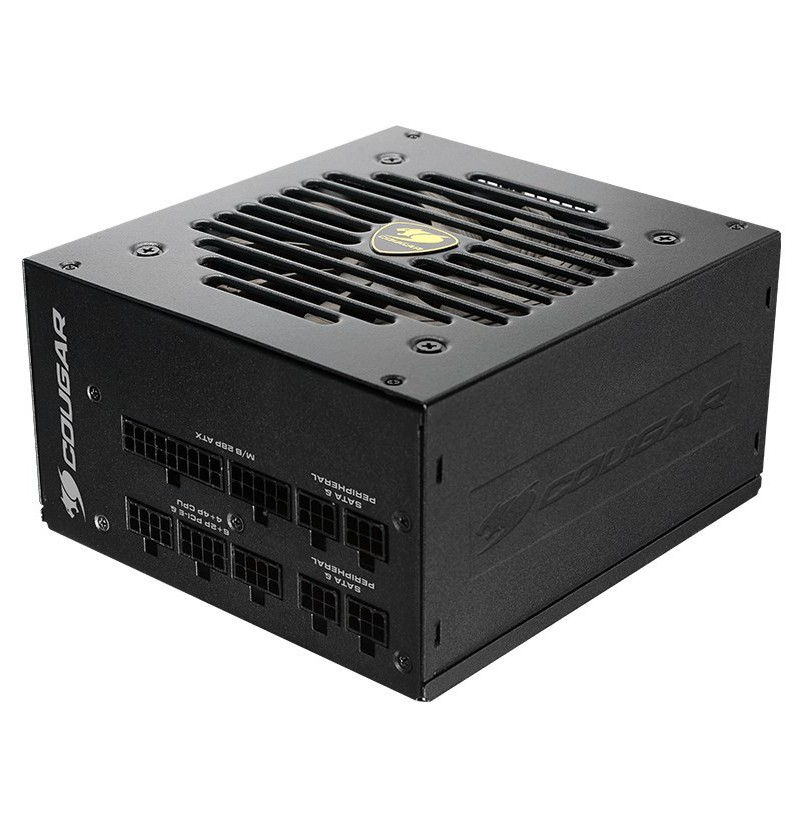

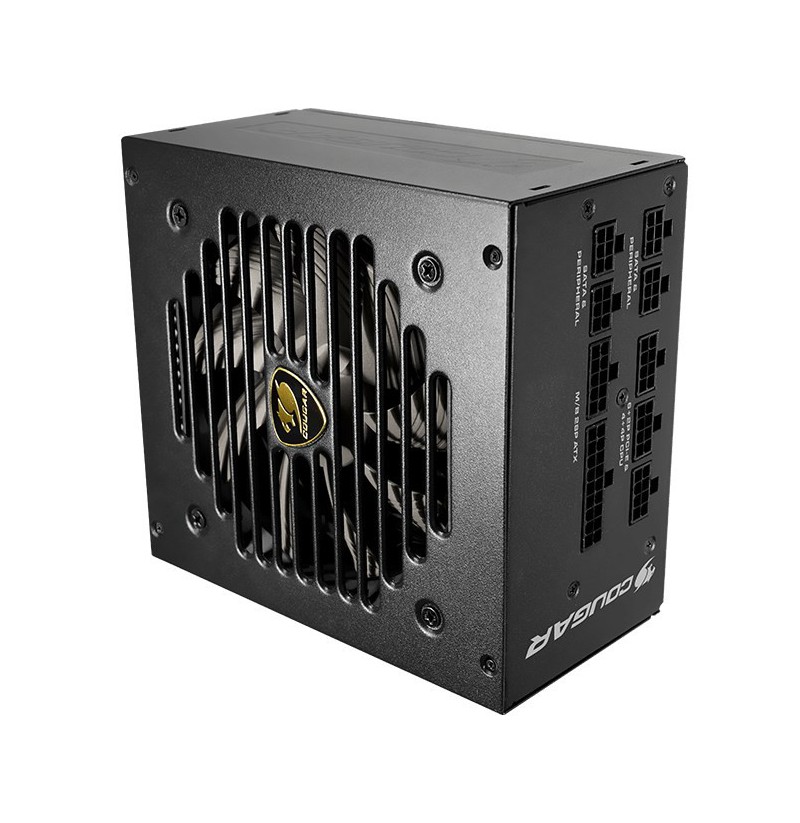

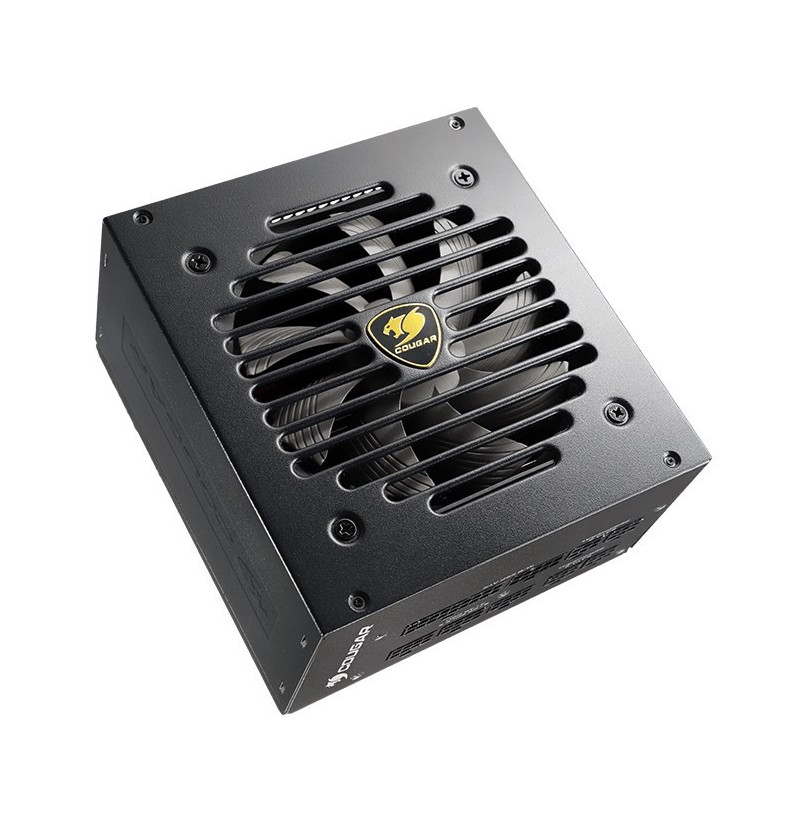

COUGAR GEX750 power supply unit 750 W 20+4 pin ATX ATX Black

Sustainability certificates: ENERGY STAR

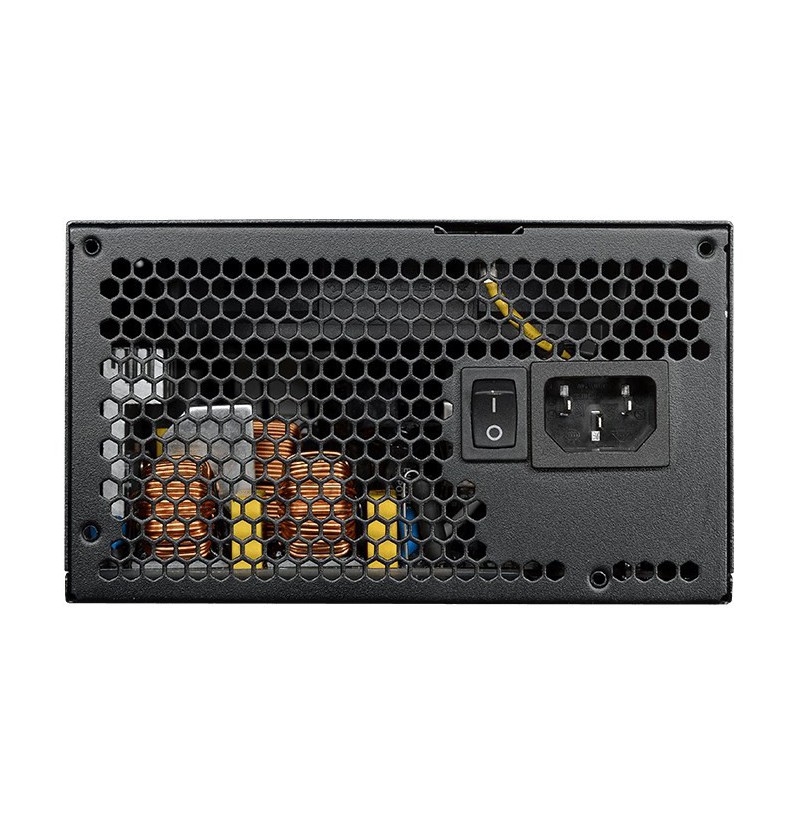

On/off switch: Yes

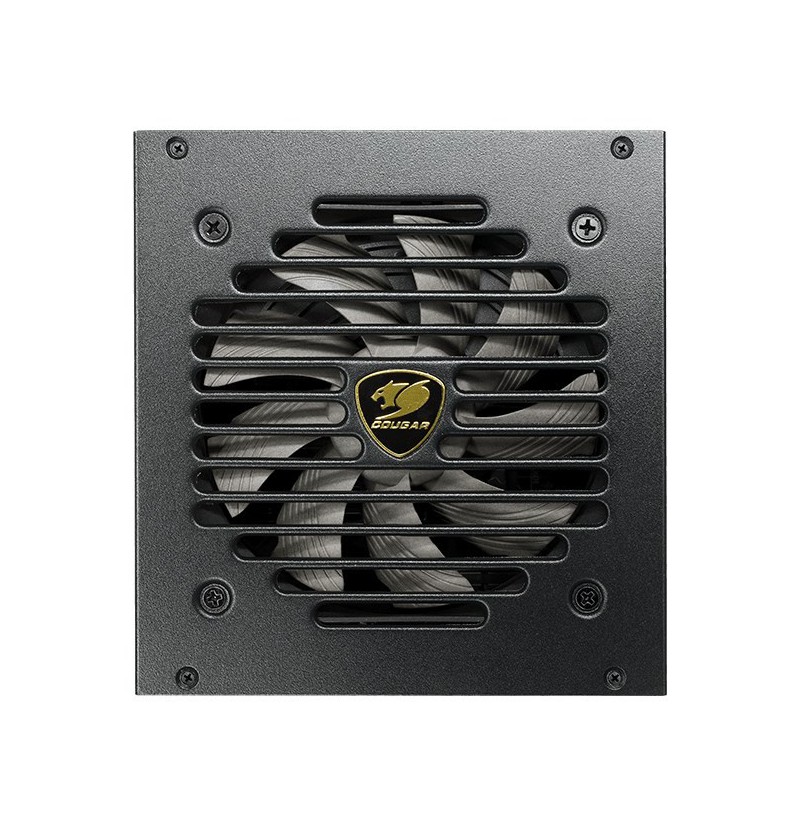

Fan location: Top
Cooling type: Active
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
AC input frequency: 50 - 60 Hz
Input current: 10 - 5 A
Combined power (+3.3V): 100 W
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 3 W
Power protection features: Over power, Under voltage, Over current, Short circuit, Over voltage, Overheating
Max output current (+5V): 20 A
Max output current (+5Vsb): 3 A
Total power: 750 W
Max output current (+12V): 62.5 A
Combined power (+5V): 100 W
Max output current (-12V): 0.3 A
Combined power (-12V): 0.3 W
Max output current (+3.3V): 18 A
Combined power (+12V): 750 W
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 20 - 85%
Operating temperature (T-T): 10 - 40 °C
Storage relative humidity (H-H): 5 - 95%
Width: 150 mm
Height: 86 mm
Depth: 160 mm
Weight: 1.46 kg
80 PLUS certification: 80 PLUS Gold
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB
Purpose: PC
Package depth: 331 mm
Package weight: 2.58 kg
Package type: Box
Package width: 229 mm
Package height: 107 mm

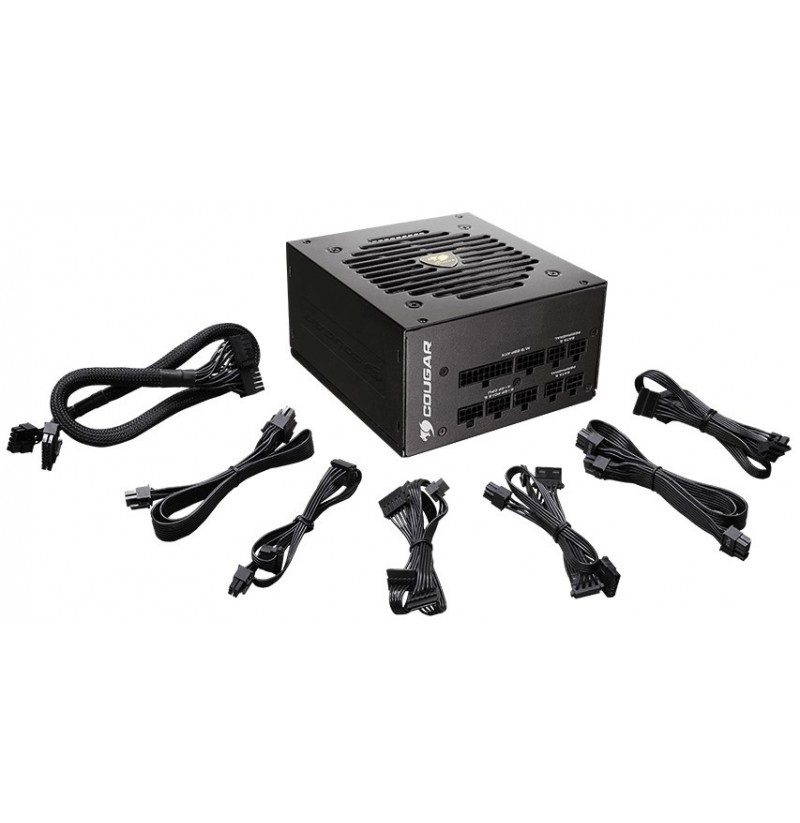

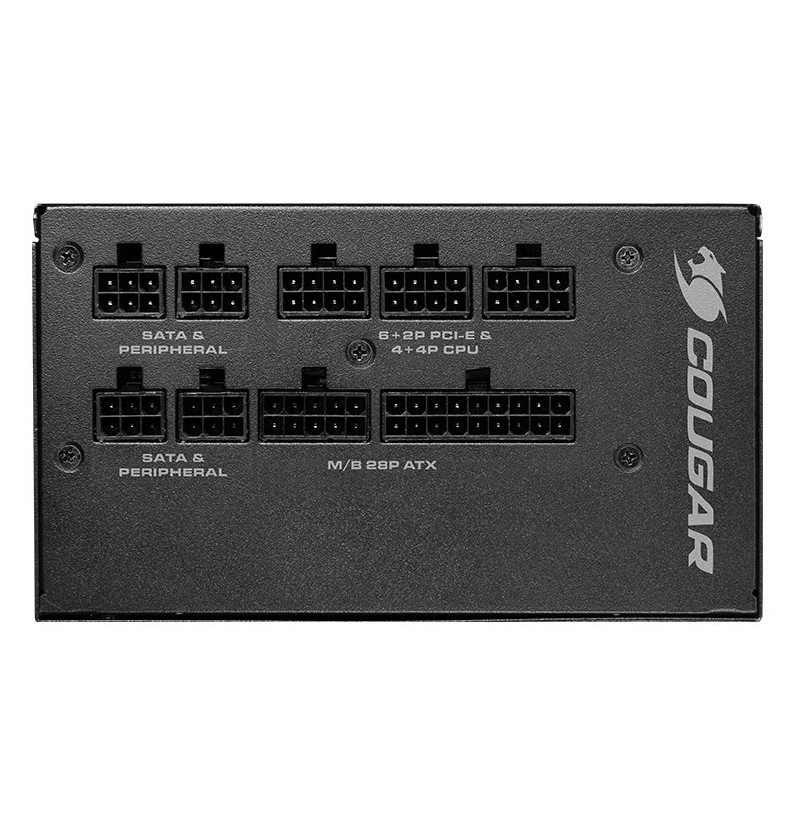

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Compliance certificates: RoHS
Peripheral (Molex) power connectors (4-pin): 6
Cabling type: Fully-Modular
PCI Express power connectors (6+2 pin): 4
Motherboard power cable length: 61 cm
SATA power cable length: 120, 450
Motherboard power connector: 20+4 pin ATX
CPU power cable length: 65 cm
ATX power connector (20+4 pin): Yes
PCI Express connector: Yes
CPU power connector (4+4 pin): Yes
Number of PATA power connectors: 3
Peripheral (Molex) power cable length: 450 mm, 120
Number of SATA power connectors: 8
PCI Express power cable length: 60 cm
Warranty period: 5 year(s)
