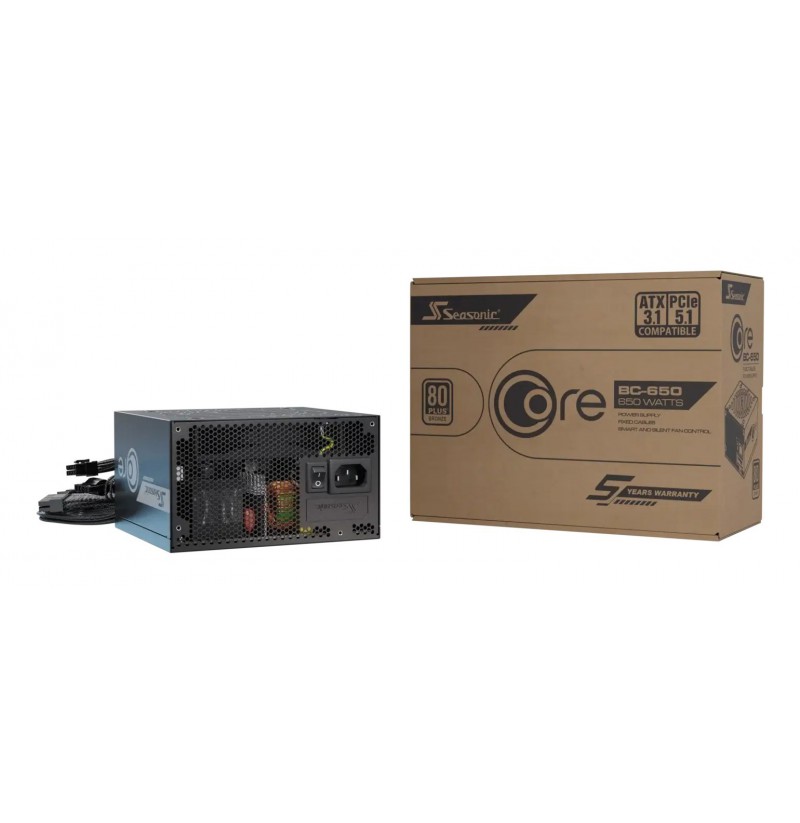

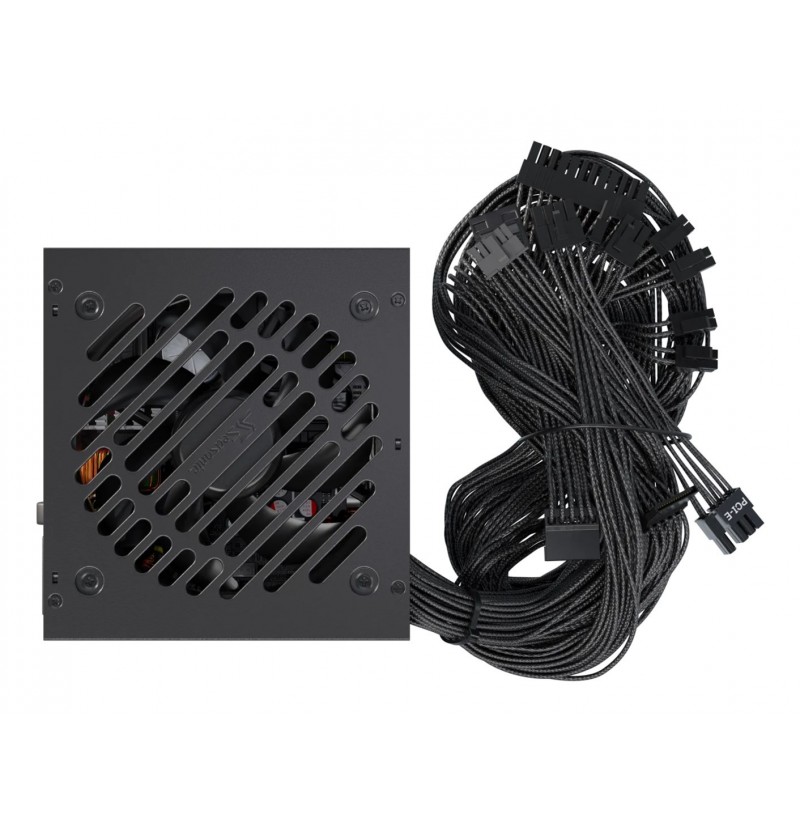

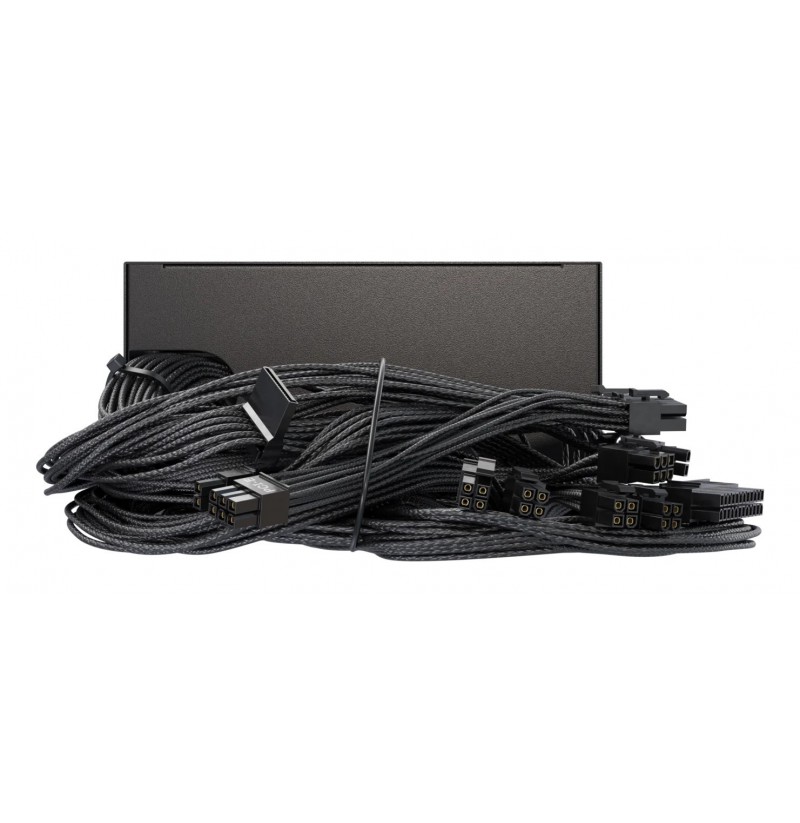

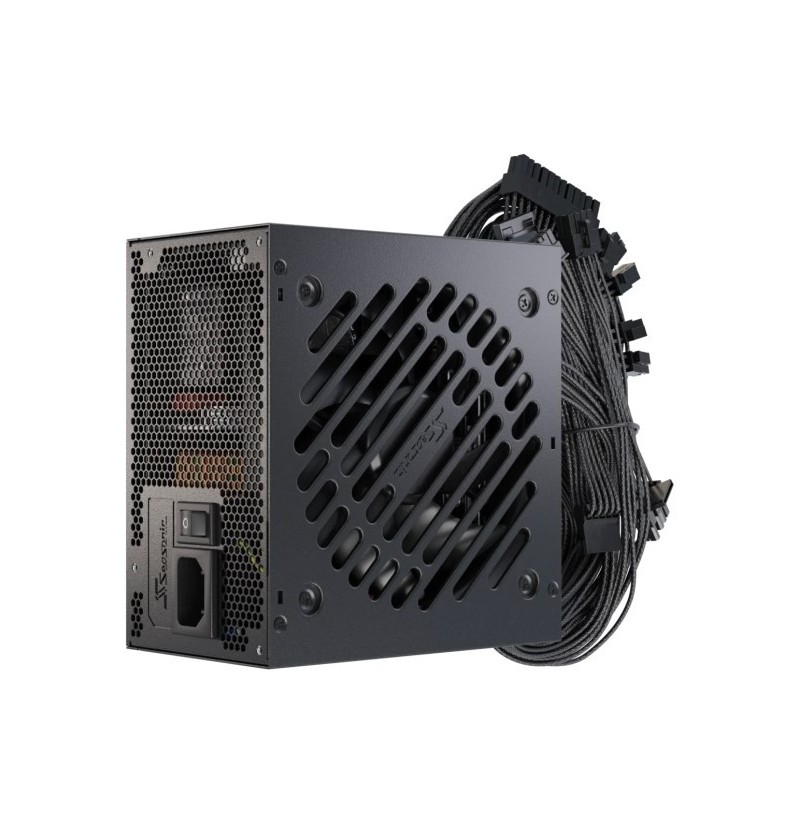

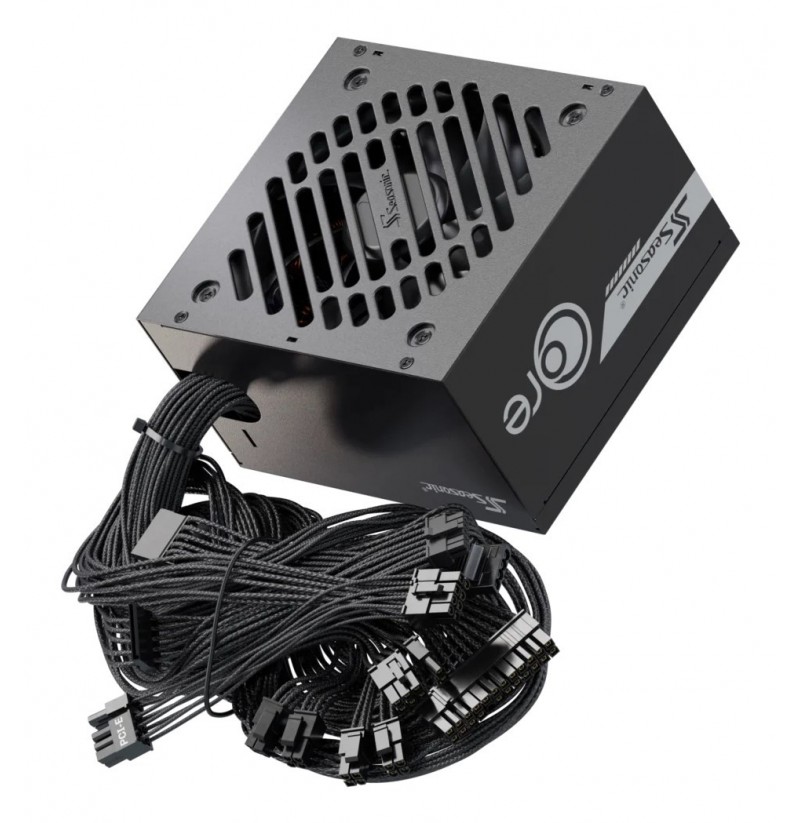

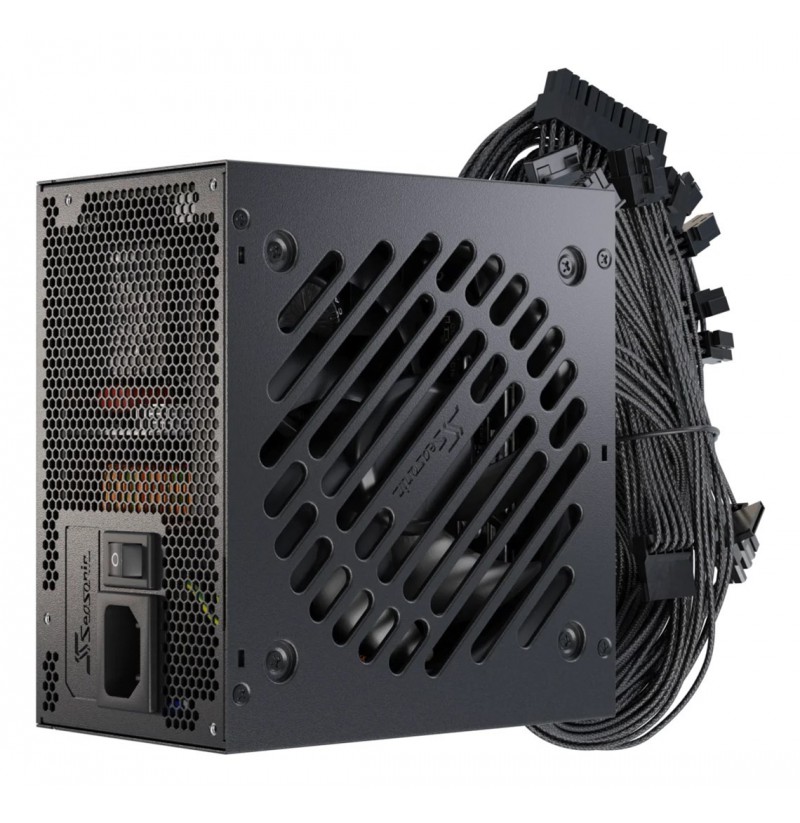

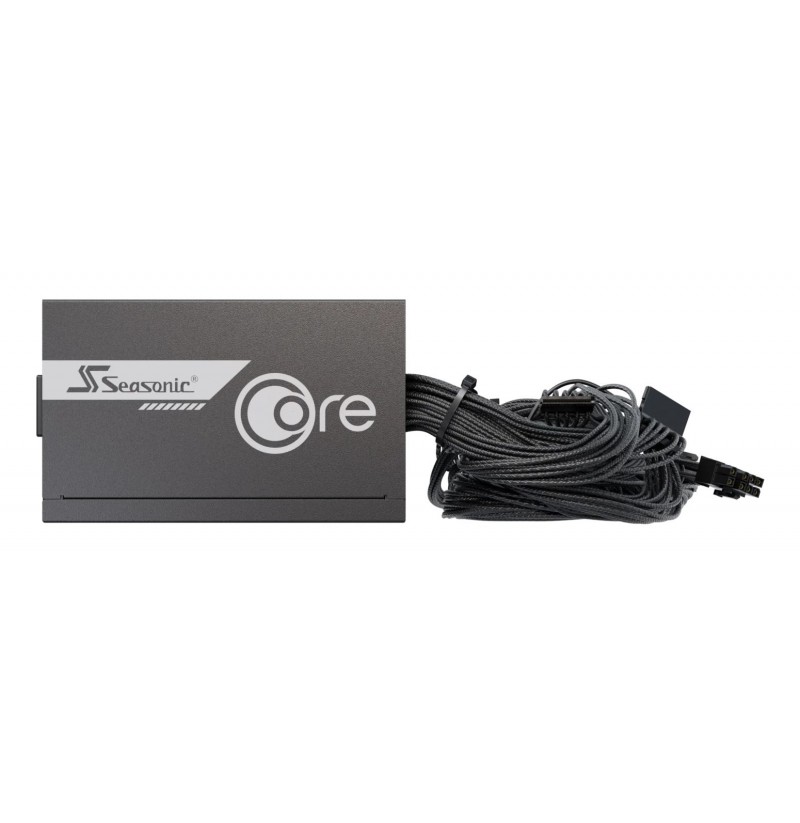

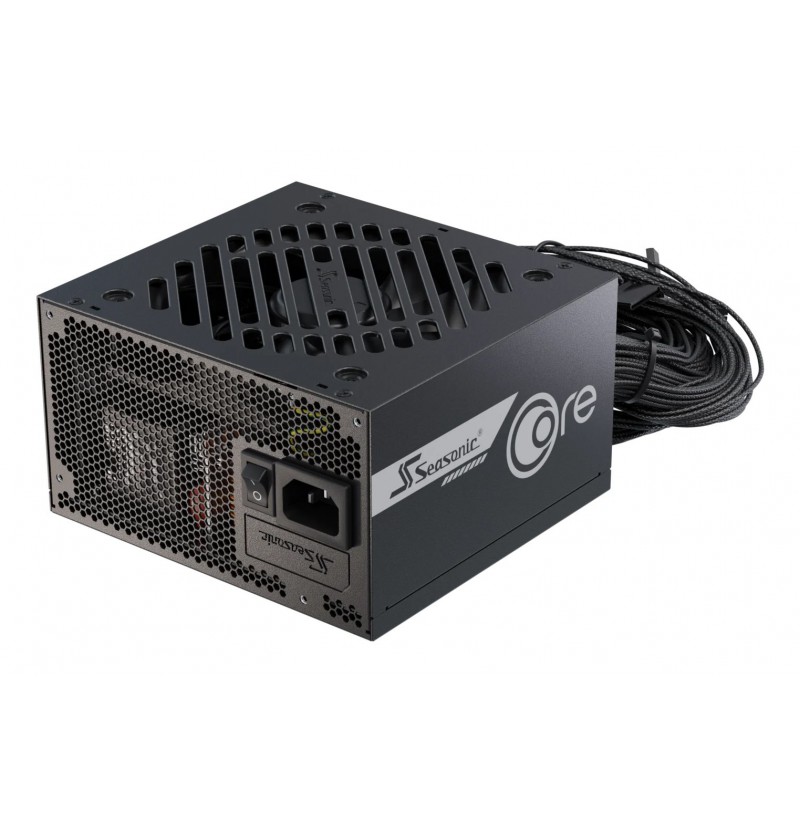

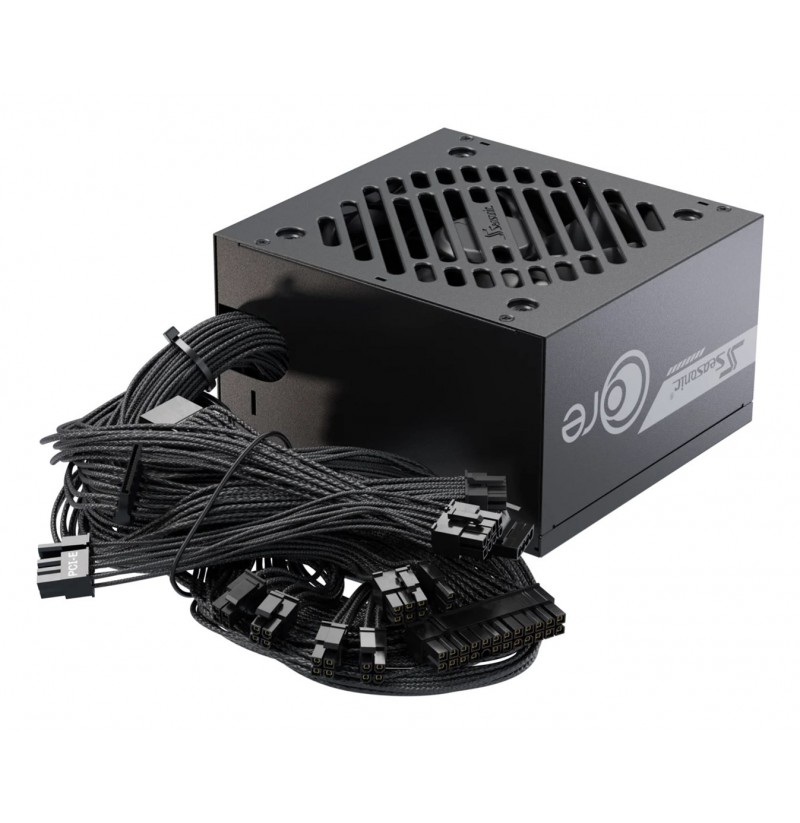

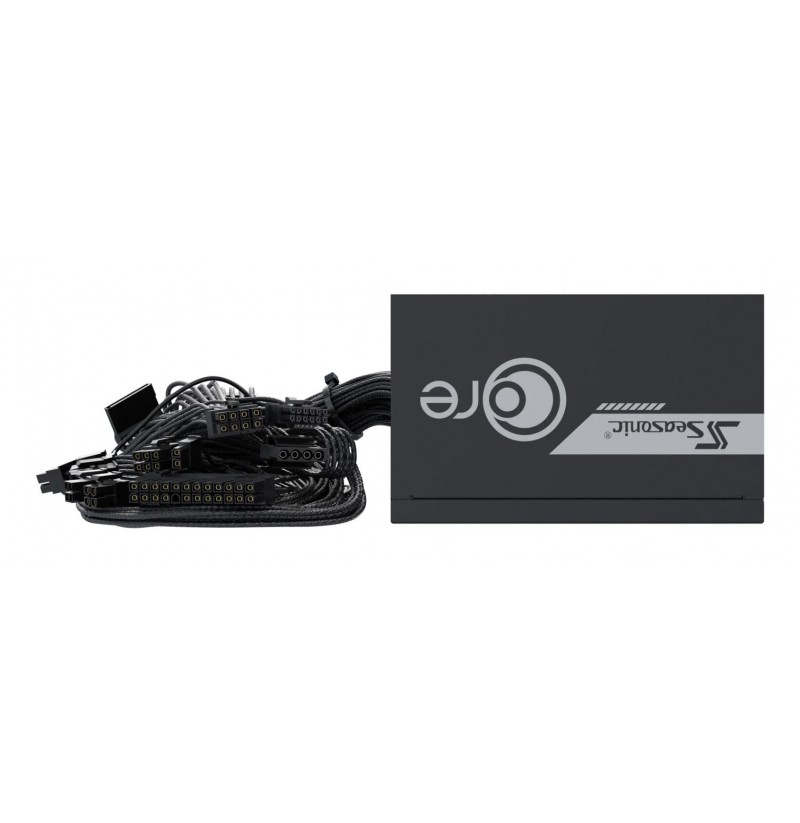

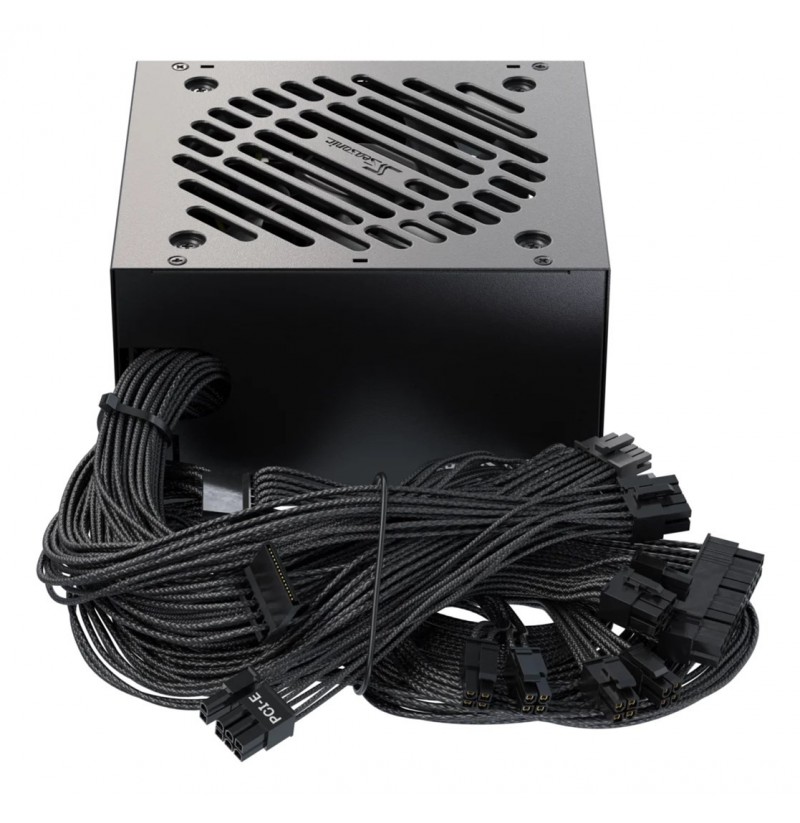

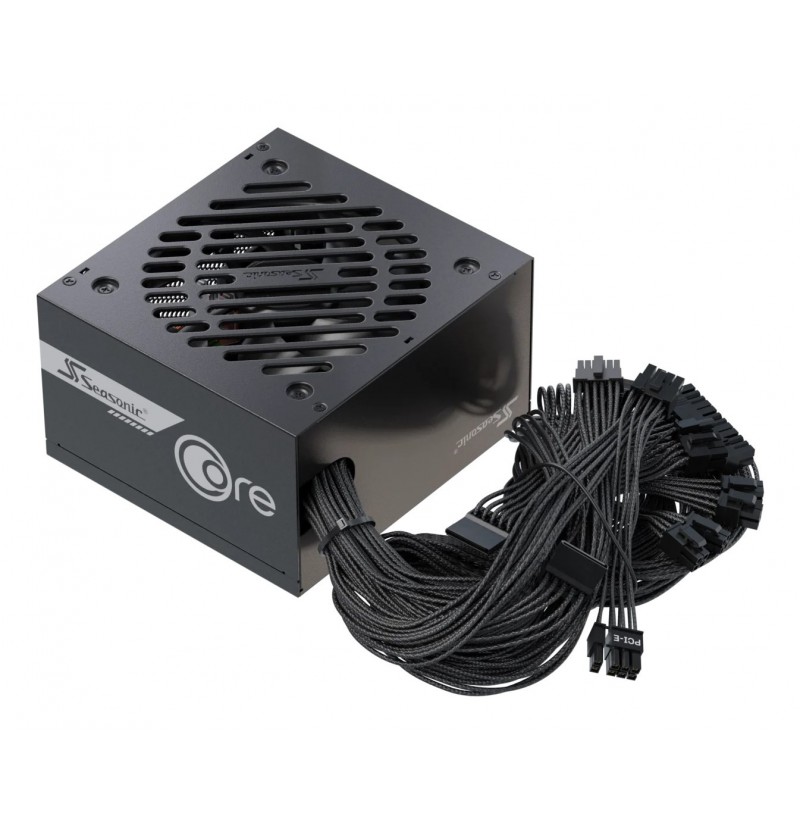

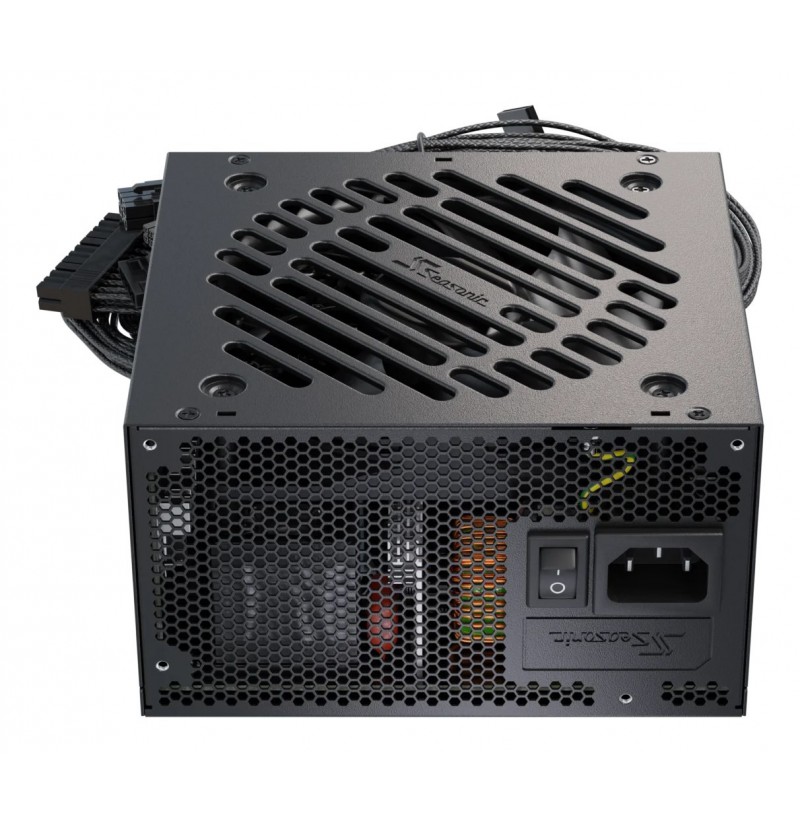

Seasonic CORE BC-650 power supply unit 650 W 20+4 pin ATX ATX Black

Sustainability certificates: ENERGY STAR
Cooling type: Active
On/off switch: Yes
Product colour: Black
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Fan location: Top
Input current: 9 - 4.5 A
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 20 A
Combined power (+12V): 648 W
Max output current (+12V): 54 A
Combined power (+5Vsb): 12.5 W
Power protection features: Short circuit, Over voltage, Over power, Over current
Combined power (+3.3V): 100 W
Max output current (+5V): 2.5 A
Combined power (-12V): 3.6 W
Total power: 650 W
Max output current (-12V): 0.3 A
Operating temperature (T-T): 0 - 40 °C
Height: 86 mm
Width: 150 mm
Depth: 140 mm
Bearing technology: Sleeve
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
Certification: CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
Compliance certificates: RoHS, CE, UKCA, REACH, cTUVus, BSMI, CCC, CB, EAC, WEEE
Peripheral (Molex) power connectors (4-pin): 3
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
PCI Express power connectors (6+2 pin): 4
ATX power connector (20+4 pin): Yes
CPU power connector (4+4 pin): Yes
Motherboard power cable length: 55 cm
PCI Express connector: Yes
CPU power cable length: 60 cm
EPS power connector (4+4 pin): Yes
Cabling type: Non-Modular
