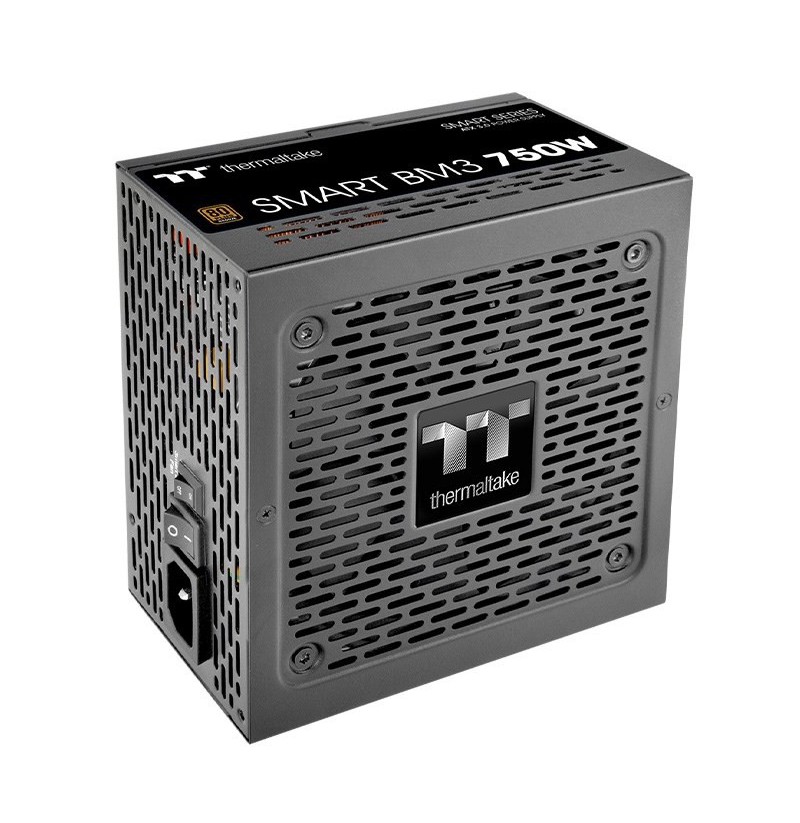

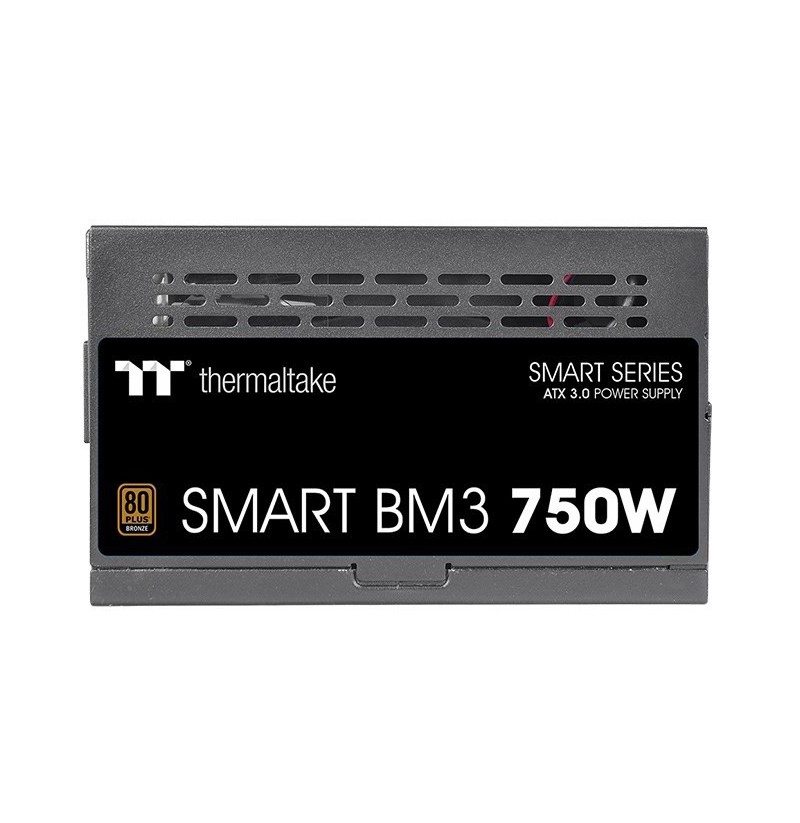

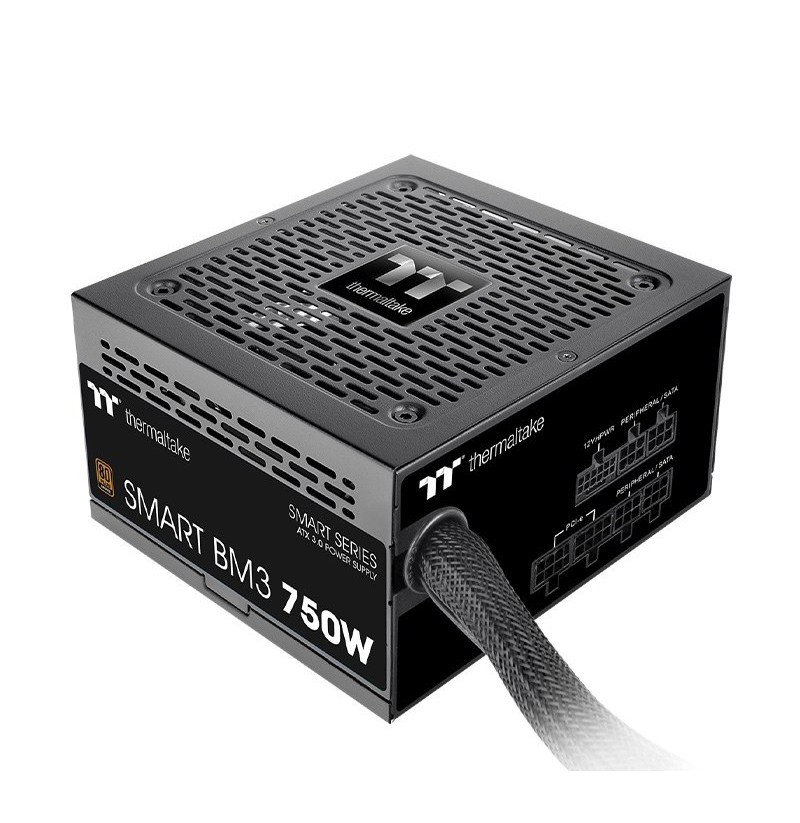

Thermaltake PS-SPD-0750MNFABE-3 power supply unit 750 W 24-pin ATX ATX Black

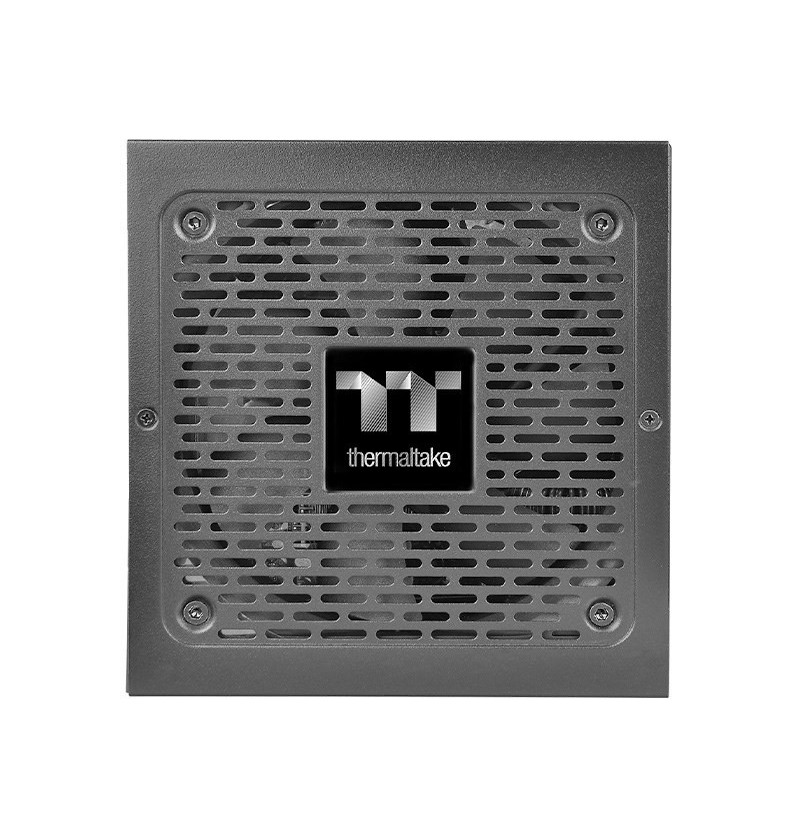

Fan location: Top

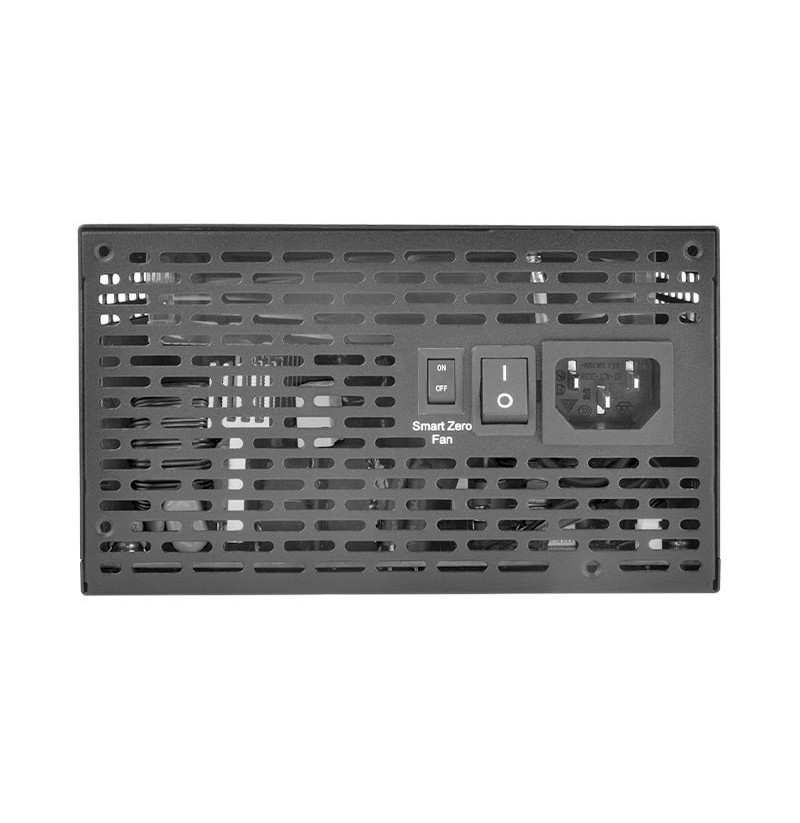

On/off switch: Yes
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Product colour: Black
Cooling type: Active
Power protection features: Under voltage, Over current, Short circuit, Over voltage, Overheating, Over power
Total power: 750 W
AC input frequency: 50/60 Hz
Combined power (-12V): 3.6 W
Combined power (+12V): 750 W
Max output current (+5Vsb): 3 A
Power Factor Correction (PFC) type: Active
Hold time: 17 ms
Combined power (+3.3V): 110 W
Max output current (+12V): 62.5 A
Max output current (+3.3V): 18 A
Combined power (+5V): 110 W
Combined power (+5Vsb): 15 W
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
AC input voltage: 100 - 240 V
Input current: 15 A
Operating relative humidity (H-H): 20 - 85%
Operating temperature (T-T): 5 - 45 °C
Storage relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 55 °C
Height: 86 mm
Depth: 140 mm
Width: 150 mm
ATX version: 3.0
Power supply unit (PSU) form factor: ATX
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Motherboard power connector: 24-pin ATX

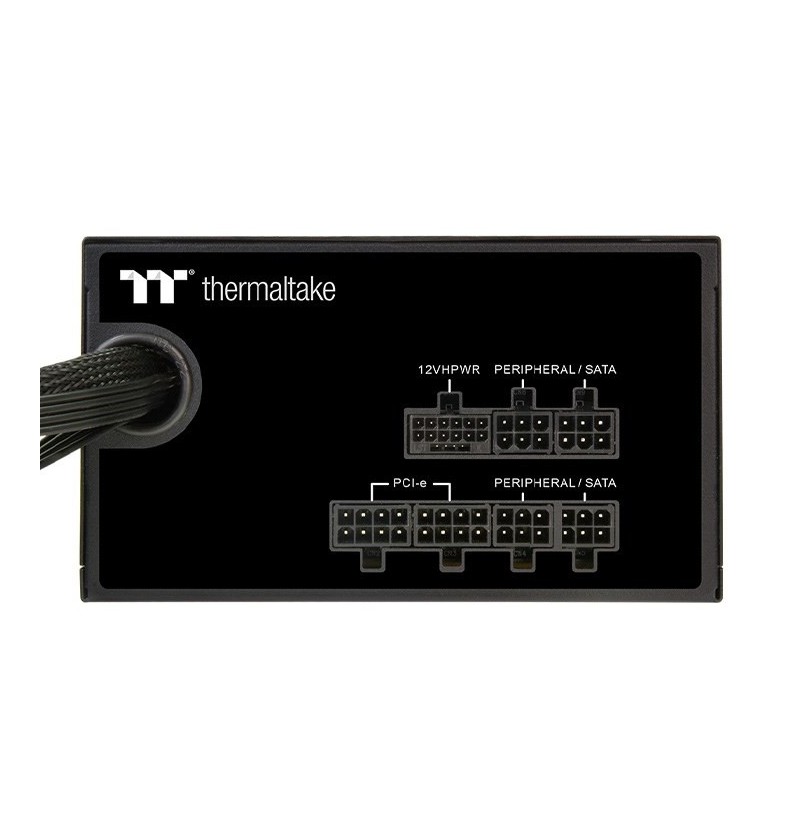

Cabling type: Semi-Modular
CPU power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12+4 pin) cable length: 600 mm
Peripheral (Molex) power cable length: 150, 500 mm
SATA power cable length: 150, 500 mm
Motherboard power cable length: 60 cm
Peripheral (Molex) power connectors (4-pin): 7
Number of SATA power connectors: 6
PCI Express power connectors (12+4 pin): 1
