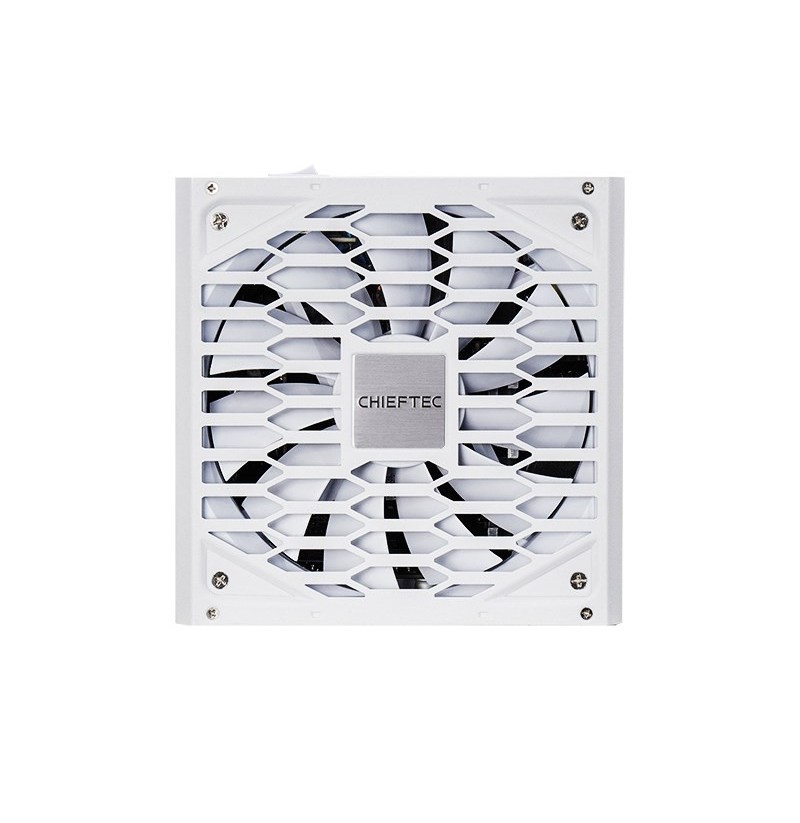

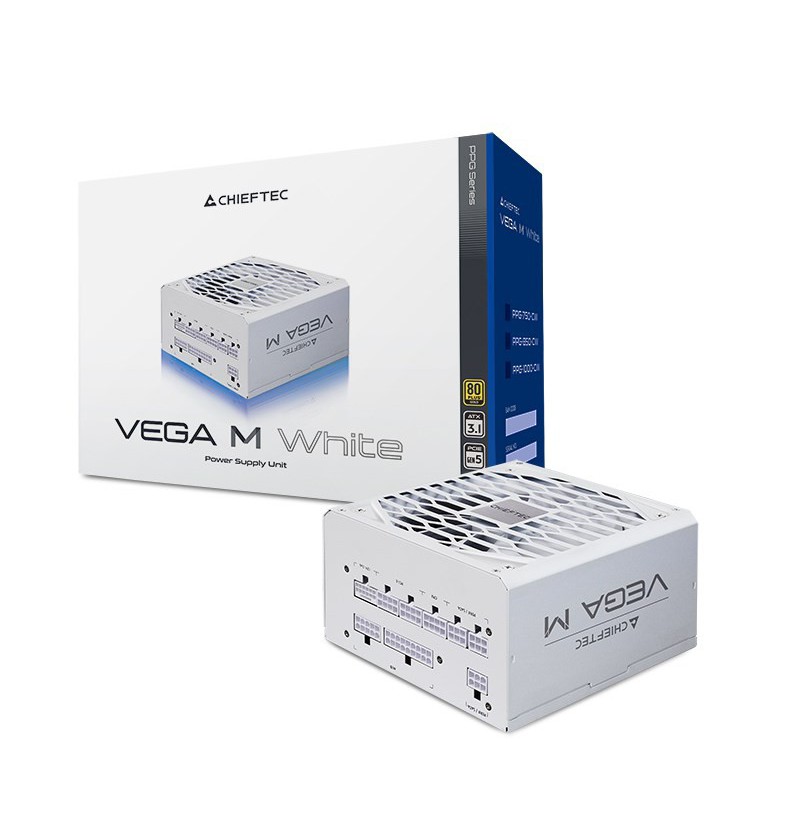

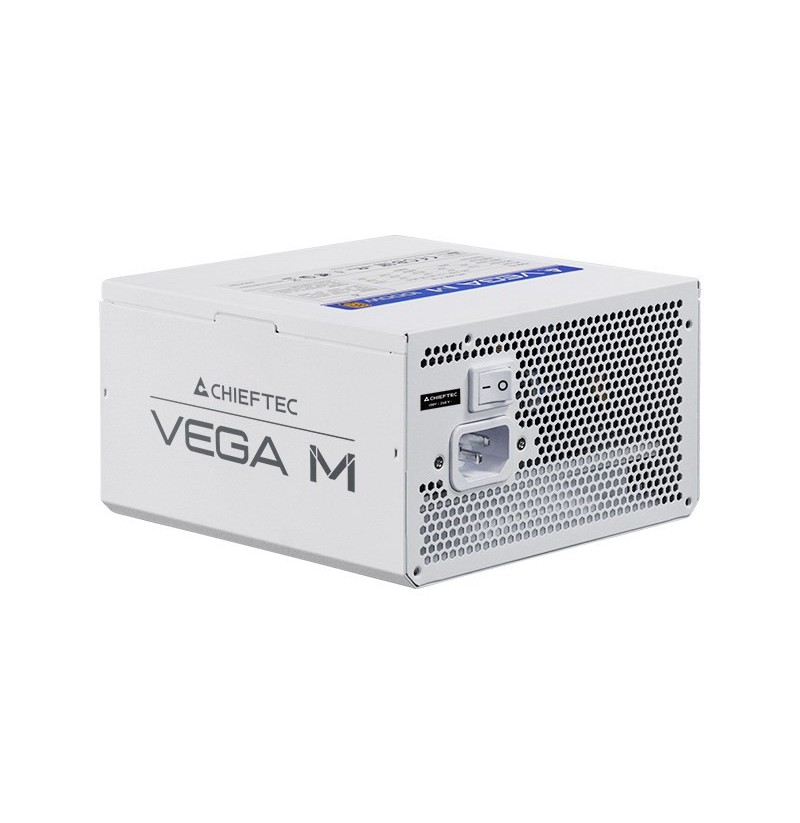

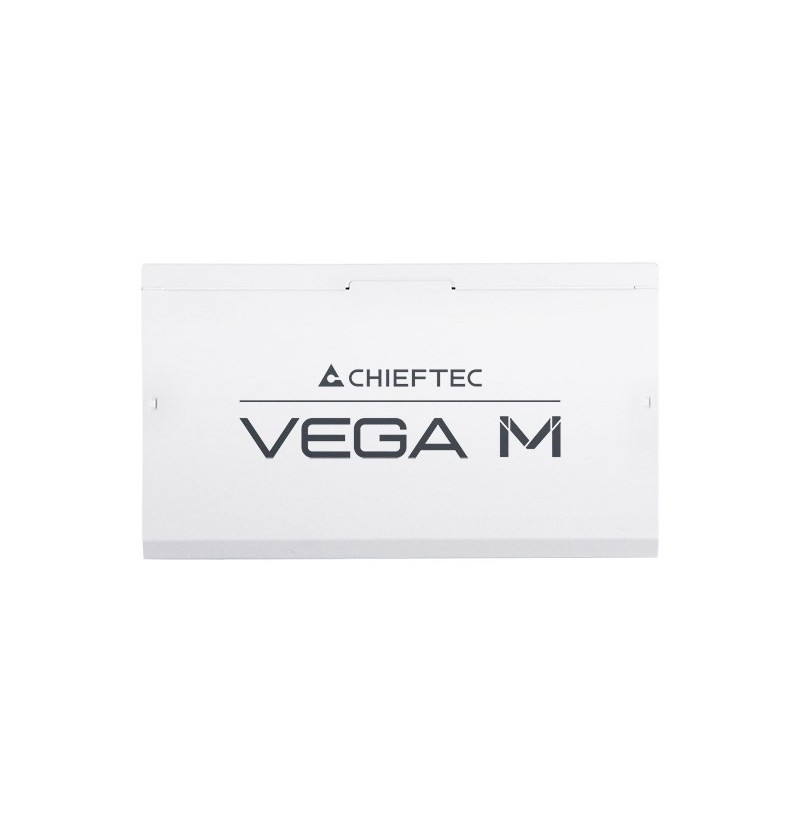

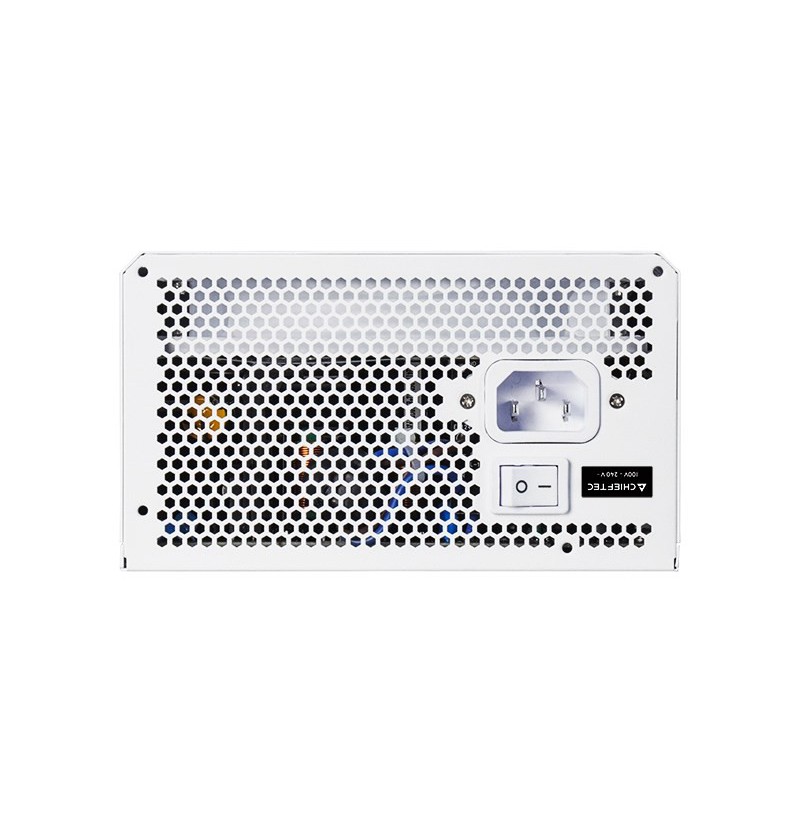

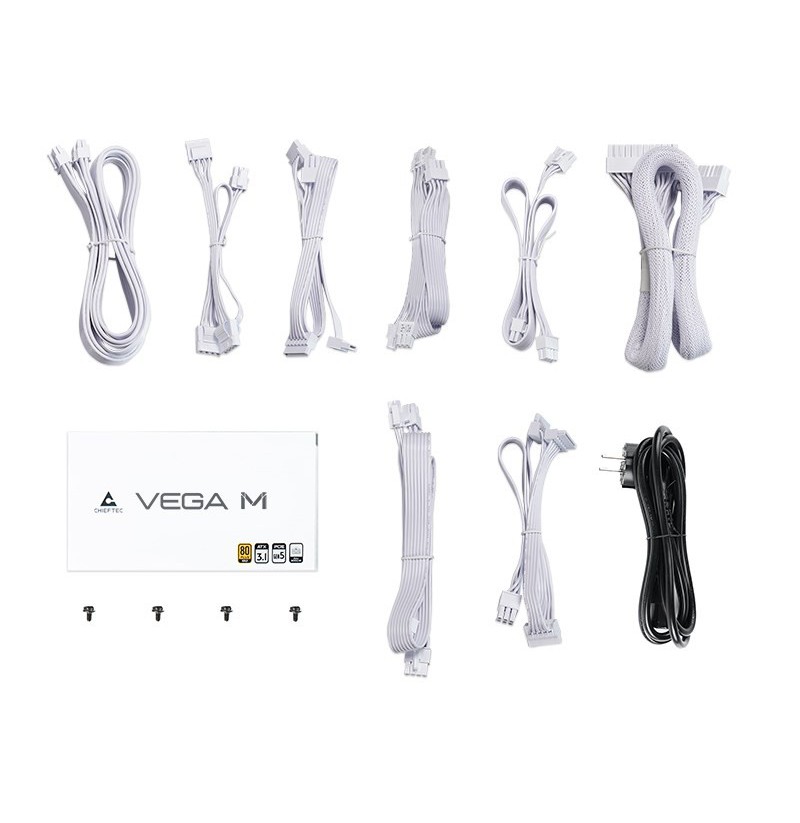

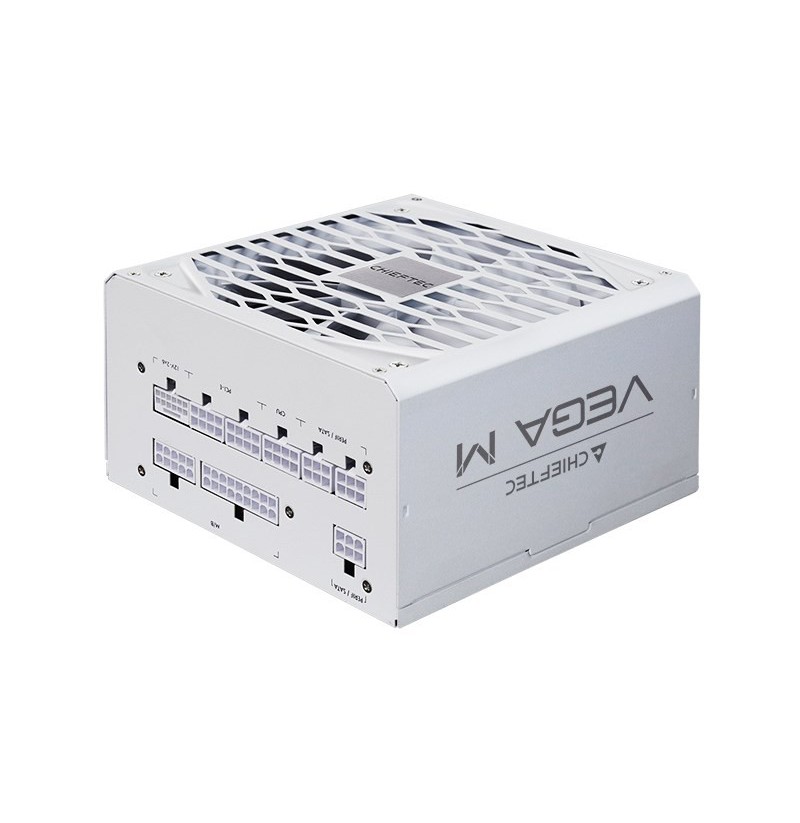

Chieftec Vega PPG-1000-CW power supply unit 1000 W 24-pin ATX ATX White

Fan diameter: 13.5 cm
Cooling type: Active
Illumination: No
Product colour: White
Max output current (+3.3V): 20 A
Max output current (-12V): 0.3 A
Max output current (+12V): 83.33 A
Combined power (-12V): 3.6 W
Max output current (+5Vsb): 3 A
Combined power (+5Vsb): 15 W
Max output current (+5V): 20 A
Power protection features: Short circuit, Over voltage, Under voltage, Over current, Surge and inrush, Overload
Total power: 1000 W
Combined power (+12V): 1000 W
Combined power (+3.3V): 100 W
AC input frequency: 50/60 Hz
Combined power (+5V): 100 W
AC input voltage: 100 - 240 V
Input current: 12 A
Depth: 150 mm
Height: 85 mm
Width: 150 mm
Purpose: PC
ATX version: 3.1
Power supply unit (PSU) form factor: ATX
Bearing technology: FDB
80 PLUS certification: 80 PLUS Gold
Motherboard power cable length: 60 cm
Motherboard power connector: 24-pin ATX
EPS power connector (4+4 pin): Yes
PCI Express power cable length: 60 cm
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 150, 400 mm
PCI Express connector: Yes
CPU power cable length: 65 cm
SATA power cable length: 150, 400 mm
Number of SATA power connectors: 6
PCI Express power connectors (12+4 pin) cable length: 600 mm
Cabling type: Fully-Modular
ATX Power connector (24-pin): Yes
Number of EPS connectors: 2
PCI Express power connectors (12+4 pin): 1
EPS power connector (8-pin): Yes
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 4
