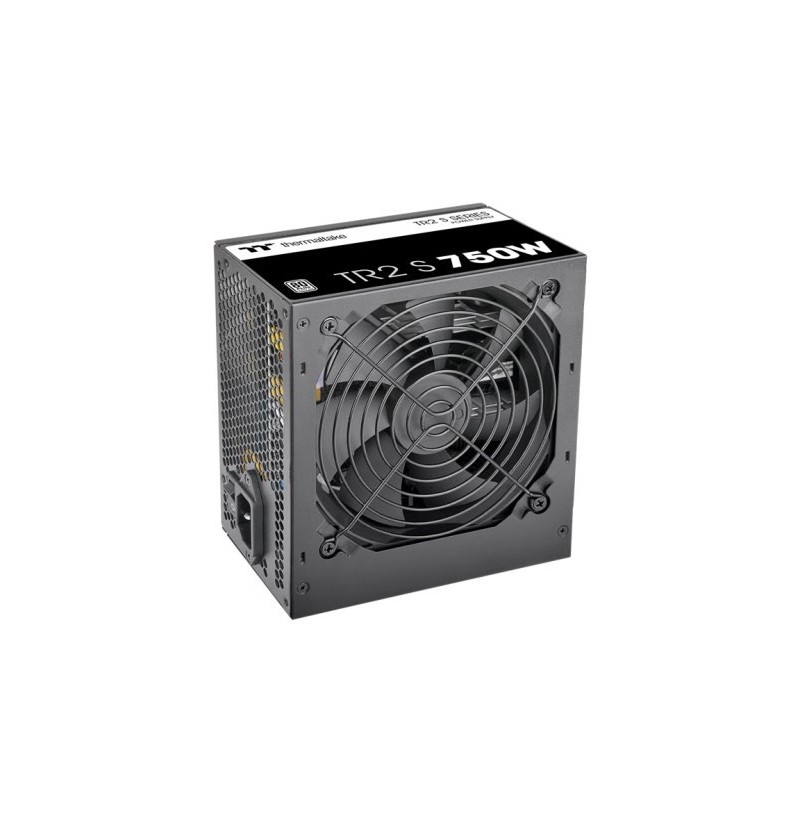

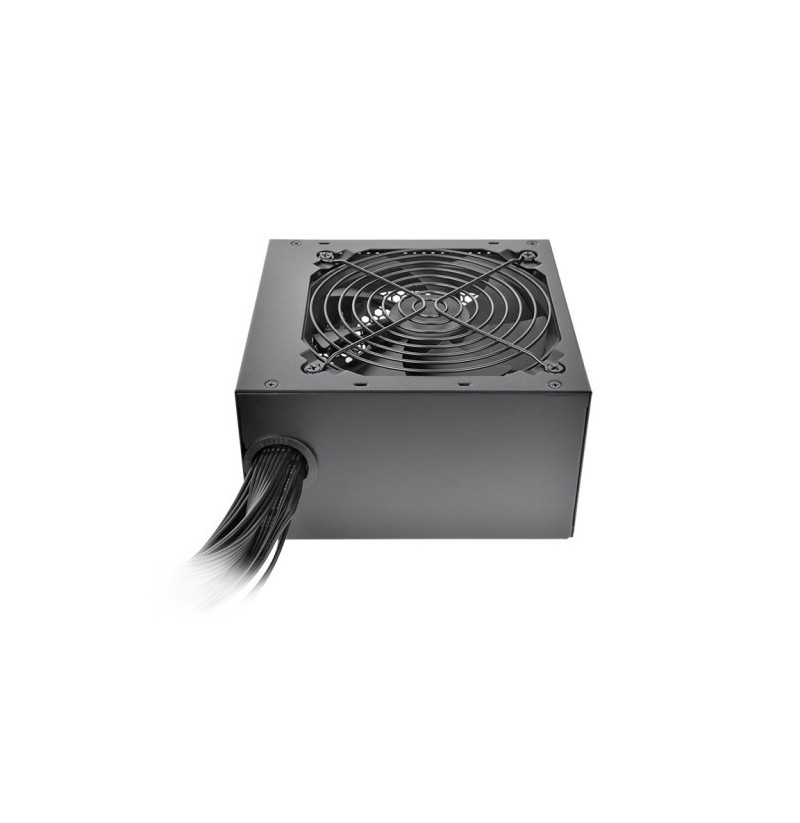

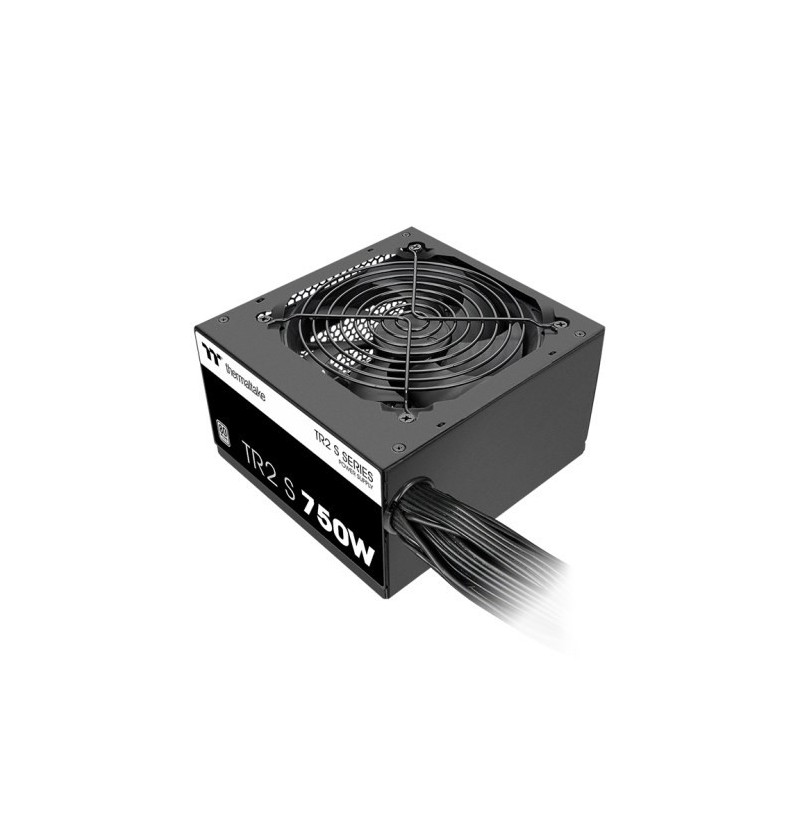

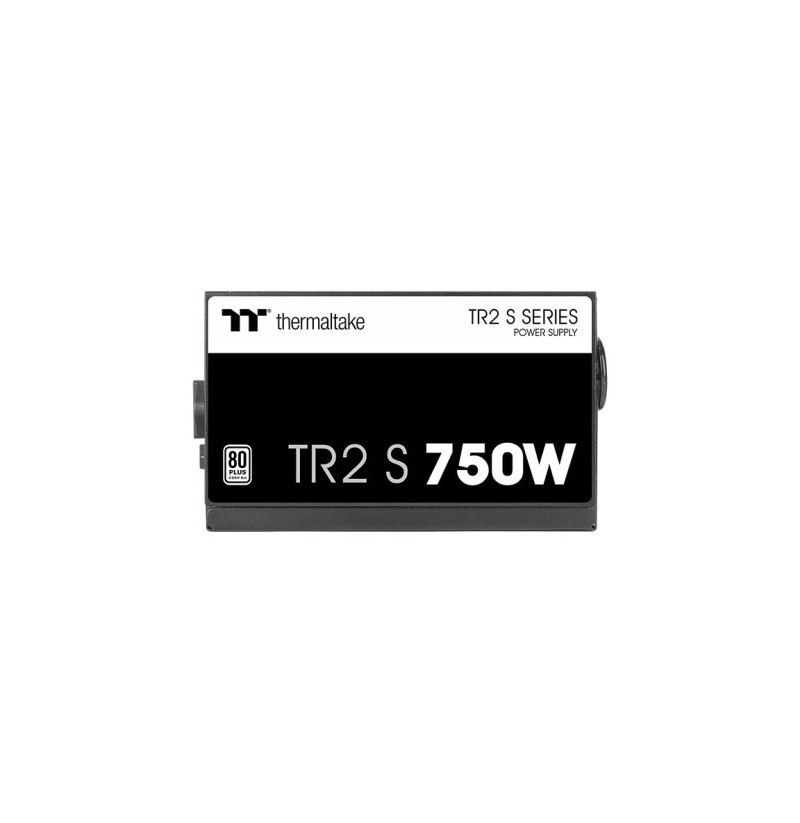

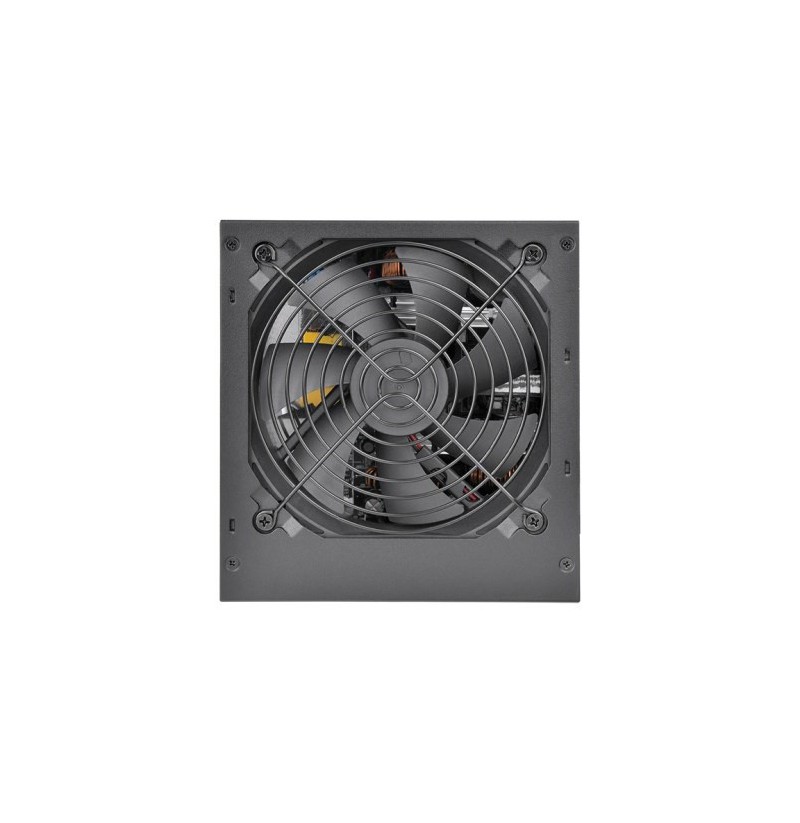

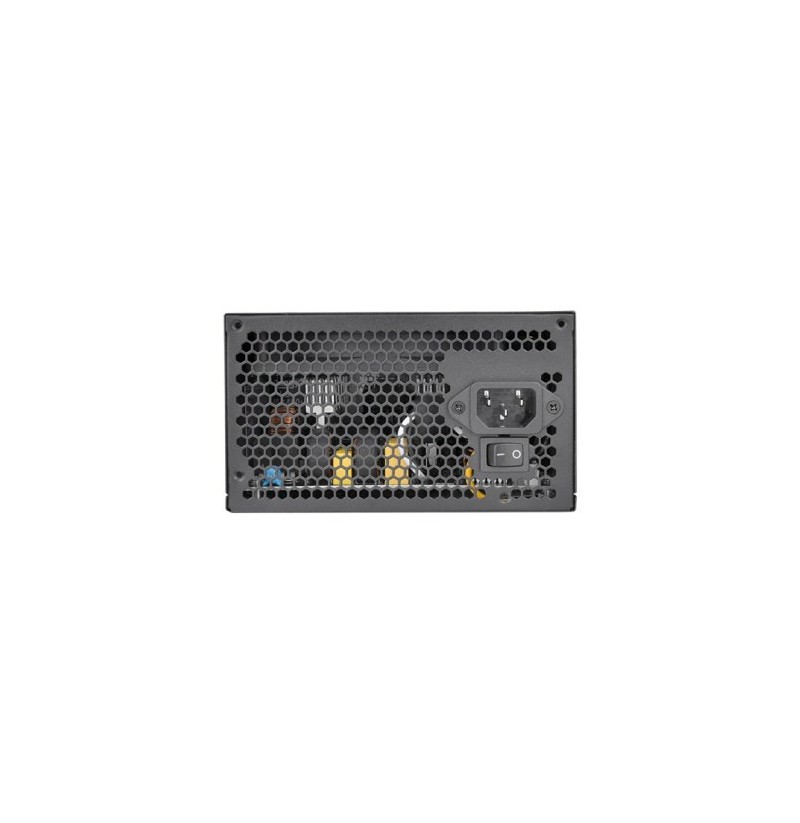

Thermaltake TR2 S 750W power supply unit 20+4 pin ATX ATX Black

On/off switch: Yes
Cooling type: Active
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Combined power (+12V): 750 W
Combined power (-12V): 3.6 W
AC input frequency: 50 Hz
Max output current (+5V): 18 A
Input current: 8 A
Combined power (+5V): 100 W
Total power: 750 W
Combined power (+3.3V): 100 W
Max output current (+12V): 62.5 A
Max output current (+3.3V): 18 A
Hold time: 17 ms
Power Factor Correction (PFC) type: Active
AC input voltage: 220 - 240 V
Combined power (+5Vsb): 12.5 W
Power protection features: Over power, Under voltage, Over current, Overheating, Short circuit, Over voltage
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Operating relative humidity (H-H): 10 - 95%
Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -40 - 55 °C
Depth: 140 mm
Height: 86 mm
Width: 150 mm
Purpose: PC/Server
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS
Bearing technology: Hydraulic
Package type: Box
SATA power cable length: 500
Peripheral (Molex) power connectors (4-pin): 4
Motherboard power cable length: 60 cm
PCI Express power connectors (6+2 pin): 2
Cabling type: Non-Modular
Number of SATA power connectors: 4
Peripheral (Molex) power cable length: 500
CPU power cable length: 65 cm
Motherboard power connector: 20+4 pin ATX
CPU power connector (4+4 pin): Yes
PCI Express power cable length: 50 cm
