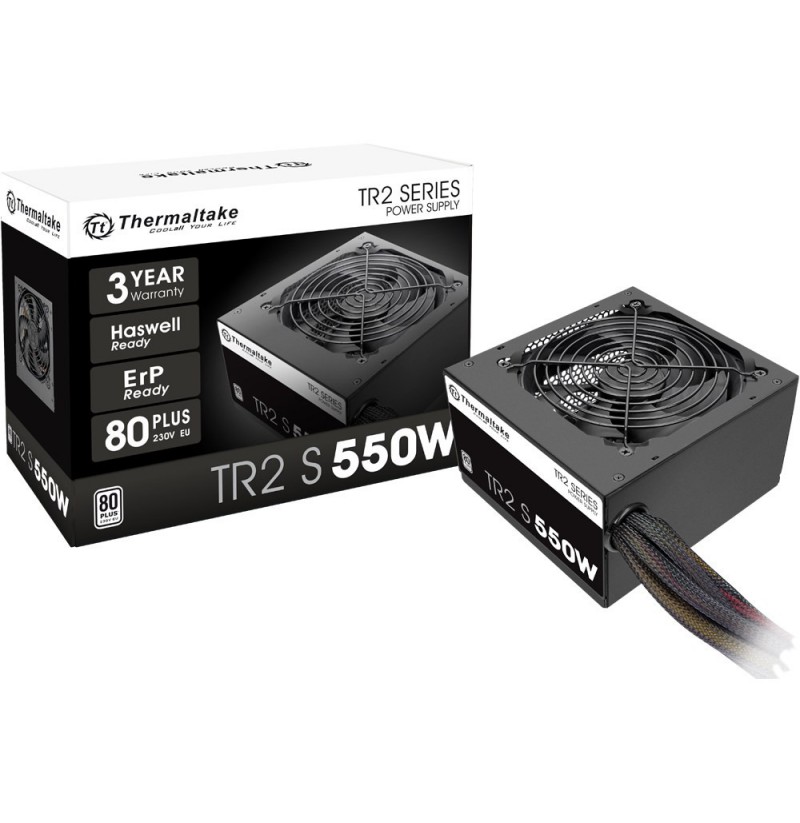

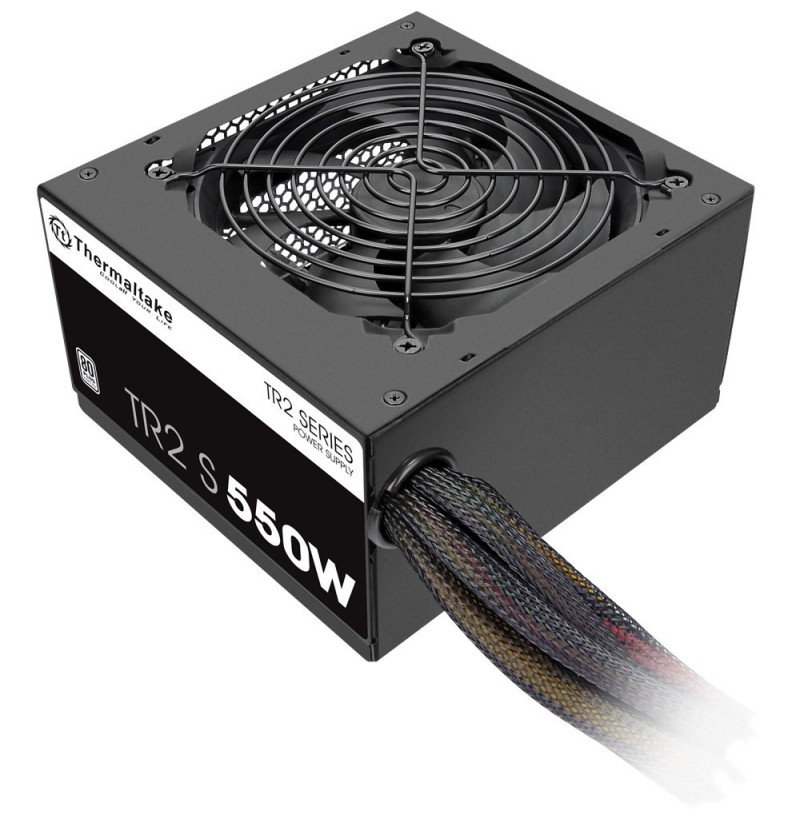

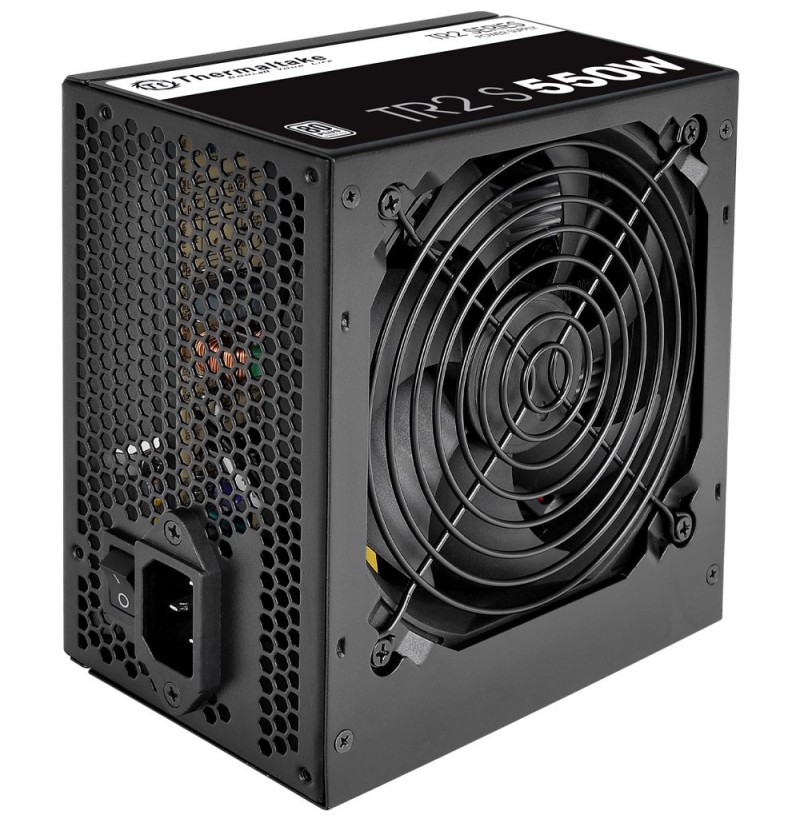

Thermaltake TR2 S 550W power supply unit 20+4 pin ATX ATX Black

On/off switch: Yes
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Product colour: Black
Max output current (+5Vsb): 2.5 A
Power protection features: Over power, Short circuit, Over voltage, Under voltage, Overheating, Over current
Max output current (+5V): 18 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Max output current (+12V): 45.8 A
Total power: 550 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Hold time: 17 ms
Combined power (+12V): 550 W
Max output current (+3.3V): 18 A
Combined power (+5V): 100 W
Max output current (-12V): 0.3 A
AC input voltage: 200 - 240 V
Input current: 8 A
AC input frequency: 50 Hz
Operating relative humidity (H-H): 20 - 85%
Storage relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 55 °C
Operating temperature (T-T): 5 - 40 °C
Depth: 140 mm
Height: 86 mm
Width: 150 mm
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS
Bearing technology: Hydraulic
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
Package type: Box
Number of SATA power connectors: 4
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power cable length: 500
CPU power connector (4+4 pin): Yes
PCI Express power cable length: 50 cm
CPU power cable length: 65 cm
PCI Express power connectors (6+2 pin): 2
Peripheral (Molex) power connectors (4-pin): 4
Motherboard power cable length: 60 cm
SATA power cable length: 500
Cabling type: Non-Modular
