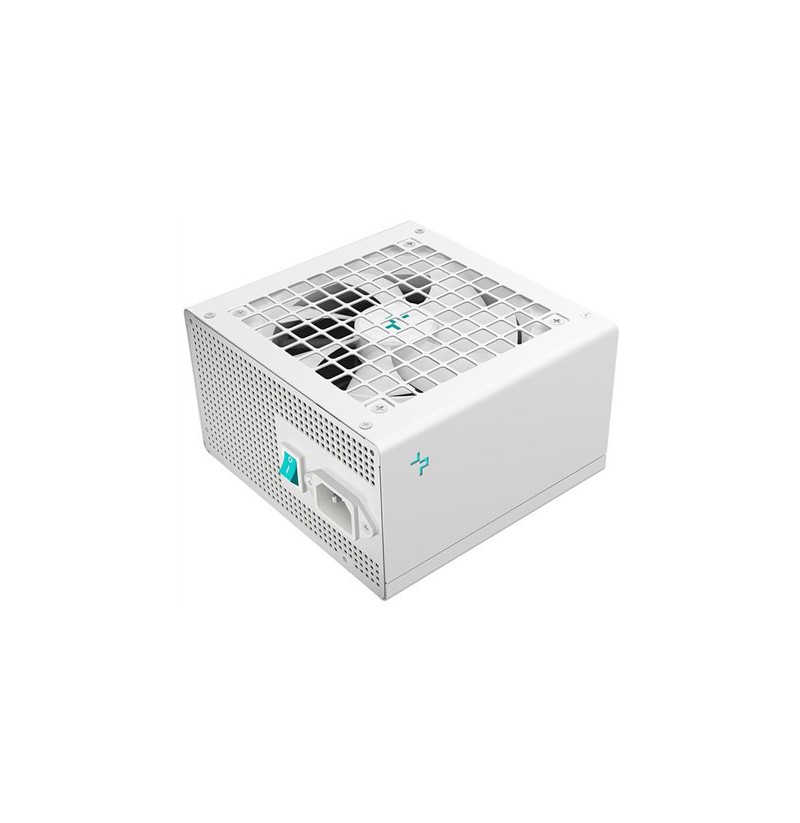

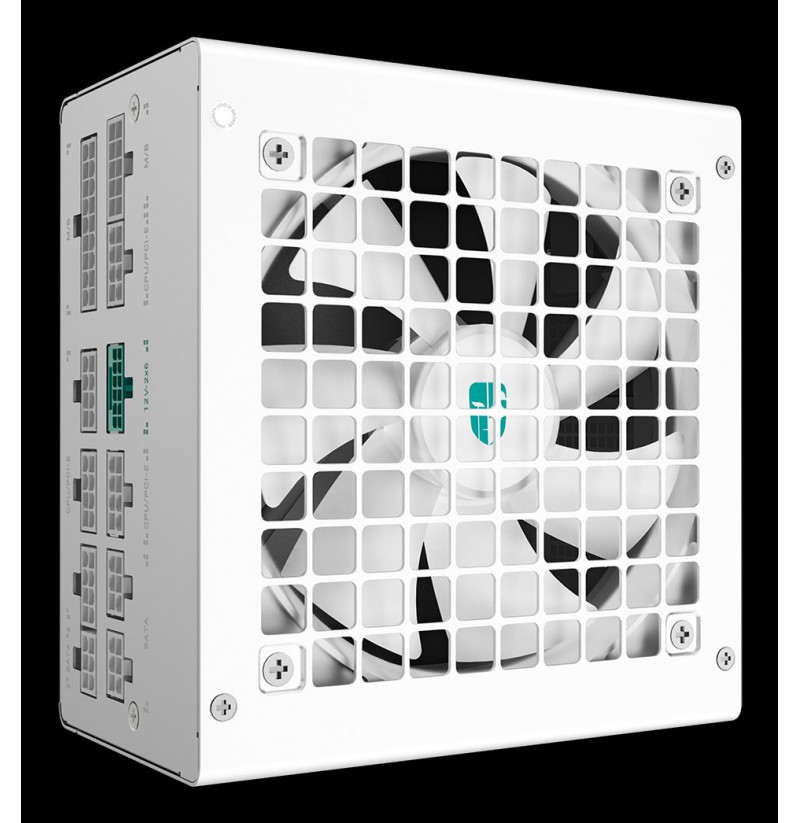

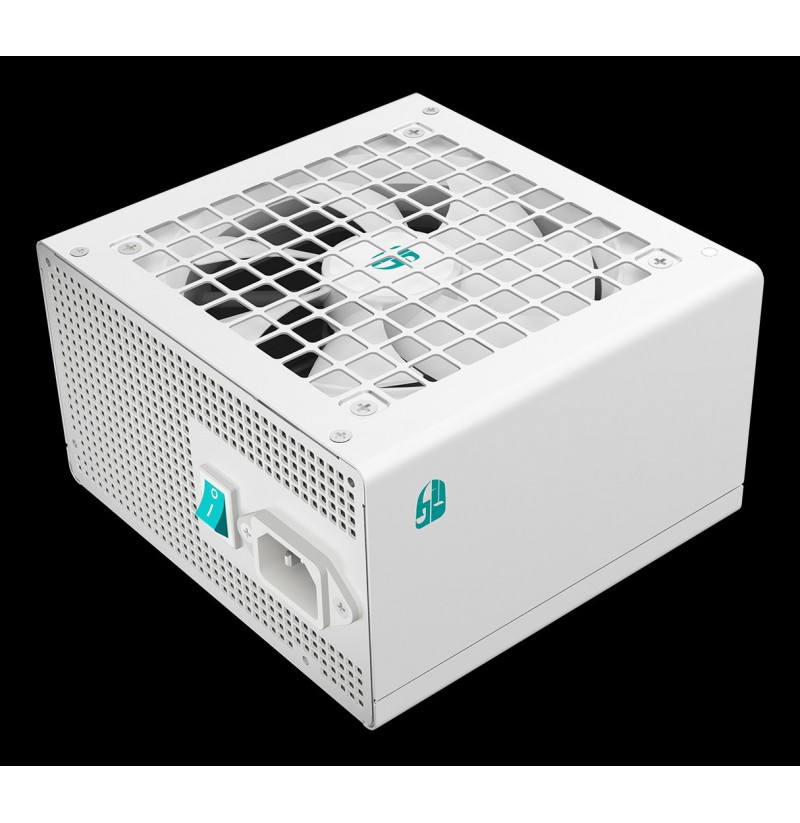

DeepCool PN850M power supply unit 850 W 20+4 pin ATX ATX White

Sustainability certificates: Triman, ErP

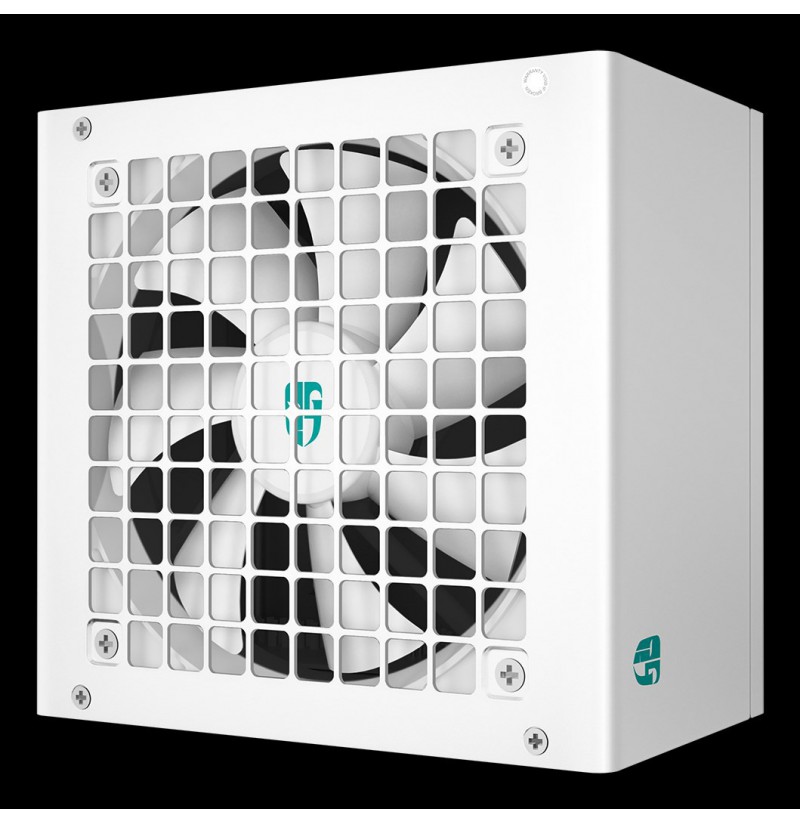

Fan location: Top
Cooling type: Active
Product colour: White

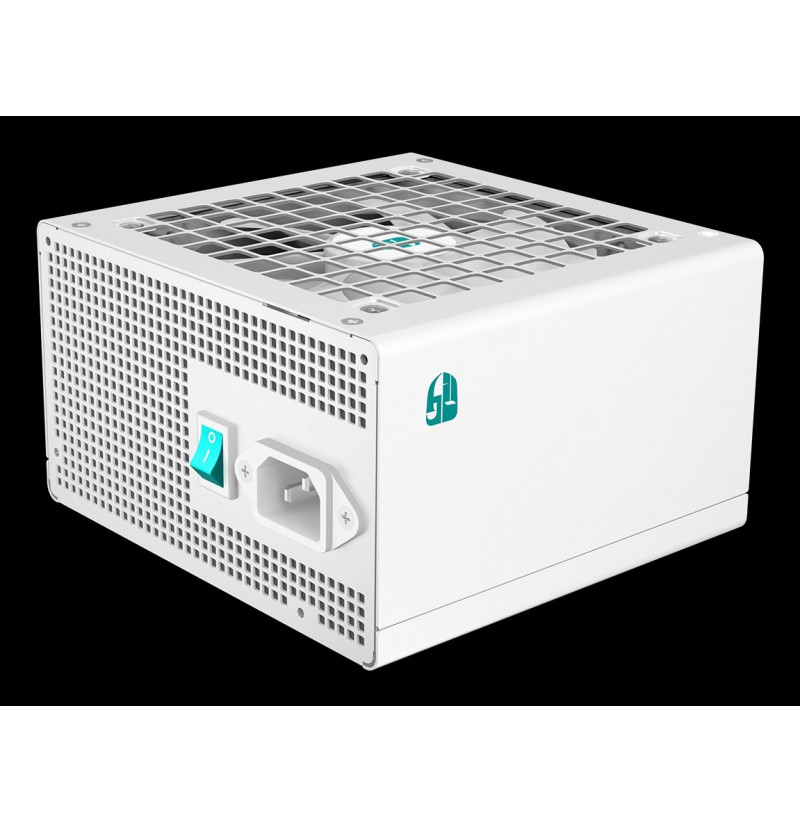

On/off switch: Yes

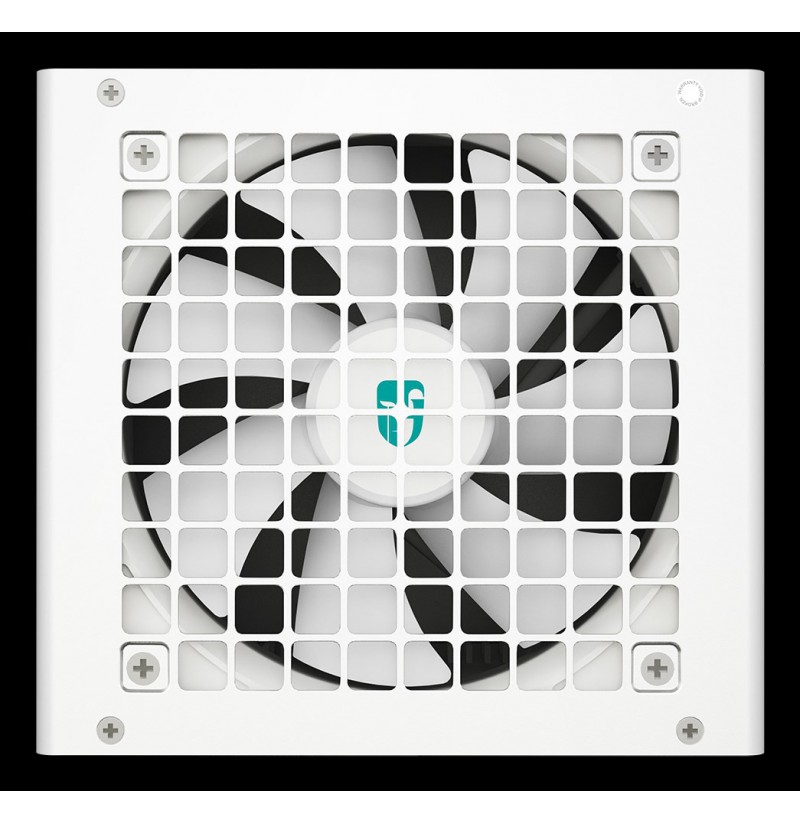

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Input current: 10 - 5 A
Max output current (+12V): 70.5 A
Max output current (+3.3V): 20 A
Total power: 850 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Power protection features: No load operation, Short circuit, Over voltage, Over power, Overheating, Surge protection, Under voltage, Over current, Surge & inrush protection (SIP)
Power Factor Correction (PFC) type: Active
AC input voltage: 100 - 240 V
Combined power (+3.3V): 110 W
Combined power (+5Vsb): 15 W
Efficiency: 90%
Hold time: 16 ms
Combined power (+12V): 846 W
AC input frequency: 50/60 Hz
Max output current (+5V): 20 A
Power Good signal delay range: 100 - 150 ms
Max output current (+5Vsb): 3 A
Max output current (-12V): 0.3 A
Operating temperature (T-T): 0 - 40 °C
Depth: 140 mm
Height: 86 mm
Width: 150 mm
80 PLUS certification: 80 PLUS Gold
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Mean time between failures (MTBF): 100000 h
Purpose: PC
Bearing technology: FDB
Package type: Box

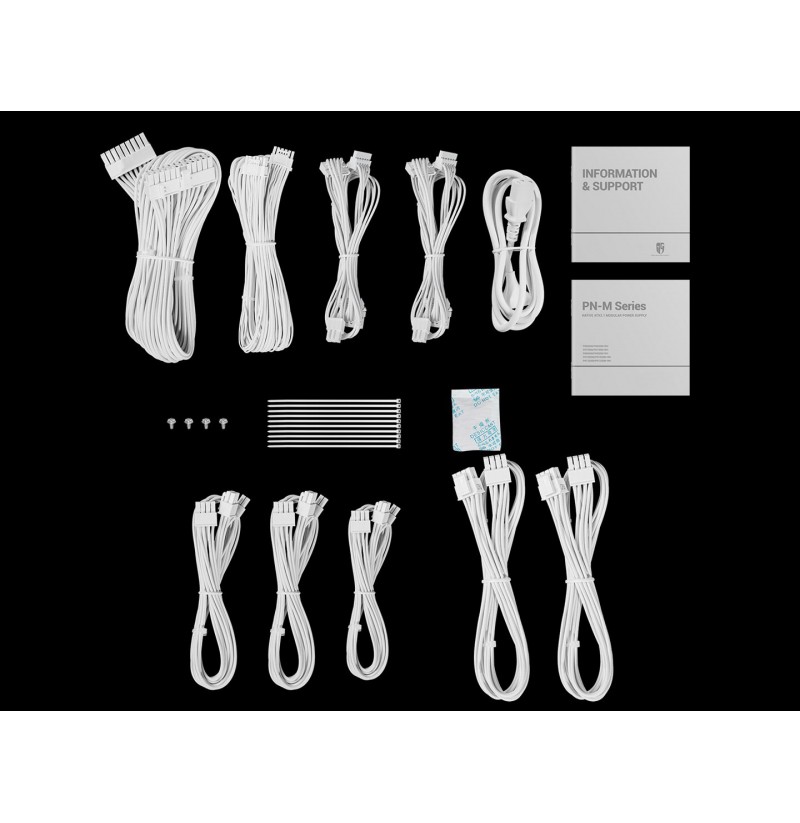

Cables included: AC
Cable tie(s) included: Yes
Compliance certificates: WEEE, RCM, Federal Communications Commission (FCC), RoHS, CE, CCC, EAC

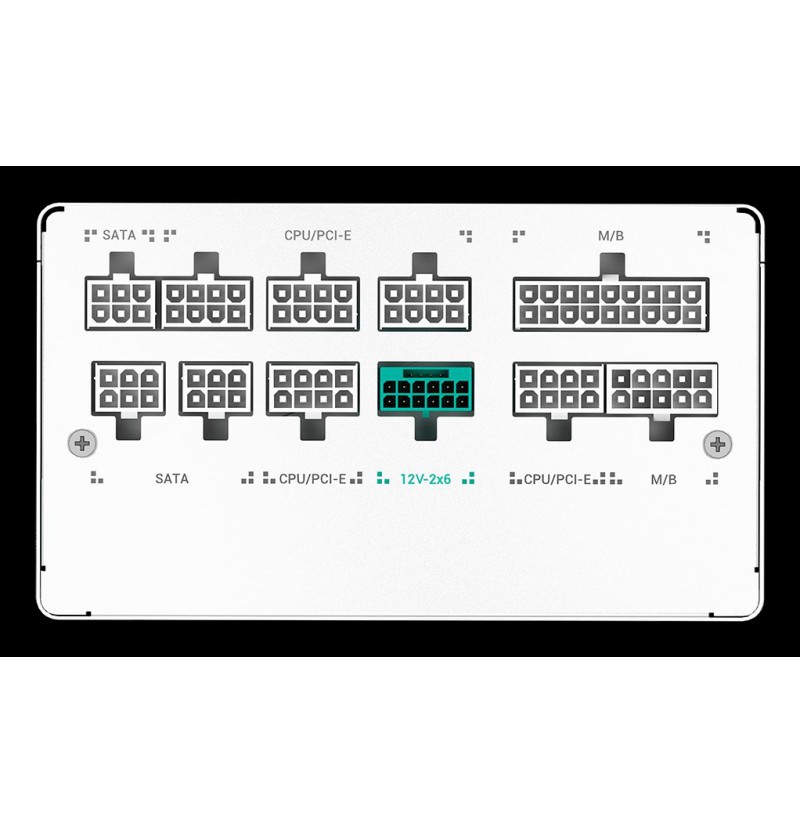

Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 3
Motherboard power cable length: 55 cm
Cabling type: Fully-Modular
Number of SATA power cables: 1
Number of SATA power connectors: 8
SATA power cable length: 690, 570, 810 mm, 450
ATX power connector (20+4 pin): Yes
PCI Express power connectors (16-pin): 1
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 930 mm
Motherboard power connector: 20+4 pin ATX
PCI Express connector: Yes
CPU power cable length: 70 cm
PCI Express power cable length: 55 cm
