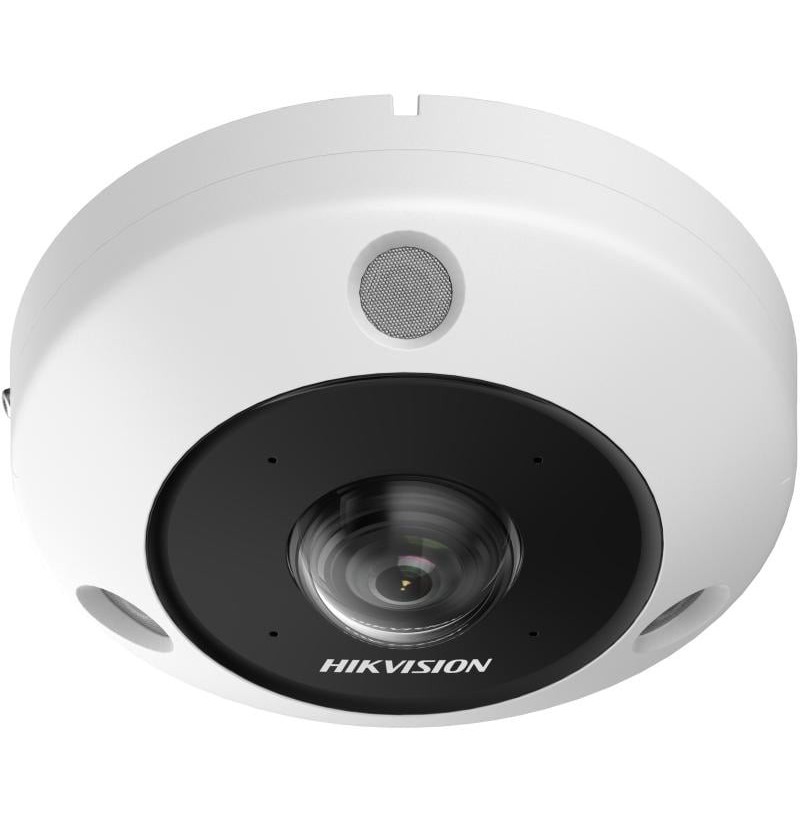

Hikvision fisheye DS-2CD6365G1-IVS F1.16 Padidinti

Hikvision fisheye DS-2CD6365G1-IVS F1.16

1 004,15 €

  • 6MP Fish-eye IP kamera
  • Heat map
  • 120 dB WDR
  • Iki 15 m IR apšvietimas
  • Įmontuotas mikrofonas ir garsiakalbis
  • IP66
  • IK10

Smulkiau

KIPDS2CD6365G1IVS116

6942160433042

Galimas pasirinkimas

  • Kamera
  • Sensorius1/1.8" Progressive Scan CMOS
  • Maks. rezoliucija2560 × 2560
  • Min. apšvietimasColor: 0.01 Lux @ (F2.25, AGC ON),B/W: 0.005 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
  • Užrakto greitis1 s to 1/100,000 s
  • Day & NightIR cut filter
  • Lęšis
  • Lęšio tipasFixed focal lens, 1.16 mm
  • Focal Length & FOV1.16 mm, horizontal FOV 180°, vertical FOV 180°
  • Rainelės tipasFixed
  • DiafragamaF2.25
  • Ryškumo gylis0.2 m to ∞
  • DORI
  • DORI

    D: 23.2 m

    O: 9.2 m

    R: 4.6 m

    I: 2.3 m

  • Apšvietimas
  • Papildomo apšviešimo tipasIR
  • Papildomo apšvietimo diapazonasUp to 15 m
  • Supplement Light Number3
  • IR bangos ilgis850 nm
  • Išmanus papildomas apšvietimasYes
  • HEOP
  • Open Resources

    Memory: 60 MB,

    Smart RAM: 800 MB,

    eMMC: 2 GB

  • Computing Power2 TOPS
  • Open CapabilityHEOP 2.0 OpendevSDK
  • Deep Learning StructureCaffe,TensorFlow,PyTorch
  • Programming LanguageC,C++
  • Vaizdas
  • Pagrindinis srautas

    50 Hz: 25 fps/60 Hz: 30 fps:

    Fisheye View:

    2560 × 2560, 2048 × 2048, 1280 × 1280

    180 Panorama View:

    2048 × 1536, 1920 × 1440

    180 Dual Channel Panorama View:

    2048 × 768, 1920 × 720

    Panorama View:

    2048 × 1536, 1920 × 1440

    4PTZ View:

    camera 01/camera 02/camera 03/camera 04: 1024 × 768

    Fisheye + 3PTZ View:

    camera 01: 2048 × 2048, 1024 × 1024

    camera 02/camera 03/camera 04: 1024 × 768

    4PTZ Fusion View:

    2048 × 1536, 1600 × 1200

  • Antrinis srautas

    50 Hz: 25 fps/60 Hz: 30 fps:

    Fisheye View:

    720 × 720, 480 × 480

    180 Panorama View:

    640 × 480, 320 × 240

    180 Dual Channel Panorama View:

    640 × 480, 320 × 240

    Panorama View:

    640 × 360, 320 × 240

    4PTZ View:

    camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240

    Fisheye + 3PTZ View:

    camera 01: 720 × 720

    camera 02/camera 03/camera 04: 640 × 480, 320 × 240

  • Vaizdo suspaudimas

    Main stream: H.265+/H.265/H.264+/ H.264,

    Sub-stream: H.265/H.264/MJPEG

  • Vaizdo bitų greitis32 Kbps to 16 Mbps
  • H.264 tipasBaseline Profile,Main Profile,High Profile
  • H.265 tipasMain Profile
  • Bitų greičio kontrolėCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions for each stream
  • Fisheye rodymas
  • Montavimo tipasSupport wall/table/ceiling mounting
  • Decoding ModeSupport hardware decoding and software decoding
  • Display Mode

    20 display modes in total,

    Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder,

    Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

  • Garsas
  • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
  • Pašalinių garsų šalinimasYes
  • Internetas
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
  • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
  • API

    Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP,

    Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX

  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Vidinė atmintis

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • KlientasiVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
  • Naršyklė

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Nuotrauka
  • Nuotraukos parametrų keitiklisYes
  • Nuotraukos nustatymaisaturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Diena/Naktis režimasDay,Night,Auto,Schedule,Alarm Trigger
  • Wide Dynamic Range (WDR)Digital WDR
  • Nuotraukų pagražinimasBLC,HLC,3D DNR,Distortion Correction,Defog
  • Privatumo kaukė8 programmable polygon privacy masks
  • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Sąsaja
  • Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Įmontuotas mikrofonasYes, 4 built-in microphones
  • Įmontuotas garsiakalbisYes, 1 built-in speaker
  • Garsas

    1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

    1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Signalizacija2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Perkrovimo mygtukas1 Reset Key
  • Funkcijos
  • Pagrindinės funckcijosMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
  • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
  • Išmaniosios funkcijos
  • People Counting

    Counts people entering, exiting and passing by separately (The data is stored in the flash.)

    Supports real-time uploading and uploading by statistic cycle

    Sends email reports on daily, weekly, monthly or annually basis

    Supports up to 3 detection regions, and independent arming schedule and linkage method

  • Queue Management

    Supports up to 8 detection regions, and independent arming schedule and linkage method

    Supports 2 detection modes: regional people queuing-up, waiting time detection

    Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

    Supports raw data export for further analysis

    Supports real-time data uploading and scheduled data uploading

    Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

    Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

  • Heat Map

    A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

    Two report types are available, space heat map and time heat map line chart.

  • Intersection Analysis

    Detects and analyze flow in an intersection-like scene, and generate reports

    Support one intersection of up to 10 ways

  • Pagrindinis
  • Sistemos parametrai

    12 VDC ± 20%, 1 A, max. 11.5 W,two-core terminal block,

    PoE: IEEE 802.3af, Class 3, max. 12.5 W

  • MedžiagaMetal
  • DydisØ140.3 mm × 59.4 mm (Ø5.5" × 2.3")
  • Pakuotės dydis260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
  • SvorisApprox. 715 g (1.58 lb.)
  • Svoris su įpakavimuApprox. 1206 g (2.66 lb.)
  • Sandėliavimo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Darbo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Pagrindinės funkcijosHeartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding
  • ŠildytuvasYes
  • Cable Length0.31 m (1.02 ft.)
  • Patvirtinimai
  • EMC

    CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Saugumas

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

  • Aplinkosauga

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
