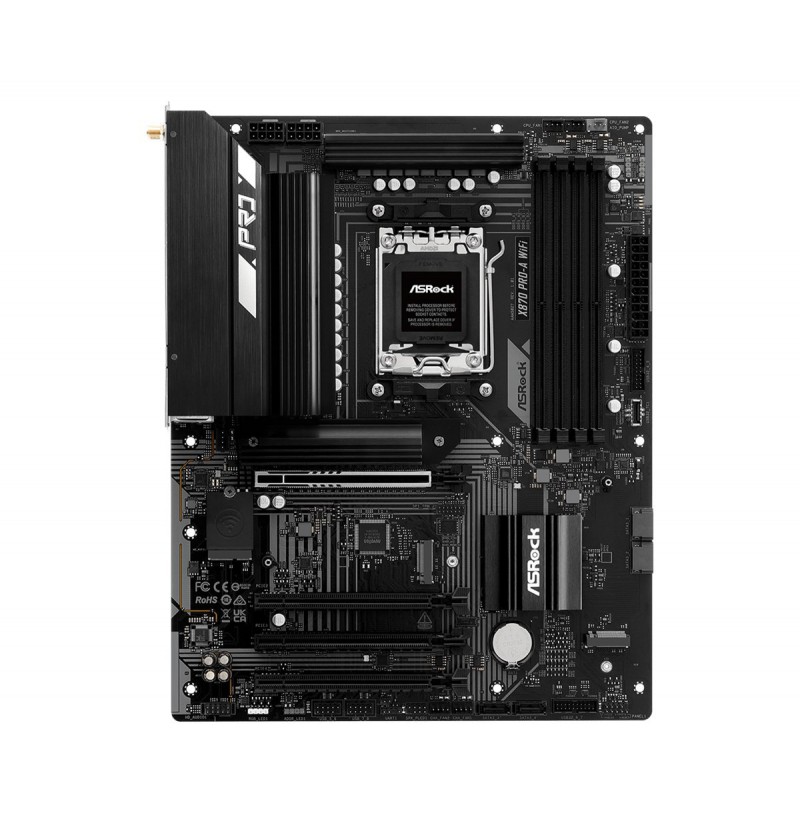

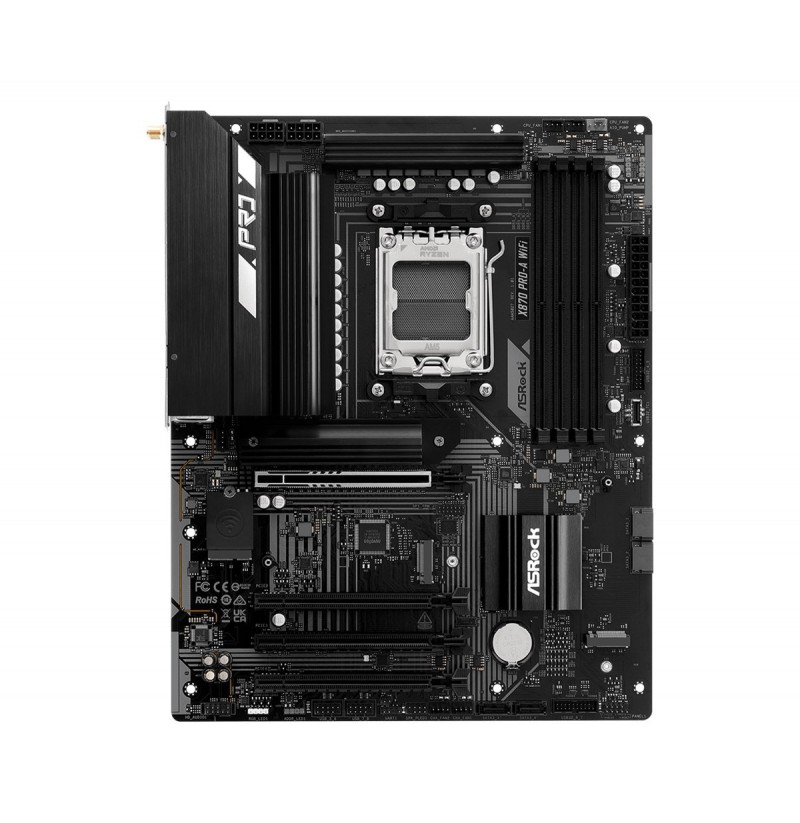

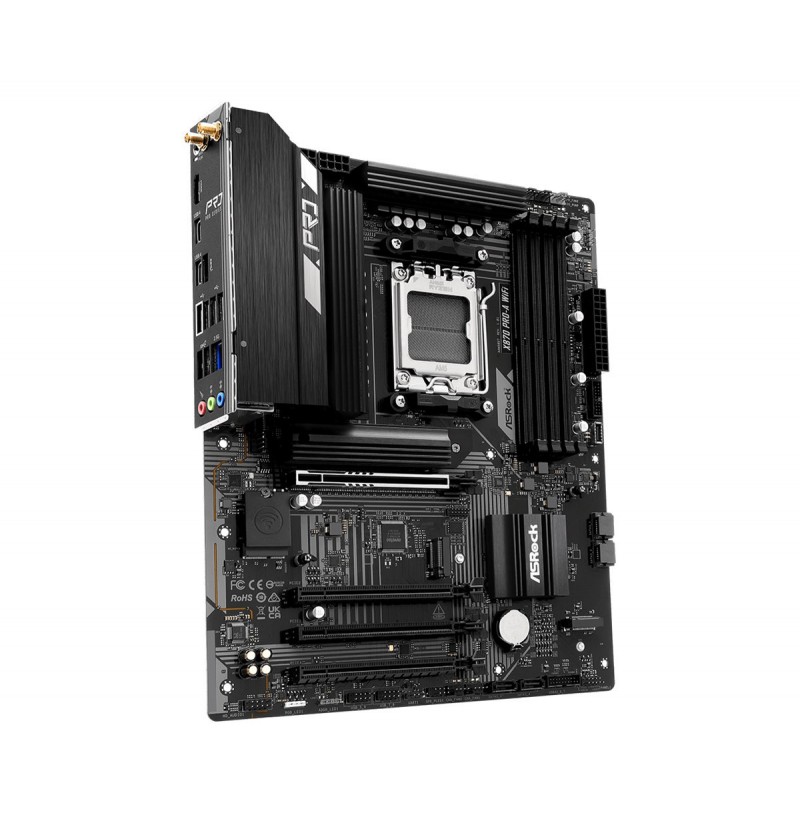

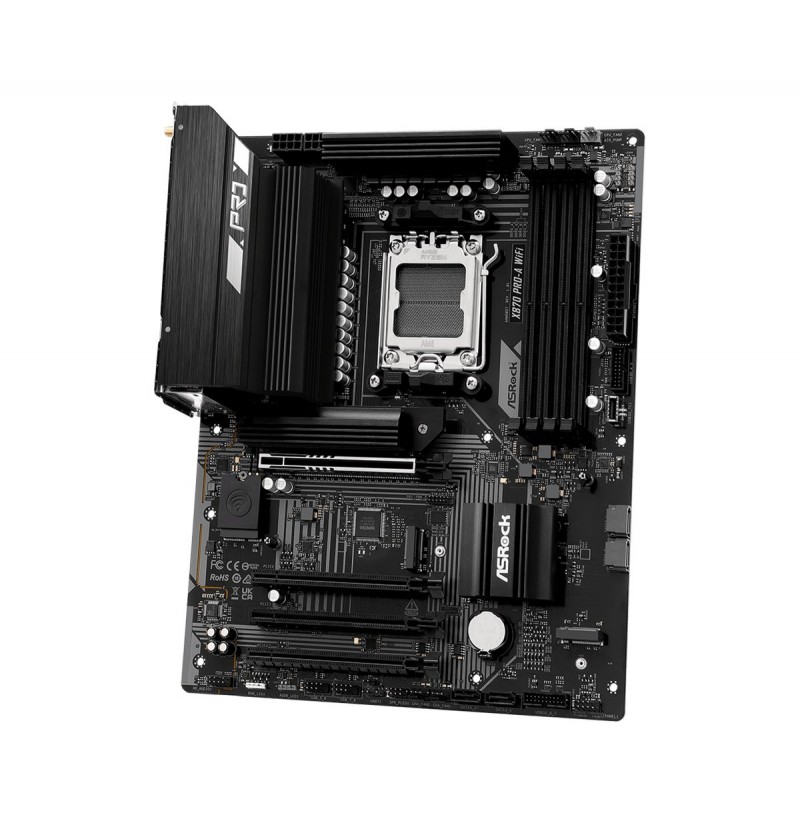

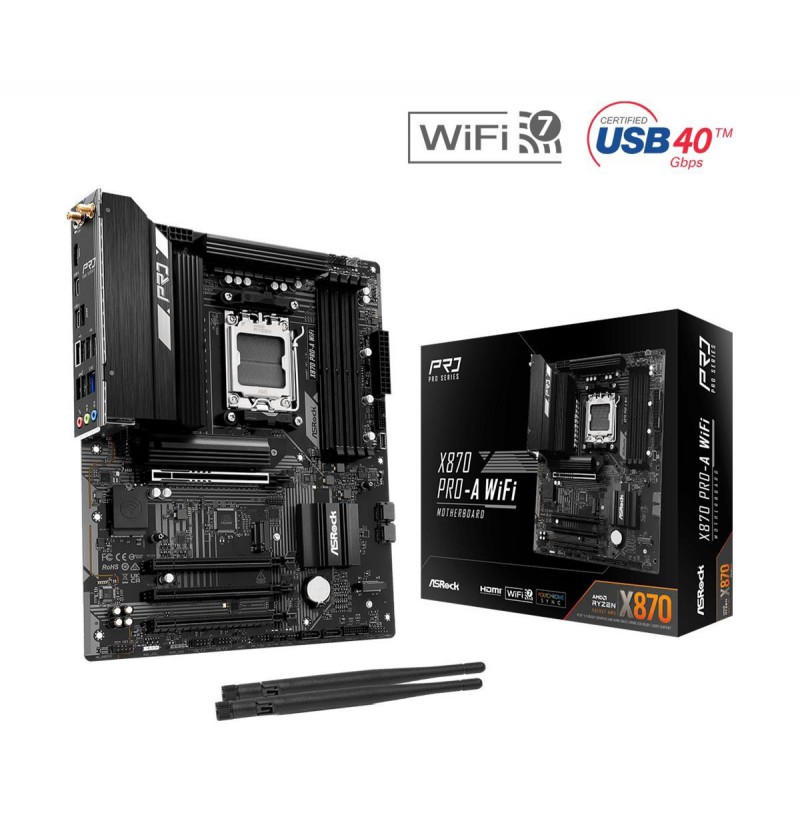

Asrock X870 Pro-A WiFi AMD X870 Socket AM5 ATX

Compatible processor series: AMD Ryzen Threadripper 7000 Series, AMD Ryzen PRO 8000 Series, AMD Ryzen 6000 Series, AMD Ryzen 9000 Series, AMD Ryzen PRO 7000 Series, AMD Ryzen 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Component for: PC
Audio output channels: 7.1 channels
Motherboard chipset: AMD X870
Audio chip: Realtek ALC897
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: ATX
Memory channels: Dual-channel
Maximum internal memory: 256 GB
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Width: 305 mm
Depth: 244 mm
LAN controller: Dragon RTL8125BG
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a, Wi-Fi 6 (802.11ax)
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
TPM connector: Yes
Number of SATA III connectors: 4
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
USB 2.0 connectors: 2
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Number of EPS power connectors (8-pin): 2
Number of CPU fan connectors: 2
BIOS type: EFI AMI
BIOS memory size: 512 Mbit
Cables included: SATA
Supported storage drive interfaces: M.2, SATA III
RAID levels: 1, 0, 10
RAID support: Yes
Number of storage drives supported: 7
USB 2.0 ports quantity: 4
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 2
Line-in: Yes
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 3
