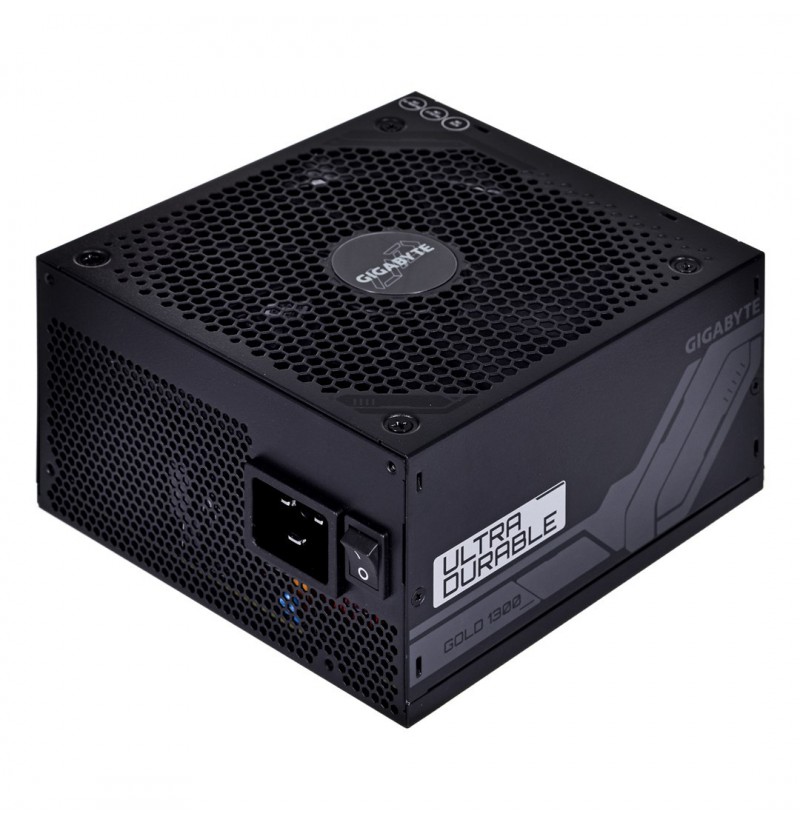

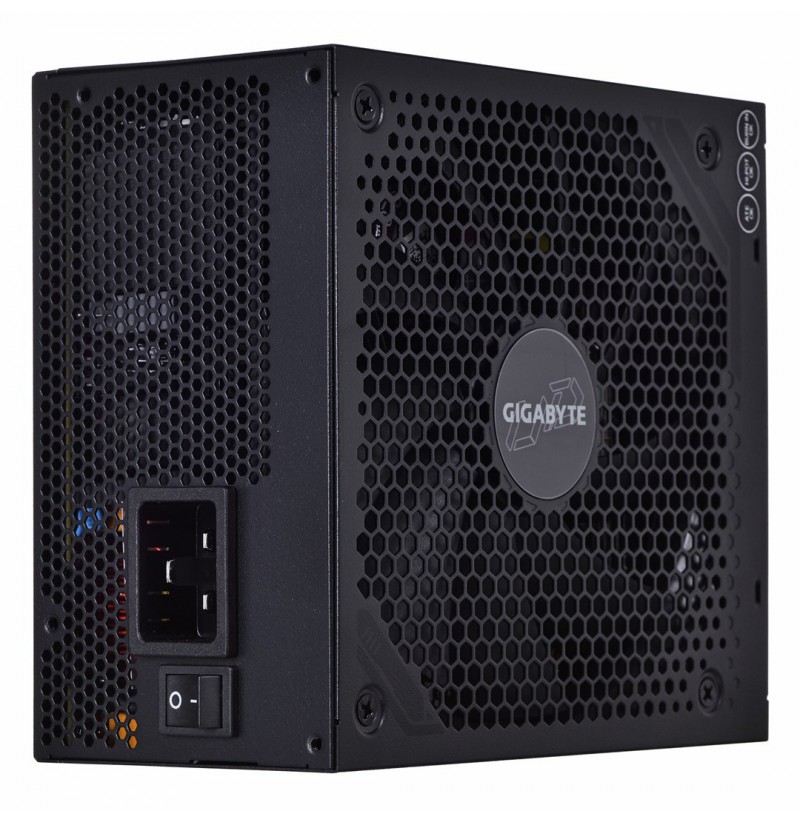

Gigabyte GP-UD1300GM PG5 1300W 140 80+Gold Padidinti

Gigabyte GP-UD1300GM PG5 1300W 140 80+Gold

256,26 €

4719331553388

Galimas pasirinkimas

 pristatymas 11...13 d.d.


Cooling type: Active
Illumination: No
Product colour: Black
Fan diameter: 12 cm
Fan location: Top
Number of fans: 1 fan(s)

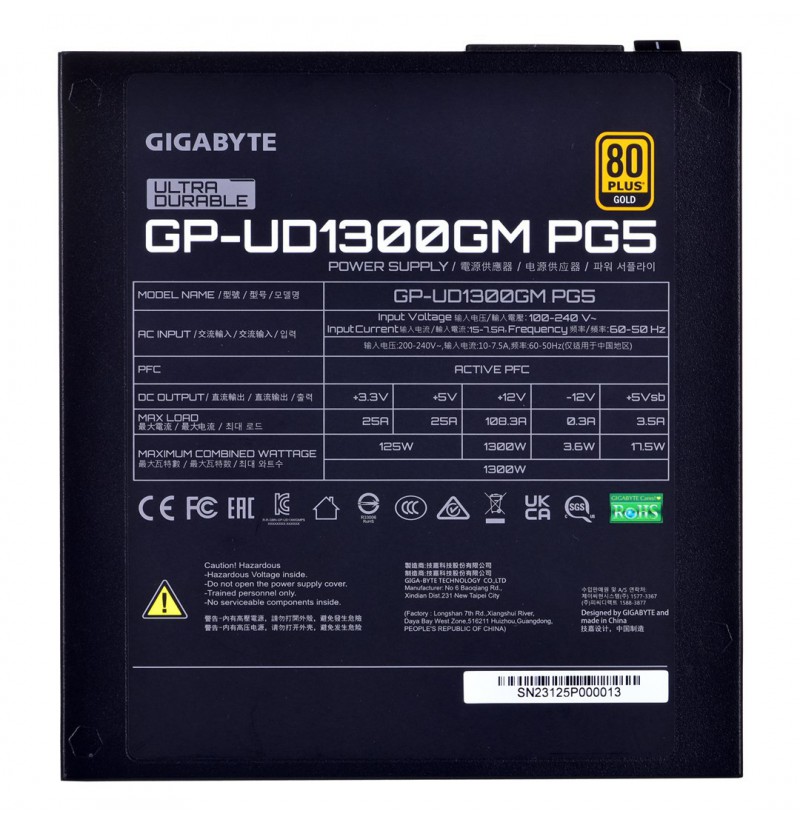

AC input frequency: 50 - 60 Hz
Total power: 1300 W
Input current: 12 - 6 A
Max output current (+5Vsb): 3.5 A
Power protection features: Short circuit, Over voltage, Overheating, Under voltage, Over current, Over power
Efficiency: 90%
Hold time: 16 ms
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 17.5 W
Combined power (+3.3V): 125 W
Combined power (-12V): 3.6 W
Power Factor Correction (PFC) type: Active
Max output current (+5V): 25 A
Maximum input current (@110V): 6 A
Combined power (+5V): 125 W
Max output current (+3.3V): 25 A
Max output current (+12V): 108.3 A
Combined power (+12V): 1300 W
Max output current (-12V): 0.3 A
Maximum input current (@220V): 12 A
Depth: 160 mm
Height: 86 mm
Width: 150 mm
Purpose: PC
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Noise level: 40 dB
Package type: Box

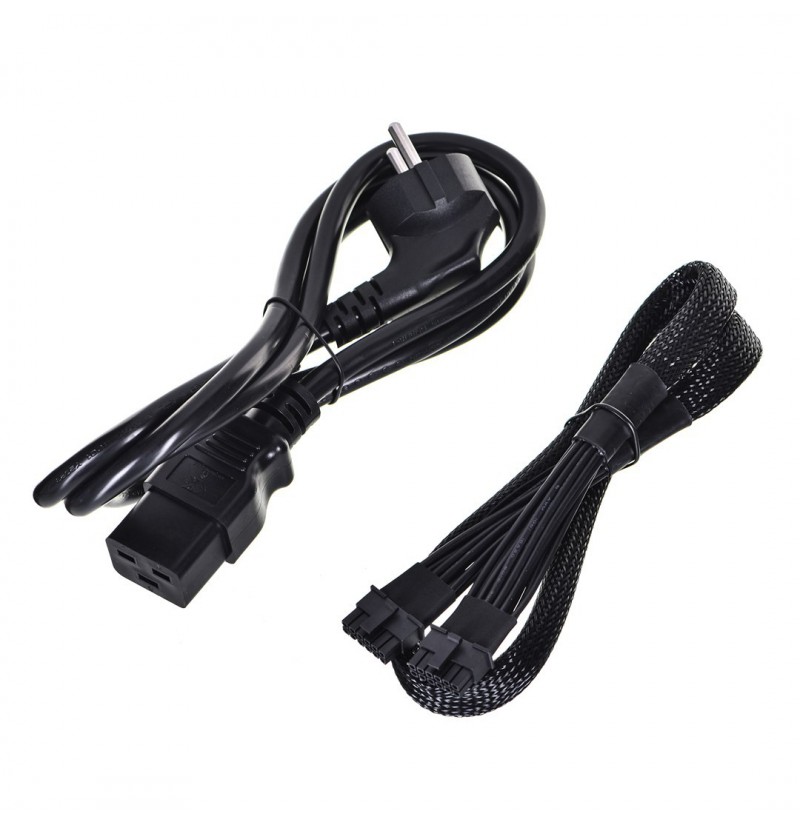

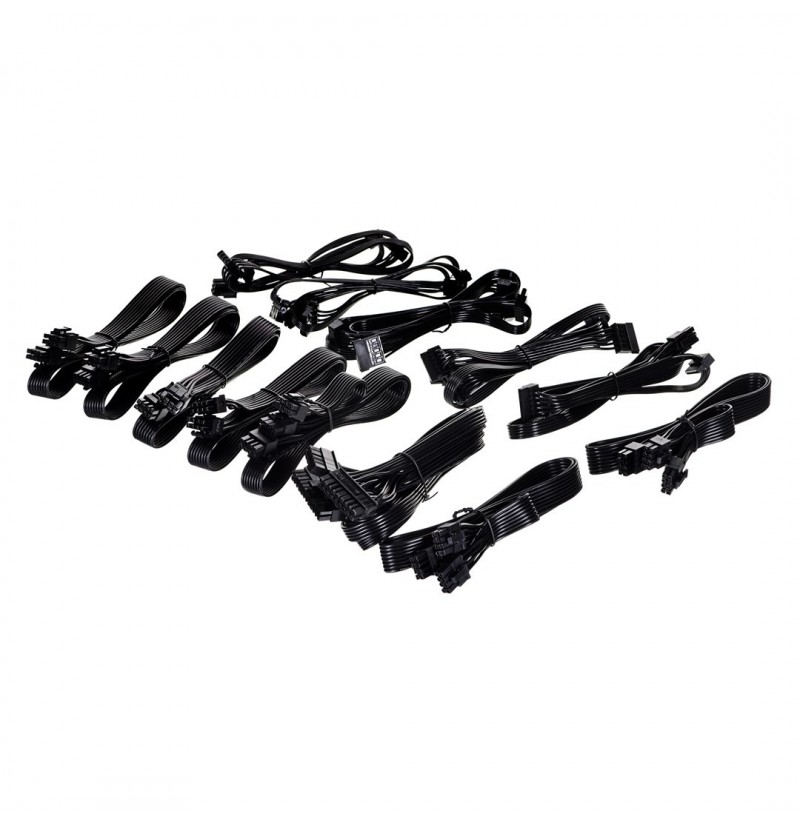

Cables included: CPU, PATA, Peripheral (Molex), SATA
Cable tie(s) included: Yes
Compliance certificates: Federal Communications Commission (FCC), CCC, RoHS, CE

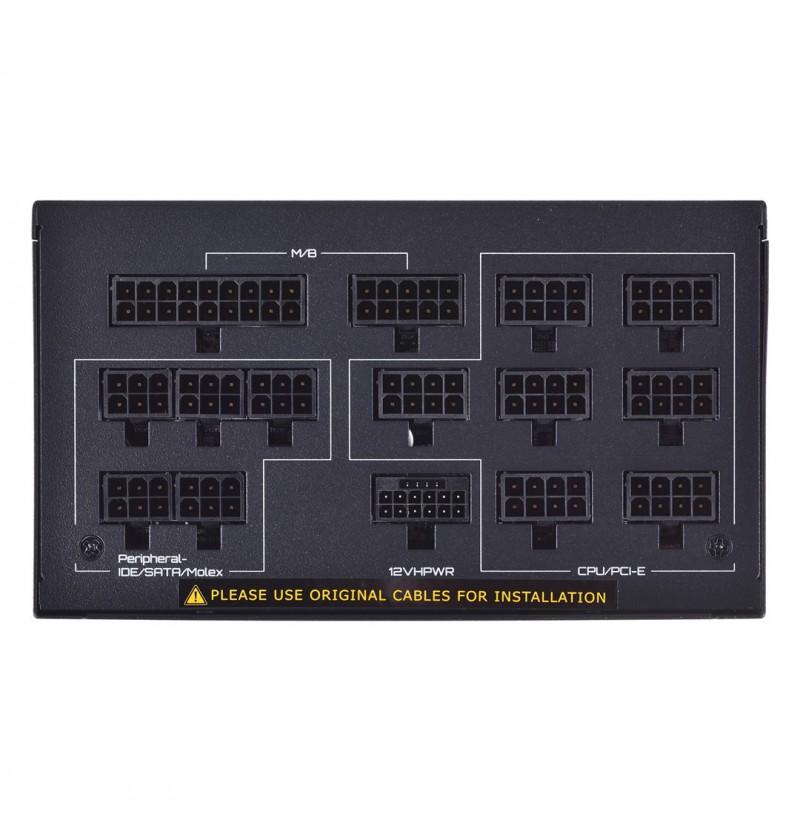

PCI Express power connectors (16-pin): 1
PCI Express connector: Yes
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 4
ATX power connector (20+4 pin): Yes
SATA power cable length: 150, 600 mm
Number of PATA power connectors: 3
Motherboard power cable length: 61 cm
Motherboard power connector: 20+4 pin ATX
CPU power connector (4+4 pin): Yes
Cabling type: Fully-Modular
PCI Express power cable length: 70 cm
Peripheral (Molex) power cable length: 600 mm, 200
Warranty period: 5 year(s)
Warnings: Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
