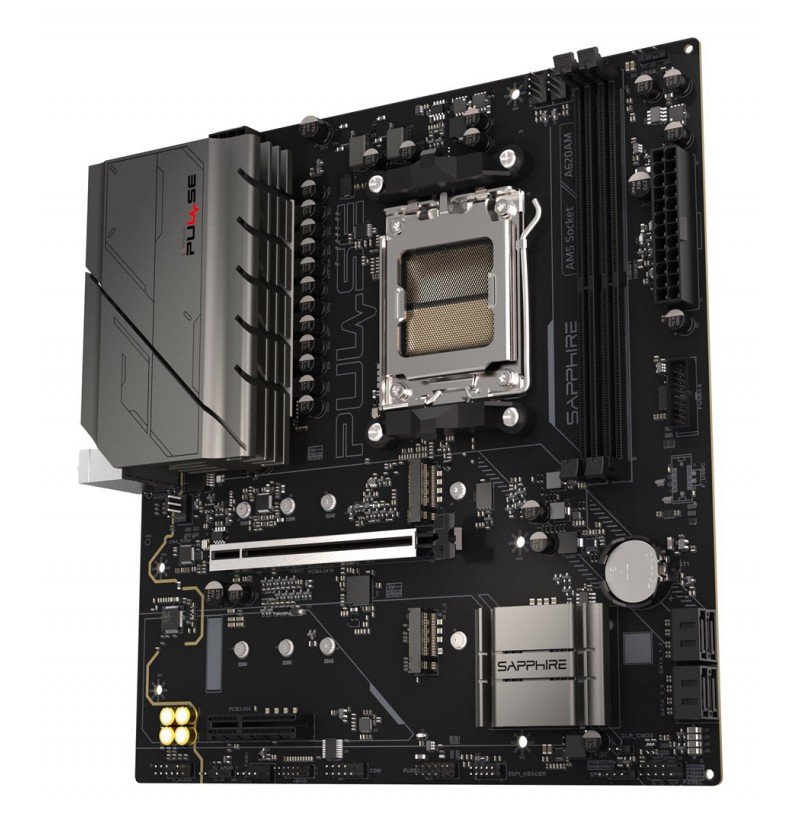

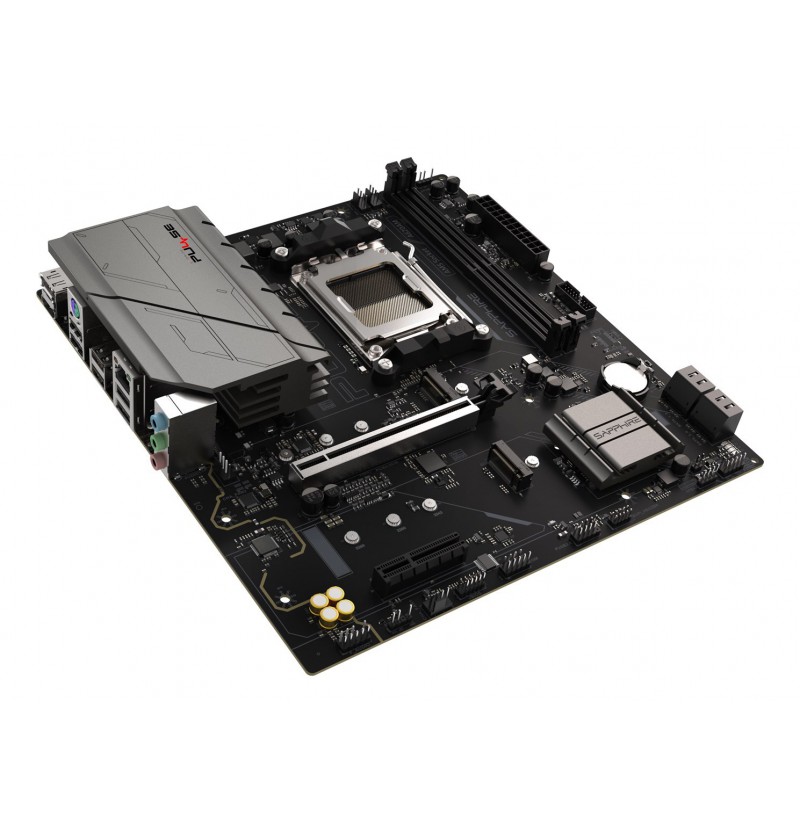

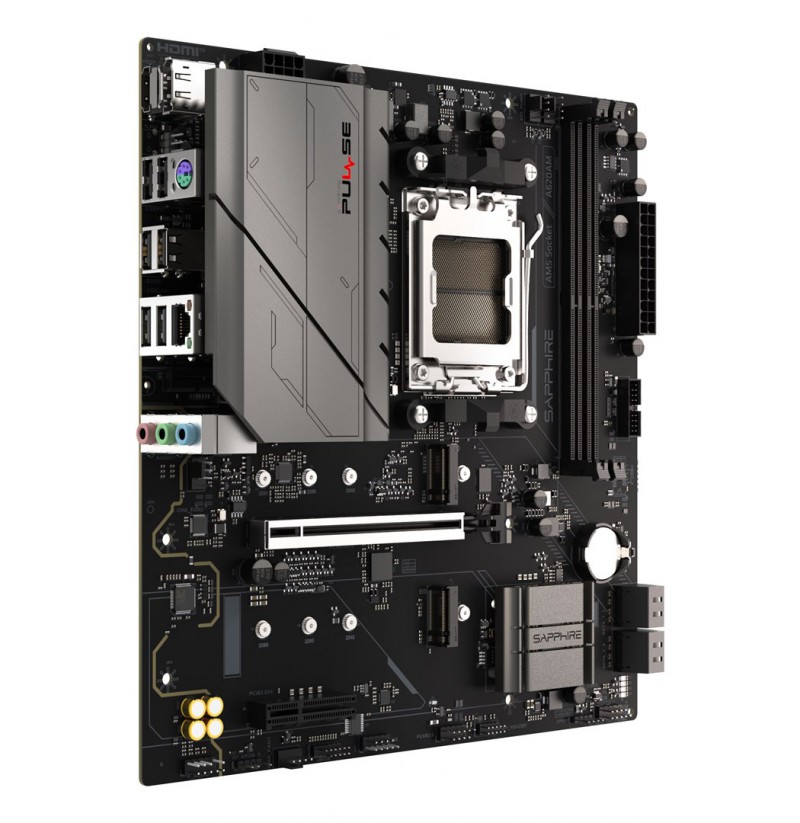

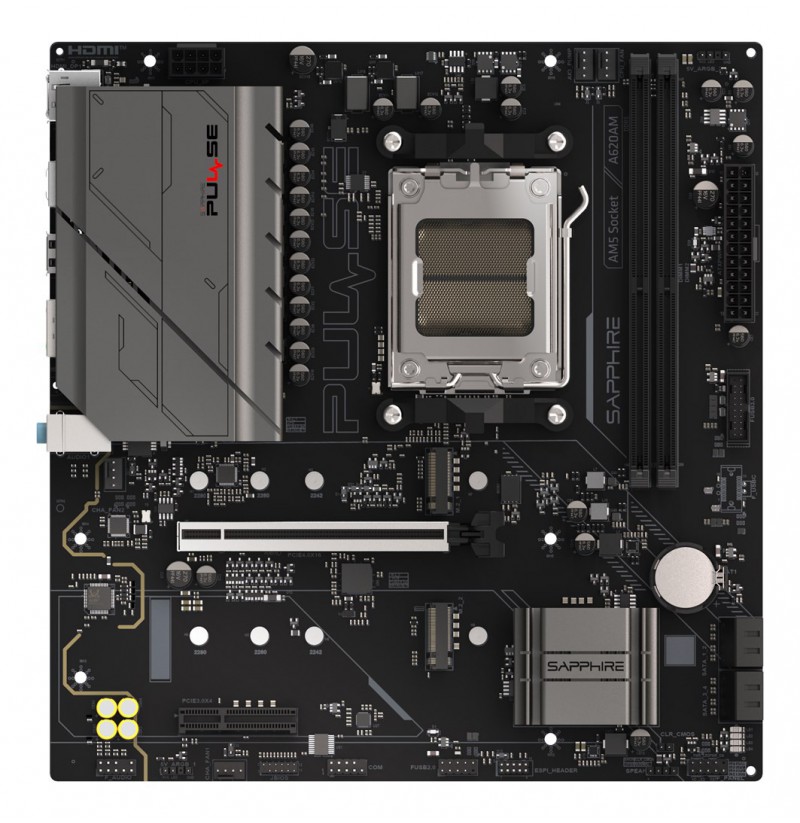

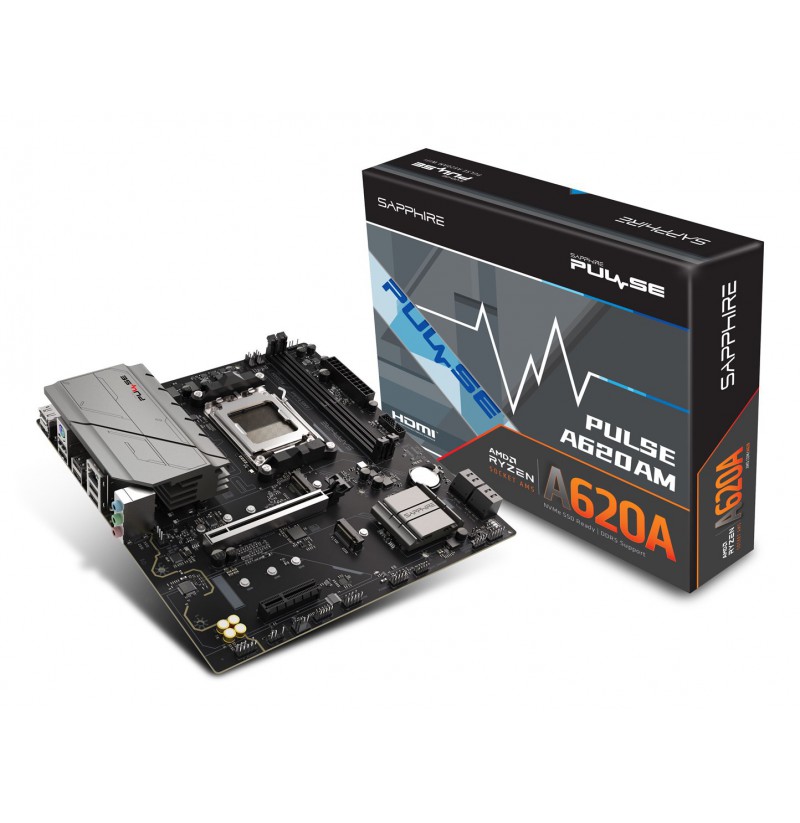

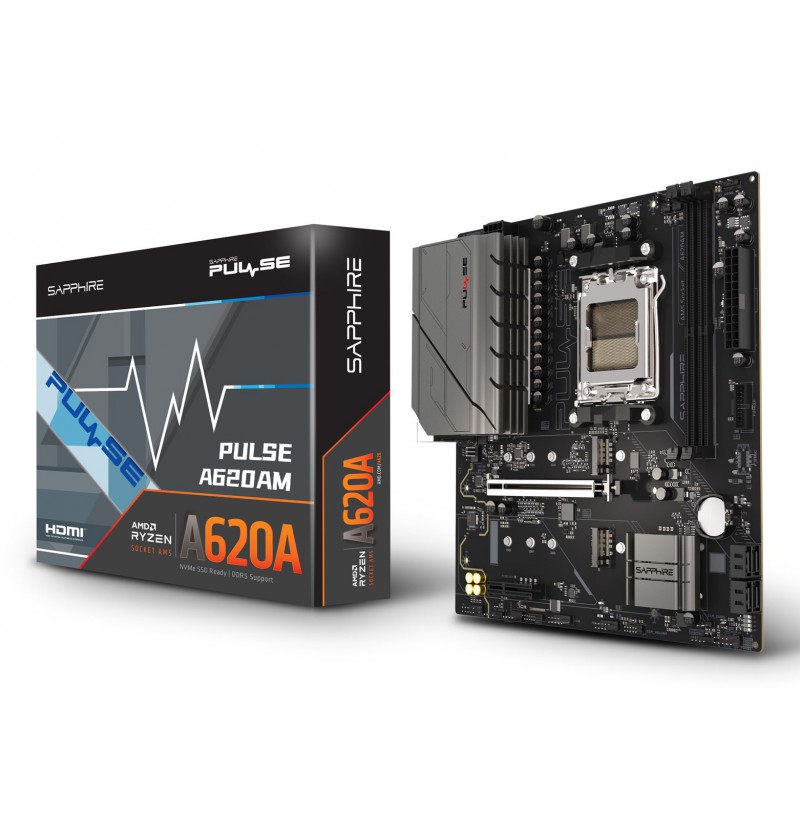

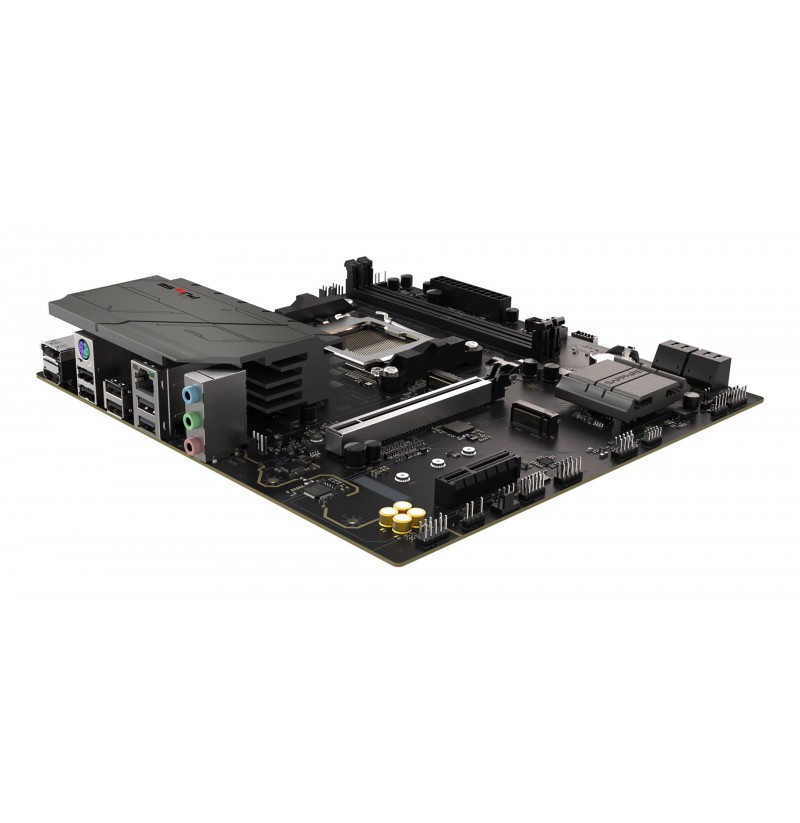

SAPPHIRE PULSE A620AM 1xHDMI 1.4 1xDP 1.2

Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Parallel processing technology support: Not supported
Motherboard chipset family: AMD
Motherboard chipset: AMD A620A
Motherboard form factor: micro ATX
Audio output channels: 5.1 channels
Component for: PC
Product colour: Black
Audio chip: Realtek ALC897
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Maximum internal memory per slot: 32 GB
Maximum internal memory: 64 GB
Number of memory slots: 2
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 7600 MHz
Width: 244 mm
Depth: 235 mm
LAN controller: Realtek RTL8111K
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Number of SATA III connectors: 4
USB 2.0 connectors: 1
Front panel audio connector: Yes
Number of chassis fan connectors: 2
Number of CPU fan connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
CPU fan connector: Yes
Serial port headers: 1
ATX Power connector (24-pin): Yes
Number of water pump connectors: 1
Number of RGB LED pin headers: 2
RGB LED pin header: Yes
Audio connector: Yes
Clear CMOS jumper: Yes
Supported storage drive interfaces: PCI Express 3.0, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
DisplayPorts quantity: 1
USB connector type: USB Type-A
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Headphone outputs: 3
Microphone in: Yes
PS/2 ports quantity: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 3.0
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x4 slots: 1
