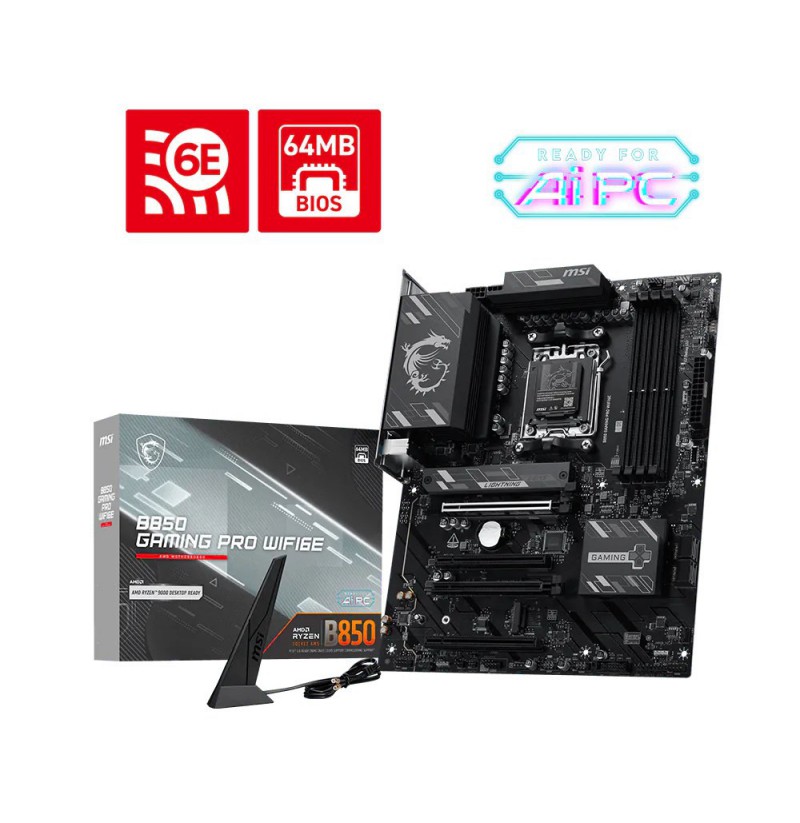

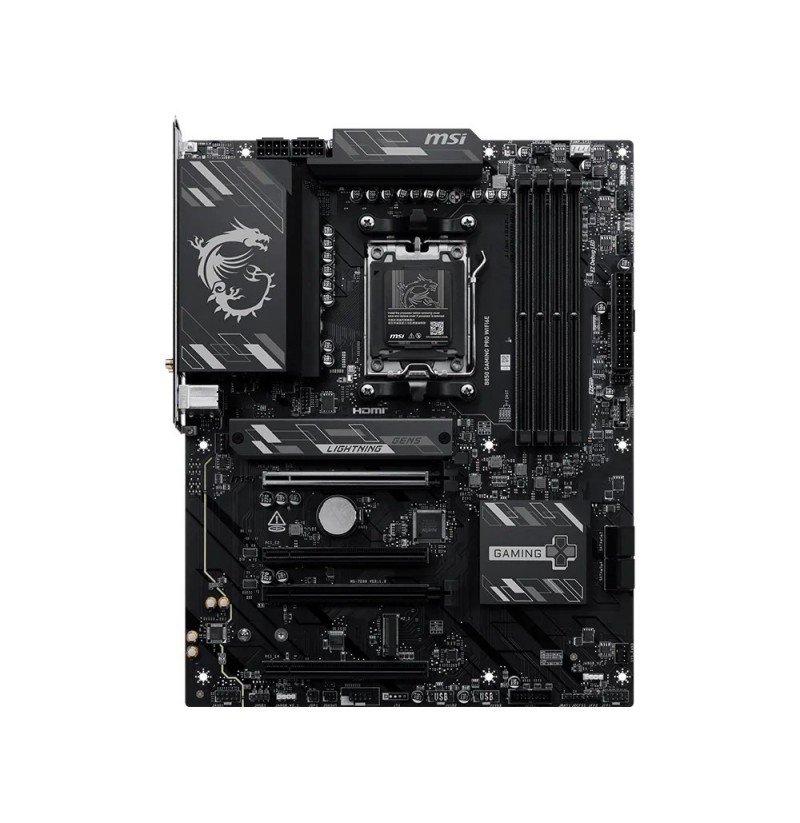

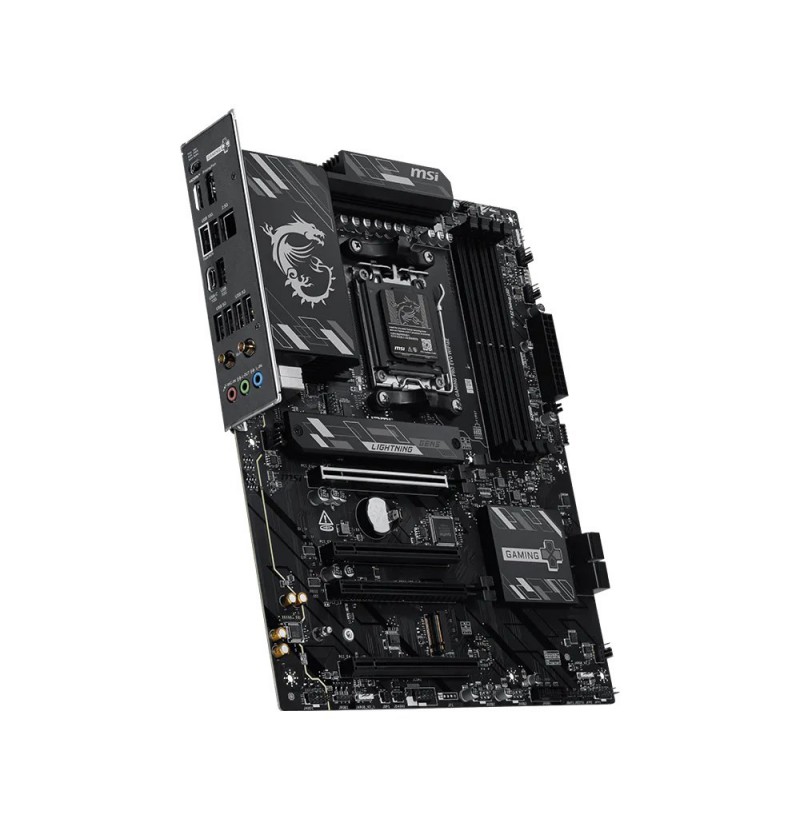

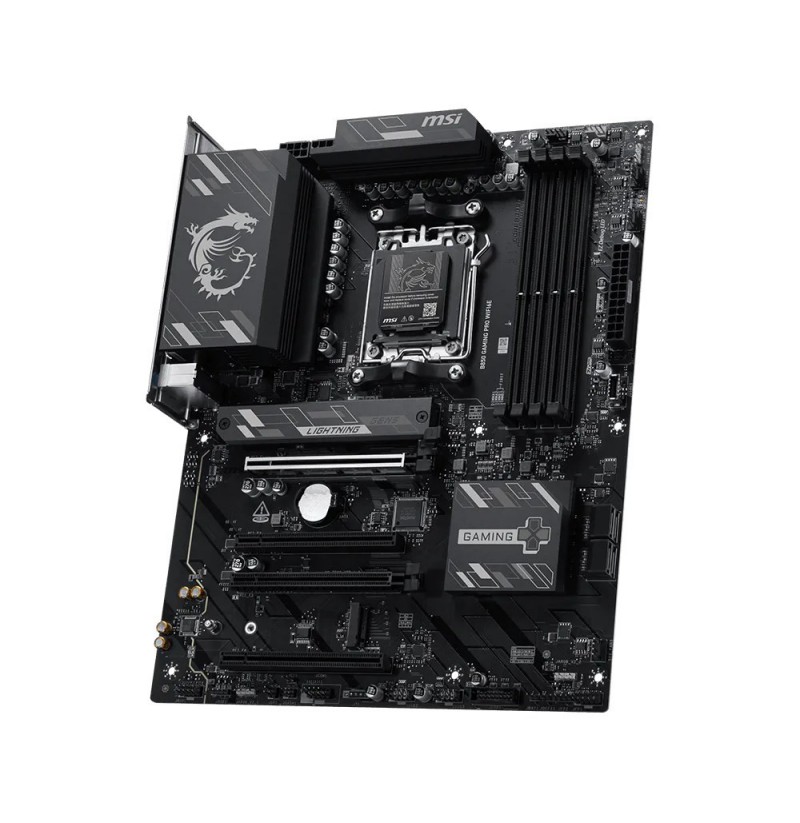

MSI B850 GAMING PRO WIFI6E motherboard AMD B850 Socket AM5 ATX

Processor socket: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Supported processor sockets: Socket AM5
On-board graphics card: No
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64
Motherboard chipset family: AMD
Motherboard form factor: ATX
Product colour: Black
Audio chip: Realtek ALC897
Motherboard chipset: AMD B850
Memory channels: Dual-channel
Supported memory clock speed (max): 8200 MHz
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speeds: 6400, 6000, 5600, 4800 MHz, 8200 MHz
Maximum internal memory: 256 GB
ECC сompatibility: Non-ECC
Depth: 304.8 mm
Width: 243.8 mm
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Bluetooth version: 5.3
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
LAN controller: Realtek RTL8125D
Bluetooth: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 2.0 connectors: 4
Number of SATA III connectors: 4
Total number of SATA connectors: 4
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
Front panel connector: Yes
Number of RGB LED pin headers: 3
Number of water pump connectors: 1
Number of CPU fan connectors: 2
BIOS type: UEFI AMI
Supported storage drive interfaces: M.2
Number of storage drives supported: 6
RAID levels: 10, 0, 1
Number of HDDs supported: 4
RAID support: Yes
Supported storage drive types: HDD & SSD
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x4 slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 slots: 1
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
