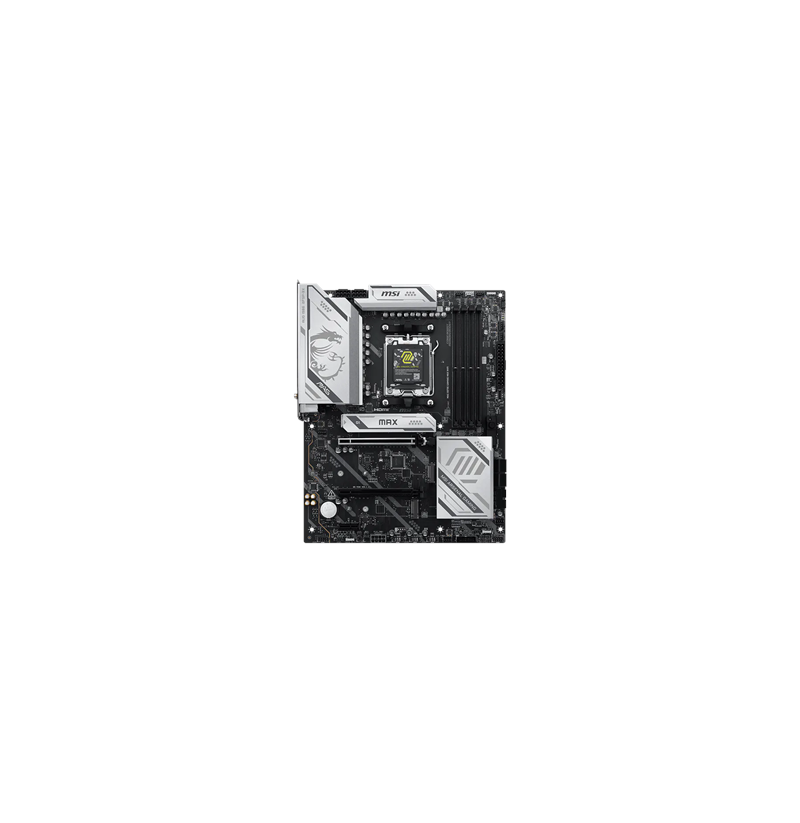

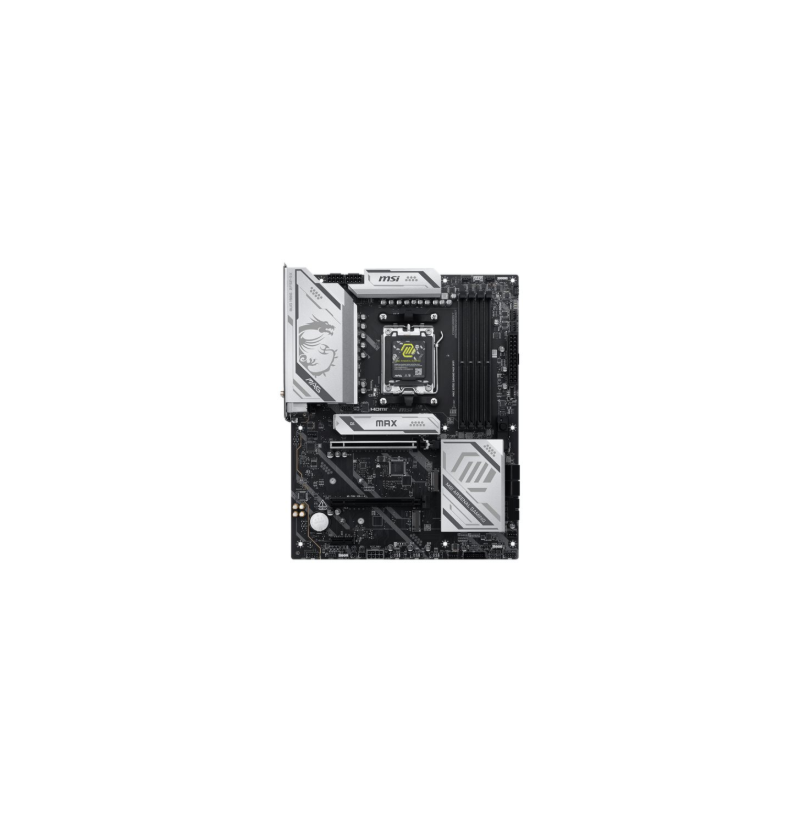

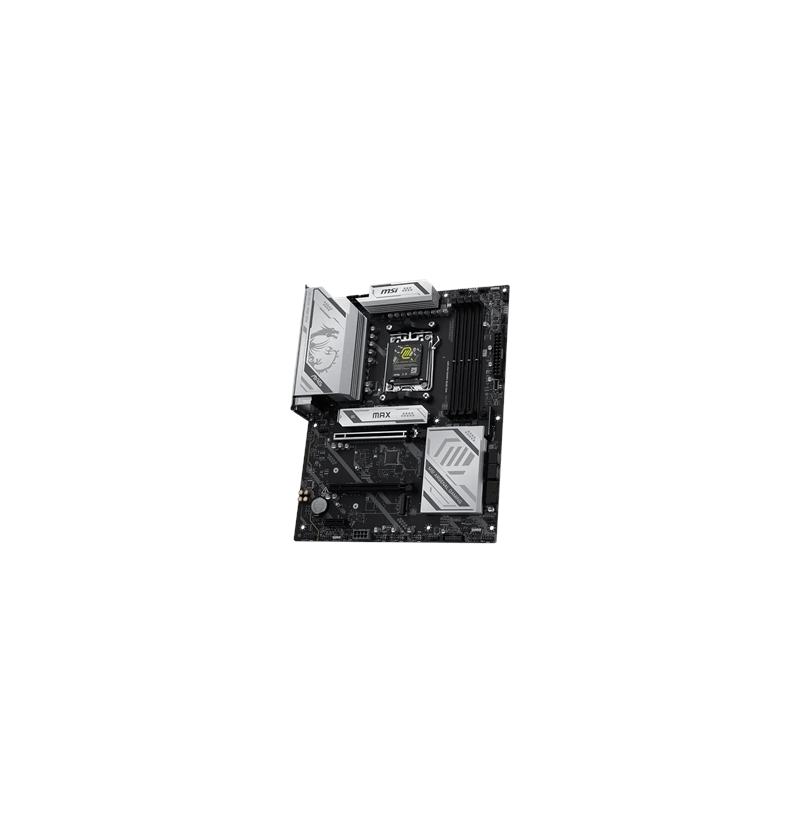

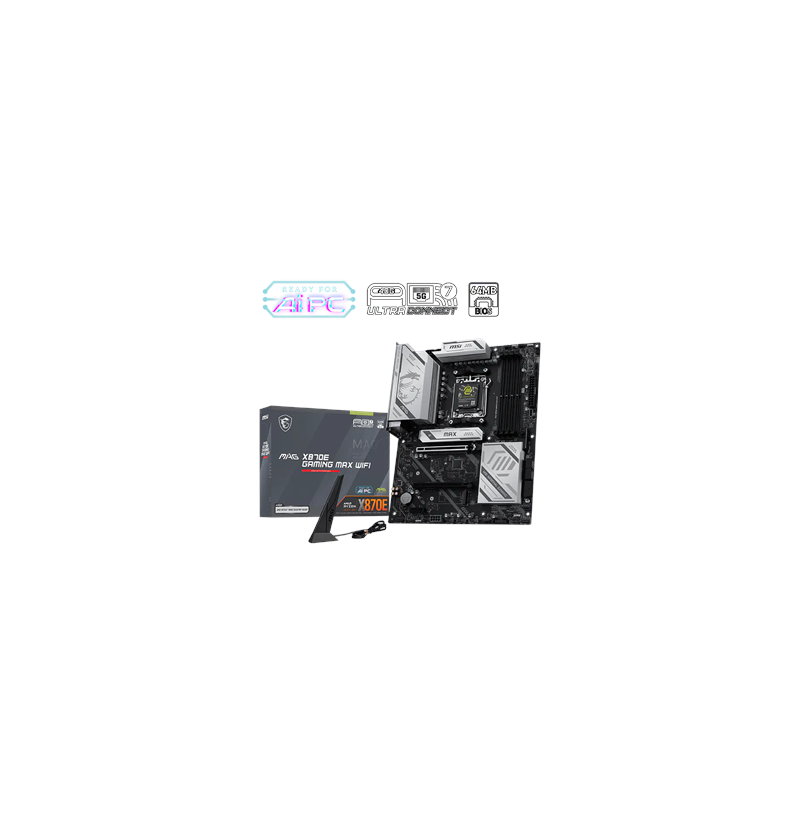

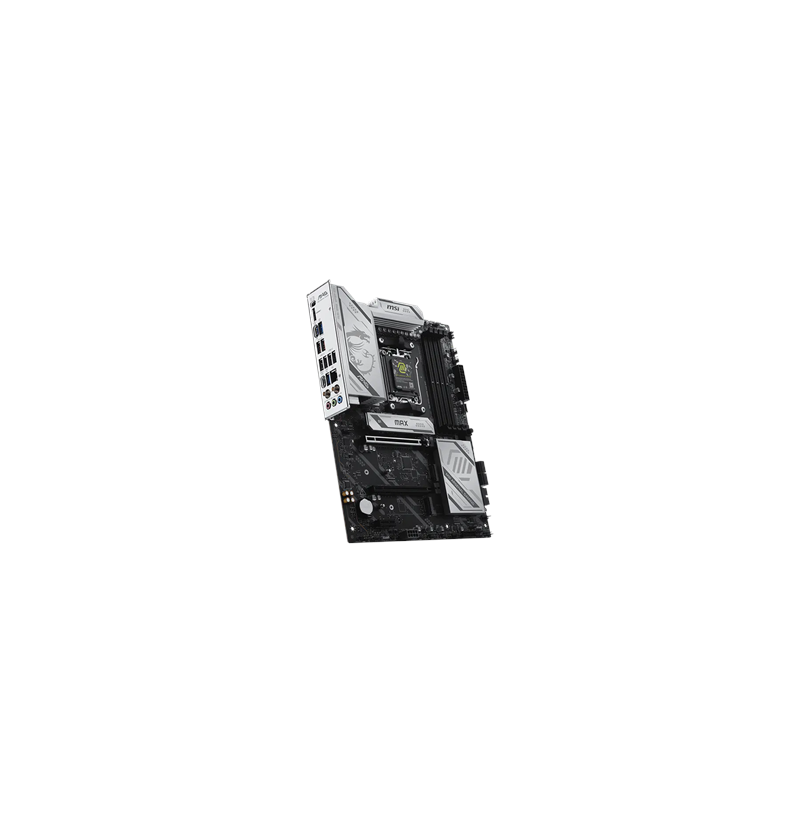

MSI MAG X870E GAMING MAX WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA,

Processor socket: Socket AM5
Maximum internal memory supported by processor: 256 GB
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
On-board graphics card: No
PC health monitoring: CPU, Fan, Voltage, Temperature
Audio output channels: 7.1 channels
Motherboard chipset: AMD X870E
Motherboard form factor: ATX
Component for: PC
Product colour: Black
Motherboard chipset family: AMD
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8200 MHz
ECC сompatibility: Non-ECC
Supported memory clock speeds: 8200 MHz, 6400 MHz, 6000, 5600, 4800 MHz
Memory channels: Dual-channel
Maximum internal memory: 256 GB
Depth: 304.8 mm
Width: 243.8 mm
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.4
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth: Yes
LAN controller: Realtek RTL8126
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Total number of SATA connectors: 4
USB 2.0 connectors: 6
CPU fan connector: Yes
System Management BIOS (SMBIOS) version: 3.7
BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
ACPI version: 6.5
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 7
RAID support: Yes
Supported storage drive types: HDD & SSD
USB4 Gen 2x2 ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
S/PDIF out port: Yes
USB 2.0 ports quantity: 4
DisplayPorts quantity: 2
HDMI version: 2.1
DisplayPort version: 1.4
Microphone in: Yes
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 2280
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 1
