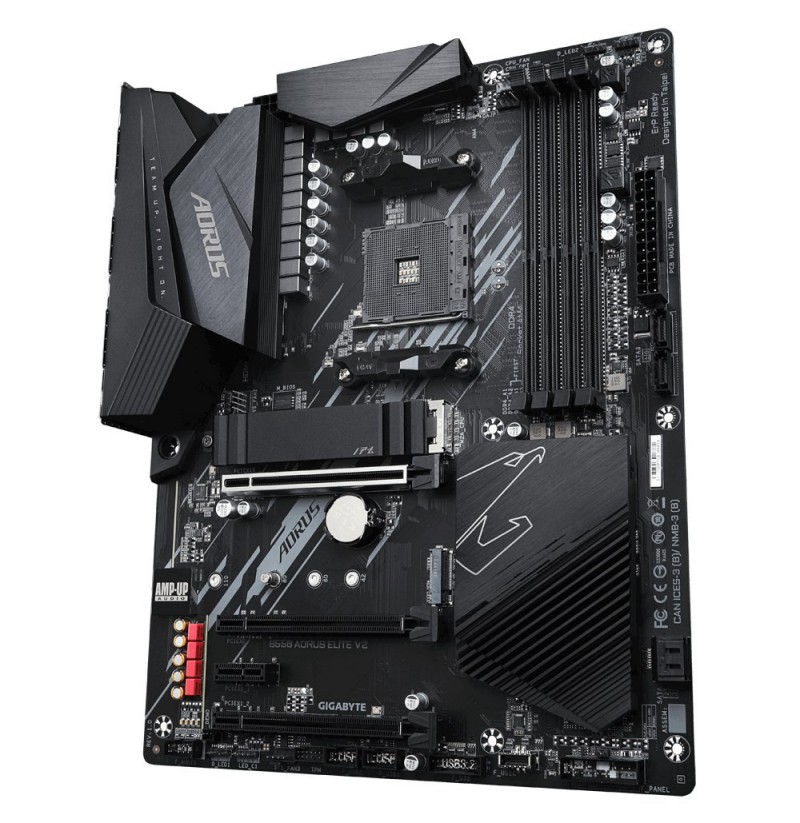

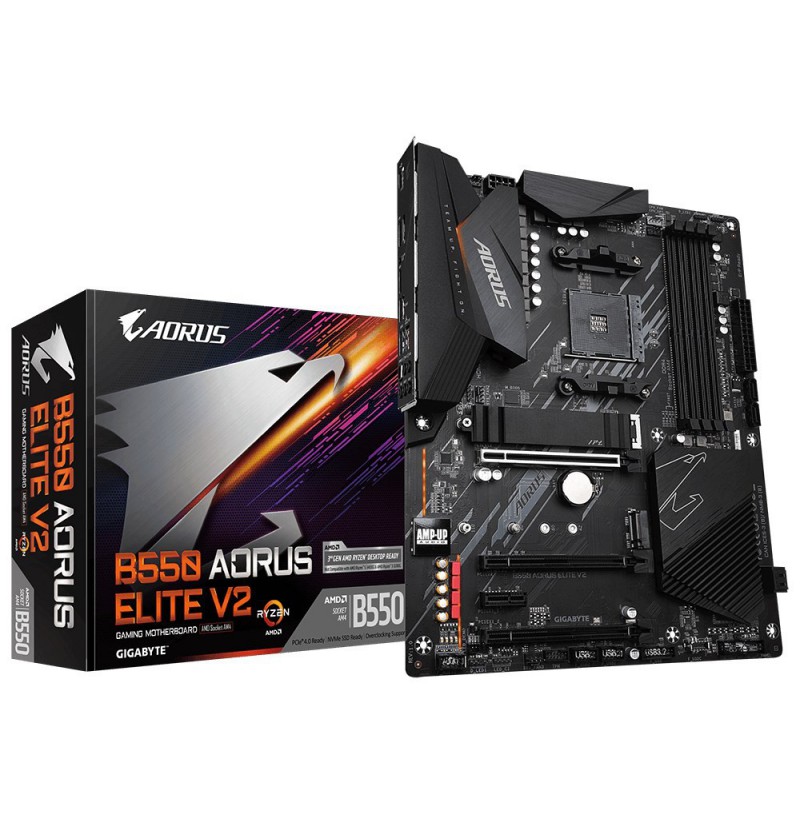

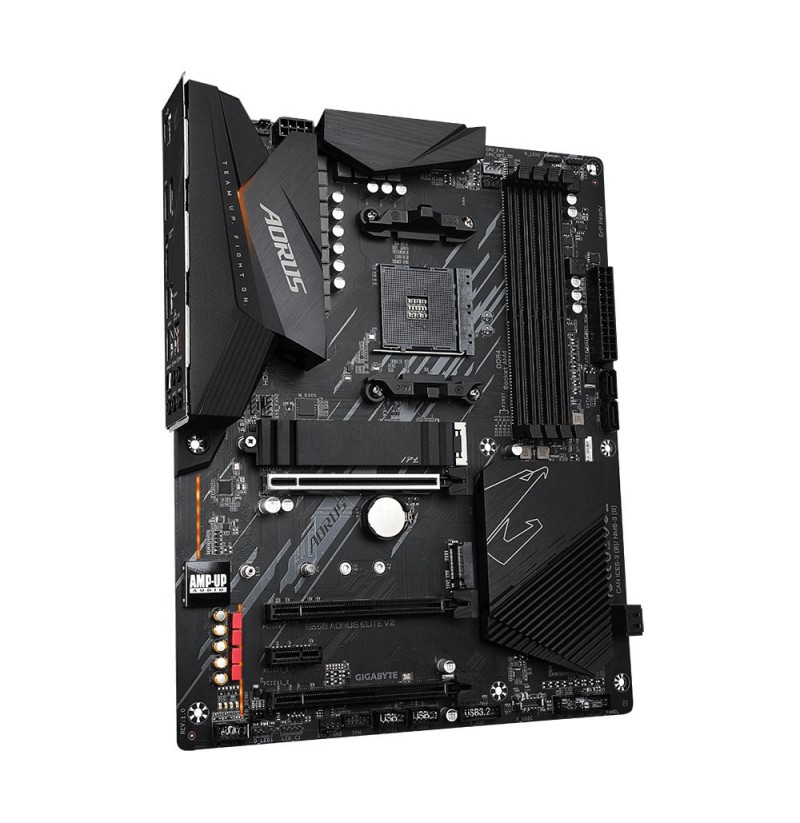

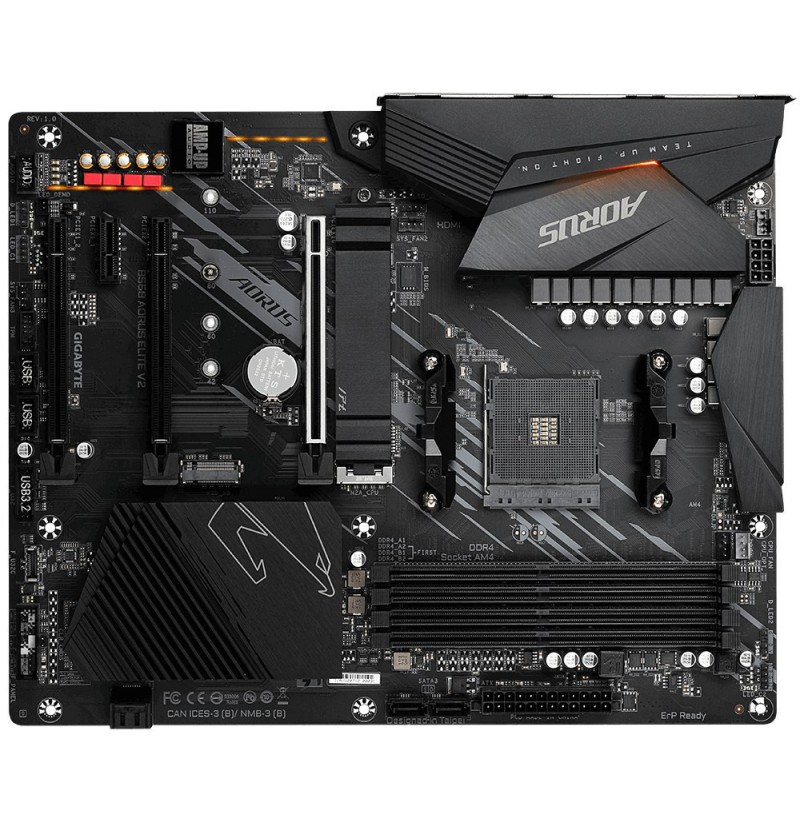

Gigabyte B550 AORUS ELITE V2 motherboard AMD B550 Socket AM4 ATX

Warranty period: 3 year(s)
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series
Maximum number of SMP processors: 1
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
DirectX version: 12.0
Maximum resolution: 5120 x 2880 pixels
HDCP: Yes
Parallel processing technology support: Not supported
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Power source type: ATX
Audio output channels: 7.1 channels
PC health monitoring: Voltage, Fan, Water cooling, Temperature
Motherboard form factor: ATX
Motherboard chipset: AMD B550
Cooling type: Passive
Audio chip: Realtek ALC897
Motherboard chipset family: AMD
Product colour: Black
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Supported memory clock speed (max): 4733 MHz
Supported memory clock speeds: 3400, 3866, 2400, 2667, 3733, 4400 MHz, 2133, 3466, 4133, 4000, 3200, 4266, 4600, 2933, 3600, 4733
Unbuffered memory: Yes
Maximum internal memory per slot: 32 GB
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 128 GB
Depth: 244 mm
Width: 305 mm
Height: 35 mm
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
RGB LED pin header: Yes
12V power connector: Yes
Number of water pump connectors: 4
ATX Power connector (24-pin): Yes
Number of CPU fan connectors: 1
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of RGB LED pin headers: 5
Number of EPS power connectors (8-pin): 1
Number of chassis fan connectors: 3
Number of SATA III connectors: 4
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
TPM connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Package weight: 1.8 kg
Package height: 80 mm
Package width: 335 mm
Package depth: 270 mm
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included: Yes
Screws included: Yes
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 1, 0, 10
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Microphone in: Yes
Line-in: Yes
Headphone outputs: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
S/PDIF out port: Yes
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 3.0
1st M.2 largest key size: 22110
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g
Weight: 1.12 kg
Products per shipping (inner) case: 1 pc(s)
Harmonized System (HS) code: 84733020
Country of origin: China
Warnings: Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.
