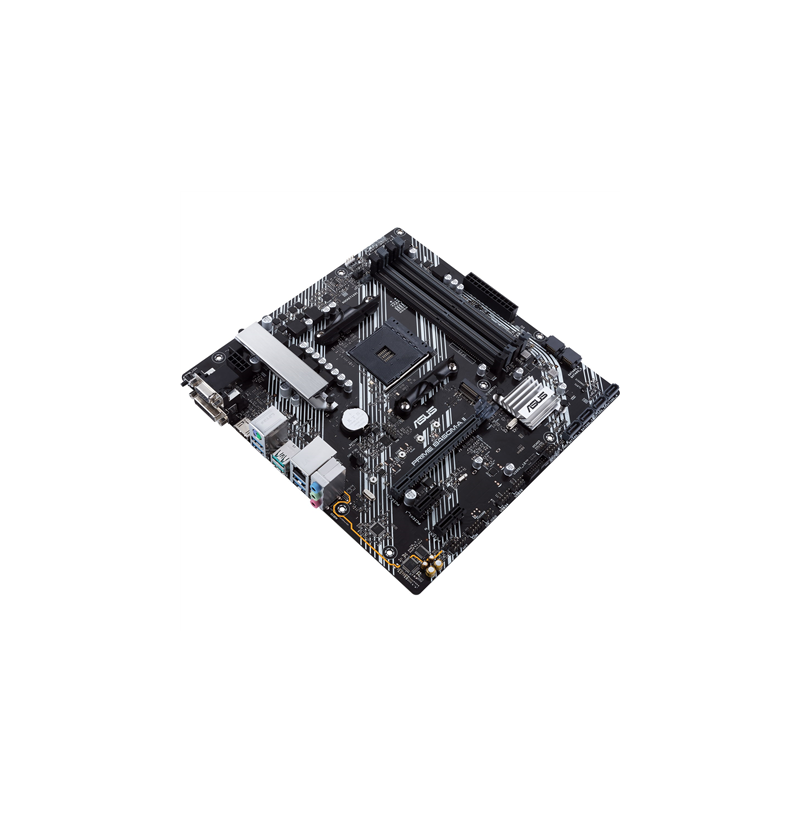

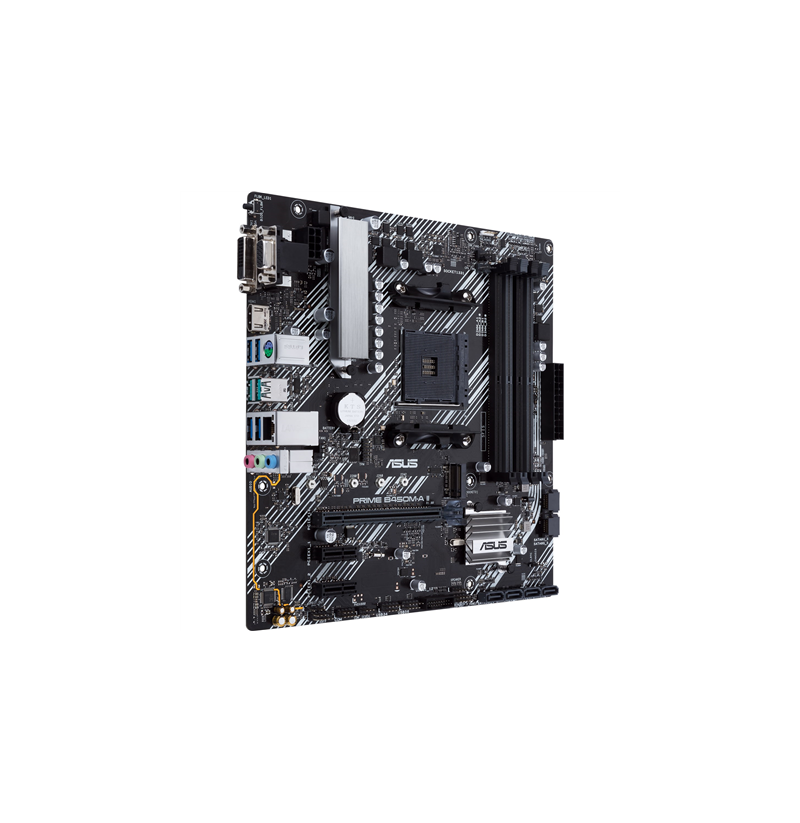

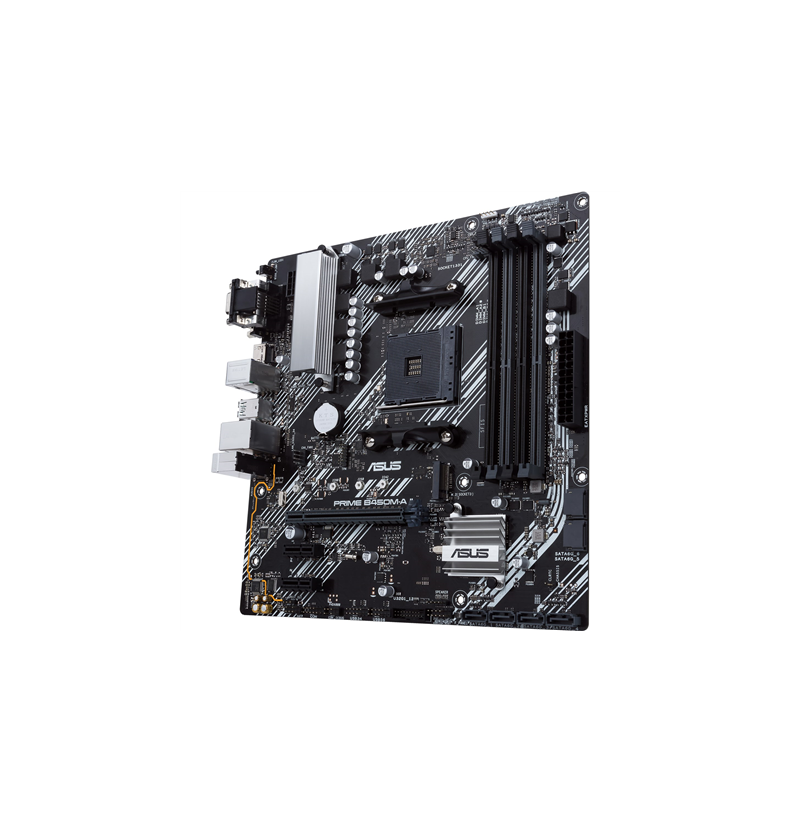

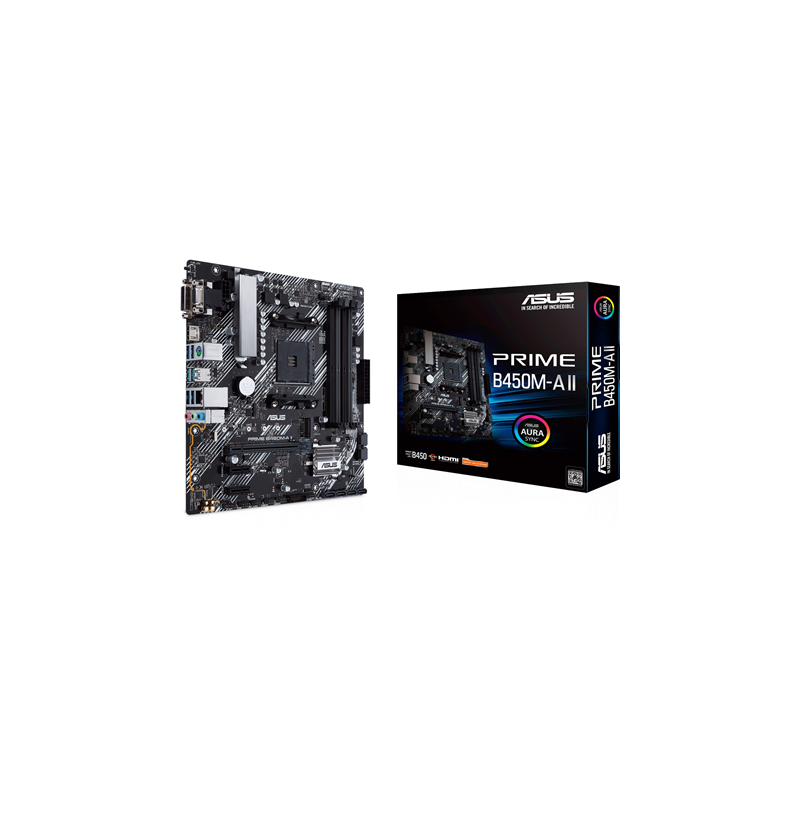

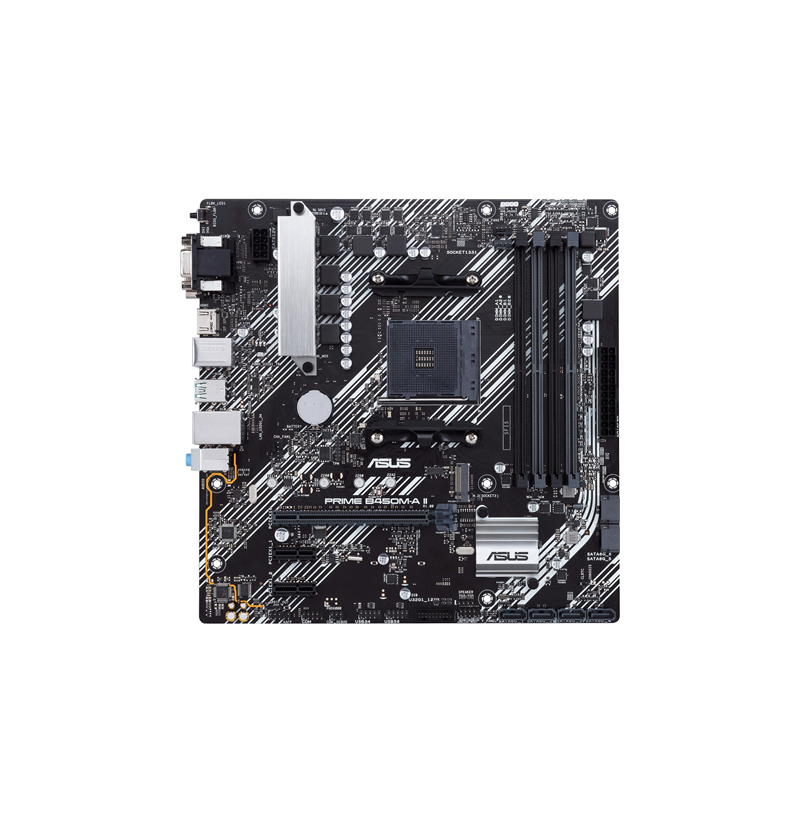

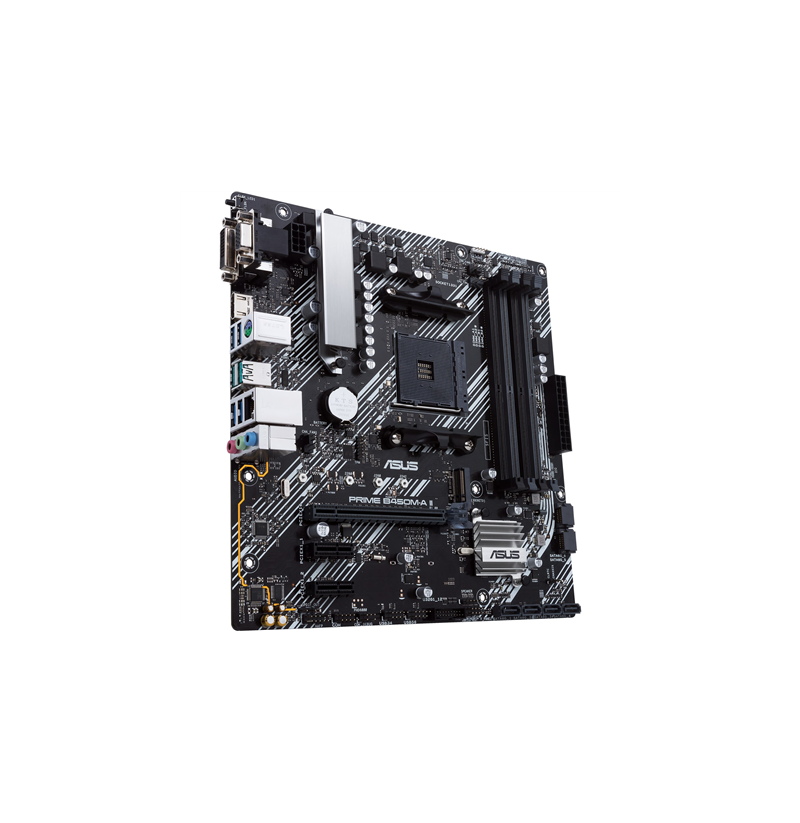

Asus PRIME B450M-A II Memory slots 4 Padidinti

ASUS PRIME B450M-A II Socket AM4 micro ATX AMD B450

75,30 €

90MB15Z0-M0EAY0

4718017924986

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Compatible processor series: 3rd Generation AMD Ryzen™ 9, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ 3
Processor socket: Socket AM4
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Parallel processing technology support: Not supported
Audio output channels: 7.1+2 channels
Motherboard chipset family: AMD
Motherboard chipset: AMD B450
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 7 x64, Windows 10 x64
Supported memory clock speeds: 3600, 3300, 3733, 4400 MHz, 3466, 2133, 3200, 2666, 2400, 2800, 4000, 3000, 3400, 3866
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Number of memory slots: 4
Memory slots type: DIMM
Width: 244 mm
Depth: 240 mm
Wake-on-LAN ready: Yes
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Front panel audio connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 6
S/PDIF out connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
RGB LED pin header: Yes
Number of COM connectors: 1
Front panel connector: Yes
TPM connector: Yes
12V power connector: Yes
Audio connector: Yes
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Drivers included: Yes

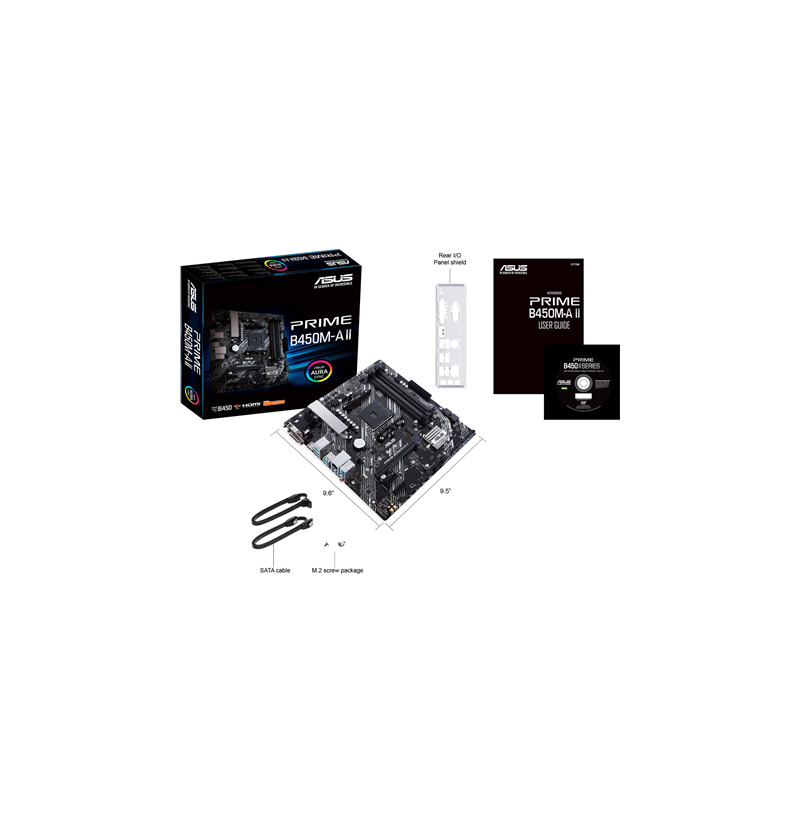

Cables included: SATA
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA III

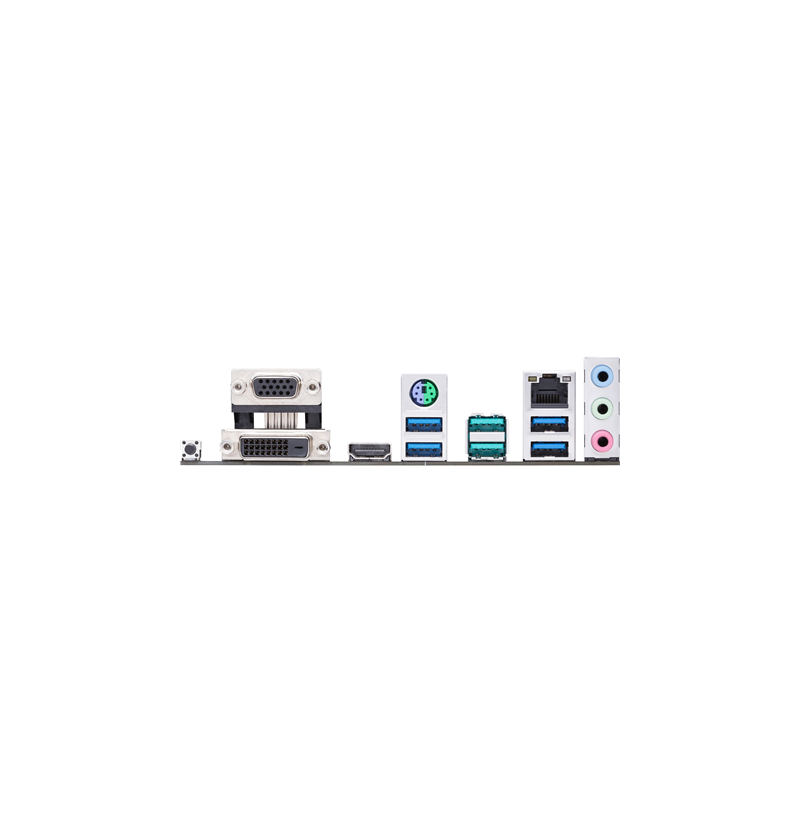

Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
PS/2 ports quantity: 1
HDMI version: 2.0b
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
DVI-D ports quantity: 1
VGA (D-Sub) ports quantity: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 2.x) slots: 2
