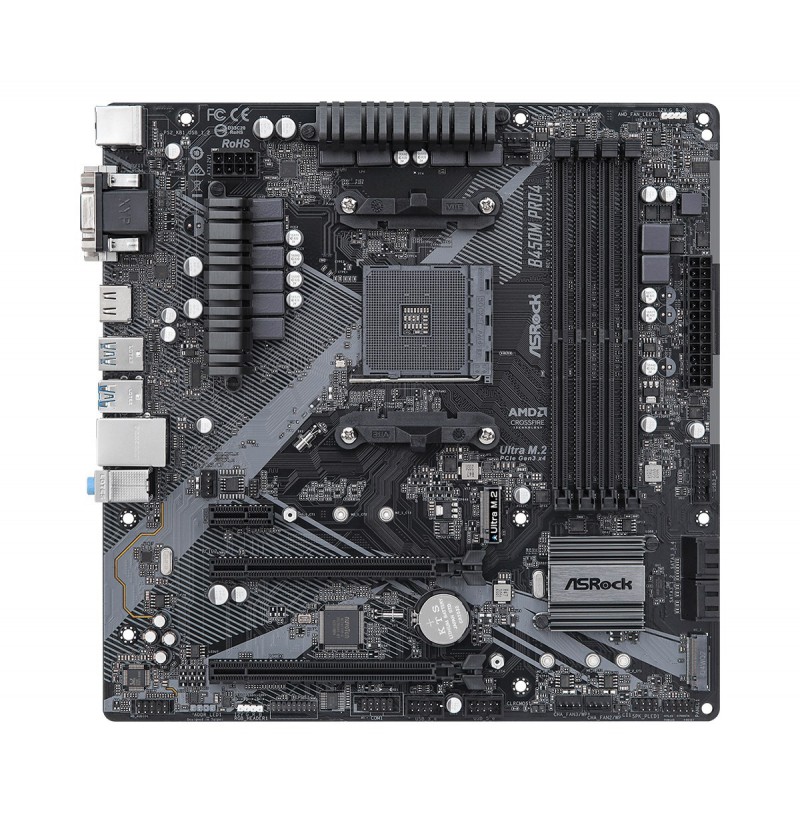

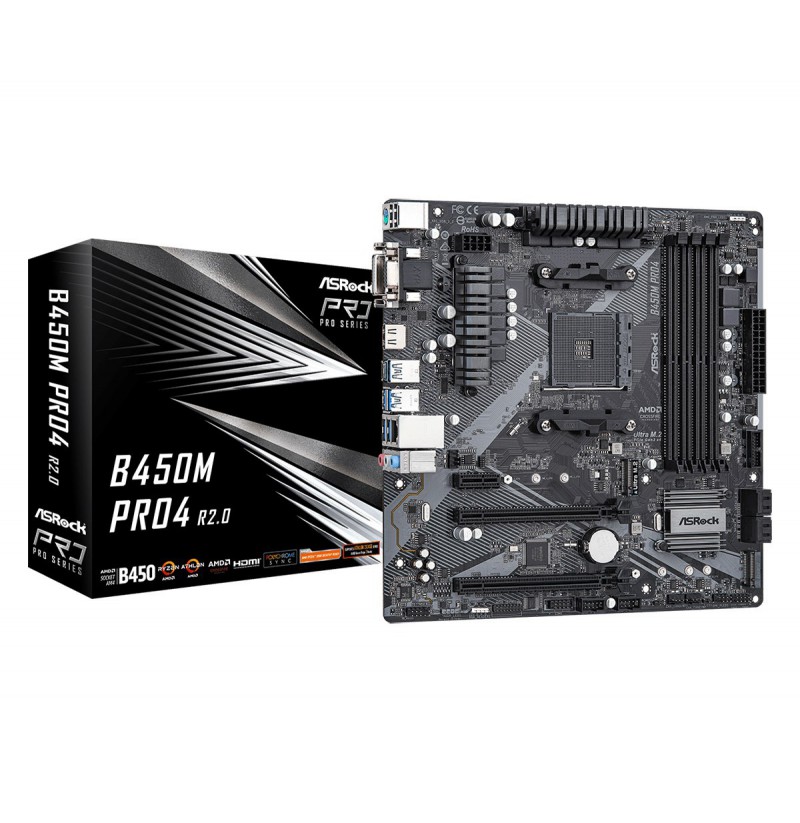

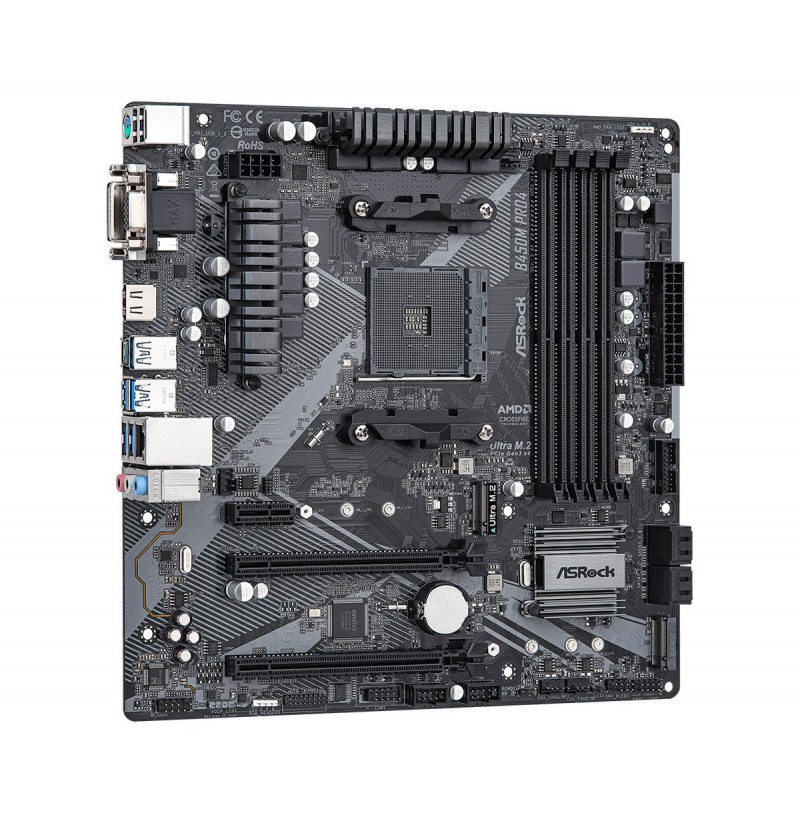

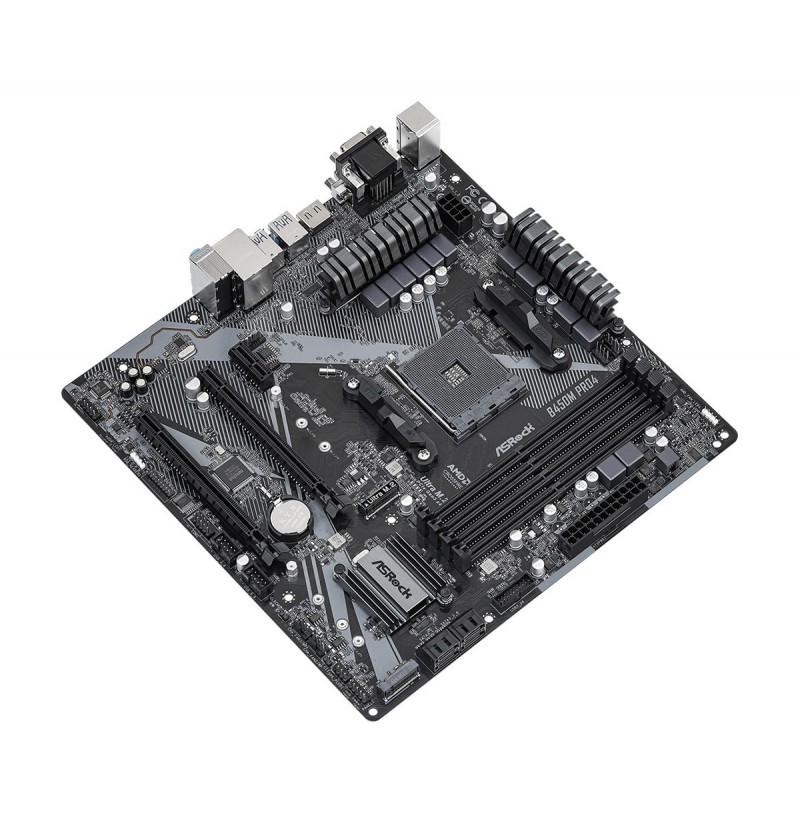

Mainboard Asrock B450M PRO4 R2.0 Padidinti

Mainboard Asrock B450M PRO4 R2.0

69,22 €

4710483932793

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Processor manufacturer: AMD
Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7
Processor socket: Socket AM4
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.0
HDCP: Yes
Number of displays supported: 3
On-board graphics card: Yes
Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX
Graphics card family: AMD
Audio chip: Realtek ALC892 / Realtek ALC897
Power source type: ATX
Audio output channels: 7.1 channels
PC health monitoring: Voltage, Temperature, Fan
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Motherboard chipset: AMD B450
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Unbuffered memory: Yes
Supported memory clock speeds: 2400, 2667, 2133, 3200 MHz, 2933
Maximum internal memory: 128 GB
Number of memory slots: 4
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Width: 244 mm
Depth: 244 mm
LAN controller: Realtek RTL8111H
Wake-on-LAN ready: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
Number of SATA III connectors: 4
RGB LED pin header: Yes
EPS power connector (8-pin): Yes
Chassis intrusion connector: Yes
Number of chassis fan connectors: 3
Number of COM connectors: 1
CPU fan connector: Yes
Front panel connector: Yes
TPM connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
BIOS type: UEFI AMI
Bundled software: ASRock A-Tuning ASRock Polychrome SYNC ASRock XFast LAN
Drivers included: Yes
Cables included: SATA
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
RAID levels: 10, 0, 1
USB connector type: USB Type-A, USB Type-C
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Headphone outputs: 1
HDMI version: 1.4
DVI-D ports quantity: 1
PCI Express x16 (Gen 2.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
