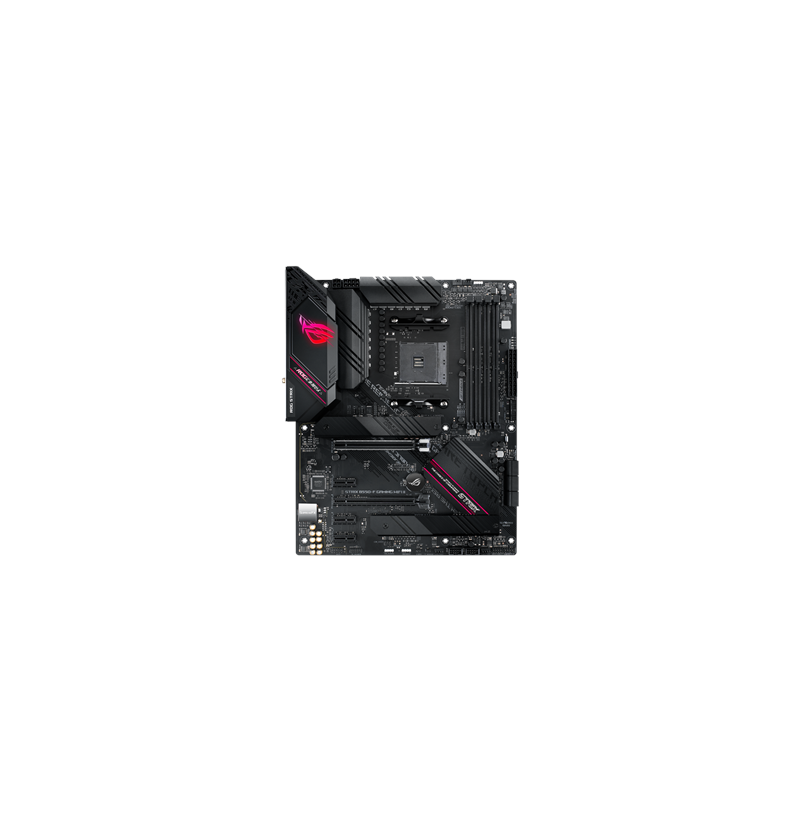

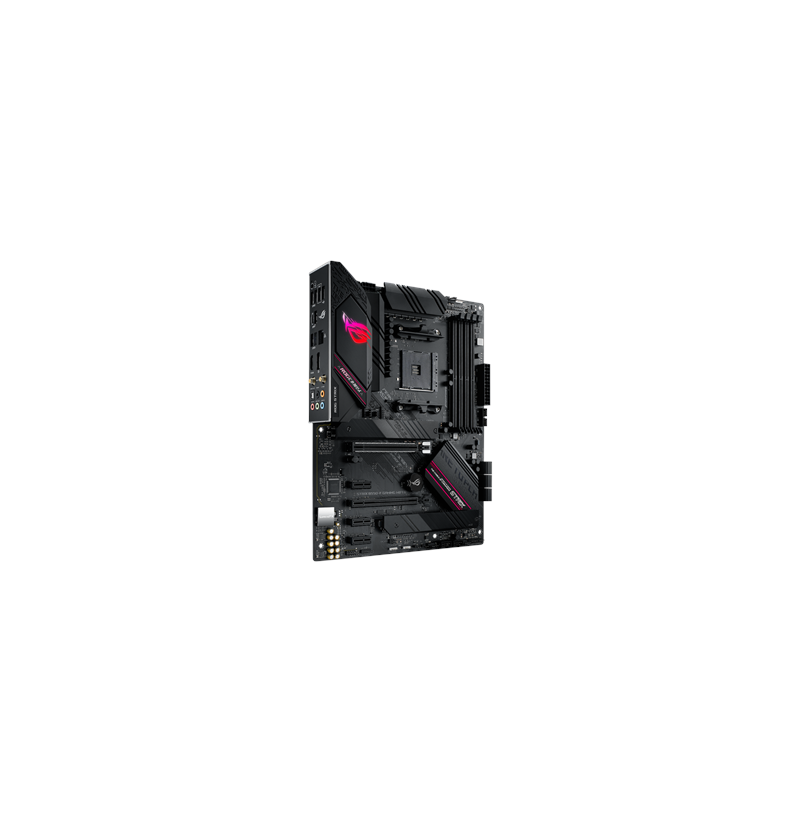

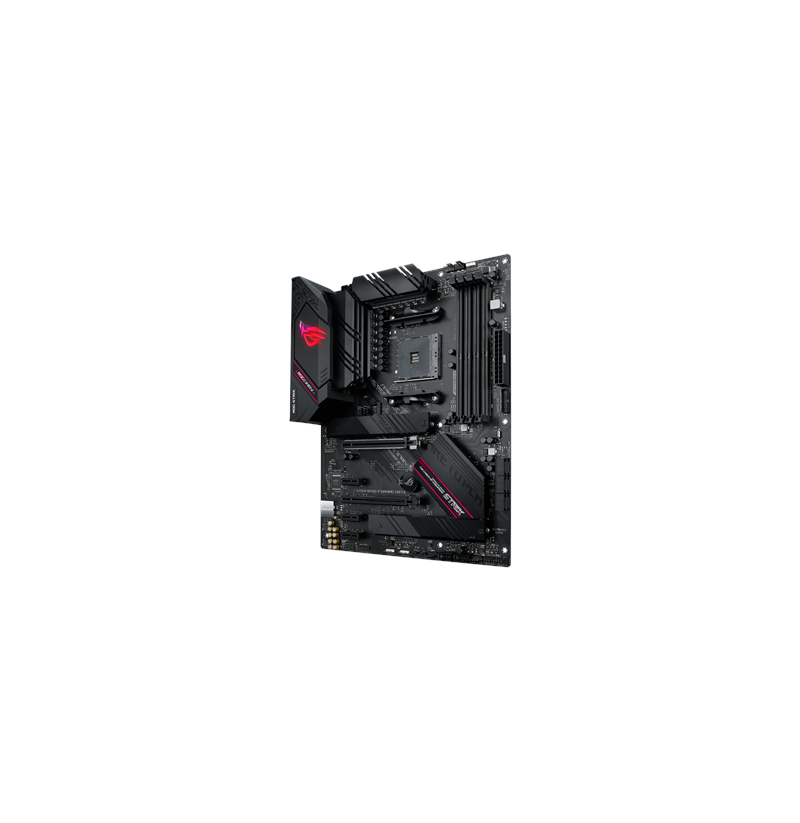

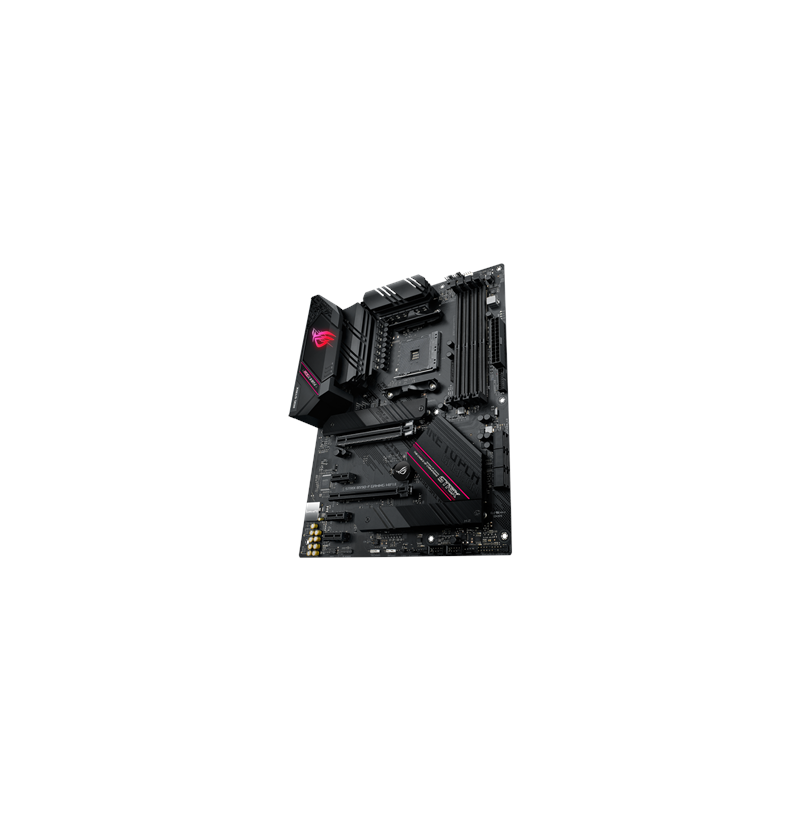

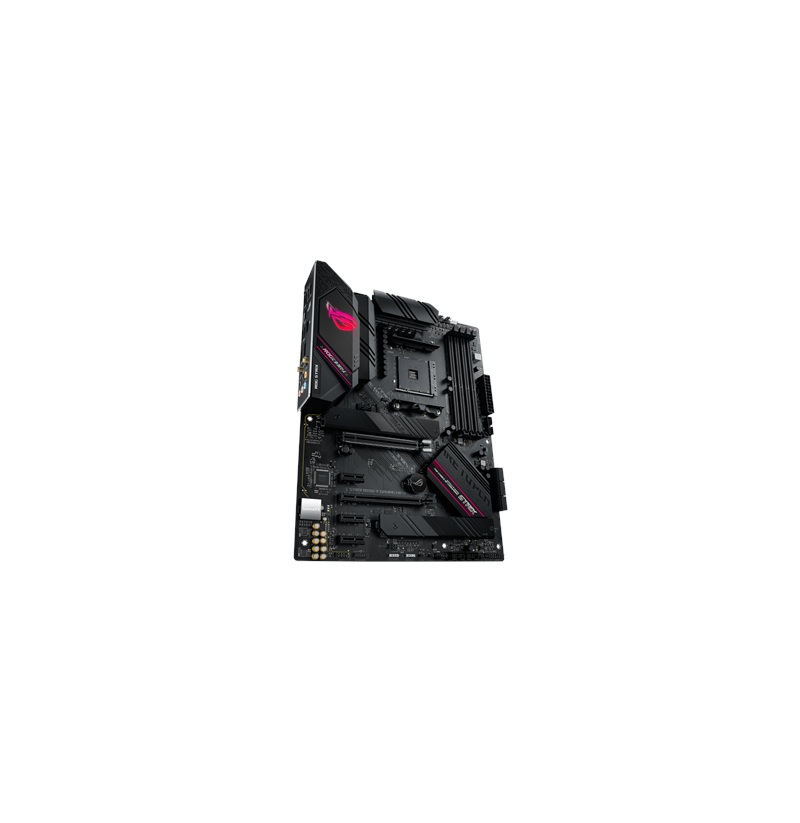

ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Socket AM4 ATX

Supported processor sockets: Socket AM4
Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series
Maximum number of SMP processors: 1
Parallel processing technology support: Not supported
On-board graphics card: No
Motherboard chipset: AMD B550
Motherboard form factor: ATX
Product colour: Black
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Power source type: ATX
Windows operating systems supported: Windows 10 Pro, Windows 10 IoT Enterprise, Windows 10 Enterprise x64, Windows 10 x64, Windows 10 Education x64, Windows 10 Home x64, Windows 10 Education, Windows 10 Enterprise, Windows 10, Windows 10 IOT Core, Windows 10 Pro x64, Windows 10 Home
Cooling type: Active
Supported memory clock speeds: 3000, 2133, 3200, 2666, 4600, 3600, 3866, 4133, 4000, 2400, 2800, 4400, 3466
ECC сompatibility: ECC
Maximum internal memory: 128 GB
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Depth: 244 mm
Height: 68 mm
Width: 305 mm
Wake-on-LAN ready: Yes
Bluetooth: Yes
LAN controller: Intel I225-V
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, 802.11g, Wi-Fi 5 (802.11ac)
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Bluetooth version: 5.2
USB 2.0 connectors: 2
Number of SATA III connectors: 6
Thunderbolt headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
CPU fan connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
12V power connector: Yes
Number of chassis fan connectors: 3
Number of EATX power connectors: 1
EPS power connector (8-pin): Yes
BIOS type: UEFI AMI
Cables included: SATA
Drivers included: Yes
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 6
RAID levels: 10, 1, 0
S/PDIF out port: Yes
DisplayPorts quantity: 1
DisplayPort version: 1.2
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Microphone in: Yes
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Headphone outputs: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 3
Weight: 945 g
Harmonized System (HS) code: 84733020
Warnings: Dispose of according to local electro-waste regulations., Store away from water and sources of moisture., Avoid direct contact with sensitive electronic components.
