Asus ROG STRIX B550-F GAMING WIFI II Processor family AMD

Padidinti

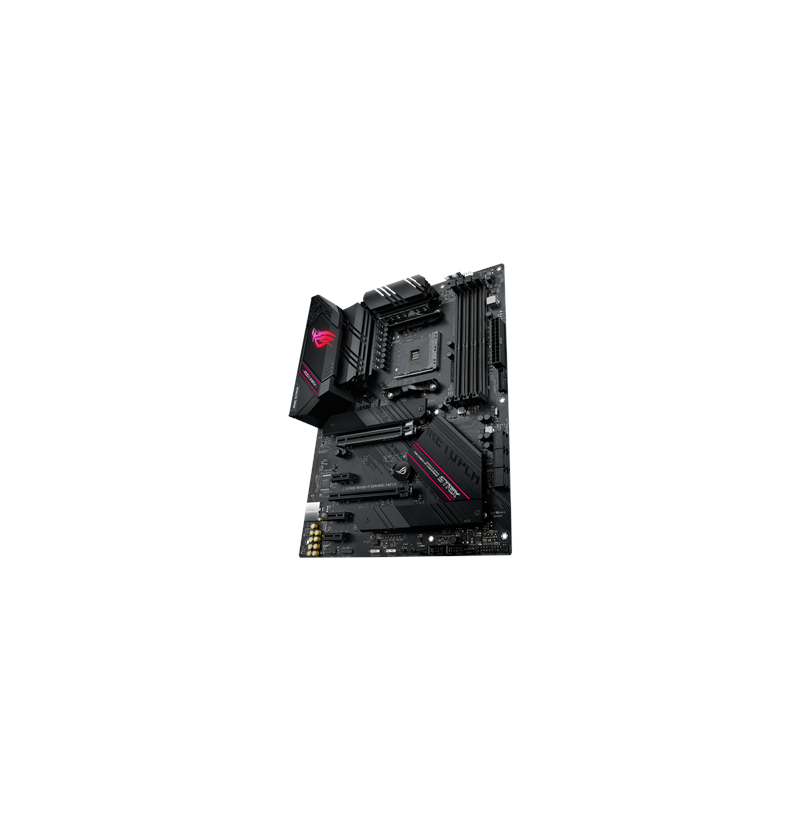

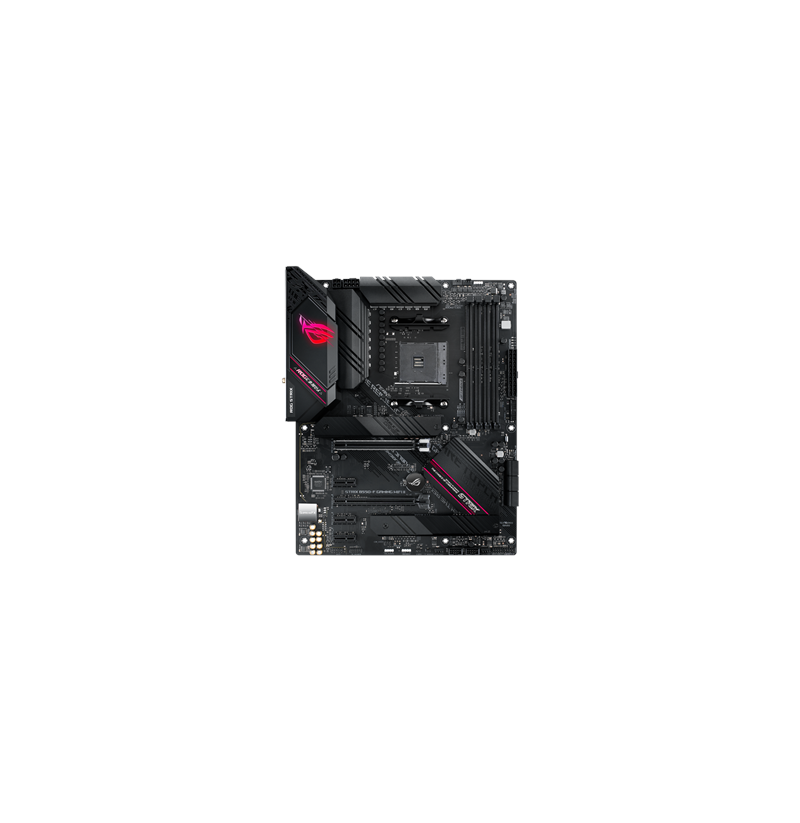

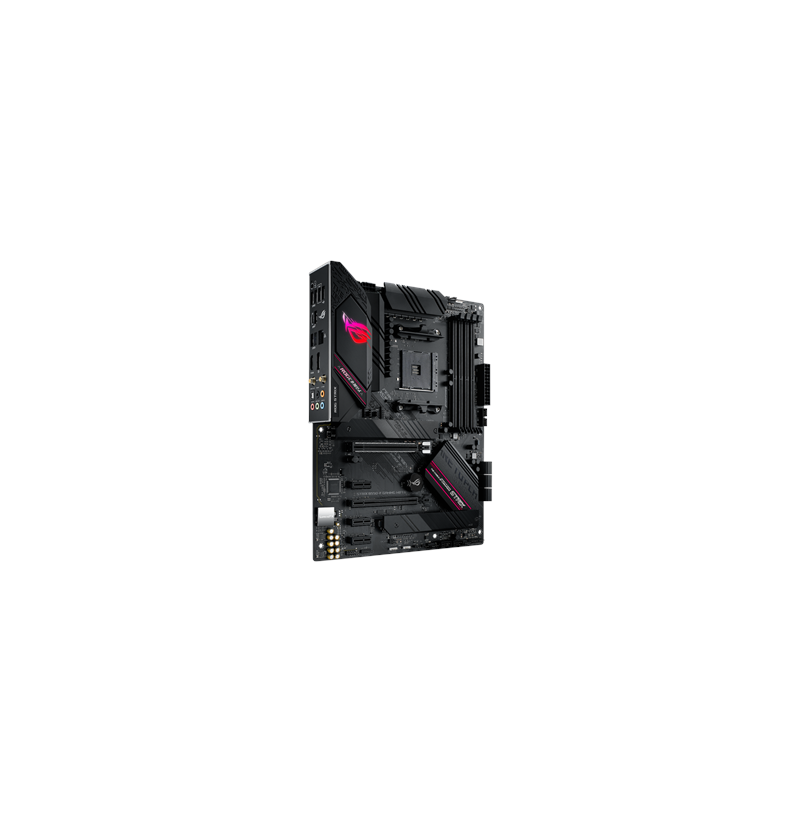

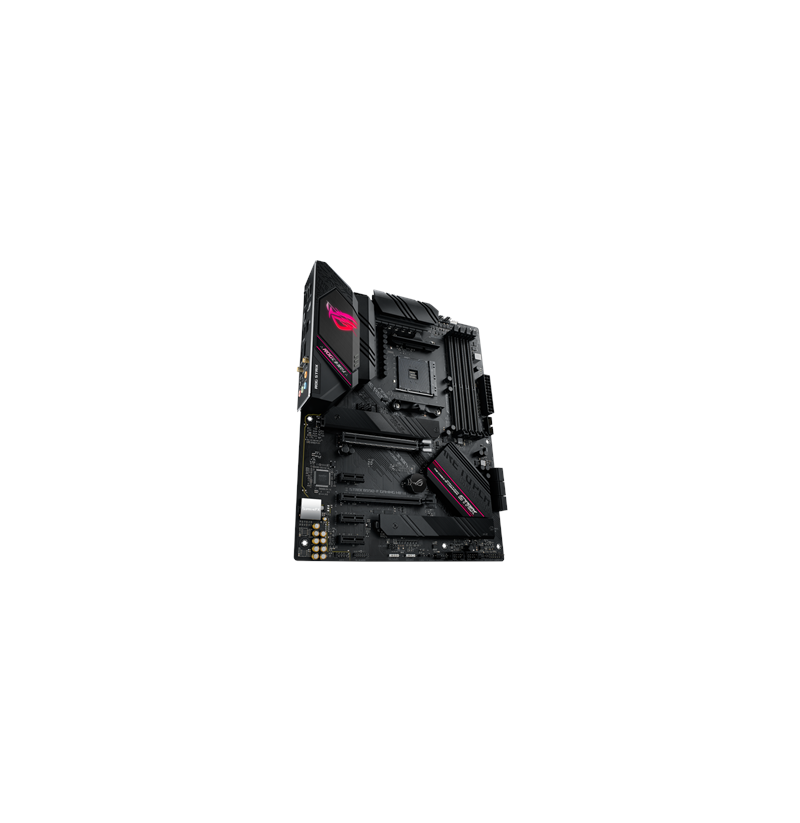

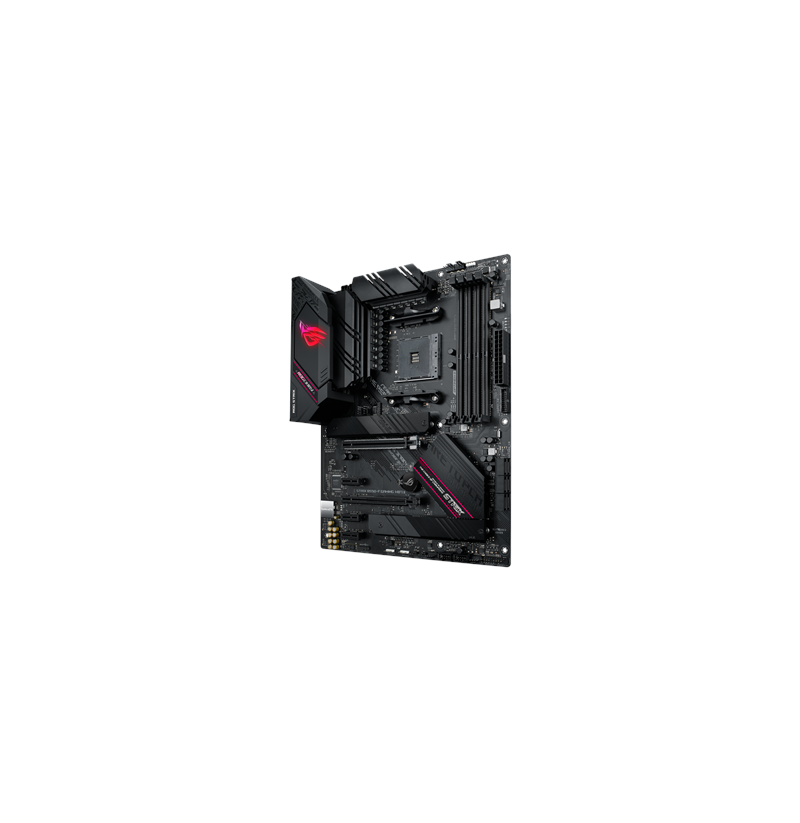

ASUS ROG STRIX B550-F GAMING WIFI II AM4 Socket 4x4DDR 1xHDMI 1xDP 2xM.2

Parašyti atsiliepimą

156,89 €

Produkto modelis: 90MB19V0-M0EAY0

Ean numeris: 4711081453314

3..5 d.d.

Spausdinti

Processor socket: Socket AM4
Supported processor sockets: Socket AM4
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 3000 Series
Maximum number of SMP processors: 1
Parallel processing technology support: Not supported
On-board graphics card: No
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10, Windows 10 IOT Core, Windows 10 Enterprise x64, Windows 10 x64, Windows 10 Education, Windows 10 Education x64, Windows 10 Pro x64, Windows 10 Pro, Windows 10 IoT Enterprise, Windows 10 Home x64, Windows 10 Home, Windows 10 Enterprise
Product colour: Black
Motherboard chipset: AMD B550
Power source type: ATX
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Cooling type: Active
ECC сompatibility: ECC
Supported memory clock speeds: 3600, 4133, 4000, 3200, 2666, 2400, 2800, 3466, 4400, 3000, 4600, 3866, 2133
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Maximum internal memory: 128 GB
Number of memory slots: 4
Depth: 244 mm
Width: 305 mm
Height: 68 mm
Bluetooth: Yes
LAN controller: Intel I225-V
Wake-on-LAN ready: Yes
Ethernet LAN: Yes
Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.2
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Peripheral (Molex) power connectors (4-pin): 1
Number of SATA III connectors: 6
Number of chassis fan connectors: 3
USB 2.0 connectors: 2
RGB LED pin header: Yes
Number of EATX power connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
CPU fan connector: Yes
Thunderbolt headers: 1
EPS power connector (8-pin): Yes
12V power connector: Yes
BIOS type: UEFI AMI
Drivers included: Yes
Cables included: SATA
Number of HDDs supported: 6
RAID levels: 0, 10, 1
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
DisplayPort version: 1.2
Headphone outputs: 1
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
S/PDIF out port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
Microphone in: Yes
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Weight: 945 g
Harmonized System (HS) code: 84733020
Warnings: Avoid direct contact with sensitive electronic components., Store away from water and sources of moisture., Dispose of according to local electro-waste regulations.
