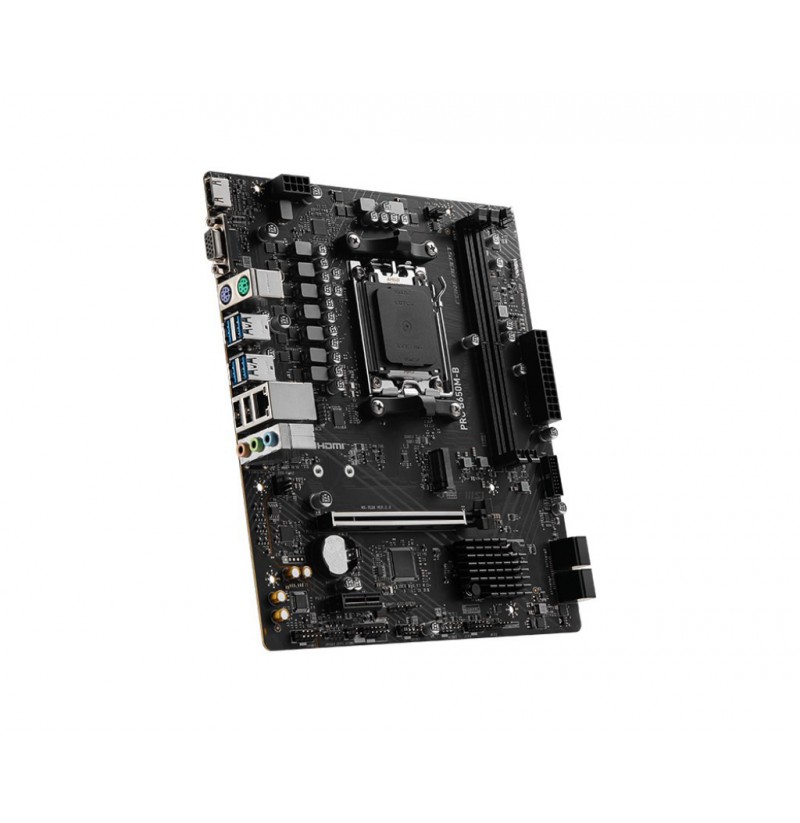

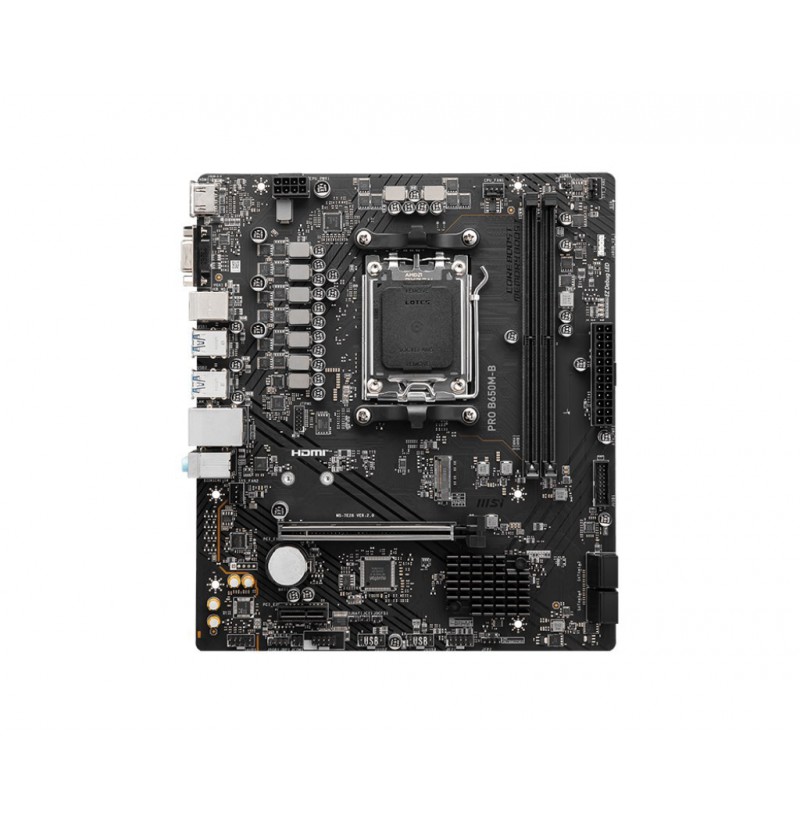

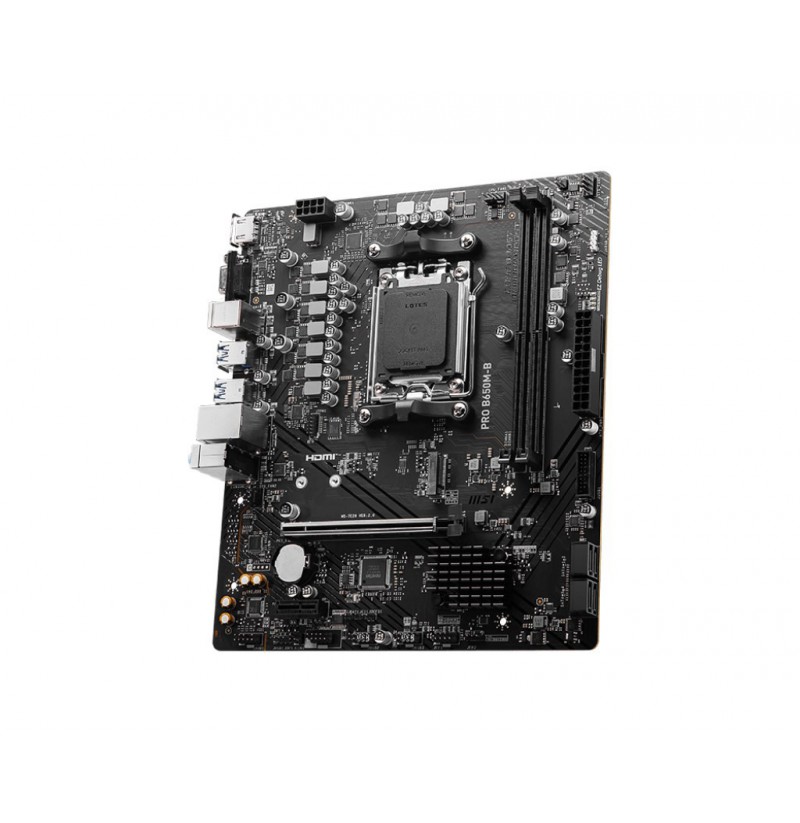

MSI PRO B650M-B motherboard AMD B650 Socket AM5 micro ATX Padidinti

MSI | PRO B650M-B | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces M.2

100,40 €

4711377144797

Galimas pasirinkimas

 1..4 d.d.


Maximum internal memory supported by processor: 96 GB
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Motherboard form factor: micro ATX
Audio chip: Realtek ALC897
Motherboard chipset family: AMD
Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
PC health monitoring: Fan
Windows operating systems supported: Windows 11 x64
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 6800 MHz
Supported memory clock speeds: 4800 MHz, 5000, 5800, 5400, 6600, 5600, 6800, 6000, 5200, 6200, 6400
Maximum internal memory: 96 GB
Width: 215 mm
Depth: 243.8 mm
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes
LAN controller: Realtek RTL8125-BG
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Chassis intrusion connector: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel connector: Yes
Front panel audio connector: Yes
BIOS type: UEFI AMI
Supported storage drive interfaces: M.2, SATA
RAID levels: 0, 1, 10
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Line-in: Yes
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI version: 2.1
Microphone in: Yes
DisplayPorts quantity: 1
DisplayPort version: 1.4
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
