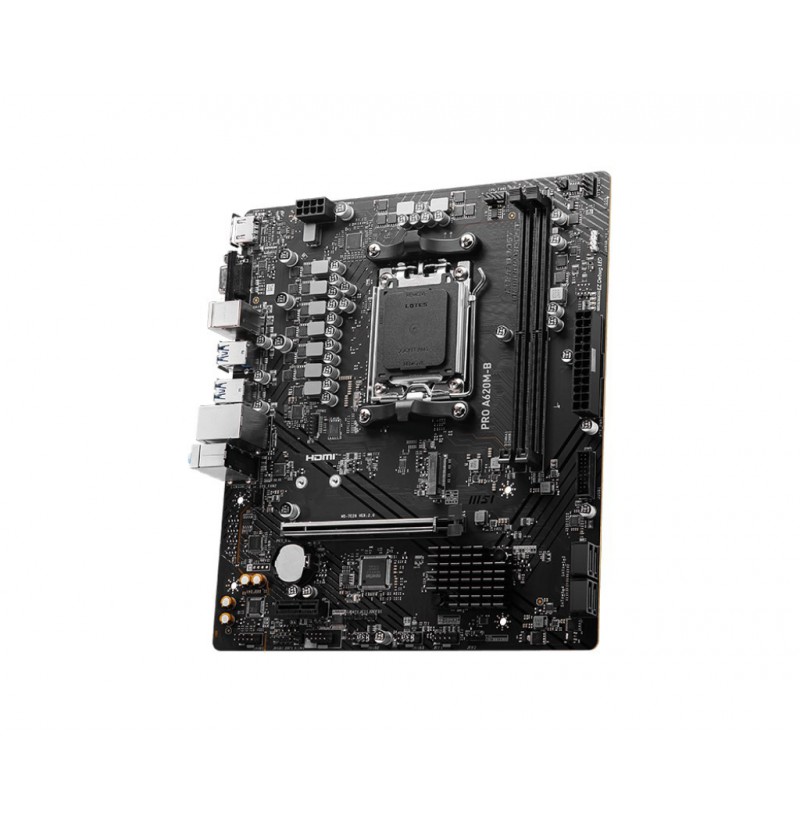

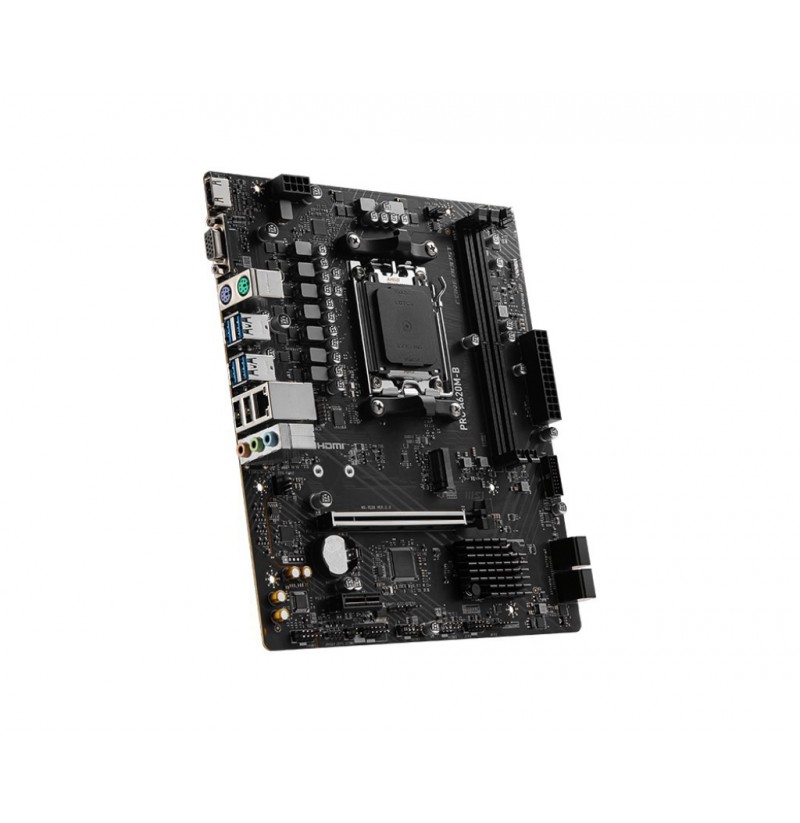

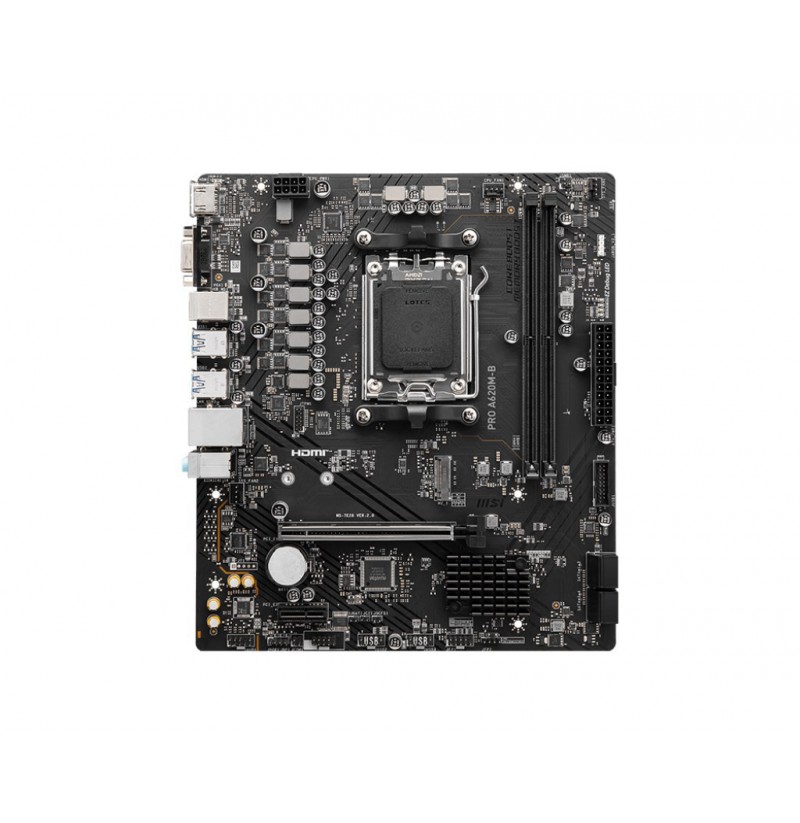

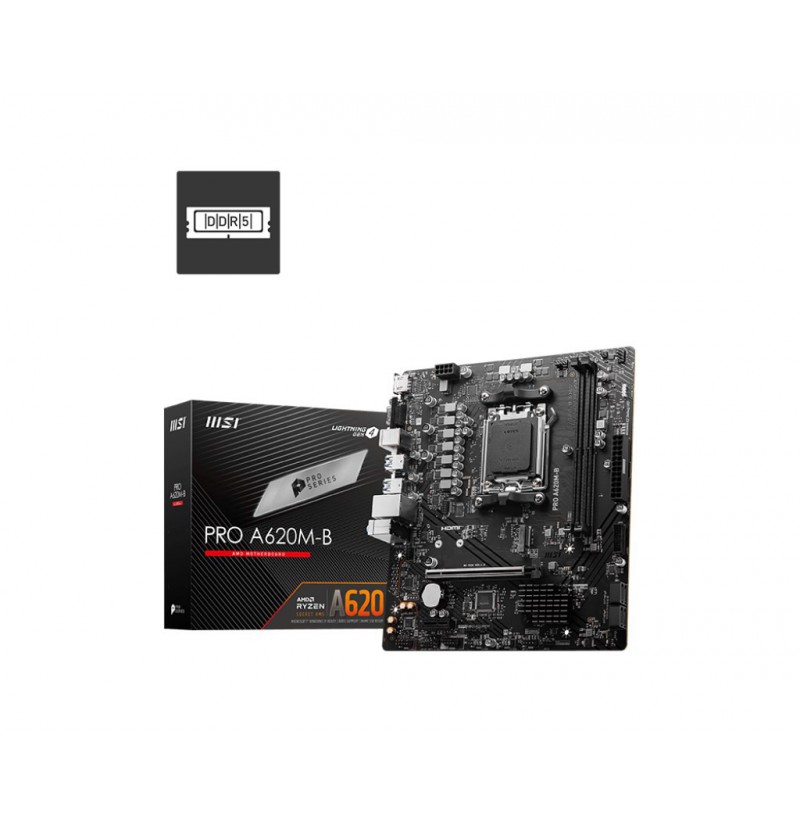

Nauja MSI PRO A620M-B motherboard AMD A620 Socket AM5 micro ATX Padidinti

MSI PRO A620M-B | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA

84,23 €

4711377276597

Galimas pasirinkimas

 1..4 d.d.


Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Maximum internal memory supported by processor: 128 GB
Maximum number of SMP processors: 1
Processor socket: Socket AM5
On-board graphics card: No
Maximum resolution: 3840 x 2160 pixels
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Cooling type: Active
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Motherboard chipset: AMD A620
Product colour: Black
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Power source type: ATX
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800, 5000, 5200, 5600, 6000 MHz, 6200, 6800, 6600, 6400, 5800, 5400
Maximum internal memory: 128 GB
Supported memory clock speed (max): 6800 MHz
Depth: 243.8 mm
Width: 2115 mm
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125-BG, Realtek RTL8111H
Number of chassis fan connectors: 1
Total number of SATA connectors: 4
TPM connector: Yes
Number of COM connectors: 1
RGB LED pin header: Yes
CPU fan connector: Yes
Chassis intrusion connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Power fan connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 4
Cables included: SATA
Number of storage drives supported: 5
Number of HDDs supported: 4
RAID levels: 10, 1, 0
Supported storage drive interfaces: M.2, PCI Express, SATA
RAID support: Yes
Supported storage drive types: HDD & SSD

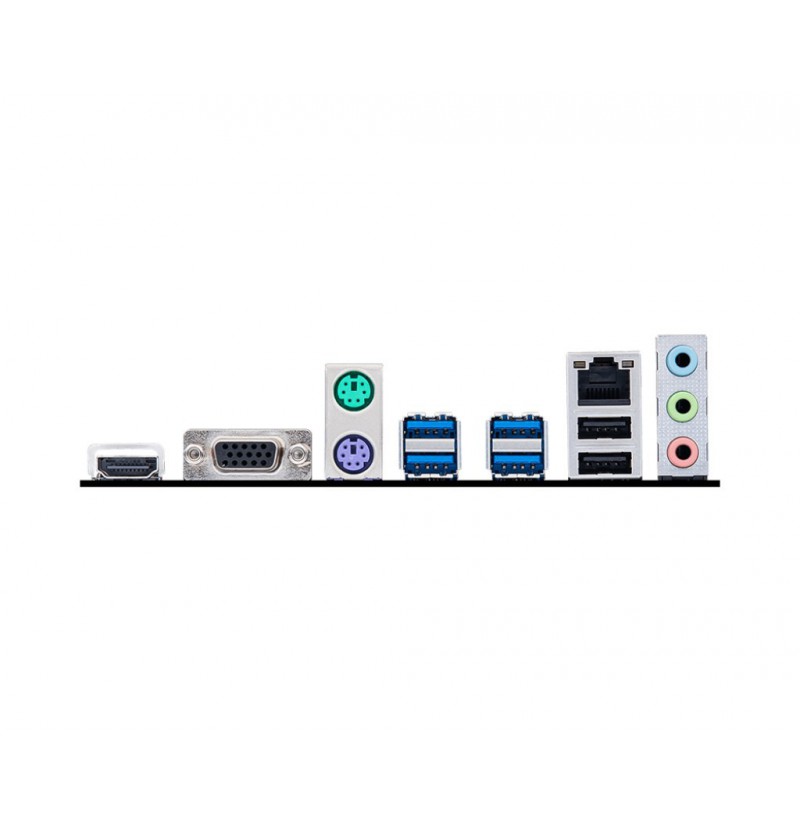

VGA (D-Sub) ports quantity: 1
Headphone outputs: 1
COM ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Line-in: Yes
HDMI ports quantity: 1
PS/2 ports quantity: 2
Microphone in: Yes
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-A
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
PCI Express x16 (Gen 3.x) slots: 1
