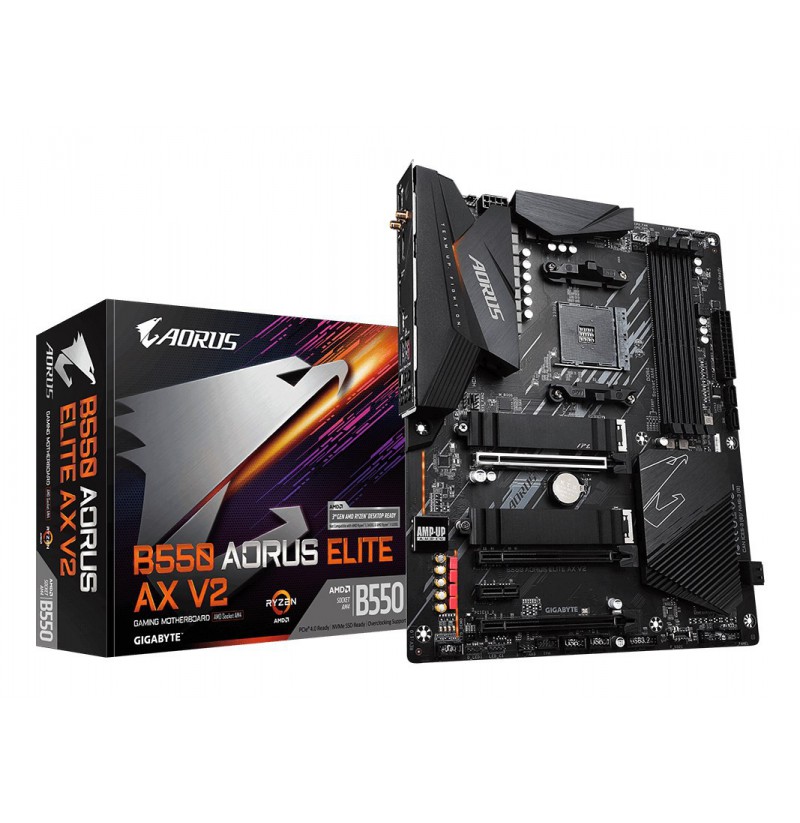

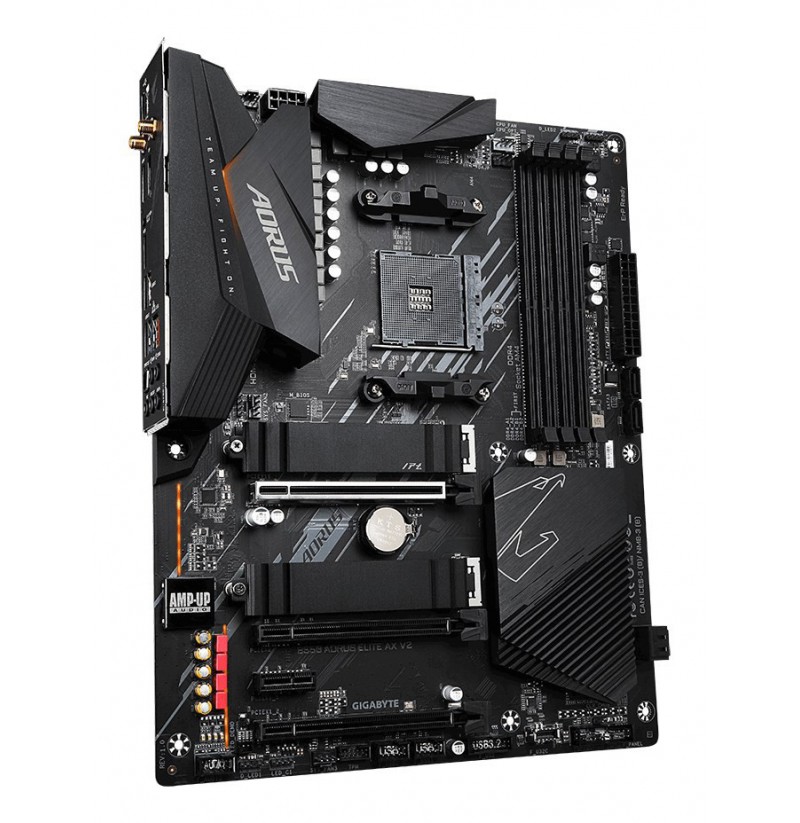

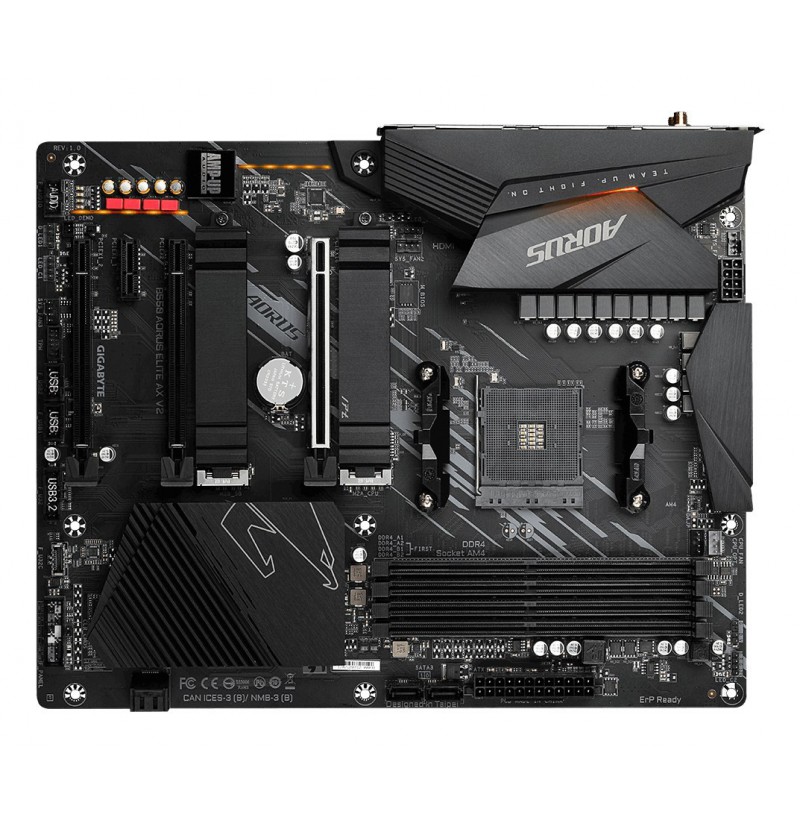

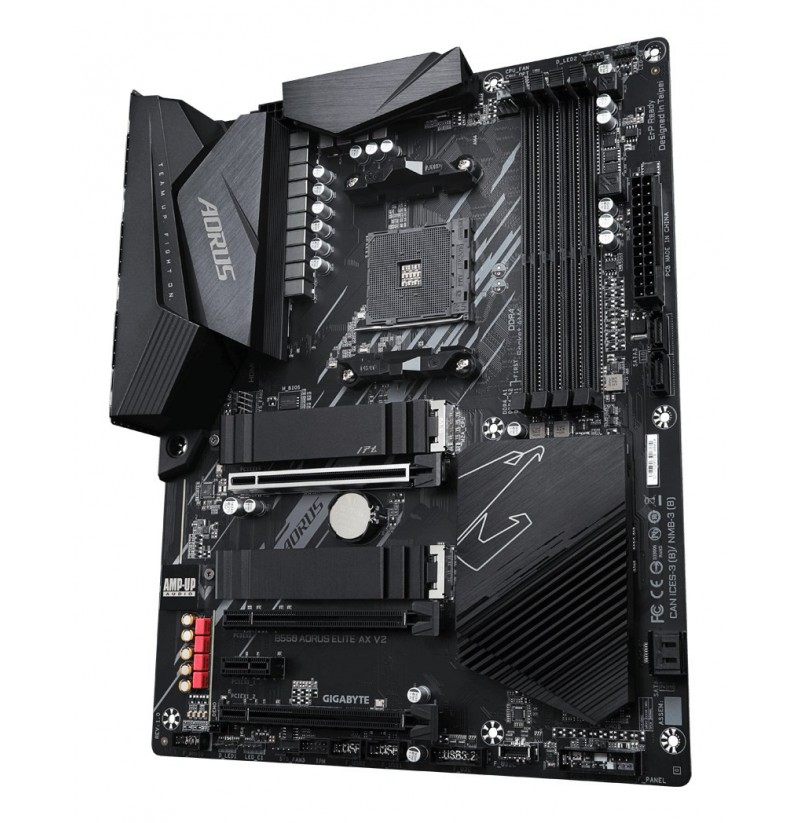

Gigabyte B550 AORUS ELITE AX V2 motherboard AMD B550 Socket AM4 ATX

Warranty period: 3 year(s)
Compatible processor series: AMD Ryzen 4000 Series, AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Maximum number of SMP processors: 1
Supported processor sockets: Socket AM4
Processor socket: Socket AM4
Processor manufacturer: AMD
Parallel processing technology support: Not supported
Maximum resolution: 5120 x 2880 pixels
HDCP: Yes
DirectX version: 12.0
Cooling type: Passive
Motherboard chipset: AMD B550
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
PC health monitoring: Fan, Voltage, Water cooling, Temperature
Product colour: Black
Motherboard form factor: ATX
Power source type: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Supported memory clock speeds: 4133, 4000, 2933, 3600, 4733, 3400, 3866, 2400, 3466, 2667, 3733, 4400, 3200, 4266, 4600, 2133 MHz
Supported memory clock speed (max): 4733 MHz
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Maximum internal memory: 128 GB
Maximum internal memory per slot: 32 GB
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Depth: 244 mm
Width: 305 mm
Height: 35 mm
Bluetooth: Yes
LAN controller: Realtek RTL8125
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11g, 802.11a, Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Bluetooth version: 5.3
WLAN controller model: Intel Wi-Fi 6E AX210
Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Number of RGB LED pin headers: 5
12V power connector: Yes
USB 2.0 connectors: 2
TPM connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 3
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
Number of EPS power connectors (8-pin): 1
EPS power connector (8-pin): Yes
Number of CPU fan connectors: 1
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
Number of water pump connectors: 4
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Package weight: 1.89 kg
Package depth: 270 mm
Package width: 335 mm
Package height: 80 mm
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Antenna included: Yes
Screws included: Yes
Batteries included: Yes
RAID levels: 1, 10, 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6
RAID support: Yes
Number of HDDs supported: 4

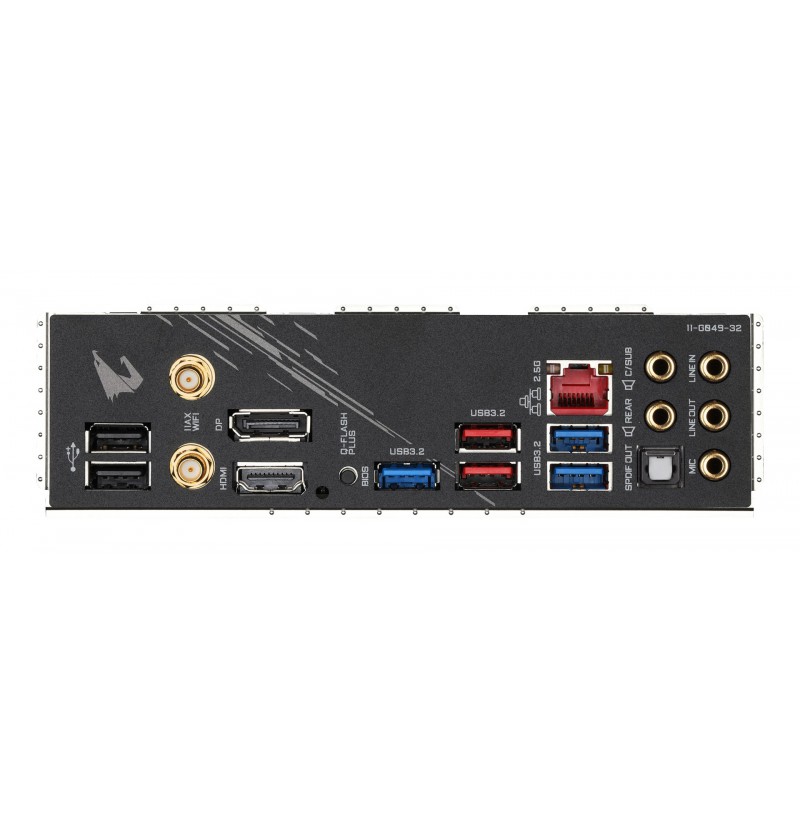

DisplayPorts quantity: 1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI version: 2.1
S/PDIF out port: Yes
Ethernet LAN (RJ-45) ports: 1
Line-in: Yes
WiFi-AP antenna jack: 2
USB 2.0 ports quantity: 2
DisplayPort version: 1.4
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
2nd M.2 highest PCI Express generation: 3.0
2nd M.2 largest key size: 22110
1st M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Lithium weight per battery: 0.07 g
Weight: 1.12 kg
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Warnings: Store away from water and sources of moisture., Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations.
