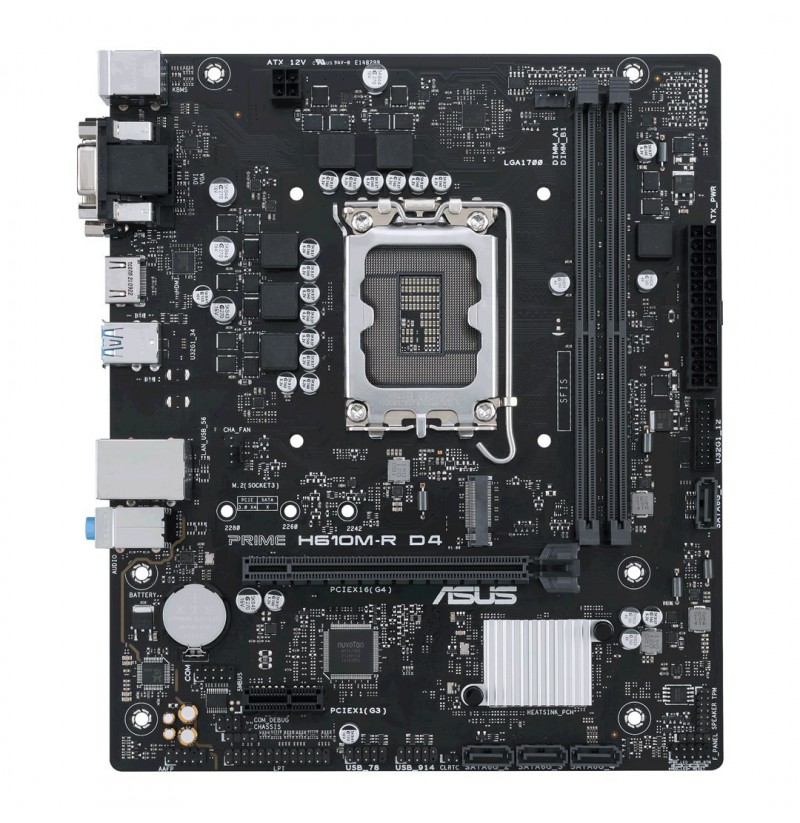

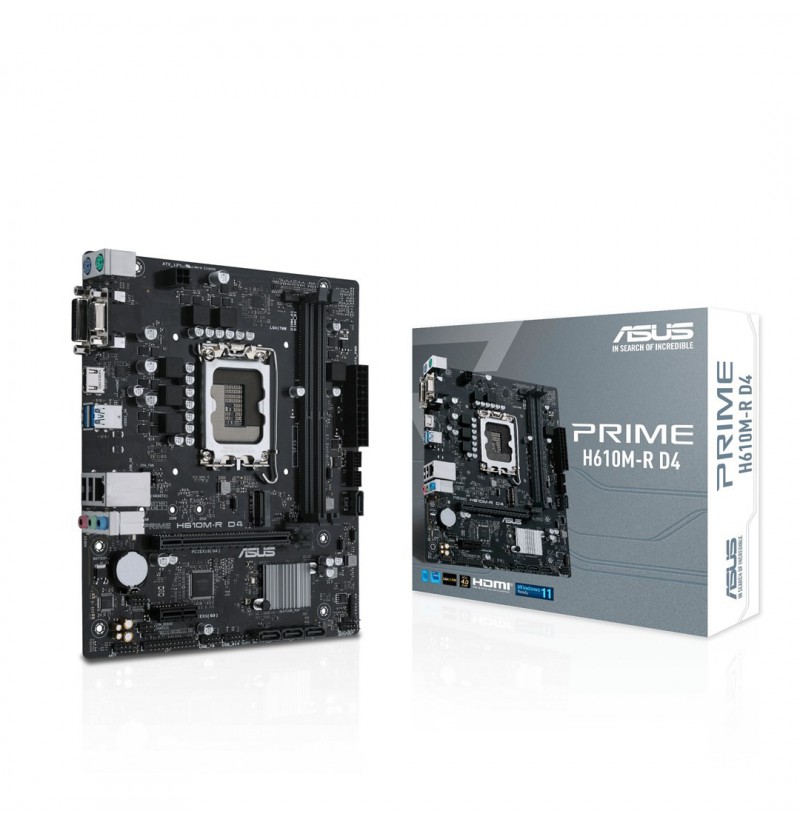

ASUS PRIME H610M-R D4 Intel H610 LGA 1700 micro ATX

Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel Pentium G, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Maximum resolution: 3840 x 2160 pixels
Parallel processing technology support: Not supported
Motherboard chipset: Intel H610
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset family: Intel
Maximum internal memory: 64 GB
Supported memory clock speeds: 2933, 3200, 2666, 3000, 2400, 2800, 2133 MHz
Unbuffered memory: Yes
ECC сompatibility: Non-ECC
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Number of memory slots: 2
Memory channels: Dual-channel
Depth: 193 mm
Height: 51 mm
Width: 226 mm
Wake-on-LAN ready: Yes
Wi-Fi: No
Ethernet LAN: Yes
Top Wi-Fi standard: Not available
Ethernet interface type: Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
12V power connector: Yes
USB 2.0 connectors: 2
Front panel audio connector: Yes
Number of chassis fan connectors: 1
Number of SATA III connectors: 4
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
TPM connector: Yes
CPU fan connector: Yes
Audio connector: Yes
Chassis intrusion connector: Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Cables included: SATA
Drivers included: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 5
USB 2.0 ports quantity: 2
VGA (D-Sub) ports quantity: 1
DVI-D ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 3
PS/2 ports quantity: 2
Microphone in: Yes
HDMI ports quantity: 1
USB connector type: USB Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
Weight: 842 g
Harmonized System (HS) code: 84733020
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
