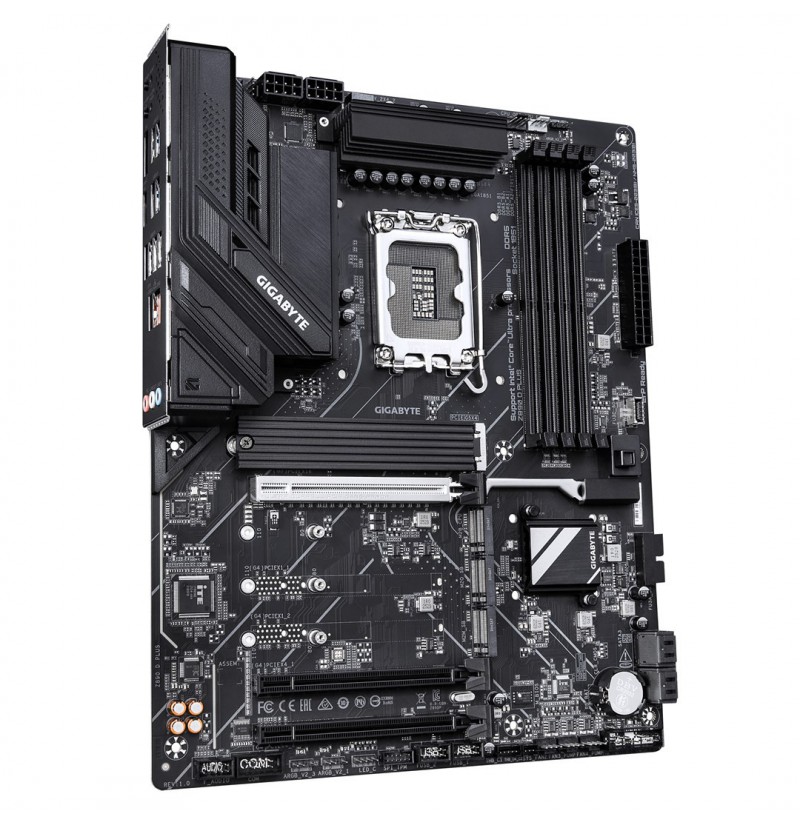

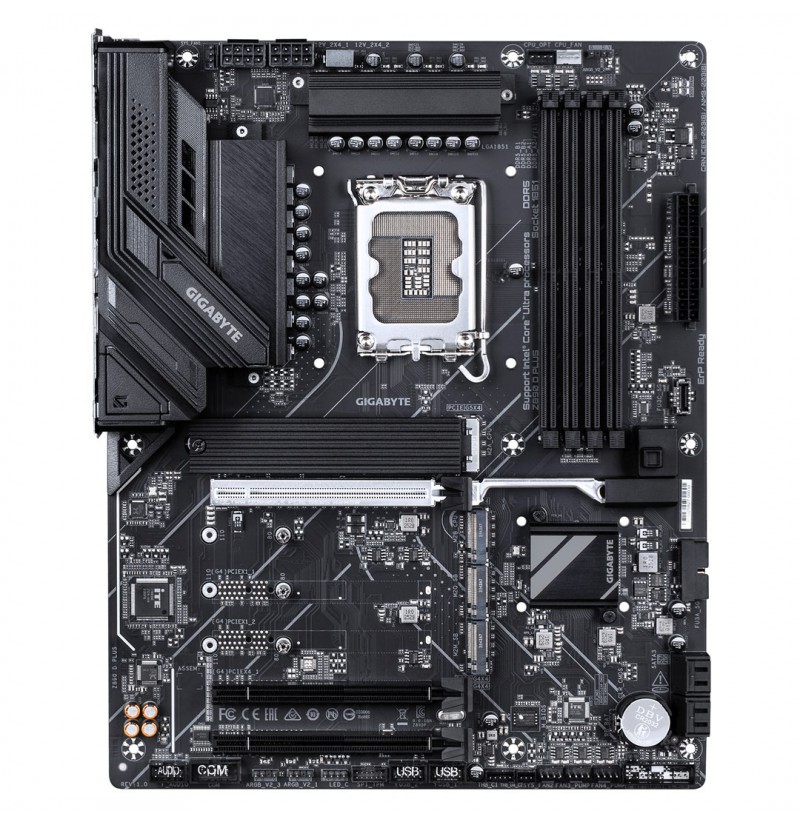

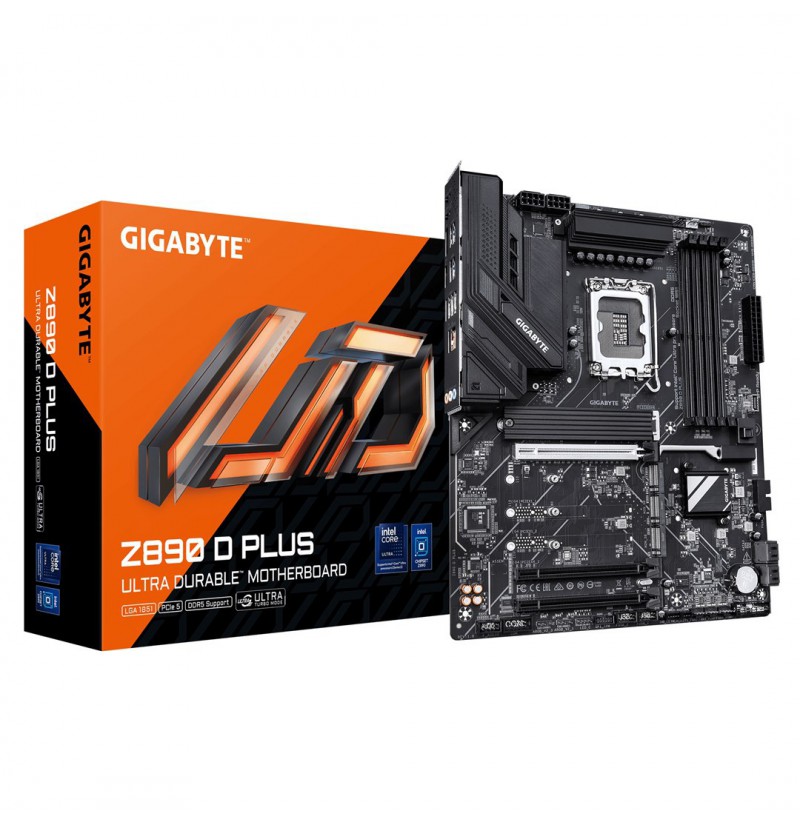

GIGABYTE Z890 D PLUS Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 9466MHz DDR5 (OC),

GIGABYTE Z890 D PLUS Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 9466MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
Warranty period: 3 year(s)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
DirectX version: 12.0
HDCP: Yes
HDCP version: 2.3
Product colour: Black
PC health monitoring: Voltage, Water cooling, Temperature, Fan
Power source type: ATX
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Motherboard chipset: Intel Z890
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Cooling type: Passive
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Memory channels: Dual-channel
Memory slots type: DIMM
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 9466 MHz
Number of memory slots: 4
Maximum internal memory per slot: 64 GB
Depth: 244 mm
Height: 35 mm
Width: 305 mm
LAN controller: Realtek RTL8125
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
USB 2.0 connectors: 2
Thunderbolt headers: 2
Serial port headers: 1
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
RGB LED pin header: Yes
Number of chassis fan connectors: 4
Number of EPS power connectors (8-pin): 2
Number of CPU fan connectors: 2
Number of water pump connectors: 2
Number of RGB LED pin headers: 4
BIOS memory size: 256 Mbit
Clear CMOS button: Yes
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
Package weight: 1.7 kg
Package depth: 270 mm
Package width: 335 mm
Package height: 80 mm
Bundled software: Norton® Internet Security (OEM version)
Batteries included: Yes
Screws included: Yes
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 10, 0, 5, 1
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 8

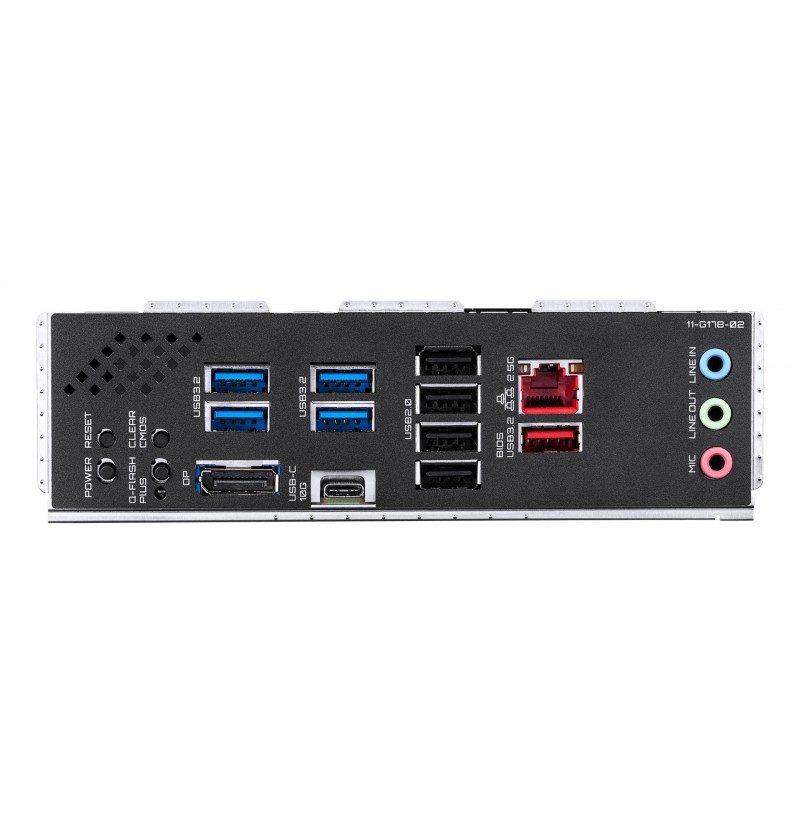

DisplayPorts quantity: 1
DisplayPort version: 2.1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Headphone outputs: 1
Line-in: Yes
Number of M.2 (M) slots: 4
4th M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
4th M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
2nd M.2 largest key size: 22110
1st M.2 largest key size: 25110
Battery capacity: 220 mAh
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g
Weight: 1.47 kg
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
