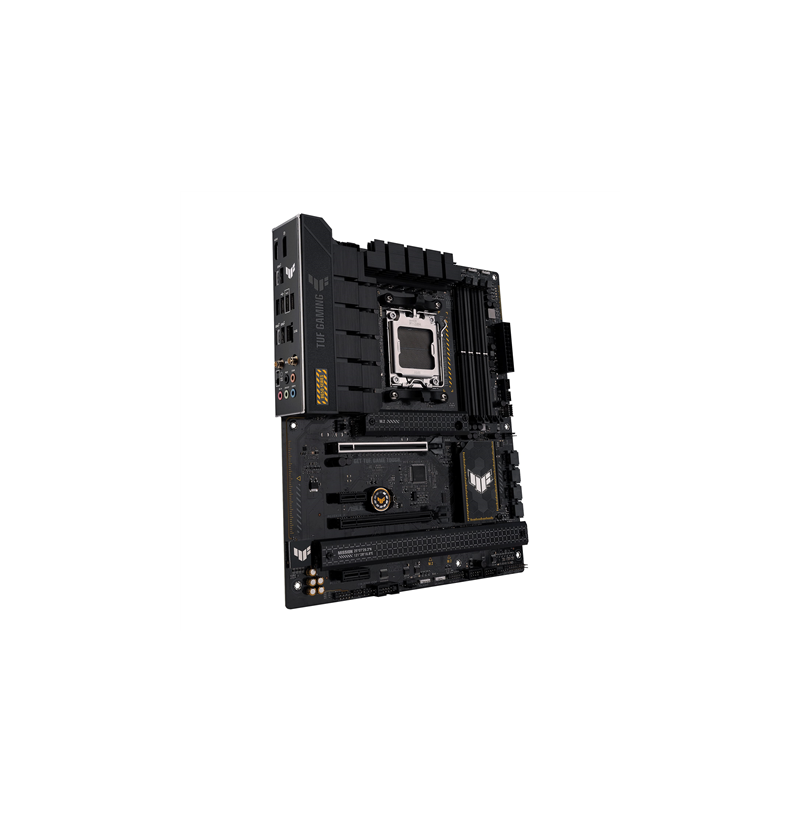

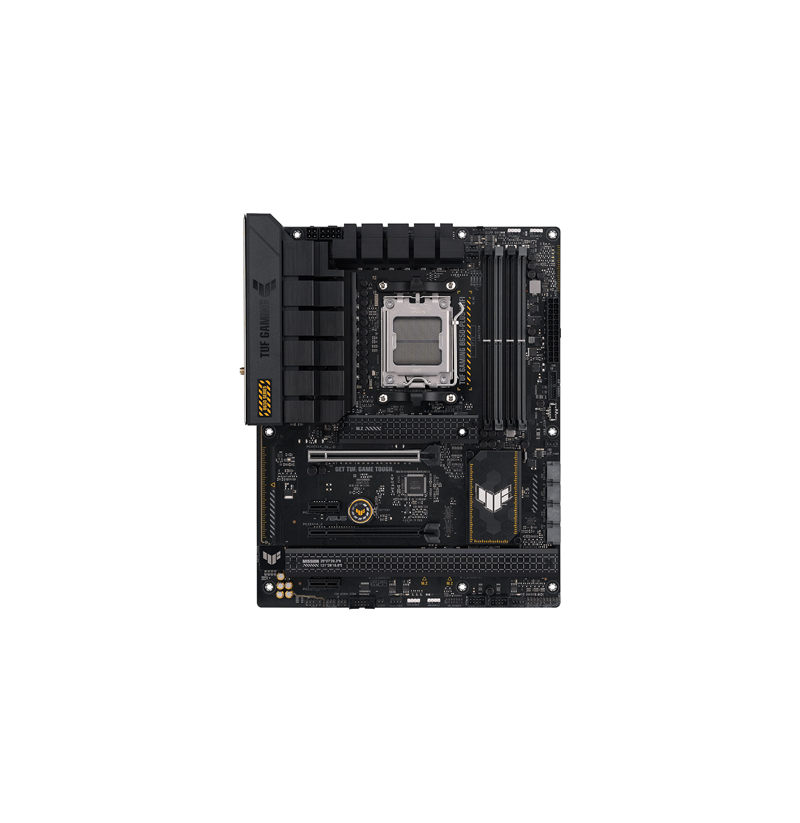

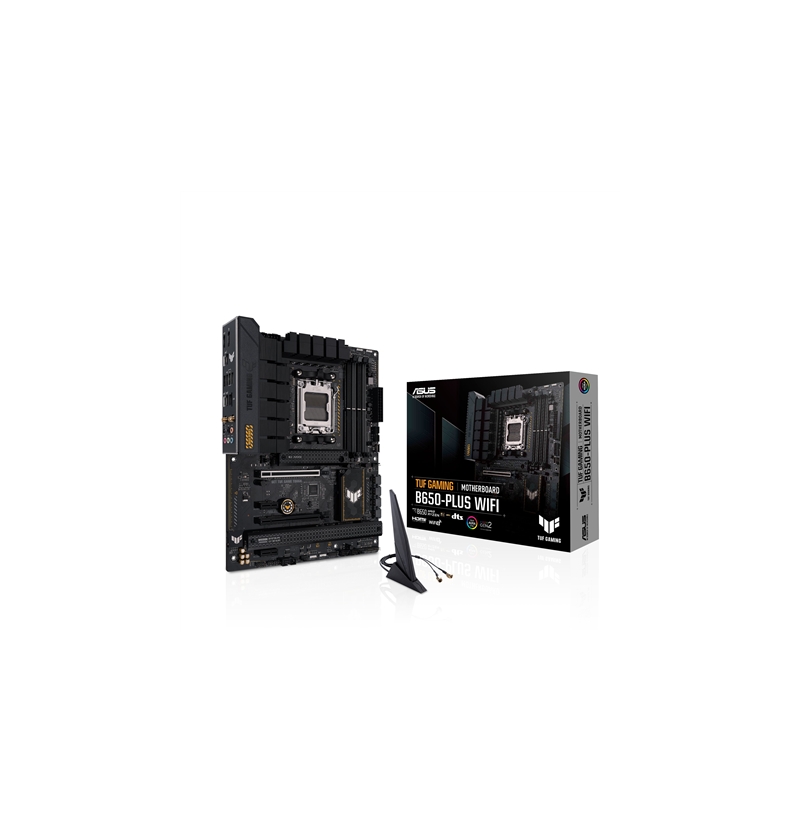

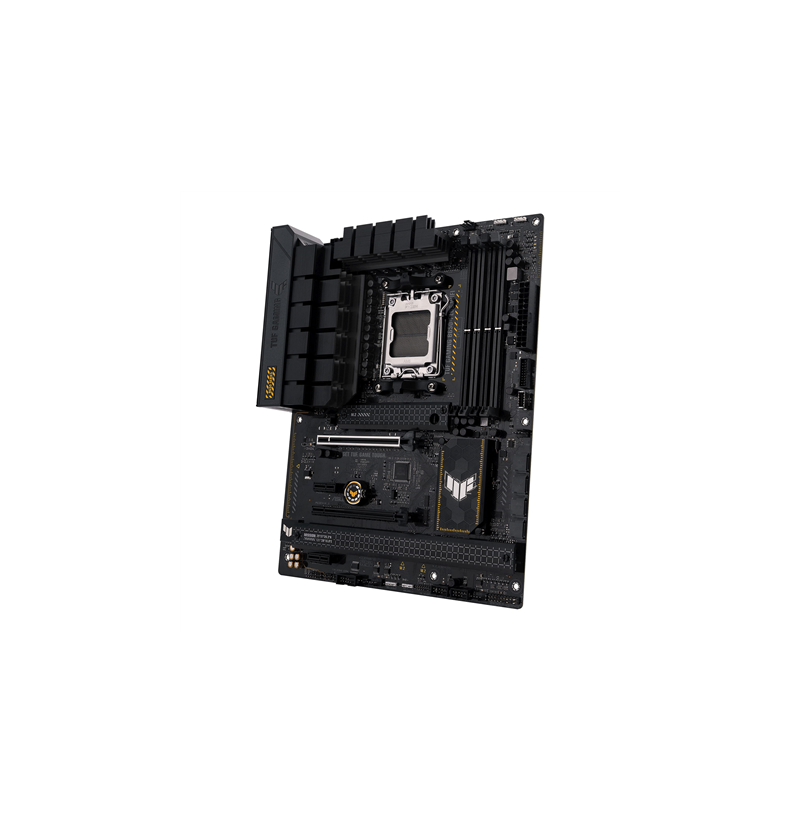

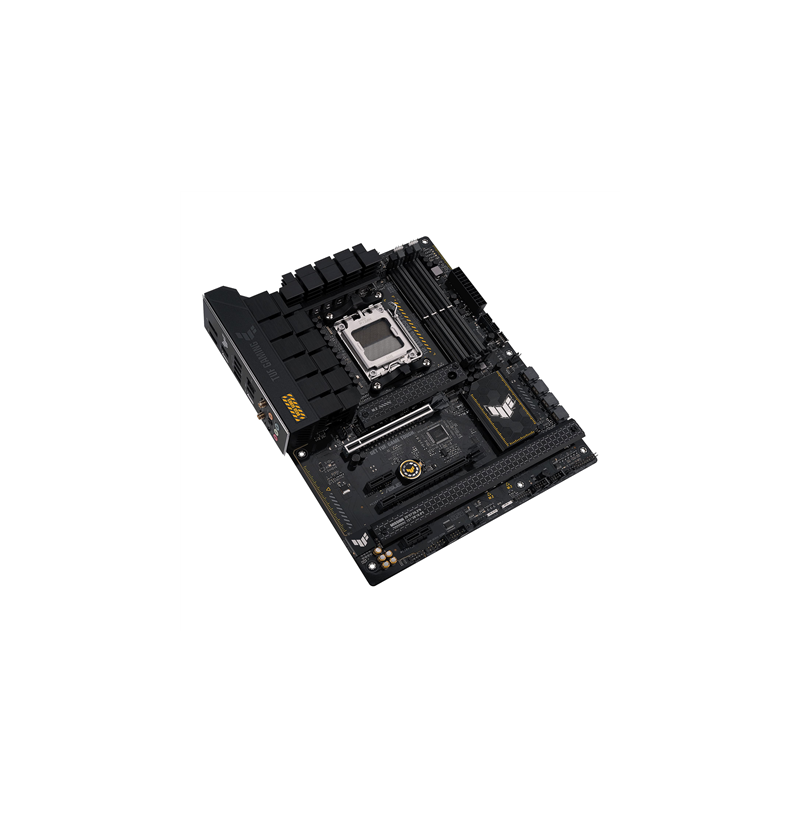

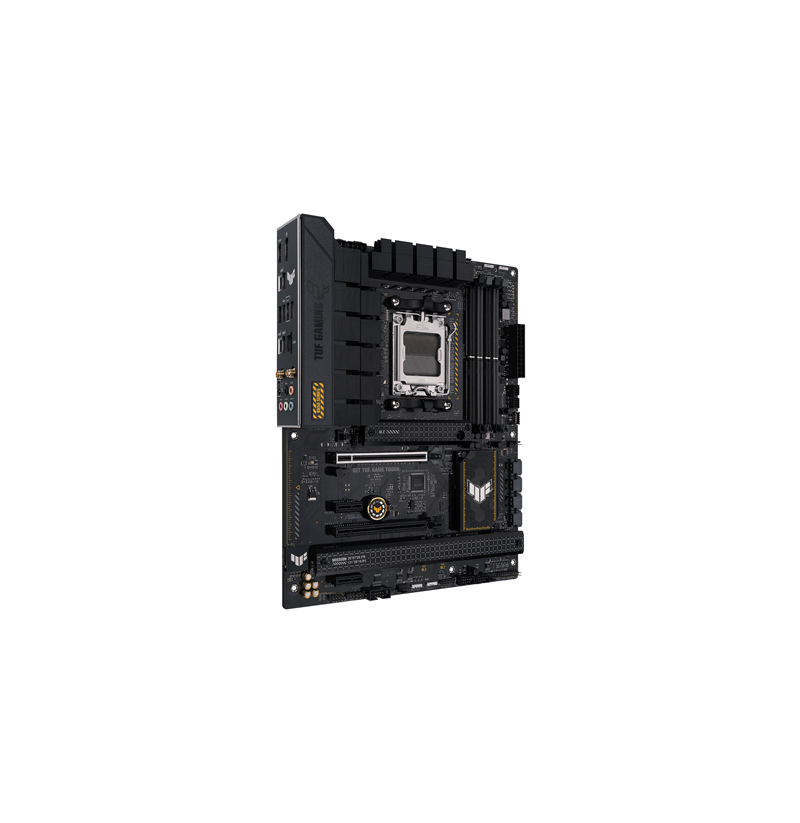

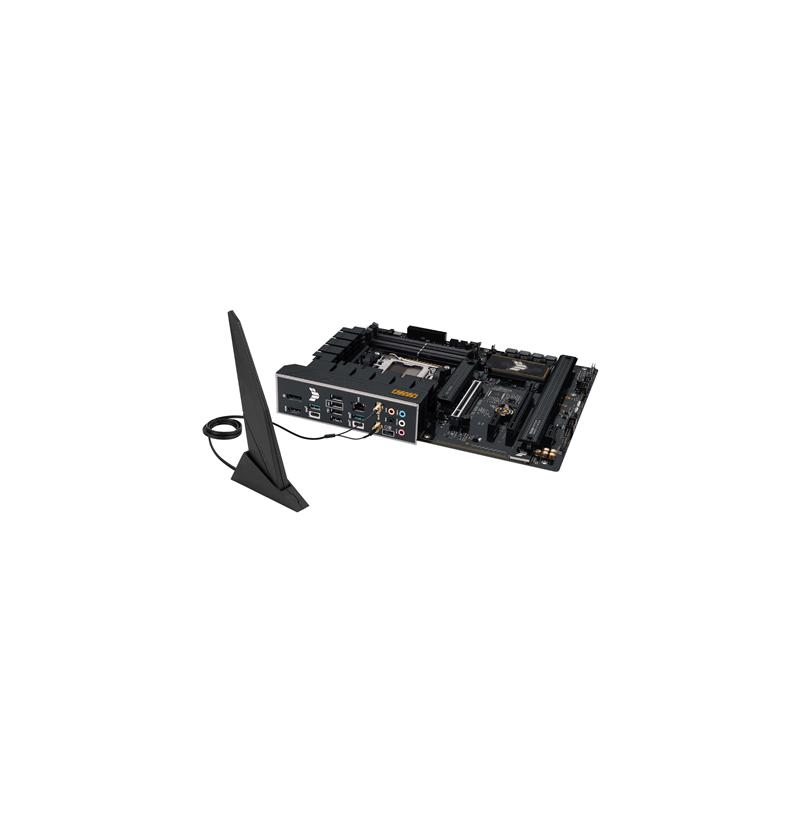

Asus TUF GAMING B650-PLUS WIFI Processor family AMD Padidinti

Asus | TUF GAMING B650-PLUS WIFI | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Memory slots 4 | Supported hard di

180,47 €

90MB1BZ0-M0EAY0

4711081912651

Galimas pasirinkimas

 1..4 d.d.


Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5
Parallel processing technology support: Not supported
On-board graphics card: No
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Motherboard chipset: AMD B650
Product colour: Black
Maximum internal memory: 128 GB
Supported memory clock speeds: 6000, 6400, 5800, 5400, 6600, 5600, 7200, 5200, 6200, 5000, 6800, 7000, 4800, 7600
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
Height: 50 mm
Depth: 244 mm
Width: 305 mm
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac)
Bluetooth version: 5.2
Wi-Fi: Yes
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Number of SATA III connectors: 4
Thunderbolt headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
CPU fan connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 4
Number of COM connectors: 1
BIOS type: UEFI AMI
Package weight: 1.36 kg
Package height: 68 mm
Package depth: 273 mm
Package width: 338 mm
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 10, 0, 1
Number of storage drives supported: 7

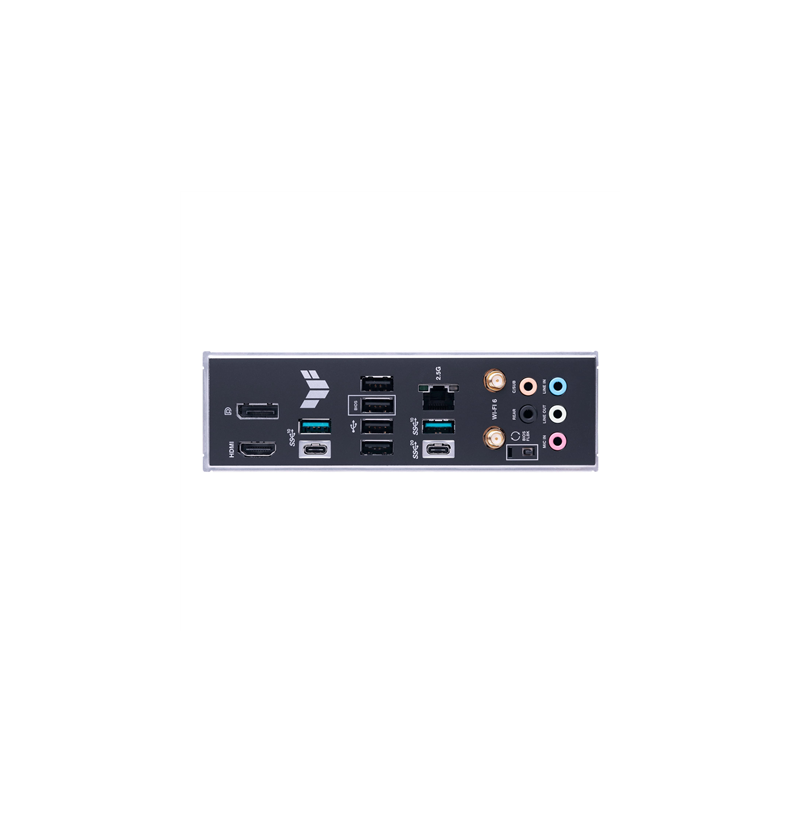

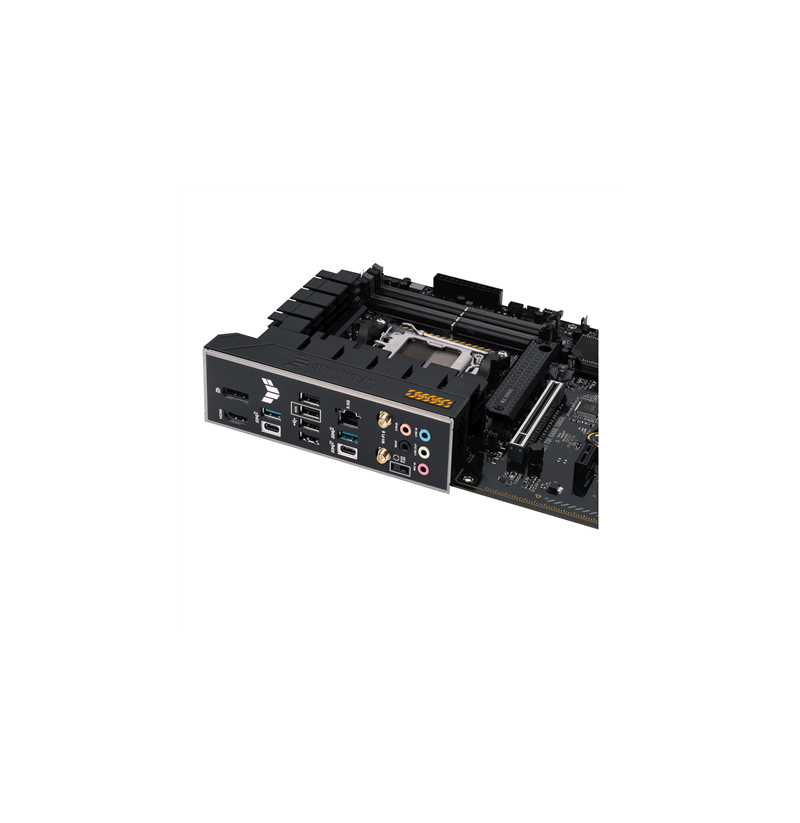

DisplayPorts quantity: 1
S/PDIF out port: No
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Line-in: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 2
Weight: 1.2 kg
Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.
