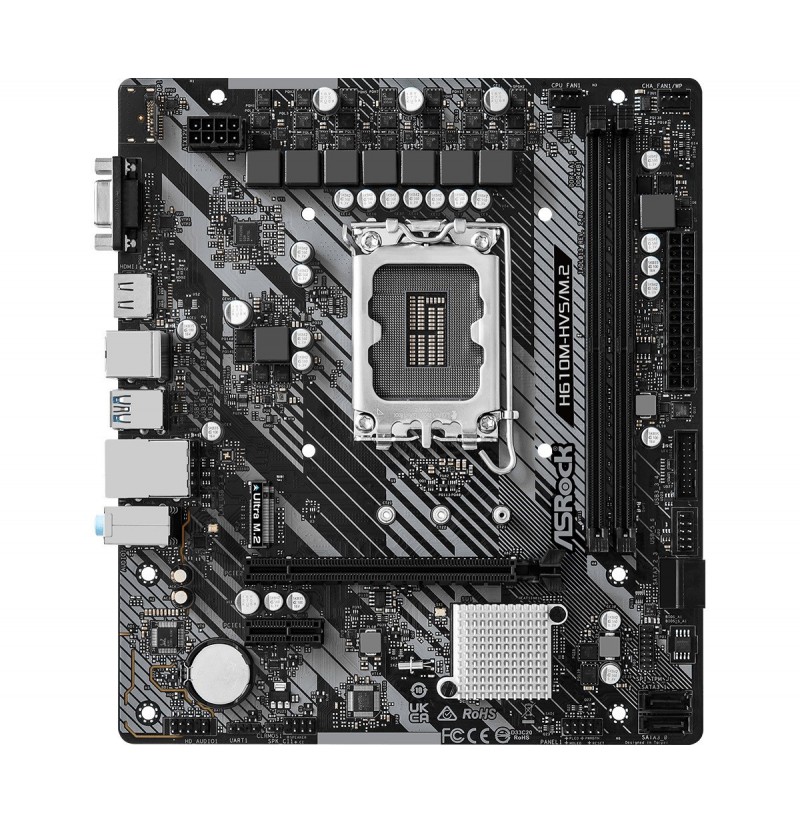

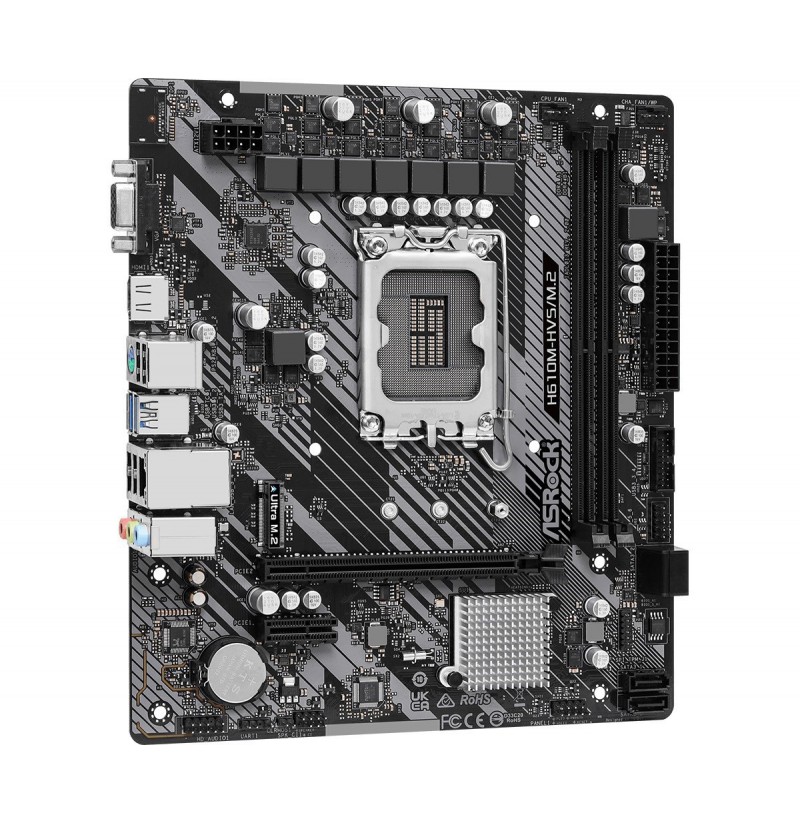

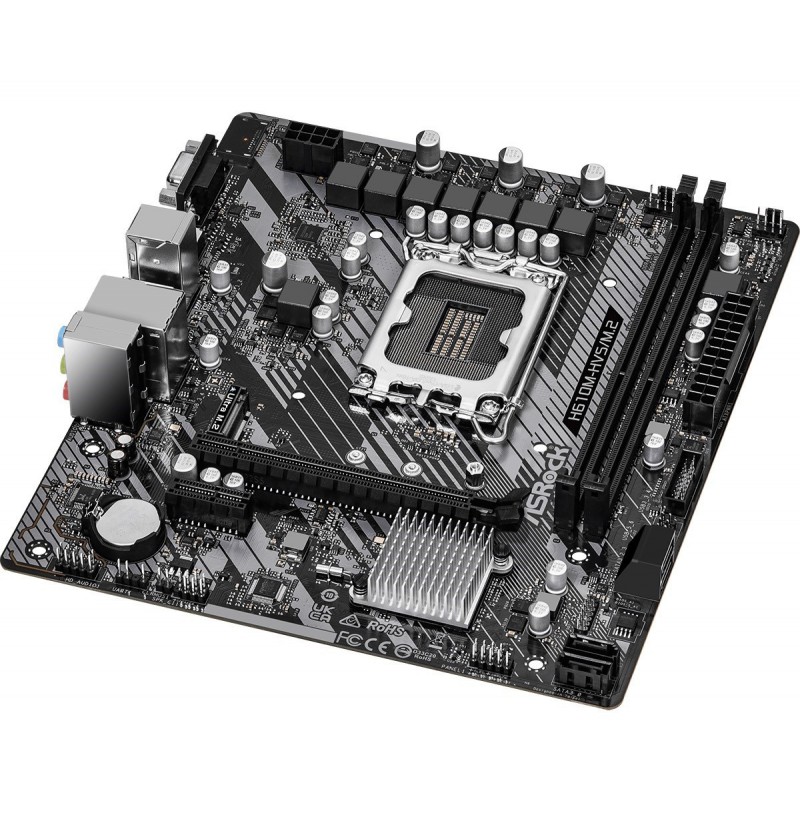

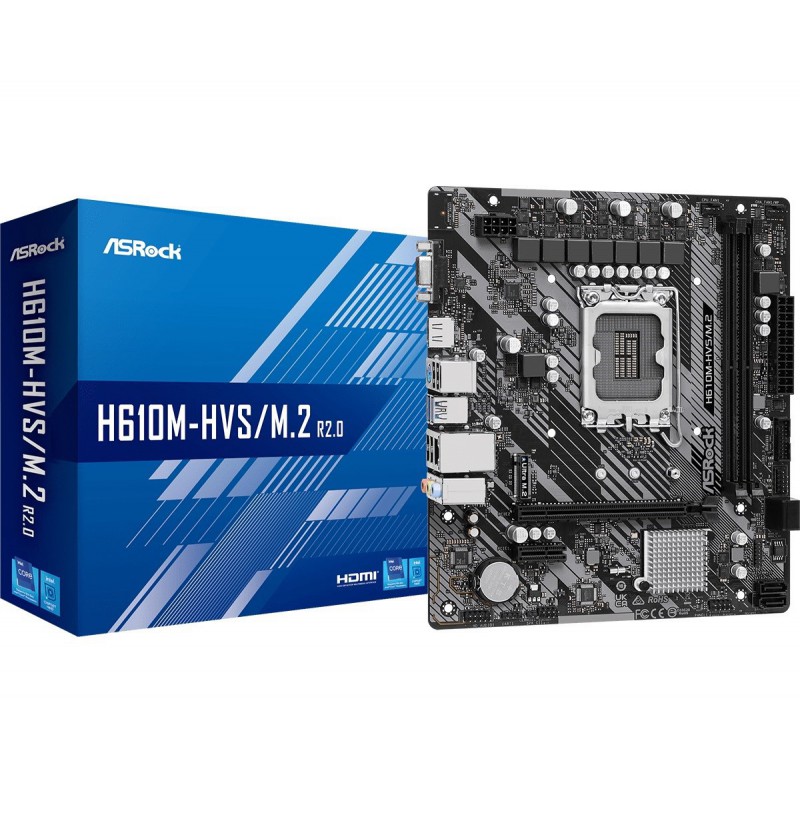

Mainboard ASROCK H610M-HVS/M.2 R2.0

Compatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i3, Intel® Celeron®, Intel® Core™ i9, Intel® Pentium®
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset: Intel H610
Audio output channels: 7.1 channels
Audio chip: Realtek ALC887 / Realtek ALC897
PC health monitoring: Fan, Voltage, CPU, Temperature
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Maximum internal memory: 64 GB
Supported memory clock speeds: 3200
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Unbuffered memory: Yes
Depth: 188 mm
Width: 197 mm
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Wi-Fi: No
Wake-on-LAN ready: Yes
Ethernet interface type: Gigabit Ethernet
12V power connector: Yes
Number of M.2 (M) slots: 1
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
TPM connector: Yes
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
Number of chassis fan connectors: 1
USB 2.0 connectors: 1
BIOS type: UEFI AMI
Cables included: SATA
Drivers included: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: SATA III

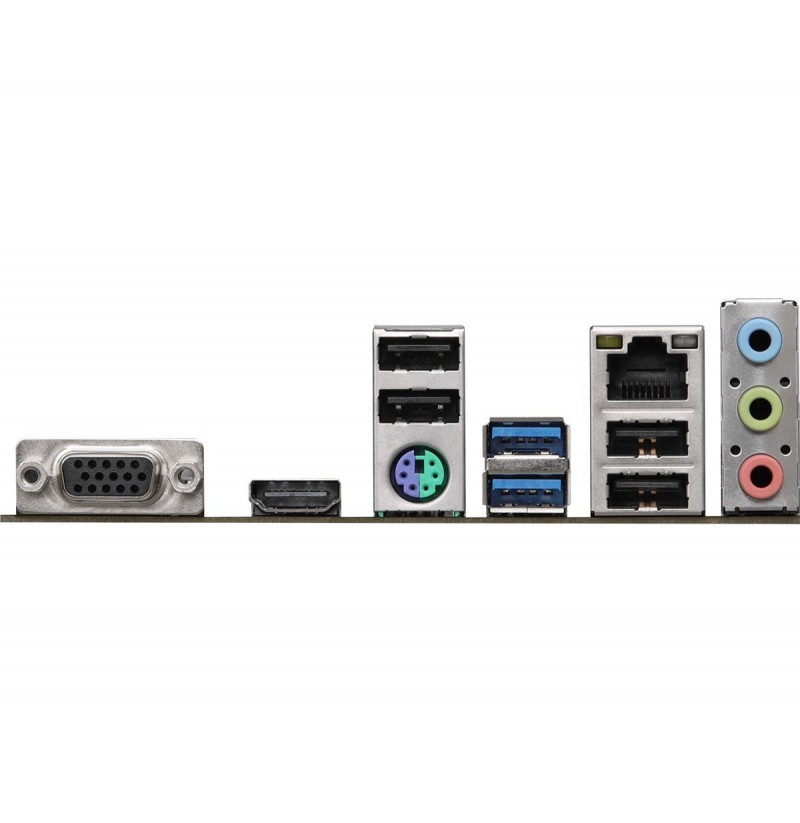

USB 2.0 ports quantity: 4
VGA (D-Sub) ports quantity: 1
HDMI version: 2.1
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
