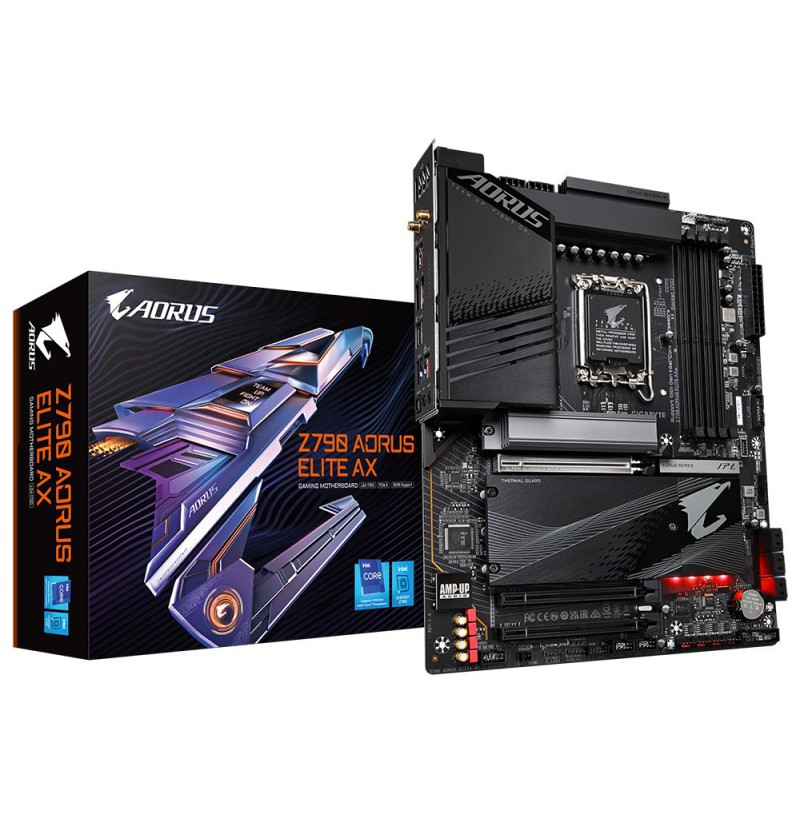

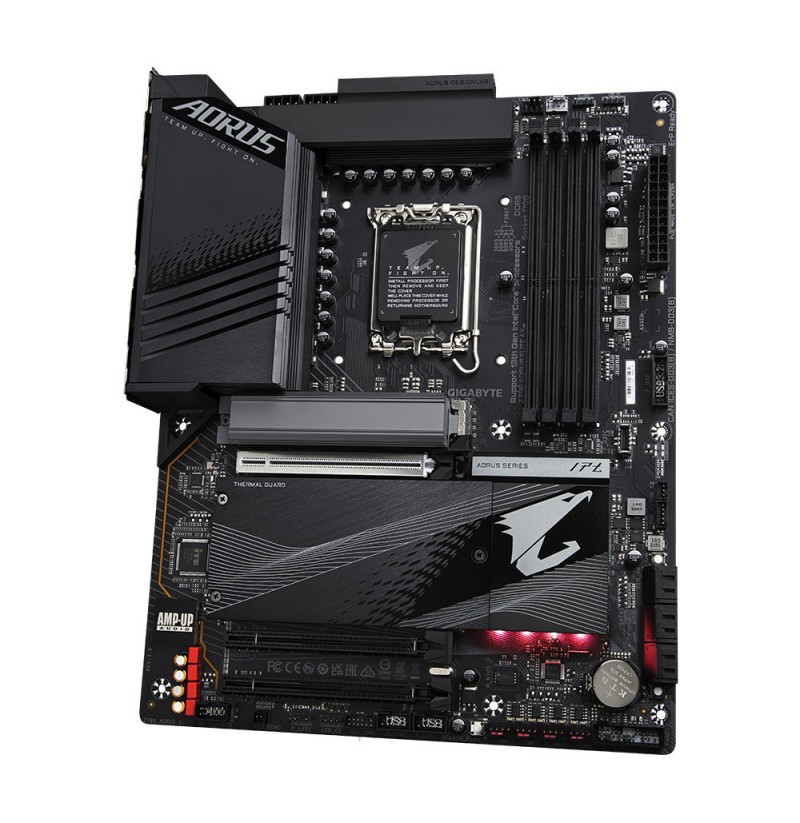

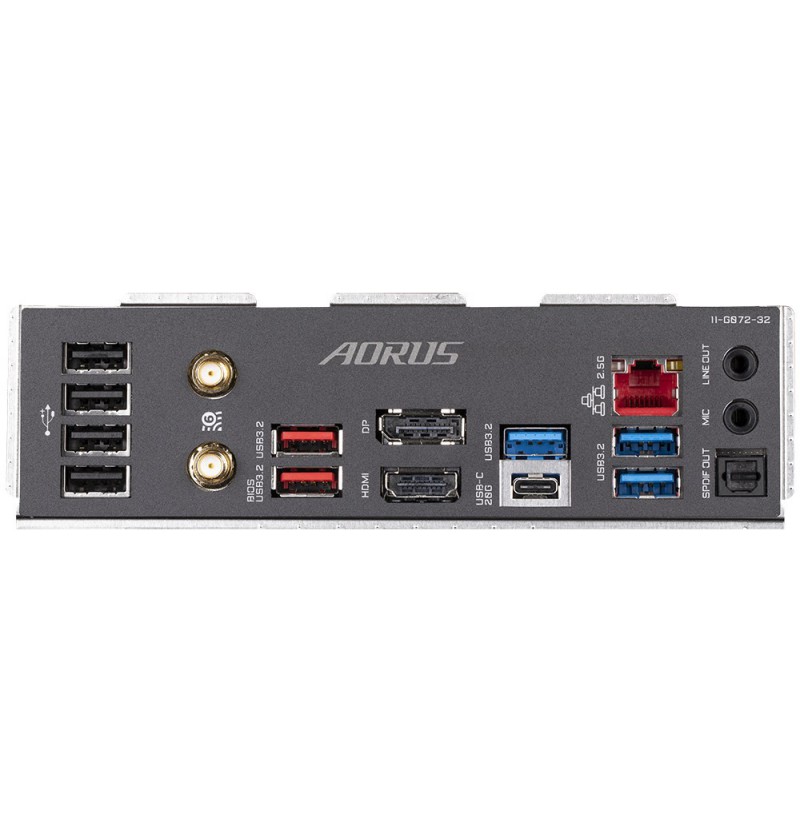

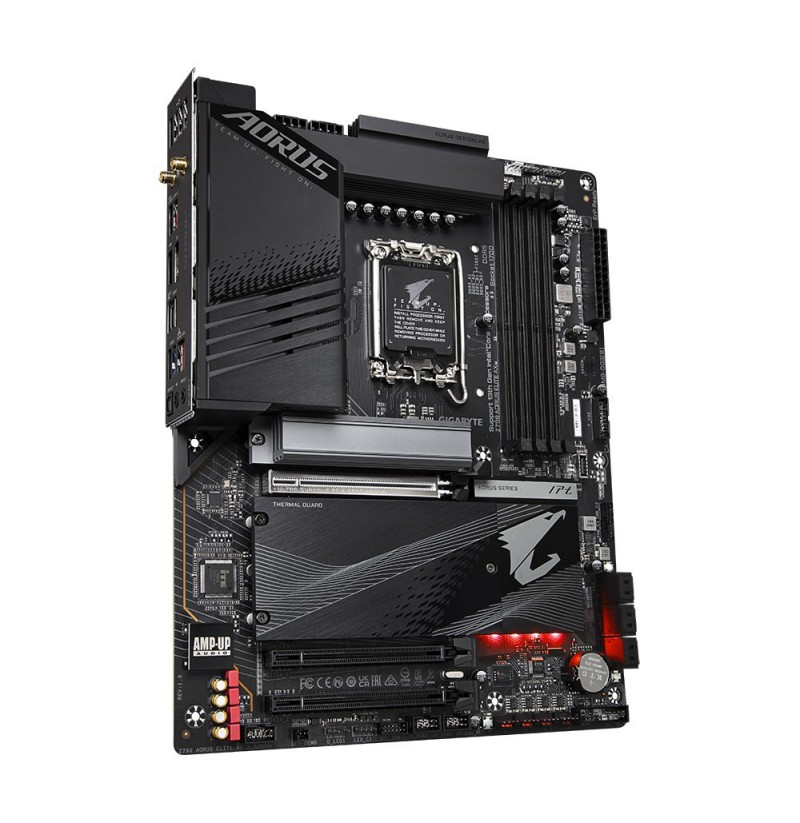

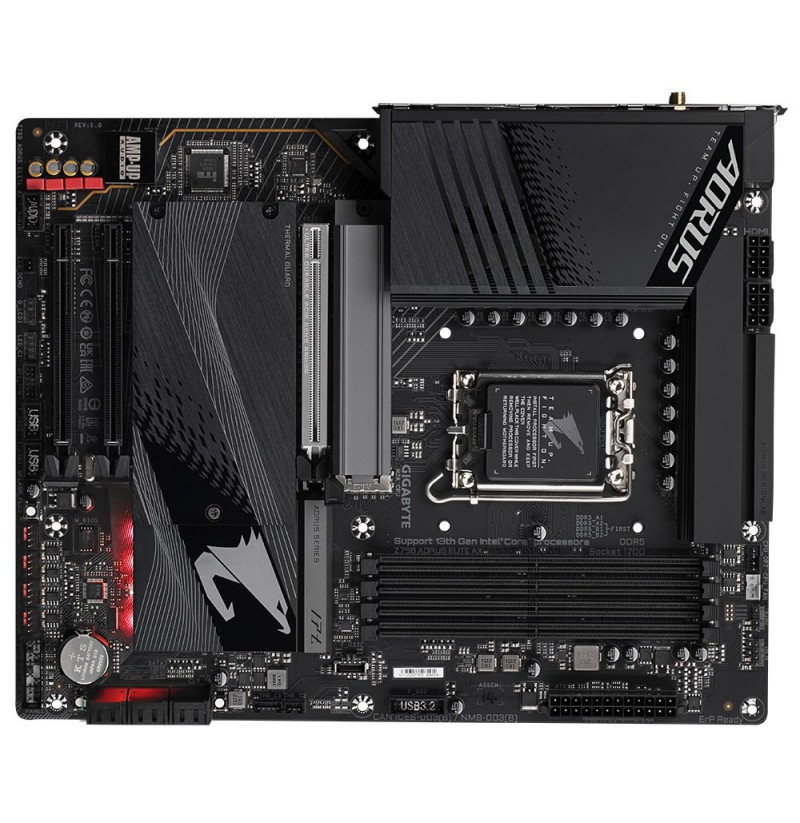

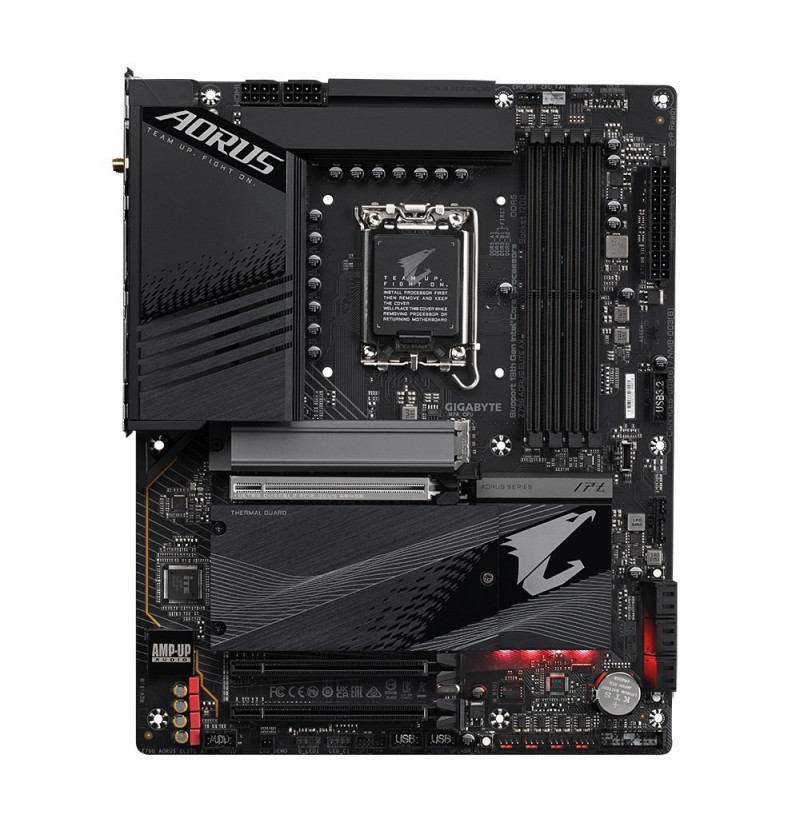

Gigabyte Z790 AORUS ELITE AX motherboard Intel Z790 Express LGA 1700 ATX

Warranty period: 3 year(s)
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3
Maximum internal memory supported by processor: 192 GB
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Crossfire
On-board graphics card: No
PC health monitoring: Temperature, Water cooling, Fan, Voltage
Motherboard chipset: Intel Z790
Audio output channels: 7.1 channels
Product colour: Black
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Supported memory clock speeds: 7000, 5800, 5400, 5600, 7200 MHz, 6200, 6000, 7600 MHz, 6400, 5200 MHz, 6600, 6800, 7400, 4000, 4800
Unbuffered memory: Yes
Maximum internal memory: 192 GB
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory clock speed (max): 7600 MHz
Number of memory slots: 4
Width: 305 mm
Depth: 244 mm
Height: 35 mm
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11b
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
WLAN controller model: Intel Wi-Fi 6E AX211
Wi-Fi: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Thunderbolt headers: 2
Number of SATA III connectors: 6
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
CPU fan connector: Yes
Front panel connector: Yes
Total number of SATA connectors: 6
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
12V power connector: Yes
Clear CMOS button: Yes
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Package weight: 2.32 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Bundled software: Norton Internet Security
Batteries included: Yes
Cables included: SATA
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD
RAID levels: 5, 0, 1, 10
Number of storage drives supported: 10
Number of HDDs supported: 6
DisplayPort version: 1.2
S/PDIF out port: Yes
DisplayPorts quantity: 1
Headphone outputs: 2
HDMI ports quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 2.0 ports quantity: 4
HDMI version: 2.0
WiFi-AP antenna jack: 2
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
PCI Express x16 slots: 3
Number of M.2 (M) slots: 4
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
