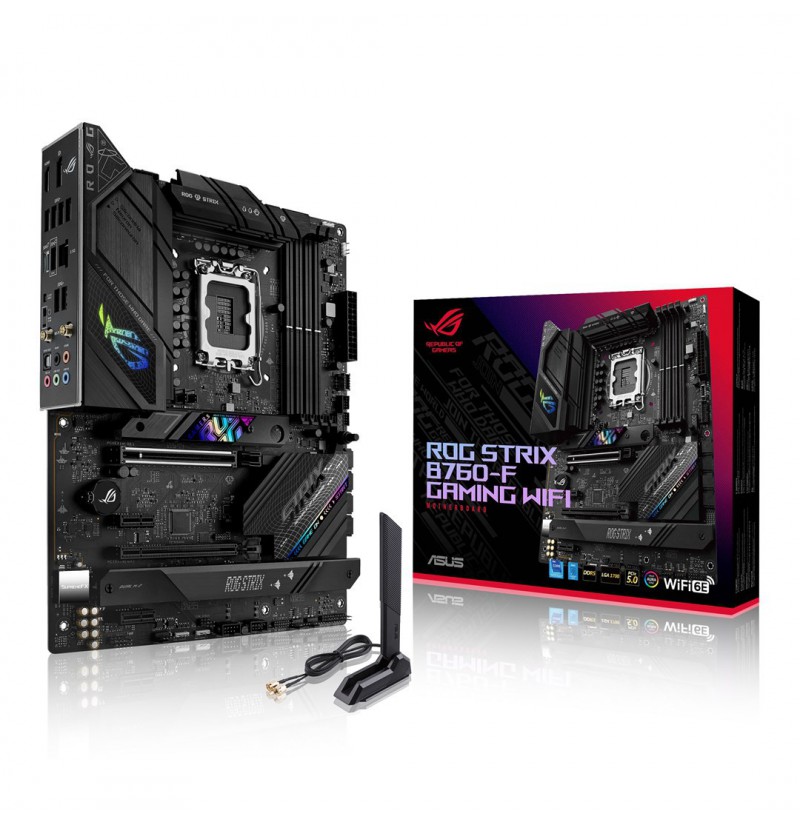

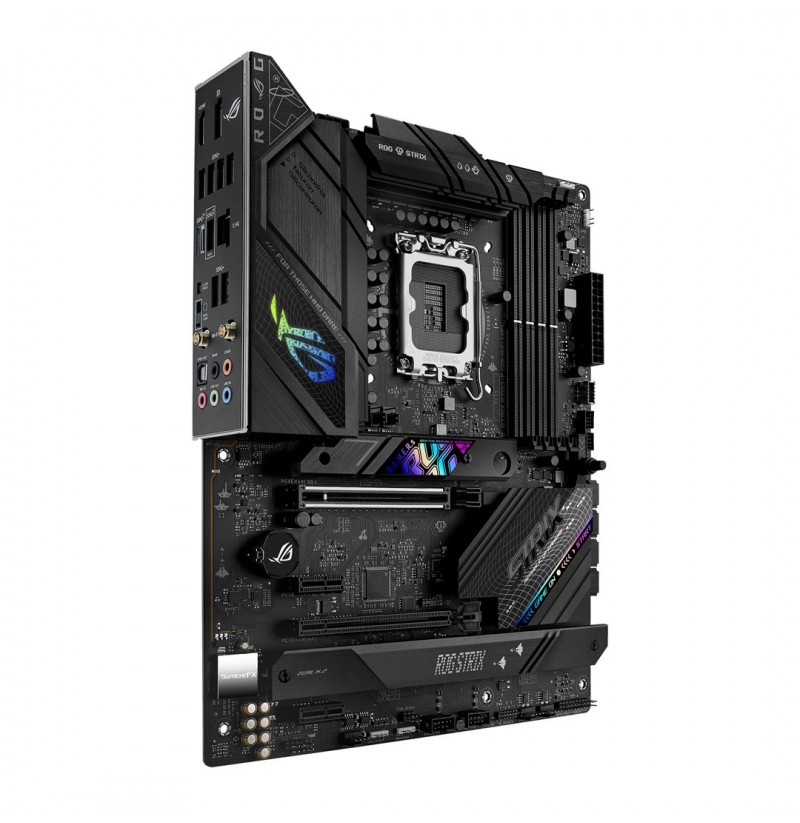

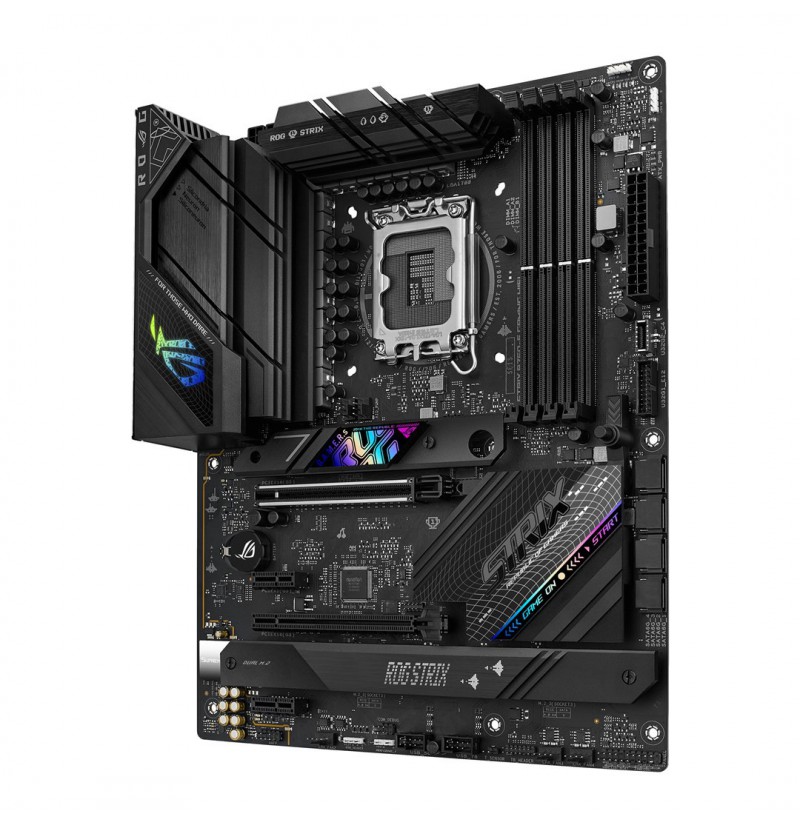

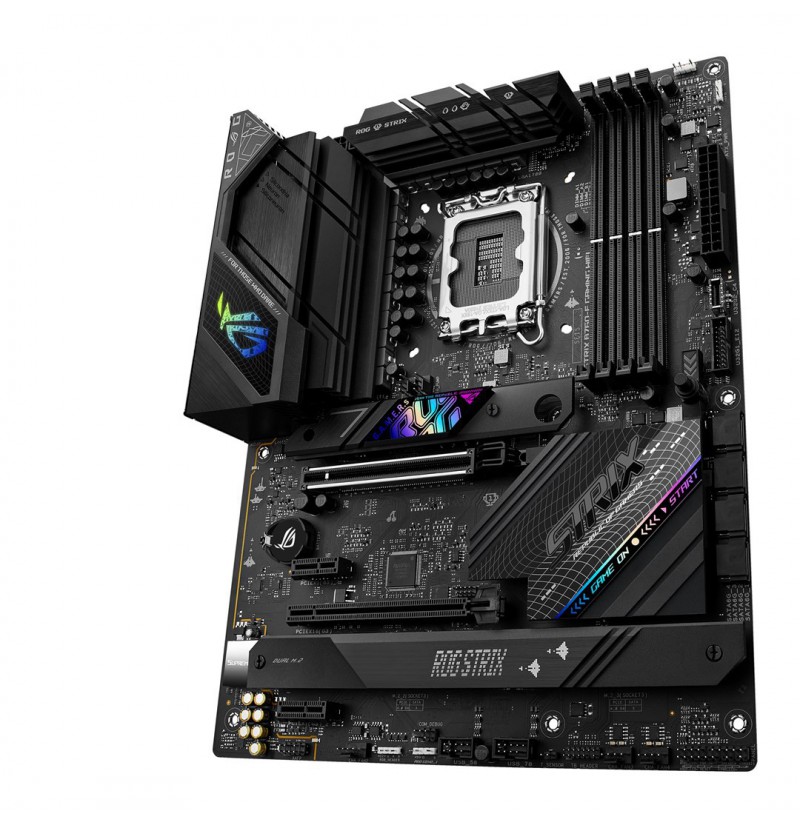

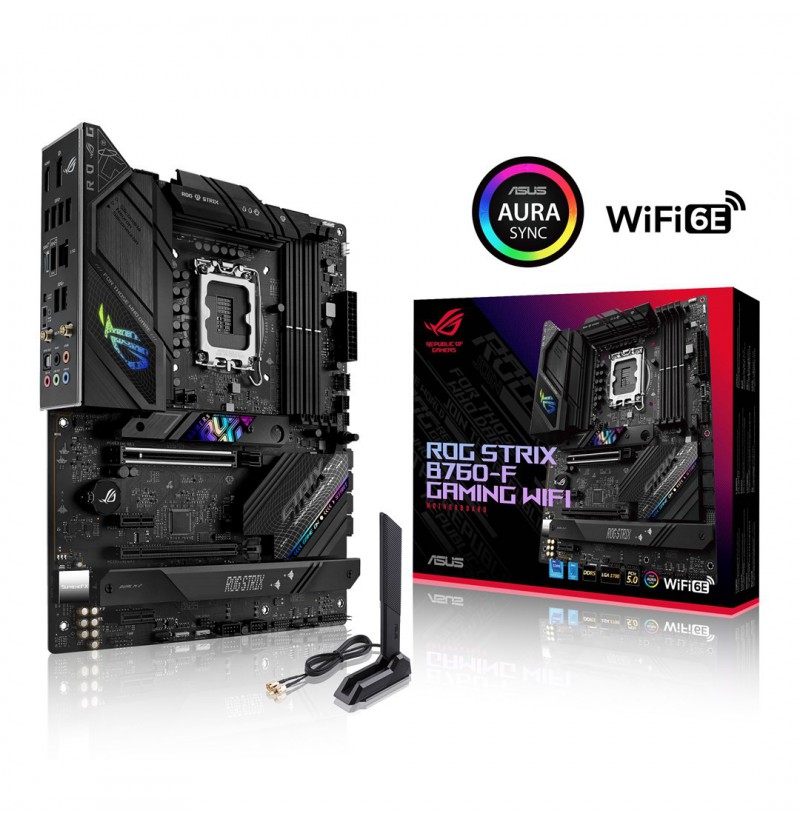

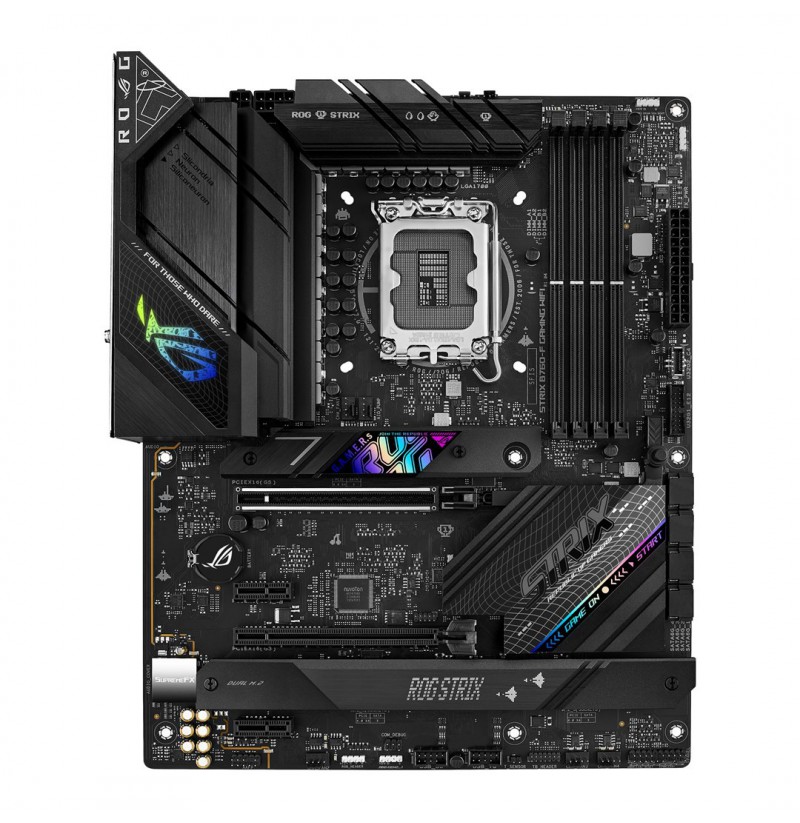

Mainboard ASUS ROG STRIX B760-F GAMING WIFI Padidinti

Mainboard ASUS ROG STRIX B760-F GAMING WIFI

254,67 €

90MB1CT0-M0EAY0

4711081974666

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Processor manufacturer: Intel
Processor socket: LGA 1700
Parallel processing technology support: Not supported
On-board graphics card: No
Motherboard chipset: Intel B760
Power source type: ATX
Audio output channels: 7.1 channels
Product colour: Black
Audio chip: Realtek ALC4080
Motherboard chipset family: Intel
Motherboard form factor: ATX
Cooling type: Passive
Windows operating systems supported: Windows 10, Windows 11
Unbuffered memory: Yes
Supported memory clock speeds: 6800, 7000, 7800, 5200, 6600, 5800, 5400, 5600, 6000, 6400, 4800 MHz, 5000, 6200
Maximum internal memory: 192 GB
Supported memory clock speed (max): 7800 MHz
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory channels: Dual-channel
Memory slots type: DIMM
Width: 305 mm
Depth: 244 mm
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11b
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Number of SATA III connectors: 4
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Thunderbolt headers: 1
Front panel audio connector: Yes
USB 2.0 connectors: 2
CPU fan connector: Yes
Chassis intrusion connector: Yes
ATX Power connector (24-pin): Yes
Peripheral (Molex) power connectors (4-pin): 1
Number of chassis fan connectors: 4
12V power connector: Yes
RGB LED pin header: Yes
Front panel connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
BIOS type: UEFI AMI
Clear CMOS button: Yes
Package weight: 1.27 kg
Package depth: 71 mm
Package height: 265 mm
Package width: 280 mm
Cables included: SATA
User guide: Yes
RAID levels: 5, 10, 0, 1
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
S/PDIF out port: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Headphone outputs: 1
Line-in: Yes
WiFi-AP antenna jack: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
HDMI ports quantity: 1
Microphone in: Yes
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Back-to-BIOS button: Yes
