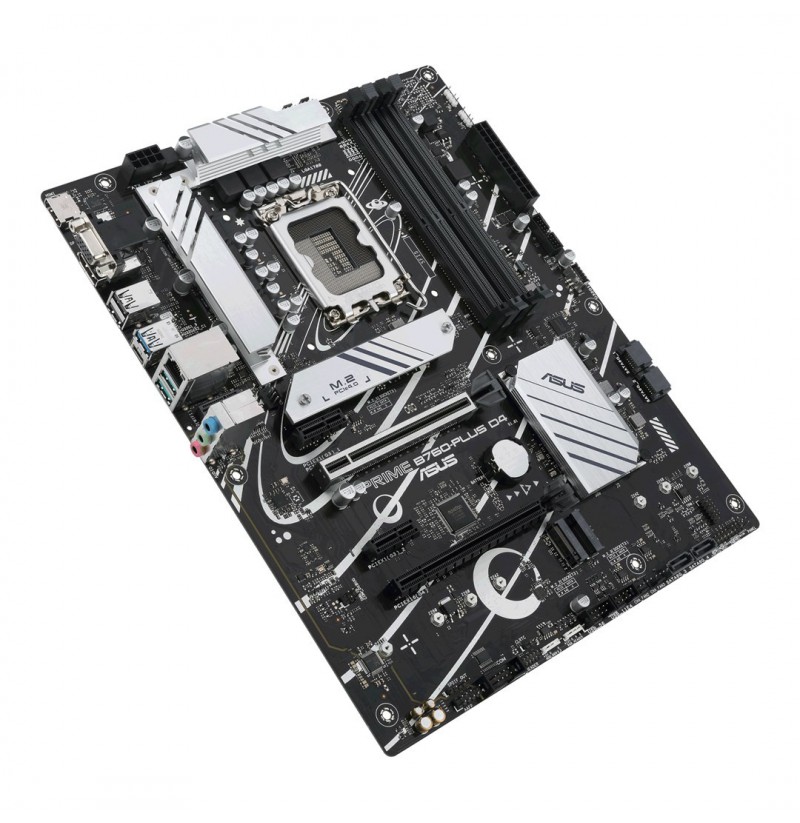

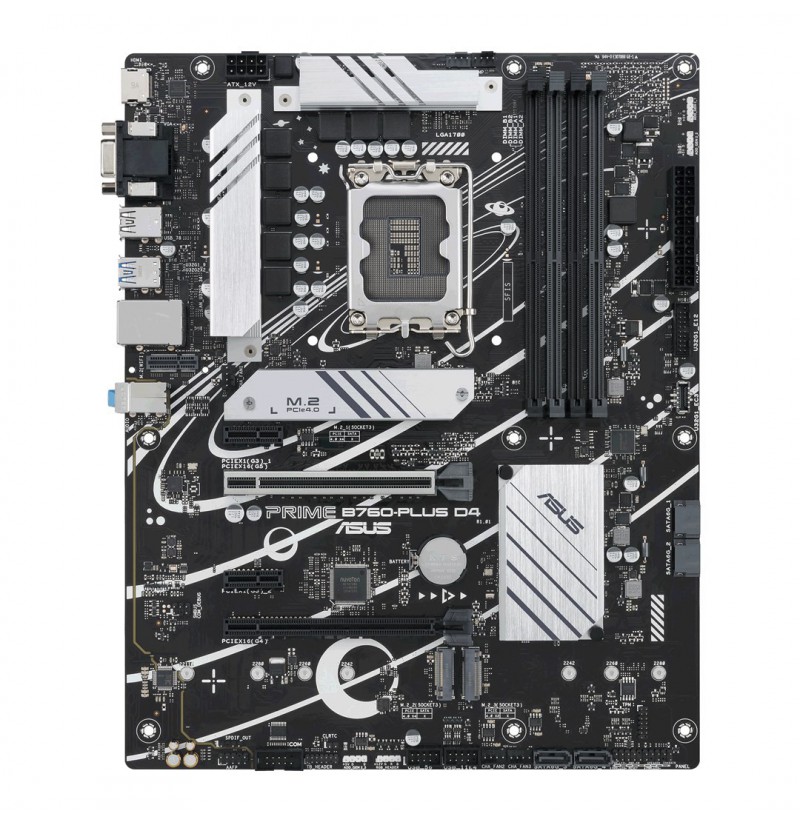

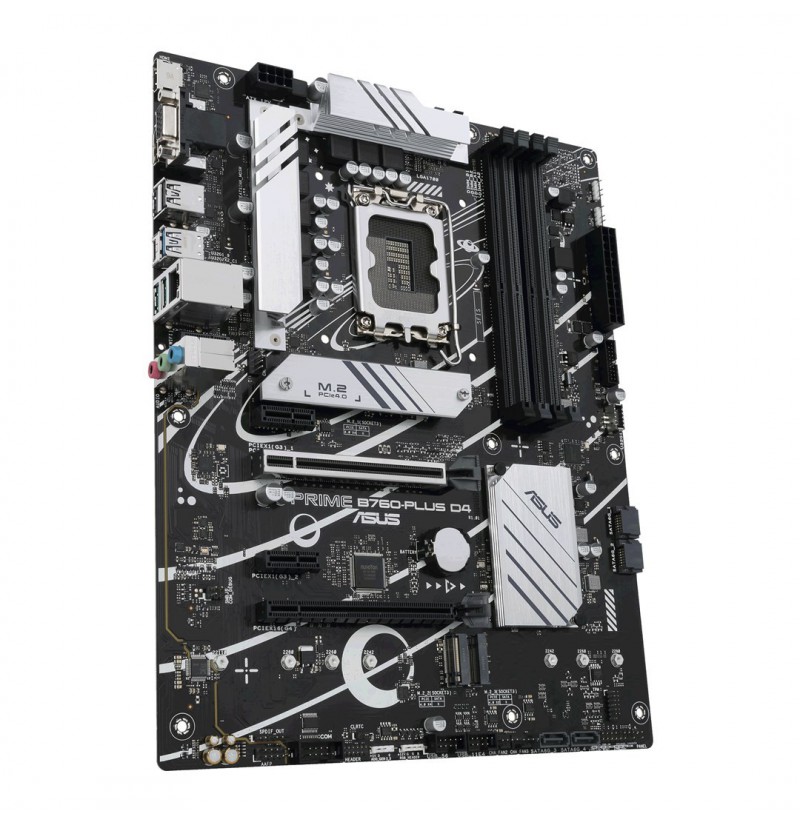

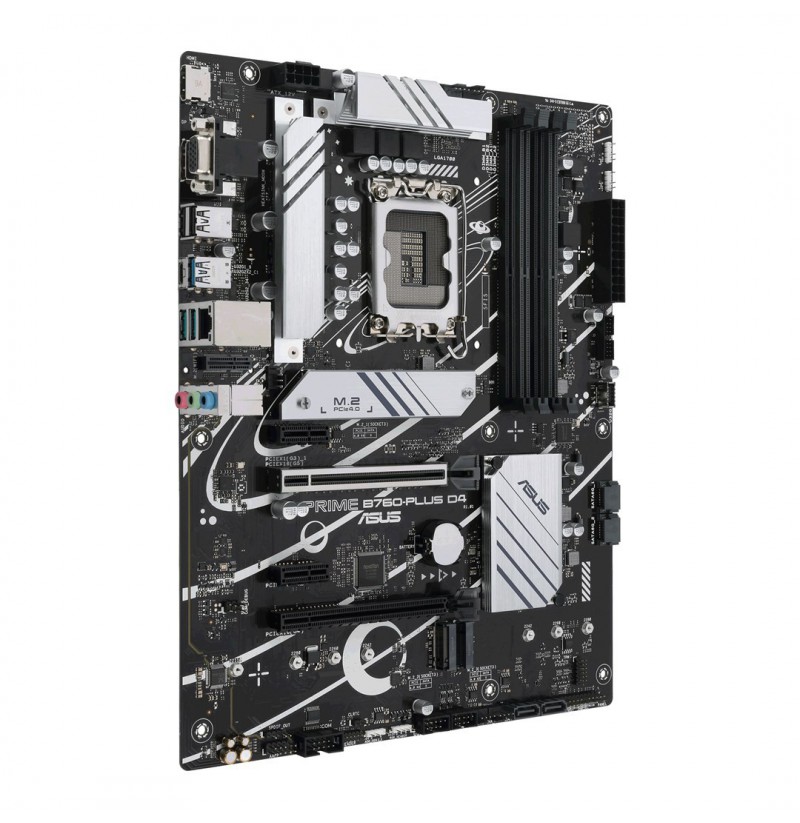

Mainboard ASUS PRIME B760-PLUS D4 Padidinti

Asus | PRIME B760-PLUS D4 | Processor family Intel | Processor socket LGA1700 | DDR4 | Supported hard disk drive interfaces M.2,

140,78 €

4711081970309

Galimas pasirinkimas

 1..4 d.d.


Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Parallel processing technology support: Not supported
Motherboard form factor: ATX
Power source type: ATX
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Cooling type: Passive
Windows operating systems supported: Windows 10, Windows 11
Unbuffered memory: Yes
Supported memory clock speeds: 2133, 2400, 2800, 2933, 3600, 3333, 3400, 3000, 4000, 4800, 3200 MHz, 2666, 4600, 4266, 5066, 3733, 4400, 5000, 3466
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Memory slots type: DIMM
ECC сompatibility: Non-ECC
Supported memory types: DDR4-SDRAM
Supported memory clock speed (max): 5066 MHz
Number of memory slots: 4
Width: 305 mm
Depth: 244 mm
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
S/PDIF out connector: Yes
Thunderbolt headers: 1
Front panel audio connector: Yes
Number of SATA III connectors: 4
Peripheral (Molex) power connectors (4-pin): 1
Number of chassis fan connectors: 3
Front panel connector: Yes
TPM connector: Yes
CPU fan connector: Yes
Number of COM connectors: 1
EPS power connector (8-pin): Yes
12V power connector: Yes
RGB LED pin header: Yes
BIOS type: UEFI AMI
Package weight: 1.16 kg
Package height: 53 mm
Package width: 328 mm
Package depth: 266 mm
User guide: Yes
Cables included: SATA
RAID levels: 1, 10, 5, 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of storage drives supported: 7
Number of HDDs supported: 4

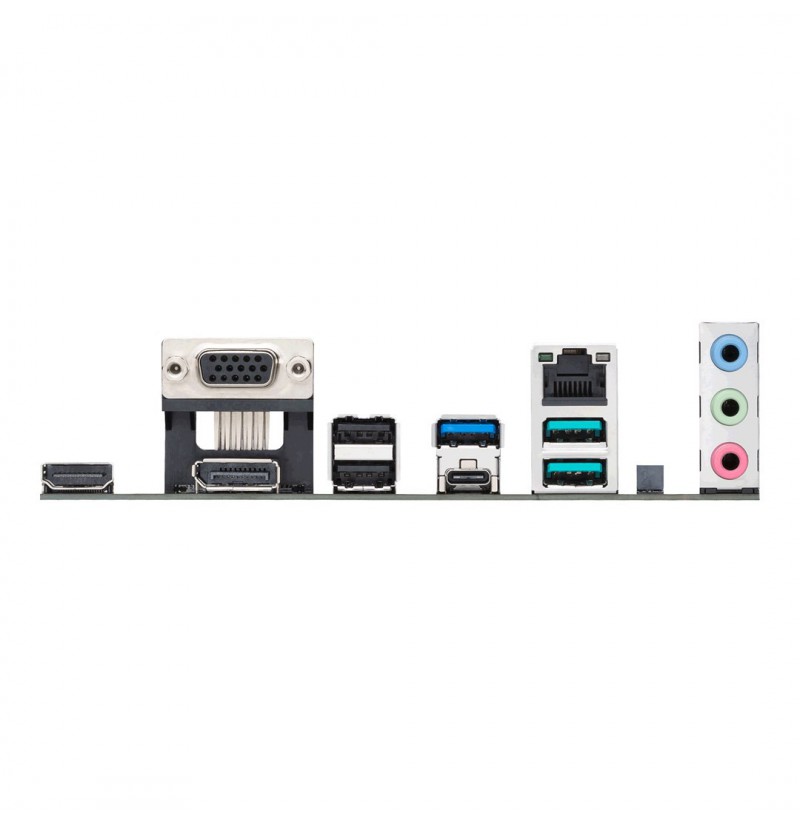

DisplayPorts quantity: 1
DisplayPort version: 1.4
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Line-in: Yes
Headphone outputs: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
VGA (D-Sub) ports quantity: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (E) slots: 1
