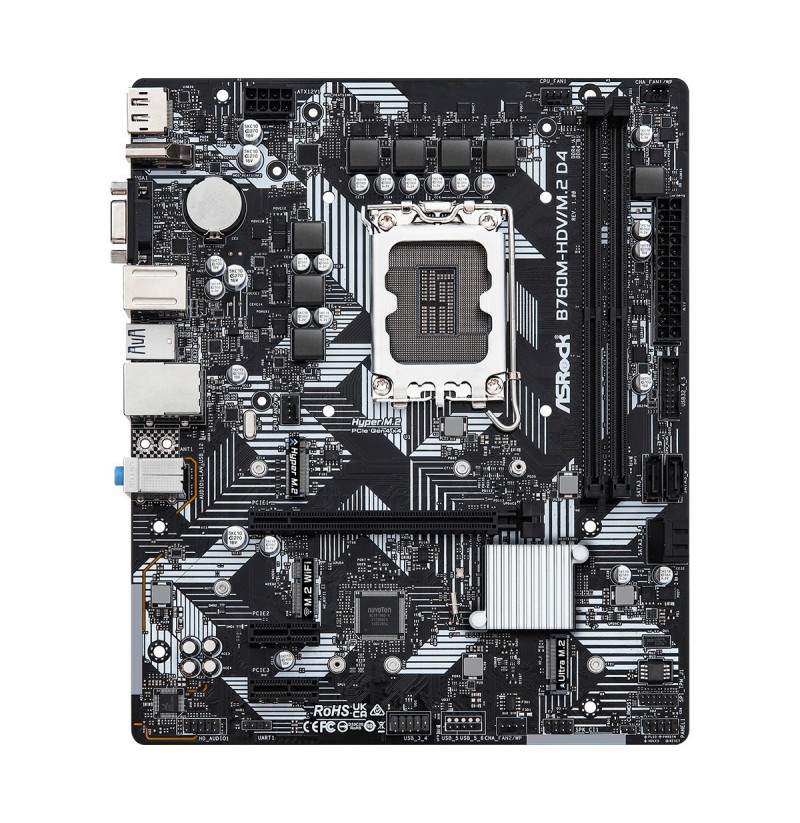

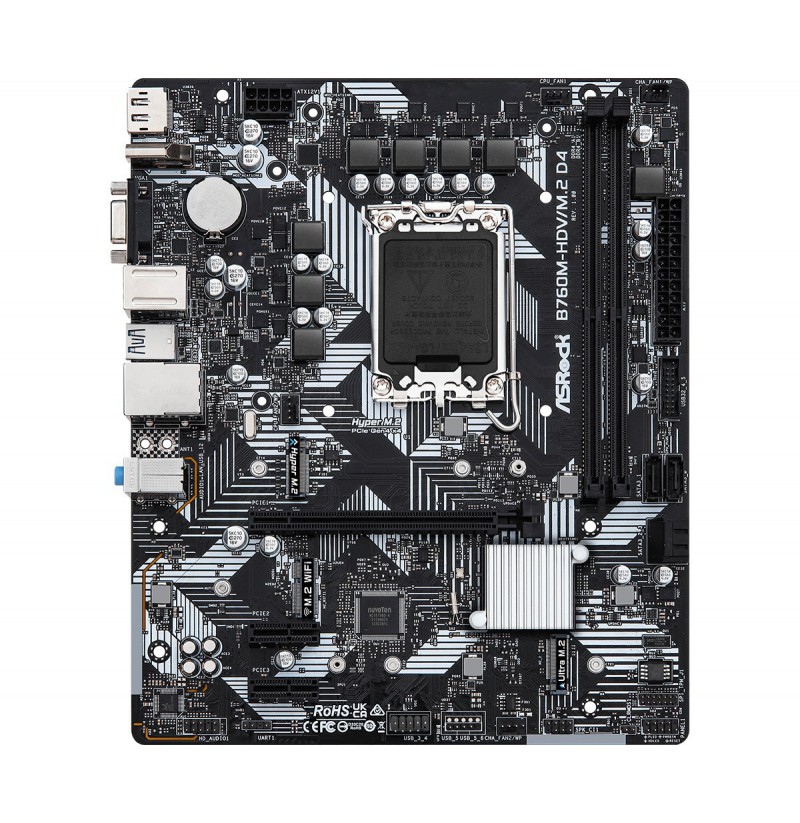

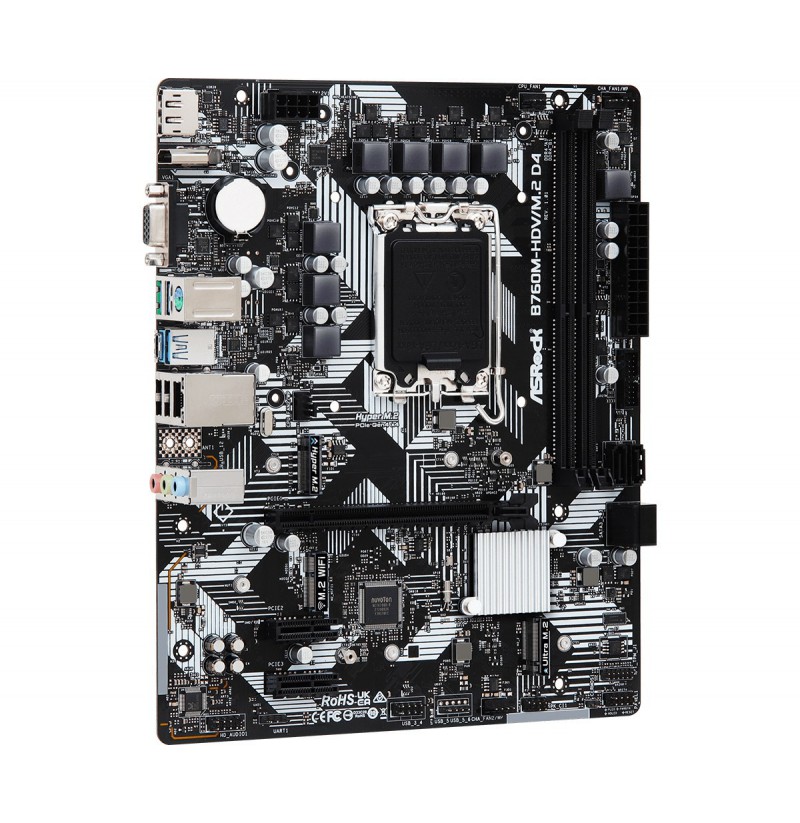

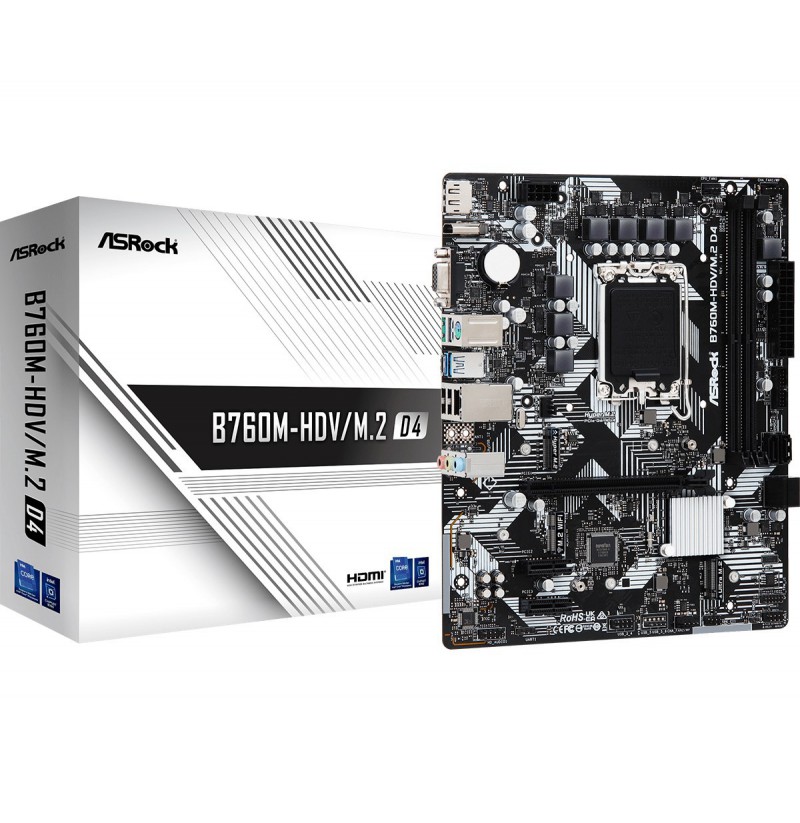

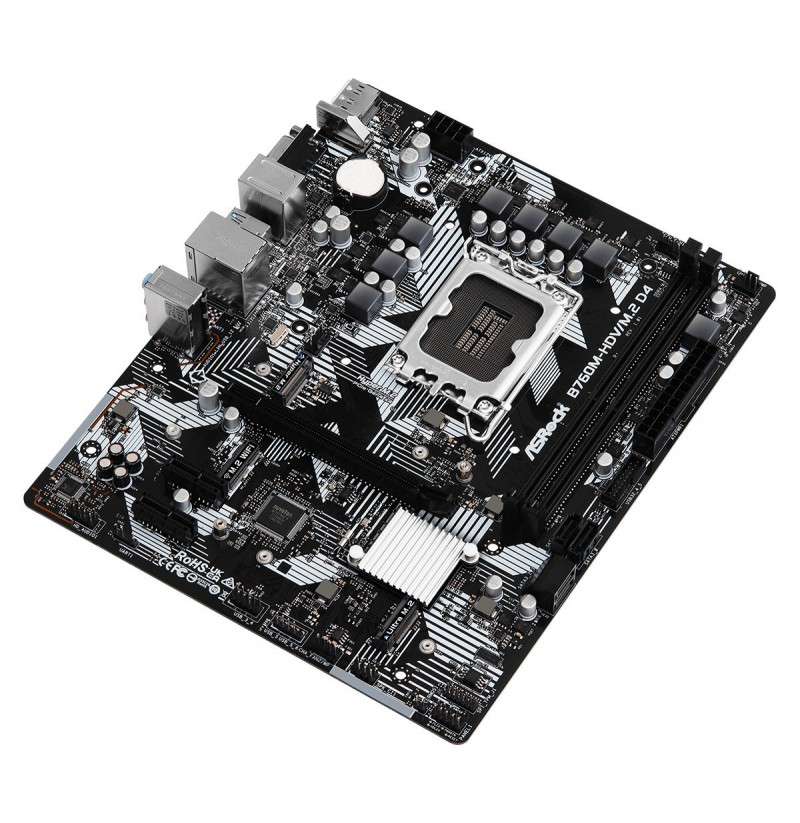

Mainboard Asrock B760M-HDV/M.2 D4

Maximum number of SMP processors: 1
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5
Processor manufacturer: Intel
Processor socket: LGA 1700
HDCP: Yes
Parallel processing technology support: Not supported
Certification: - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Windows operating systems supported: Windows 10 Education x64, Windows 11 x64
Motherboard chipset: Intel B760
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Memory channels: Dual-channel
Supported memory clock speeds: 3200, 4400, 5333 MHz
Maximum internal memory: 64 GB
Number of memory slots: 2
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM
ECC сompatibility: Non-ECC
Depth: 201 mm
Width: 244 mm
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
LAN controller: Realtek RTL8111H
Number of SATA III connectors: 4
TPM connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
Front panel connector: Yes
USB 2.0 connectors: 3
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
BIOS type: UEFI AMI
Cables included: SATA
Supported storage drive interfaces: M.2, SATA III
RAID levels: 1, 0, 5, 10
RAID support: Yes
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
Line-in: Yes
DisplayPort version: 1.4
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
