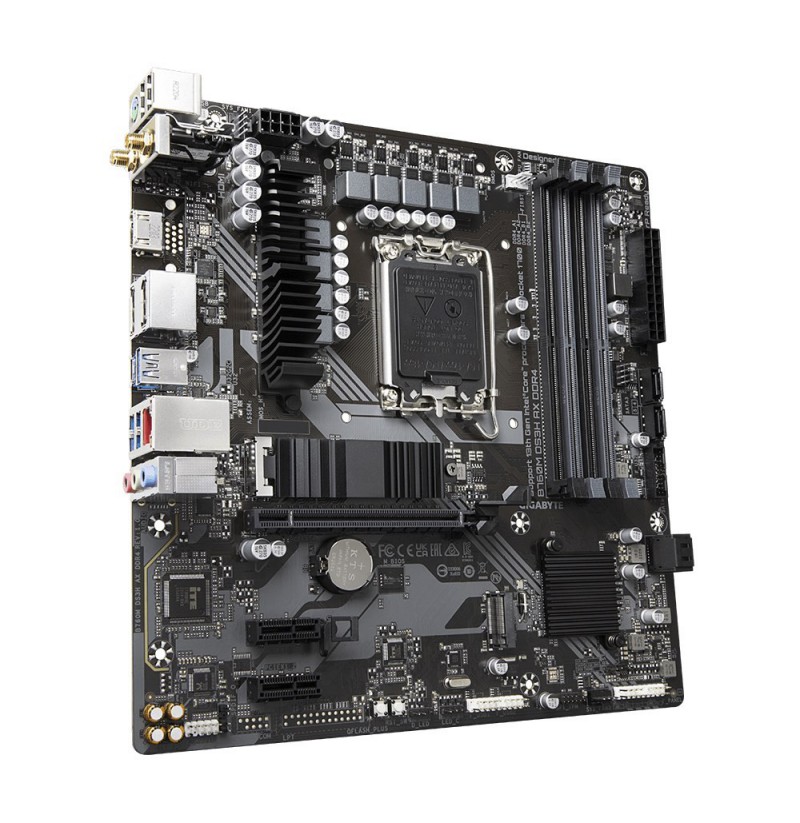

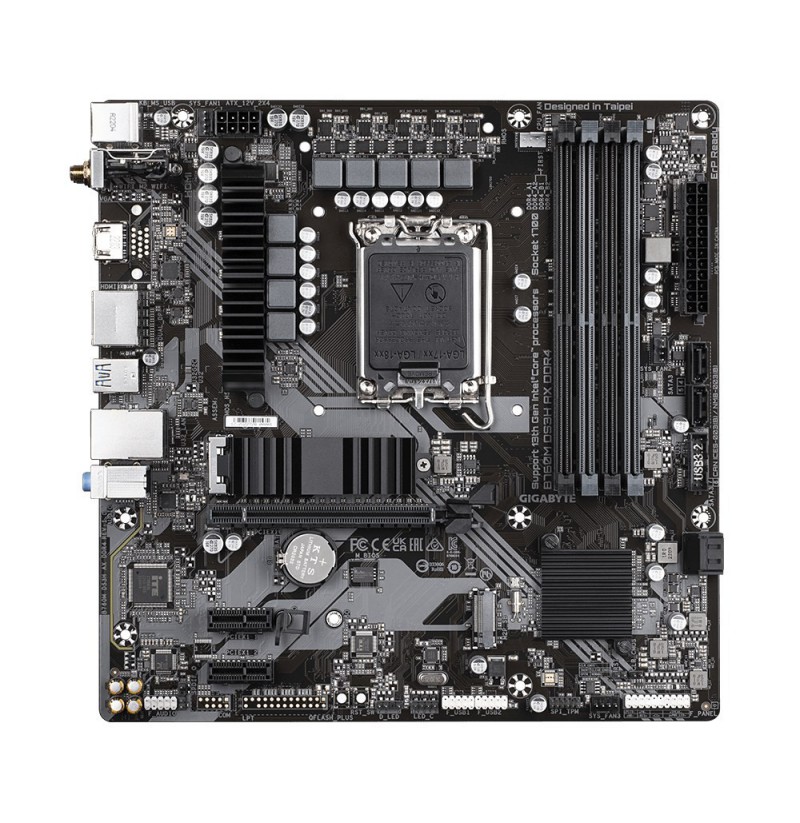

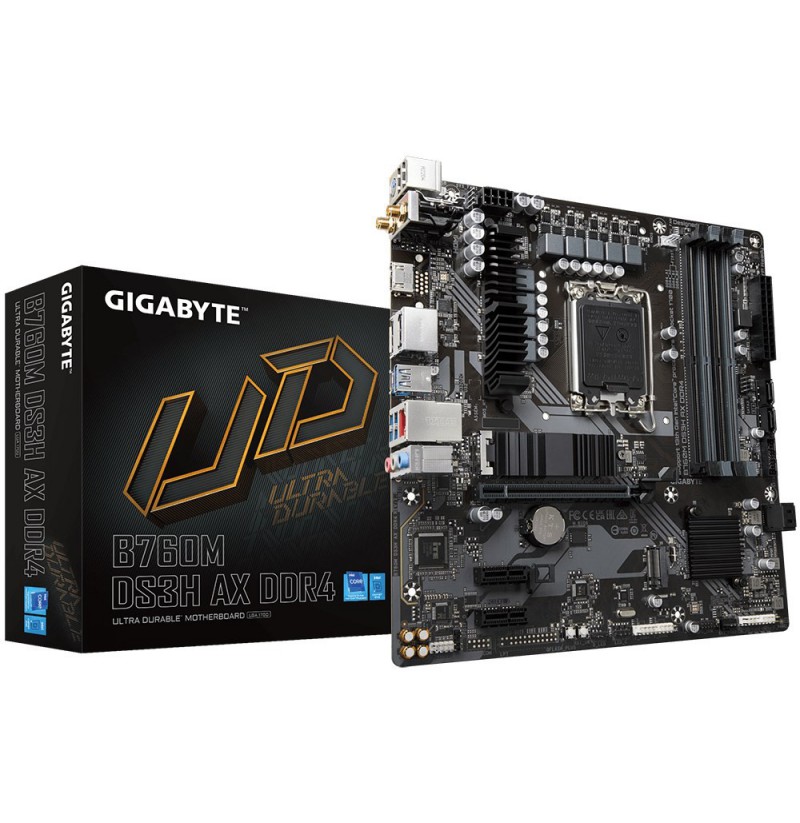

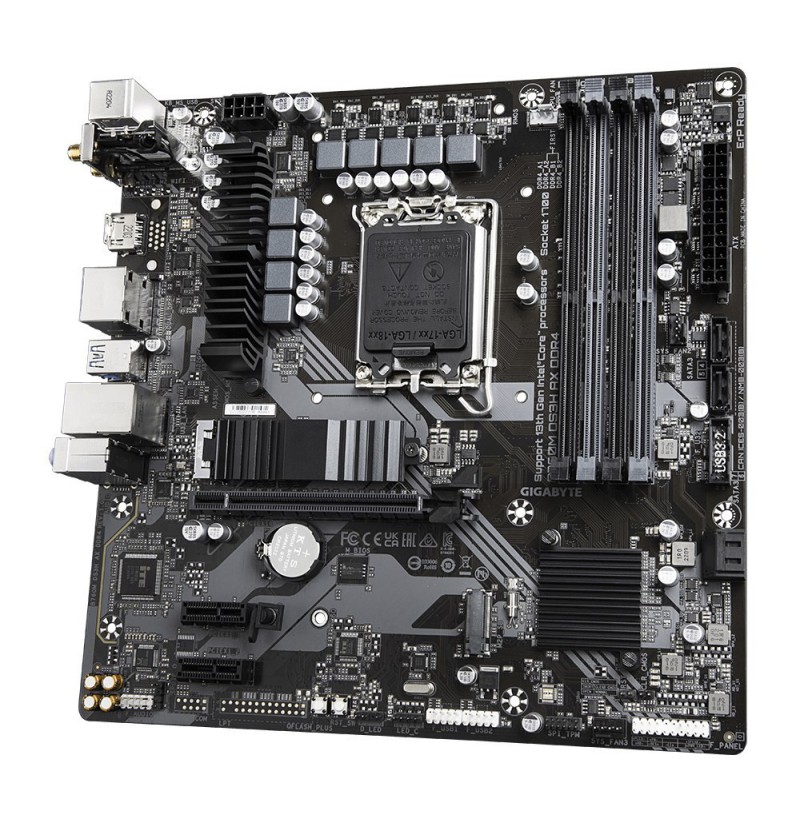

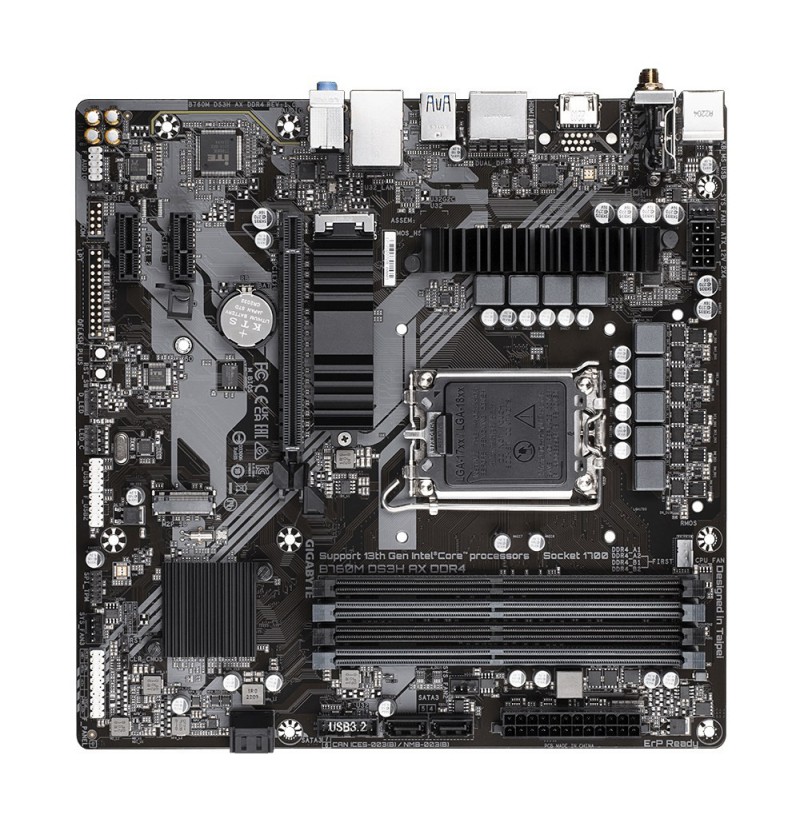

Płyta główna Gigabyte B760M DS3H AX DDR4

Warranty period: 3 year(s)
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Processor socket: LGA 1700
DirectX version: 12.0
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Parallel processing technology support: Not supported
Motherboard chipset: Intel B760 Express
Product colour: Bronze
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
PC health monitoring: Fan, Water cooling, Voltage, Temperature
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Supported memory clock speeds: 3733, 4300, 4400, 5000, 3466, 4500, 3800, 3333, 2400, 4700, 3000, 5333 MHz, 4133, 4000, 3666, 4800, 4933 MHz, 3200 MHz, 2666, 4266, 2933, 3600, 3300, 5133, 3400, 3866, 2133, 4600
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Supported memory clock speed (max): 5333 MHz
ECC сompatibility: ECC & Non-ECC
Depth: 244 mm
Width: 244 mm
Height: 35 mm
Bluetooth: Yes
Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.2
WLAN controller model: RZ608
Wi-Fi: Yes
S/PDIF out connector: Yes
Front panel connector: Yes
USB 2.0 connectors: 2
CPU fan connector: Yes
12V power connector: Yes
RGB LED pin header: Yes
Number of SATA III connectors: 4
Total number of SATA connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
Front panel audio connector: Yes
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Package width: 265 mm
Package height: 54 mm
Package depth: 265 mm
Package weight: 1.1 kg
Bundled software: Norton Internet Security
Batteries included: Yes
Cables included: SATA
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
RAID levels: 1, 10, 0, 5
Number of HDDs supported: 4
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

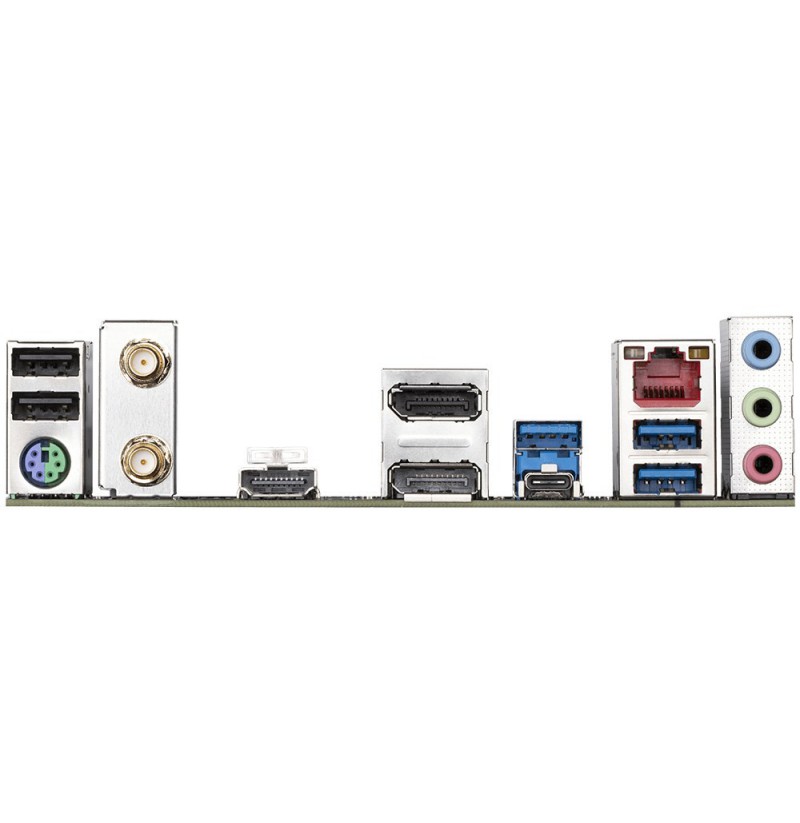

HDMI ports quantity: 1
Microphone in: Yes
USB connector type: USB Type-A, USB Type-C
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
DisplayPort version: 1.2
HDMI version: 2.0
WiFi-AP antenna jack: 2
USB 2.0 ports quantity: 2
Headphone outputs: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
PCI Express x16 slots: 1
PCI Express x1 slots: 2
Number of M.2 (M) slots: 2
Battery weight: 3 g
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Lithium weight per battery: 0.07 g
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage.
