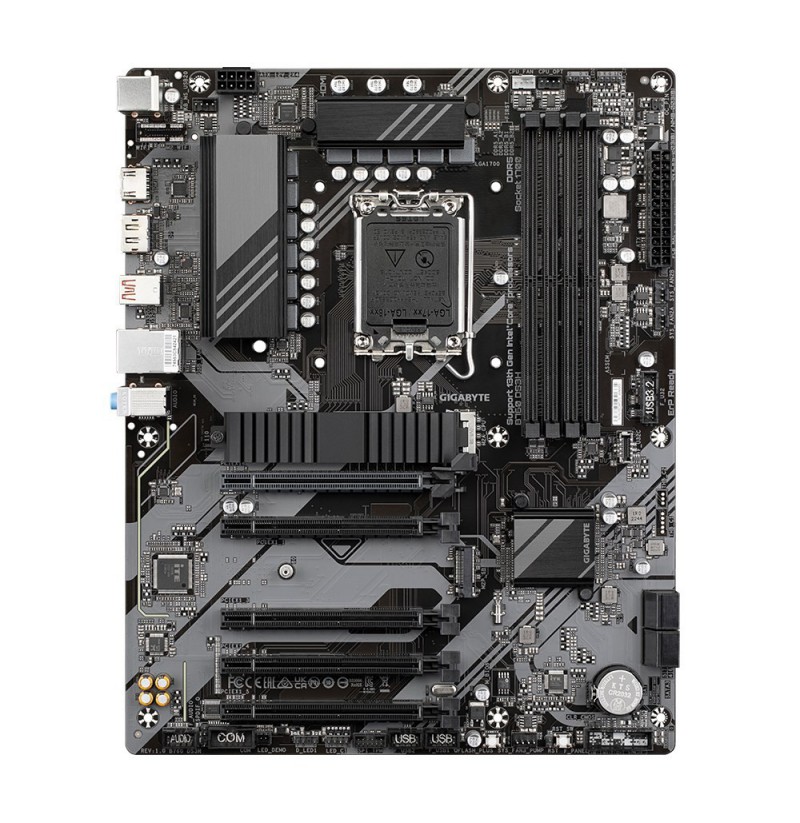

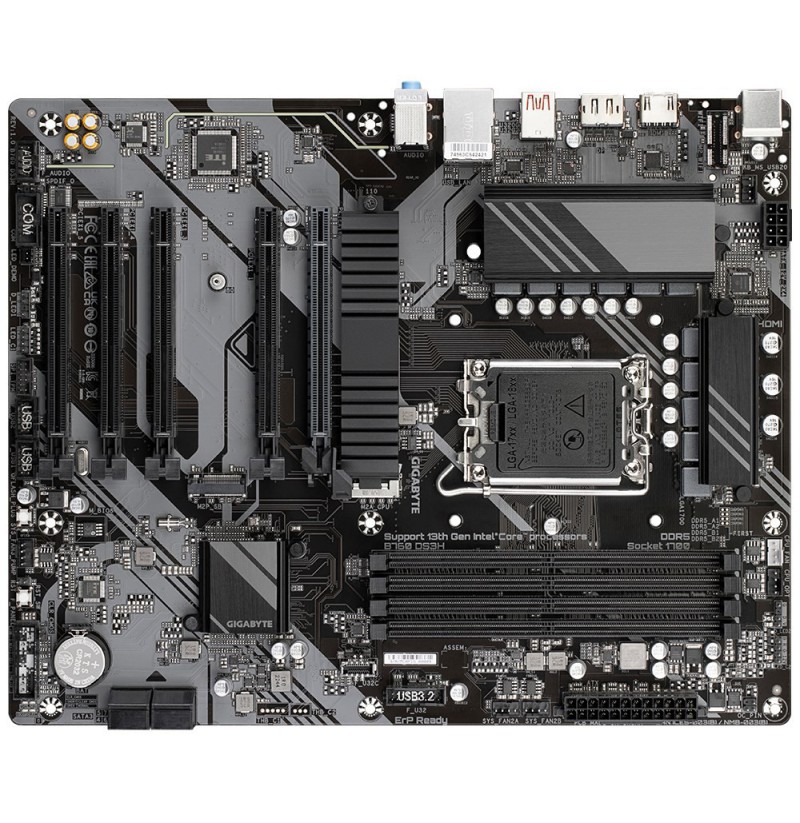

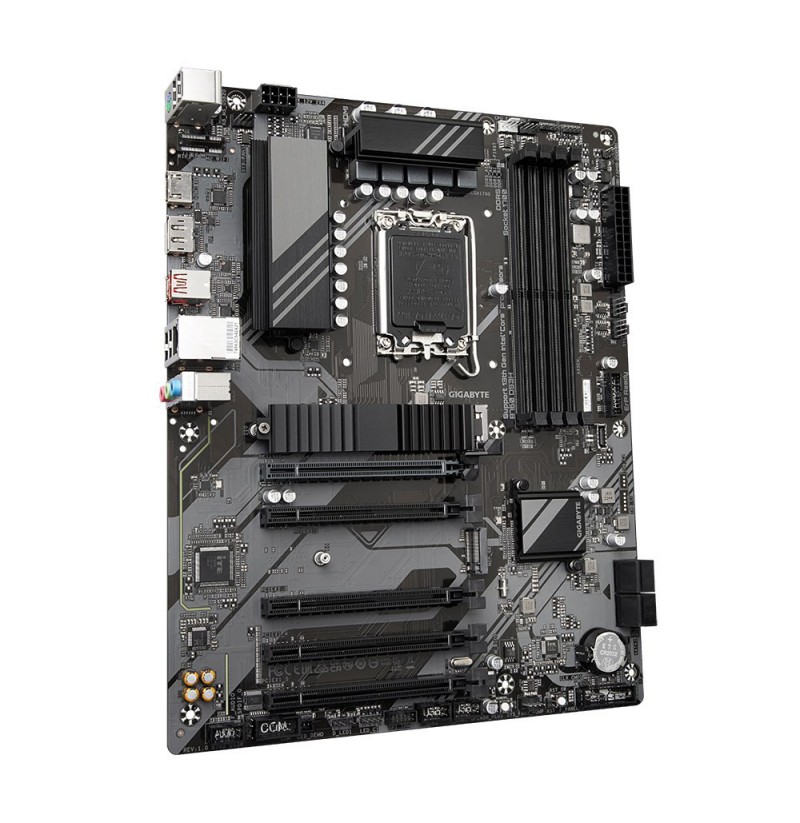

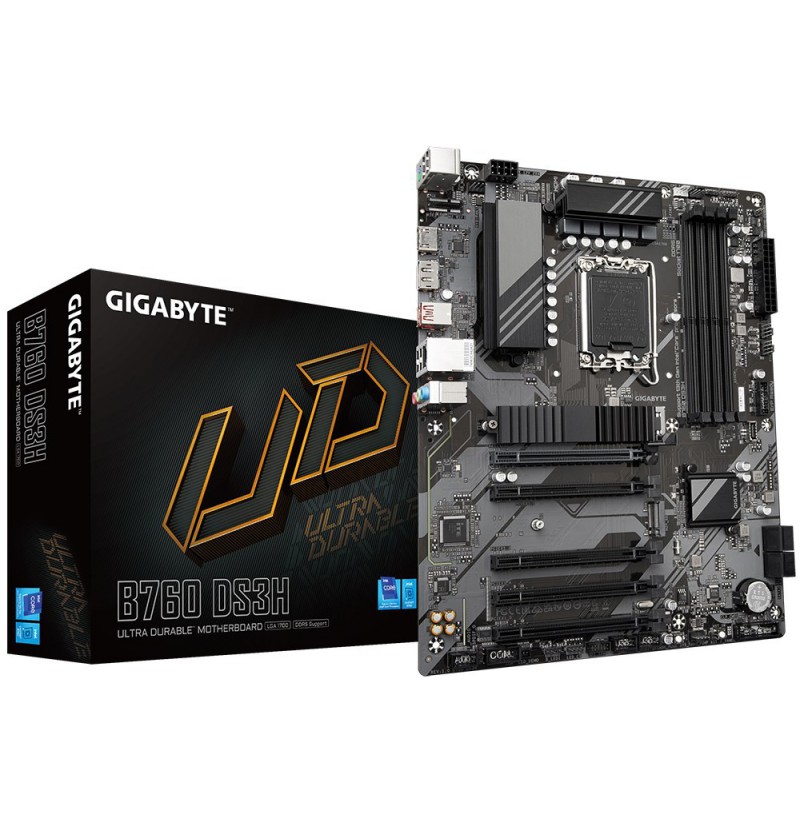

Mainboard Gigabyte B760 DS3H Padidinti

Gigabyte | B760 DS3H 1.0 M

125,60 €

B760 DS3H

4719331853136

Galimas pasirinkimas

 1..4 d.d.


Warranty period: 3 year(s)
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
DirectX version: 12.0
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: ATX
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760 Express
PC health monitoring: Temperature, Voltage, Water cooling, Fan
Product colour: Bronze
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Unbuffered memory: Yes
Supported memory clock speeds: 6800, 7600, 6400, 4000, 4800, 5200 MHz, 5600, 7200, 5800, 5400, 6600, 7000, 6200, 7400, 6000
Maximum internal memory: 256 GB
Supported memory clock speed (max): 7600 MHz
ECC сompatibility: ECC & Non-ECC
Width: 305 mm
Height: 35 mm
Depth: 244 mm
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Total number of SATA connectors: 4
Serial port headers: 1
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Front panel connector: Yes
CPU fan connector: Yes
TPM connector: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
12V power connector: Yes
S/PDIF out connector: Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Package weight: 1.51 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Bundled software: Norton Internet Security
Cables included: SATA
Batteries included: Yes
RAID levels: 5, 1, 10, 0
Number of storage drives supported: 6
RAID support: Yes
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
DisplayPort version: 1.2
HDMI version: 2.0
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB connector type: USB Type-C, USB Type-A
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone outputs: 3
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Number of M.2 (M) slots: 2
PCI Express x16 slots: 5
1st M.2 largest key size: 22110
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply.
